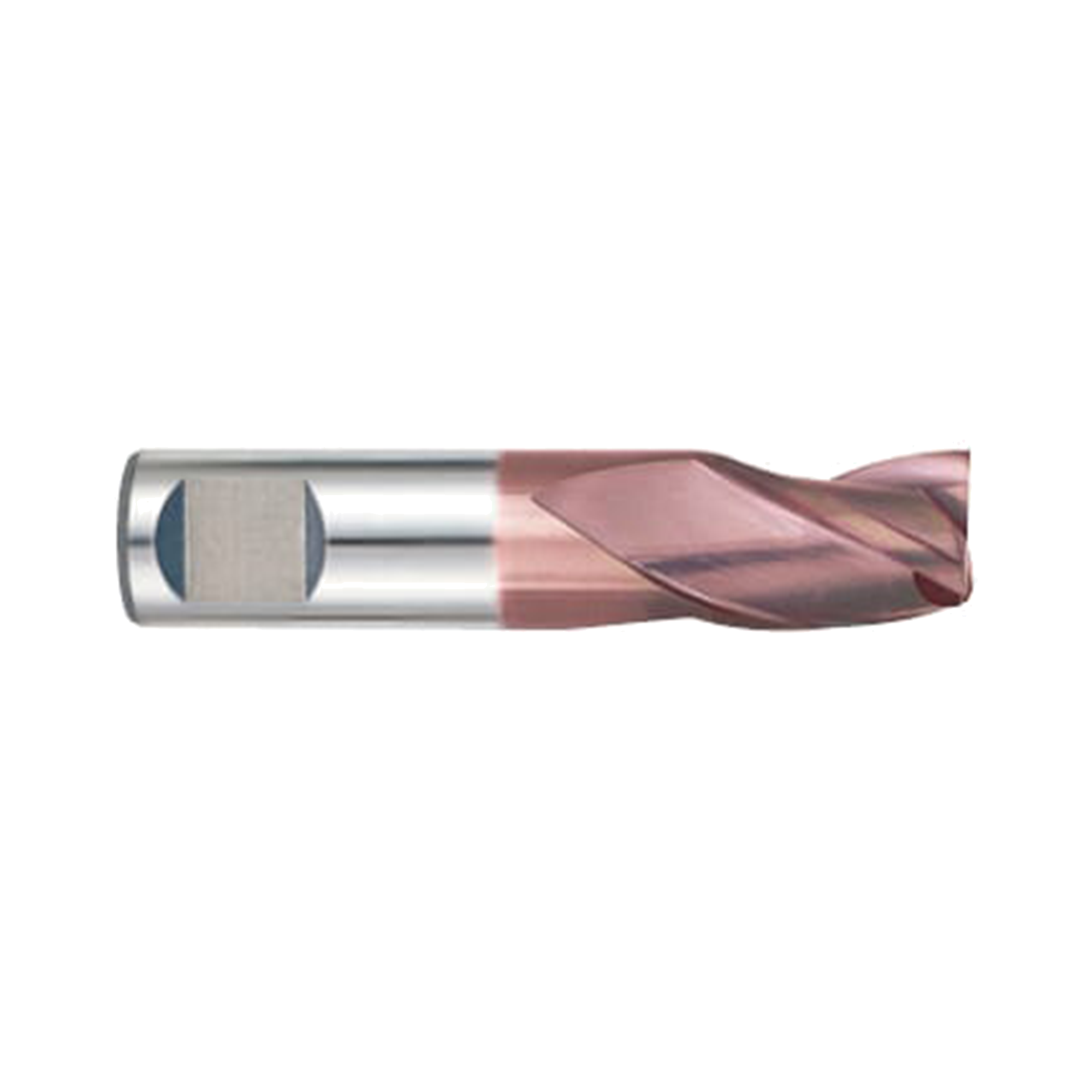

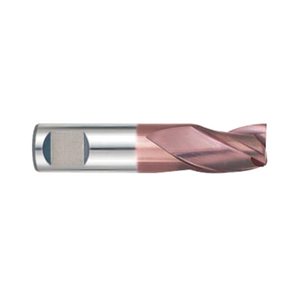

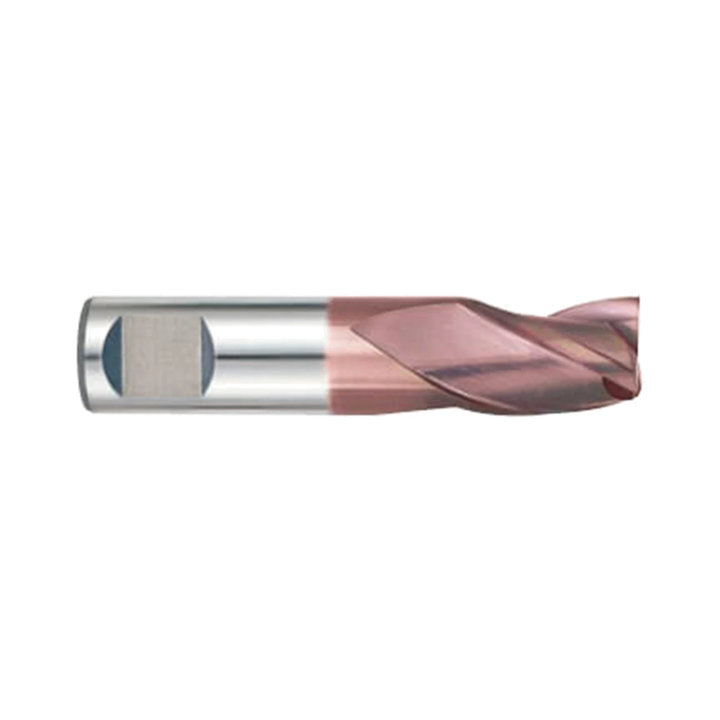

(G9410) K-2 Carbide, 3Flute End Mill, Throw Away
TiAlN-coated three-flute flat-shank end mill
- SKU
- G9410020
Key features
- TiAlN-coated solid-carbide three-flute end mill
- 30° helix for dry milling at high temperatures
- Short-length throw-away design
Made in South Korea
Dry milling capability
The 30° helix is specified for dry milling applications at high temperatures.
Three-flute geometry
Three flutes combine the stated advantages of two-flute and four-flute end mill designs.
Practical metric range
Flat-shank options cover 2 to 20 mm cutter diameters for industrial milling selection.
| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| G9410020 | 2 | 35.0 | 6.0 | 4.0 | 1-2 Weeks | $27.10 | ||
| G9410025 | 2.5 | 36.0 | 6.0 | 5.0 | 1-2 Weeks | $28.20 | ||
| G9410030 | 3 | 36.0 | 6.0 | 5.0 | 1-2 Weeks | $27.10 | ||
| G9410035 | 3.5 | 37.0 | 6.0 | 6.0 | 1-2 Weeks | $26.30 | ||
| G9410040 | 4 | 38.0 | 6.0 | 7.0 | 1-2 Weeks | $27.10 | ||
| G9410045 | 4.5 | 38.0 | 6.0 | 8.0 | 1-2 Weeks | $26.30 | ||
| G9410050 | 5 | 39.0 | 6.0 | 8.0 | 1-2 Weeks | $27.10 | ||
| G9410055 | 5.5 | 39.0 | 6.0 | 8.0 | 1-2 Weeks | $29.40 | ||
| G9410060 | 6 | 39.0 | 6.0 | 8.0 | 1-2 Weeks | $27.10 | ||
| G9410070 | 7 | 42.0 | 8.0 | 10.0 | 1-2 Weeks | $36.90 | ||
| G9410080 | 8 | 43.0 | 8.0 | 11.0 | 1-2 Weeks | $39.40 | ||
| G9410087 | 8.7 | 48.0 | 10.0 | 11.0 | 1-2 Weeks | $61.30 | ||
| G9410090 | 9 | 48.0 | 10.0 | 11.0 | 1-2 Weeks | $56.50 | ||
| G9410097 | 9.7 | 48.0 | 10.0 | 11.0 | 1-2 Weeks | $61.30 | ||
| G9410100 | 10 | 50.0 | 10.0 | 13.0 | 1-2 Weeks | $50.00 | ||
| G9410120 | 12 | 55.0 | 12.0 | 15.0 | 1-2 Weeks | $70.10 | ||
| G9410140 | 14 | 58.0 | 14.0 | 15.0 | 1-2 Weeks | $104.00 | ||
| G9410160 | 16 | 62.0 | 16.0 | 18.0 | 1-2 Weeks | $122.70 | ||
| G9410180 | 18 | 70.0 | 18.0 | 20.0 | 1-2 Weeks | $151.40 | ||
| G9410200 | 20 | 75.0 | 20.0 | 22.0 | 1-2 Weeks | $199.30 |
Add (G9410) K-2 Carbide, 3Flute End Mill, Throw Away to comparison
View Comparison- Overview
- Specifications
- Speeds & Feeds
- Reviews
YG-1 G9410 K-2 is a TiAlN-coated solid-carbide, three-flute short-length throw-away end mill. Its 30° helix supports dry milling applications at high temperatures in industrial machining. The flat-shank G9410 series provides a practical metric solution for demanding milling tasks. Its three-flute geometry combines stated benefits associated with two-flute and four-flute end mill designs.
The selected family covers 2 to 20 mm cutter diameters for compact machining setups. Lengths of cut extend from 4 to 22 mm, with 35 to 75 mm overall lengths. Cutter diameter tolerance is 0 to minus 0.03 mm, while shanks are h5. It is identified as an excellent high-performance end mill for dry milling applications.
- TiAlN-coated solid-carbide three-flute end mill
- 30° helix for dry milling at high temperatures
- Short-length throw-away design
- Flat shank construction
- 2 to 20 mm cutter diameter range
- 0 to minus 0.03 mm cutter diameter tolerance with h5 shank tolerance
