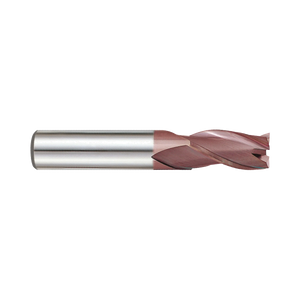

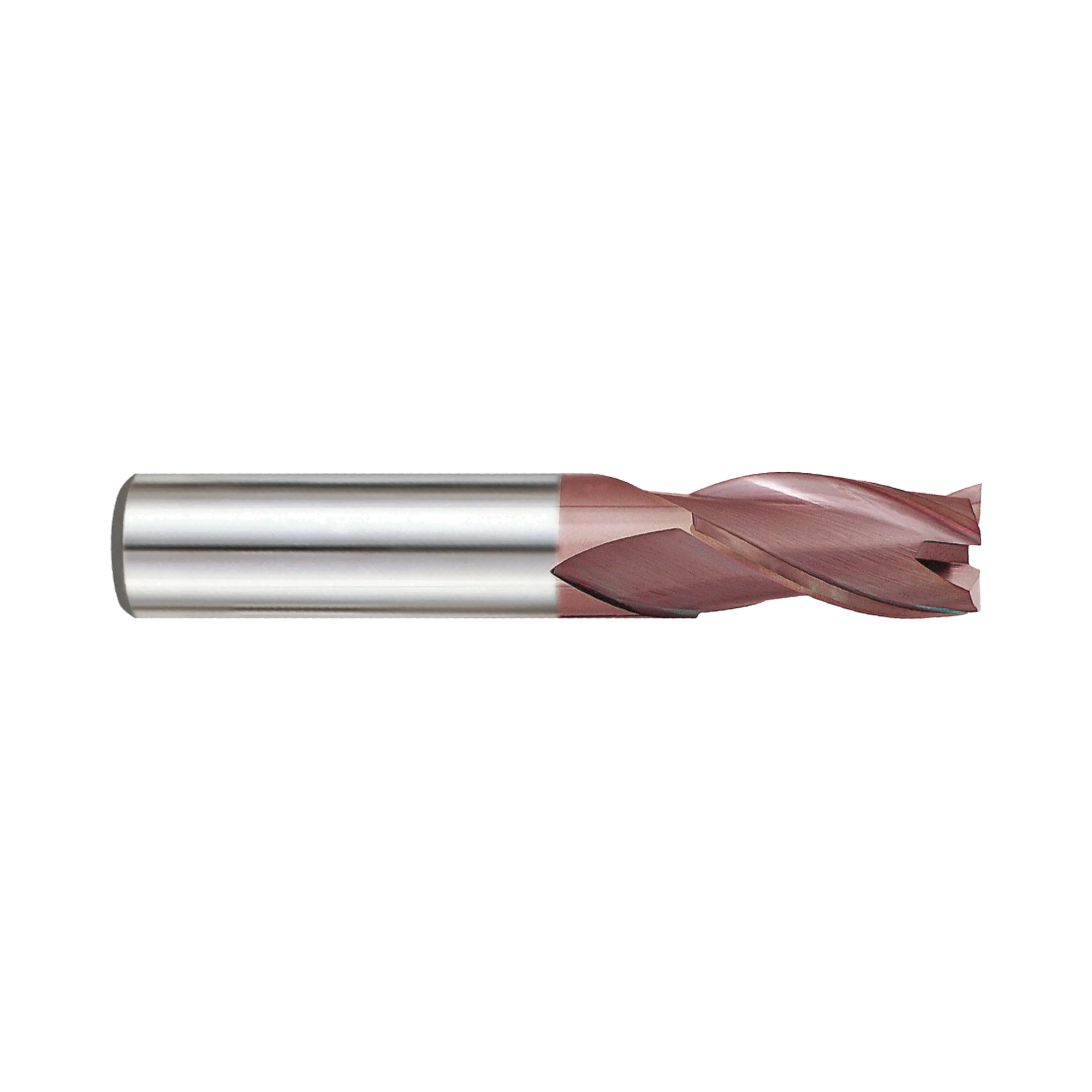

(G9425) K-2 Carbide, 3Flute End Mill, Short Length
TiAlN-coated three-flute carbide end mill
- SKU
- G9425010
Key features
- TiAlN-coated solid carbide construction
- Three-flute design combines two-flute and four-flute advantages
- Suitable for high-temperature dry milling applications
Made in South Korea
Dry milling capability
TiAlN-coated carbide construction is suitable for high-temperature dry milling applications
Balanced flute design
Three flutes combine the stated advantages of two-flute and four-flute end mills
Practical metric coverage
Nineteen diameters span 1.0 to 20.0 mm with overall lengths up to 100 mm

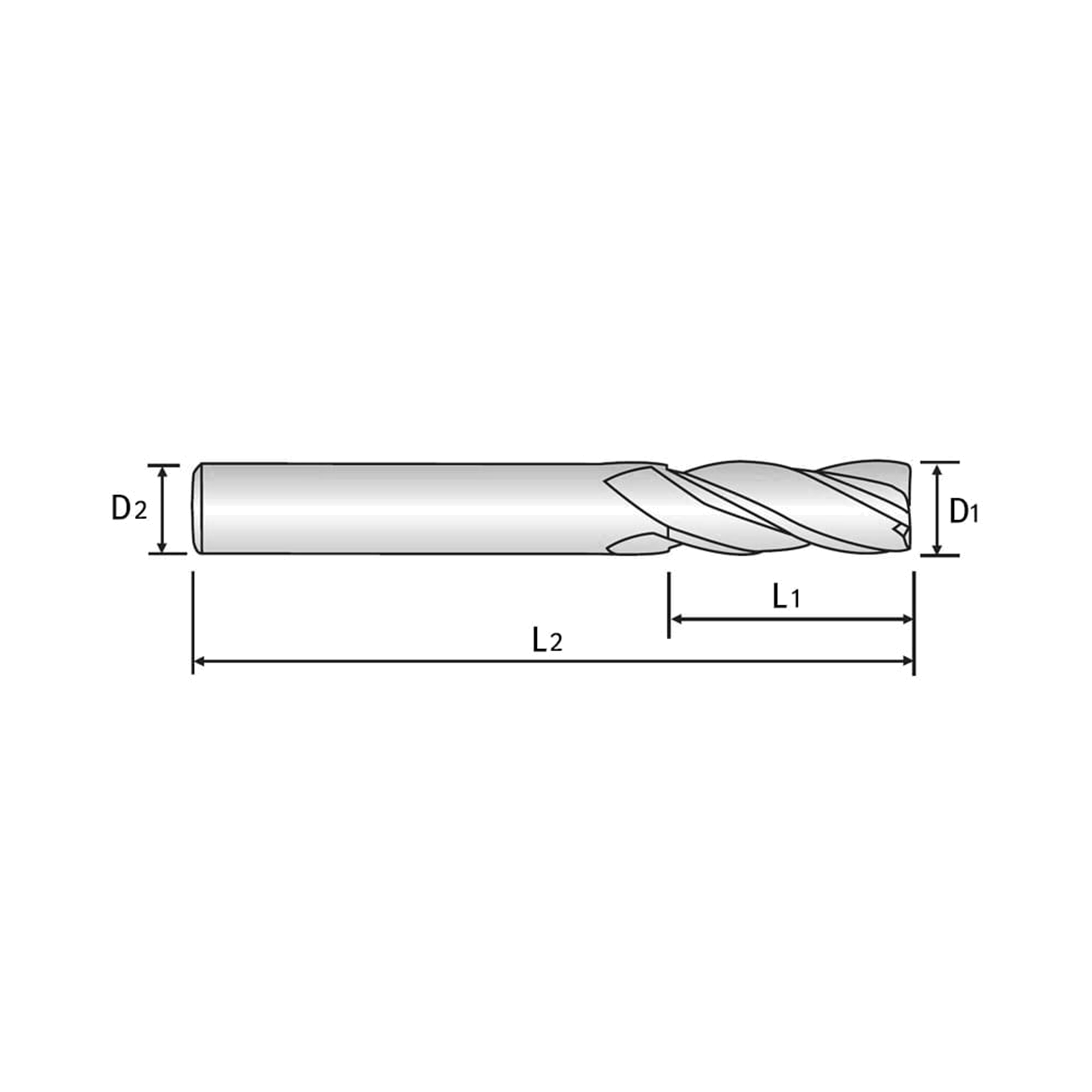

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| G9425010 | 1 | 40.0 | 4.0 | 3.0 | 1-2 Weeks | $26.70 | ||
| G9425015 | 1.5 | 40.0 | 4.0 | 4.5 | 1-2 Weeks | $26.70 | ||
| G9425020 | 2 | 32.0 | 2.0 | 8.0 | Low stock | $18.40 | ||
| G9425025 | 2.5 | 32.0 | 2.5 | 8.0 | 1-2 Weeks | $24.40 | ||
| G9425030 | 3 | 32.0 | 3.0 | 12.0 | In stock | $18.40 | ||
| G9425035 | 3.5 | 32.0 | 3.5 | 12.0 | 1-2 Weeks | $27.30 | ||
| G9425040 | 4 | 40.0 | 4.0 | 12.0 | In stock | $23.10 | ||
| G9425045 | 4.5 | 50.0 | 4.5 | 14.0 | 1-2 Weeks | $28.50 | ||
| G9425050 | 5 | 50.0 | 5.0 | 14.0 | In stock | $27.60 | ||
| G9425055 | 5.5 | 50.0 | 5.5 | 16.0 | 1-2 Weeks | $31.70 | ||
| G9425060 | 6 | 50.0 | 6.0 | 16.0 | In stock | $28.60 | ||
| G9425070 | 7 | 60.0 | 7.0 | 20.0 | 1-2 Weeks | $39.40 | ||
| G9425080 | 8 | 60.0 | 8.0 | 20.0 | In stock | $43.80 | ||
| G9425090 | 9 | 60.0 | 9.0 | 20.0 | 1-2 Weeks | $53.70 | ||
| G9425100 | 10 | 70.0 | 10.0 | 22.0 | In stock | $68.90 | ||
| G9425120 | 12 | 70.0 | 12.0 | 22.0 | In stock | $80.70 | ||
| G9425140 | 14 | 75.0 | 14.0 | 25.0 | 1-2 Weeks | $118.60 | ||
| G9425160 | 16 | 75.0 | 16.0 | 25.0 | Low stock | $145.00 | ||
| G9425200 | 20 | 100.0 | 20.0 | 32.0 | Low stock | $200.90 |
Add (G9425) K-2 Carbide, 3Flute End Mill, Short Length to comparison
View Comparison- Overview
- Specifications
- Speeds & Feeds
- Reviews
YG-1 G9425 K-2 carbide three-flute short-length end mills feature a TiAlN coating for demanding high-temperature dry milling applications. They combine the practical cutting benefits associated with both two-flute and four-flute end-mill designs. Solid carbide construction and the coating support dependable use in dry milling environments. Mill diameters span 1.0 to 20.0 mm, paired with matching plain shank diameters. Short cutting lengths range from 3 to 32 mm, while overall lengths extend to 100 mm. Nineteen listed diameters provide a broad metric size selection within the G9425 series. The series suits machinists seeking a compact three-flute tool for elevated-temperature dry milling.
- TiAlN-coated solid carbide construction
- Three-flute design combines two-flute and four-flute advantages
- Suitable for high-temperature dry milling applications
- Short-length series with plain shanks
- Metric diameters from 1.0 to 20.0 mm
- Overall lengths from 32 to 100 mm
No specifications available.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
