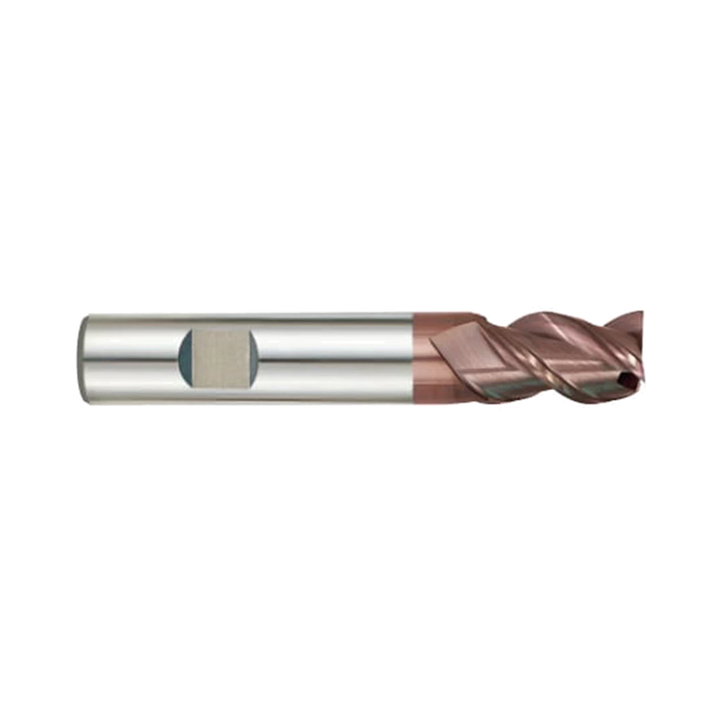

(G9447) K-2 Carbide, 3Flute End Mill, Long Length, Flat Shank (45° Helix)
TiAlN-Coated Solid Carbide Long-Length End Mill
- SKU
- G9447030
Key features
- Solid carbide end mill with TiAlN coating
- Three-flute 45° helix long-length geometry
- Square cutting profile with flat shank
Made in South Korea
Dry milling capability
TiAlN coating supports dry milling applications operating at high temperatures.
Long-length geometry
Three flutes and a 45° helix define the long-length cutting configuration.
Useful size range
Select from 3 to 20 mm cutting diameters for varied milling requirements.

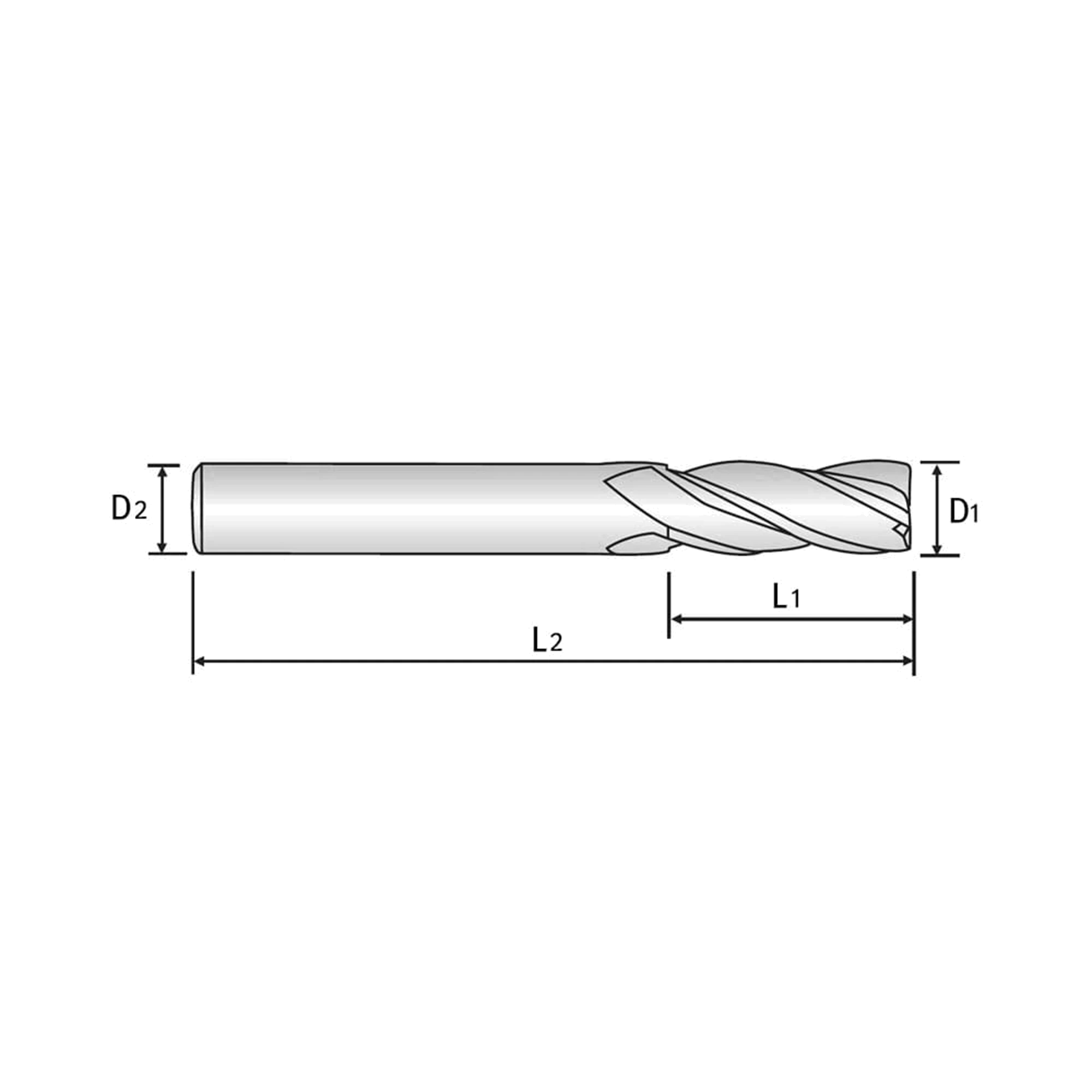

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| G9447030 | 3 | 57.0 | 6.0 | 7.0 | In stock | $22.77 | ||
| G9447035 | 3.5 | 57.0 | 6.0 | 7.0 | 1-2 Weeks | $48.50 | ||
| G9447040 | 4 | 57.0 | 6.0 | 8.0 | 1-2 Weeks | $36.10 | ||
| G9447045 | 4.5 | 57.0 | 6.0 | 8.0 | 1-2 Weeks | $48.50 | ||
| G9447050 | 5 | 57.0 | 6.0 | 10.0 | 1-2 Weeks | $36.10 | ||
| G9447060 | 6 | 57.0 | 6.0 | 10.0 | Low stock | $22.77 | ||
| G9447070 | 7 | 63.0 | 8.0 | 13.0 | 1-2 Weeks | $48.80 | ||
| G9447080 | 8 | 63.0 | 8.0 | 16.0 | Low stock | $30.78 | ||
| G9447090 | 9 | 72.0 | 10.0 | 16.0 | 1-2 Weeks | $78.50 | ||
| G9447100 | 10 | 72.0 | 10.0 | 19.0 | 1-2 Weeks | $78.50 | ||
| G9447120 | 12 | 83.0 | 12.0 | 22.0 | 1-2 Weeks | $105.00 | ||
| G9447140 | 14 | 83.0 | 14.0 | 22.0 | 1-2 Weeks | $124.80 | ||
| G9447160 | 16 | 92.0 | 16.0 | 26.0 | 1-2 Weeks | $175.00 | ||
| G9447180 | 18 | 92.0 | 18.0 | 26.0 | 1-2 Weeks | $211.90 | ||
| G9447200 | 20 | 104.0 | 20.0 | 32.0 | 1-2 Weeks | $249.80 |
Add (G9447) K-2 Carbide, 3Flute End Mill, Long Length, Flat Shank (45° Helix) to comparison
View Comparison- Overview
- Specifications
- Speeds & Feeds
- Reviews
YG-1 K-2 G9447 is a solid carbide three-flute, long-length flat-shank end mill with a 45° helix. TiAlN coating supports dry milling applications where machining generates high temperatures. It provides a square cutting profile for milling carbon, alloy, prehardened and stainless steels. Three flutes and a 45° helix define this long-length milling geometry. The G9447 range covers 3 to 20 mm cutting diameters with h5 shank tolerance. Sizes use 6 to 20 mm shank diameters, while overall lengths extend from 57 to 104 mm. Length of cut spans 7 to 32 mm throughout the specified family. The family retains its three-flute, 45° helix configuration through the available diameter range.
- Solid carbide end mill with TiAlN coating
- Three-flute 45° helix long-length geometry
- Square cutting profile with flat shank
- Suitable for dry milling at high temperatures
- 3 to 20 mm cutting diameter range
- h5 shank tolerance
No specifications available.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
