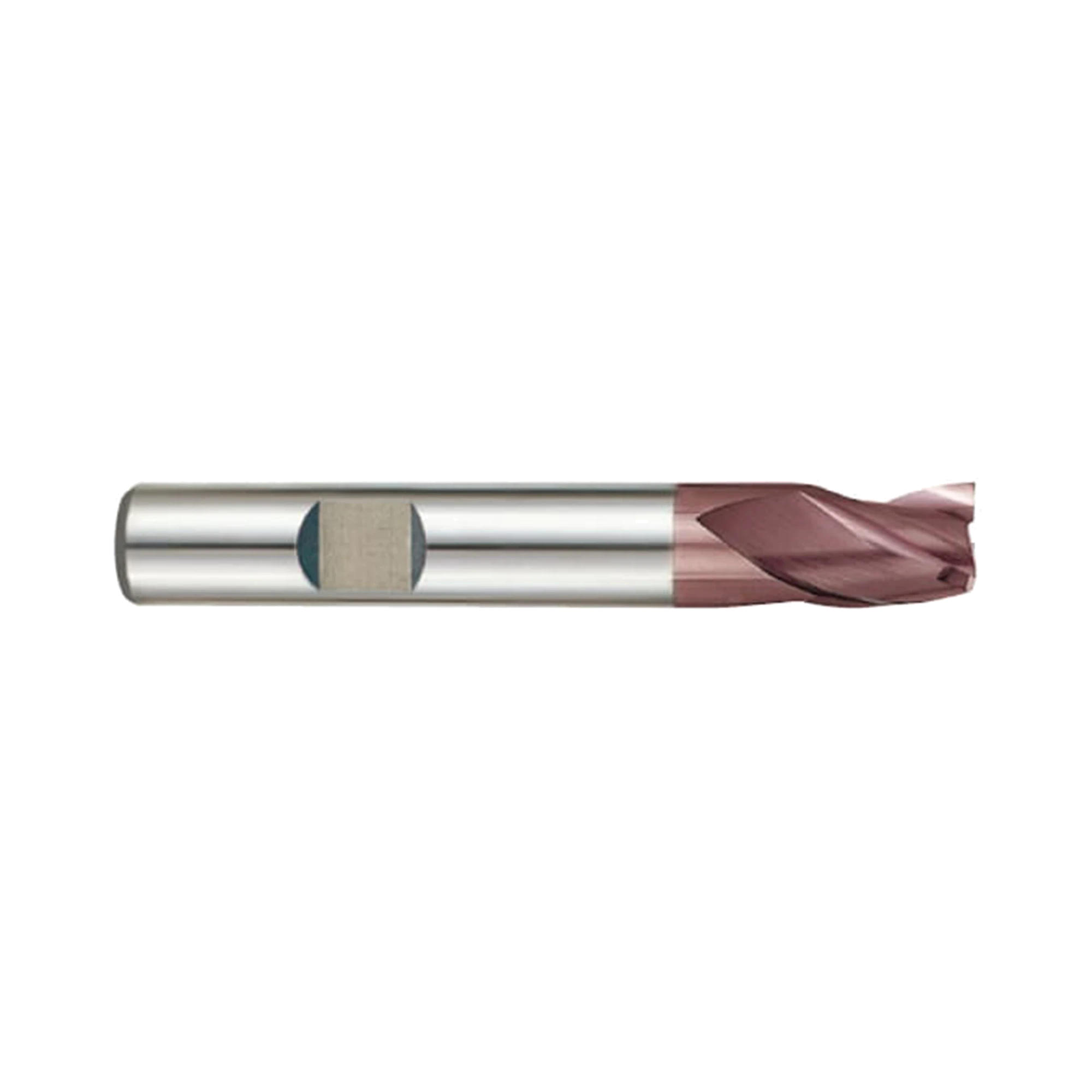

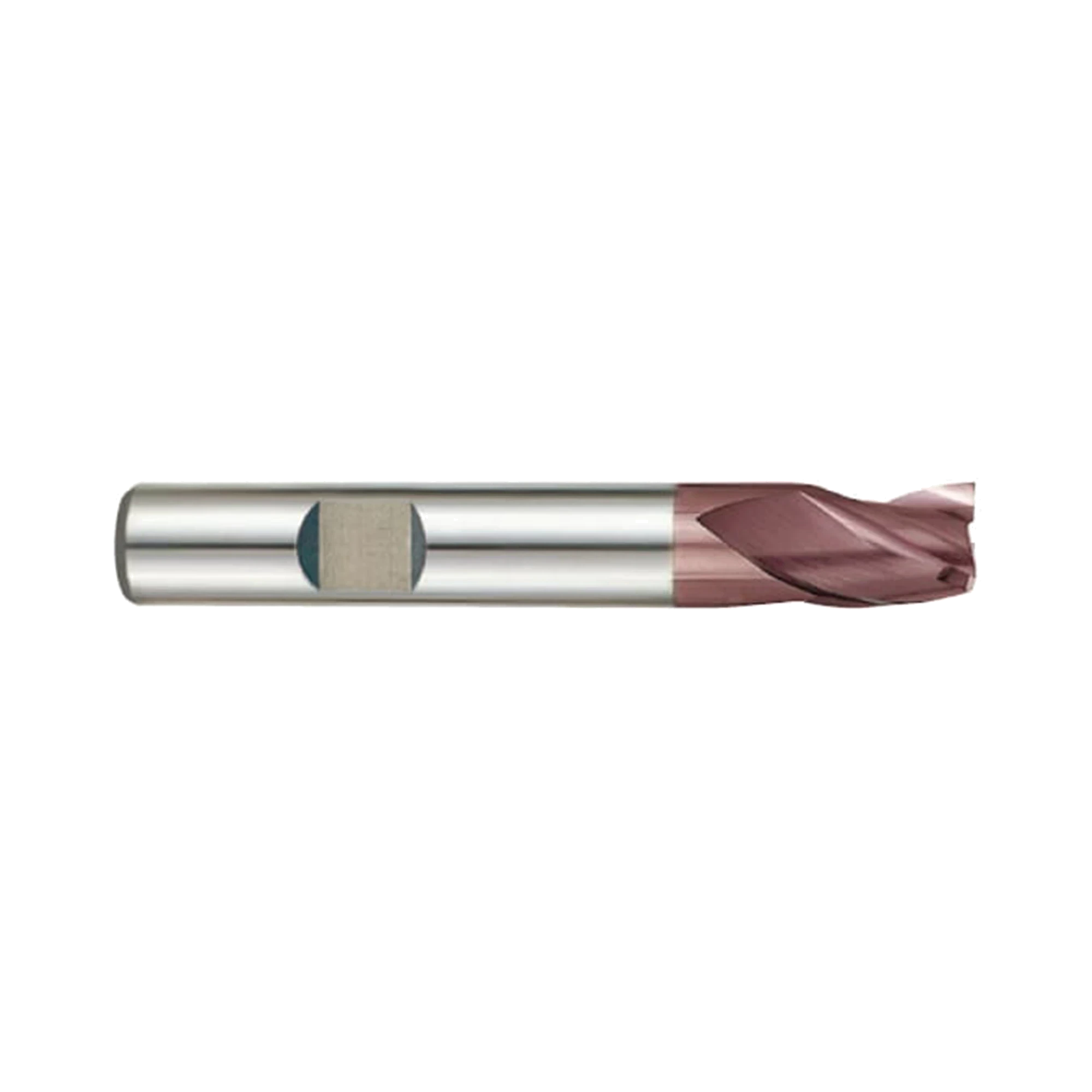

(G9433) K-2 Carbide, 3Flute End Mill, Long Length, Flat Shank

Name: (G9433) K-2 Carbide, 3Flute End Mill, Long Length, Flat Shank
Brand: Excision Pty Ltd
SKU: G9433030
Price: 31.60 AUD
Availability: InStock

TiAlN-Coated Three-Flute Long-Length End Mill

$34.76 INC GST $31.60 EX GST Price available on request

SKU: G9433030

Key features

TiAlN-coated solid carbide construction
Three-flute long-length design with chamfer
Suitable for dry milling at high temperatures

Mill Diameter (mm)

Loading stock…

Made in South Korea

Free standard delivery on orders over $500.

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Ready for dry milling

TiAlN coating supports dry milling applications at high temperatures

Long-length reach

Extended size range supports reach requirements from 3 to 20 mm diameters

Balanced flute geometry

Three flutes combine documented advantages of two-flute and four-flute end mill designs

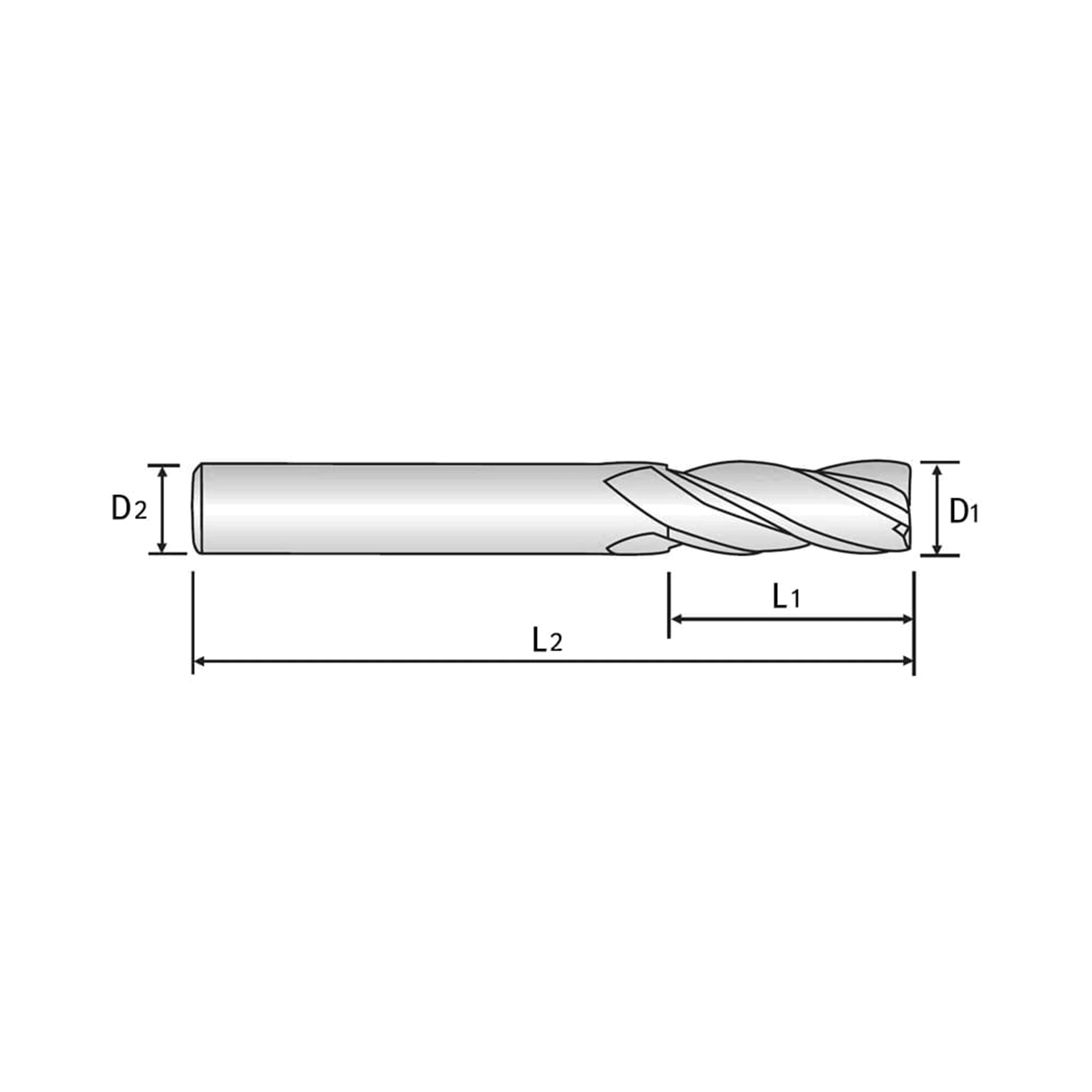

SKU	Mill Diameter (mm)	Overall length (mm)	Shank dia. (mm)	Length of cut (mm)	Stock	Price
G9433030	3	57.0	6.0	7.0	Low stock	$31.60
G9433040	4	57.0	6.0	8.0	1-2 Weeks	$40.60
G9433050	5	57.0	6.0	10.0	1-2 Weeks	$40.60
G9433060	6	57.0	6.0	10.0	1-2 Weeks	$40.60
G9433080	8	63.0	8.0	16.0	1-2 Weeks	$51.00
G9433090	9	72.0	10.0	16.0	1-2 Weeks	$31.60
G9433100	10	72.0	10.0	19.0	1-2 Weeks	$77.90
G9433120	12	83.0	12.0	22.0	1-2 Weeks	$114.00
G9433140	14	83.0	14.0	22.0	1-2 Weeks	$145.20
G9433160	16	92.0	16.0	26.0	1-2 Weeks	$192.00
G9433180	18	92.0	18.0	26.0	1-2 Weeks	$251.30
G9433200	20	104.0	20.0	32.0	1-2 Weeks	$214.50

Add (G9433) K-2 Carbide, 3Flute End Mill, Long Length, Flat Shank to comparison

View Comparison

Overview
Specifications
Speeds & Feeds
Reviews

Application

Product Description

YG-1 G9433 K-2 is a TiAlN-coated solid carbide three-flute, long-length flat-shank end mill. Designed for dry milling at high temperatures, this chamfered cutter supports extended-reach machining. Three-flute geometry combines the documented advantages of two-flute and four-flute end mill designs. Available diameters range from 3 to 20 mm, covering cutting lengths from 7 to 32 mm. Overall lengths span 57 to 104 mm throughout the G9433 family. Mill diameter tolerance is 0 to minus 0.03 mm, with h5 shank tolerance. High-performance construction makes it suitable for demanding dry milling operations. The flat shank configuration is offered throughout the listed G9433 size range.

TiAlN-coated solid carbide construction
Three-flute long-length design with chamfer
Suitable for dry milling at high temperatures
3 to 20 mm cutter diameter range
7 to 32 mm cutting length range
0 to minus 0.03 mm mill diameter tolerance

Product Data

No specifications available.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

ISO	VDI 3323	Material Description	Ae	Ap	Parameter	Diameter (Ø)
ISO	VDI 3323	Material Description	Ae	Ap	Parameter	1.0	1.5	2.0	3.0	4.0	5.0	6.0	8.0	10.0	12.0	14.0	16.0	20.0
P	1-4	Non-Alloy Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
	5		0.1D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55	55	60	65
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037	0.037	0.038	0.037
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459	1251	1194	875
					FEED	57	89	115	129	227	229	271	249	200	162	139	136	97
	6-7	Low-Alloy Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
	8-9		0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
	10	High-Alloyed Steel, and Tool Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
	11.1-11.2		0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
M	14.1	Stainless steel	0.1D	1.0D	Vc	25	35	35	35	40	40	45	45	45	45	45	45	45
					fz	0.002	0.004	0.006	0.009	0.018	0.024	0.03	0.042	0.045	0.045	0.044	0.048	0.048
					RPM	7958	7427	5570	3714	3183	2546	2387	1790	1432	1194	1023	895	716
					FEED	48	89	100	100	172	183	215	226	193	161	135	129	103
K	15-20	Grey cast iron Nodular cast iron Malleable cast iron	0.1D	1.5D	Vc	60	55	60	55	60	55	55	55	60	55	55	55	55
					fz	0.008	0.013	0.017	0.026	0.035	0.044	0.064	0.093	0.115	0.154	0.181	0.22	0.285
					RPM	19099	11671	9549	5836	4775	3501	2918	2188	1910	1459	1251	1094	875
					FEED	458	455	487	455	501	462	560	611	659	674	679	722	748
N	21~22	Aluminum-wrought alloy	0.1D	1.5D	Vc	140	130	140	145	140	145	145	145	145	140	145	145	140
					fz	0.006	0.01	0.016	0.021	0.031	0.037	0.048	0.064	0.08	0.098	0.111	0.129	0.167
					RPM	44563	27587	22282	15385	11141	9231	7692	5769	4615	3714	3297	2885	2228
					FEED	802	828	1070	969	1036	1025	1108	1108	1108	1092	1098	1116	1116
	23~25	Aluminum-cast,alloyed	0.1D	1.5D	Vc	140	130	140	145	140	145	145	145	145	140	145	145	140
					fz	0.006	0.01	0.016	0.021	0.031	0.037	0.048	0.064	0.08	0.098	0.111	0.129	0.167
					RPM	44563	27587	22282	15385	11141	9231	7692	5769	4615	3714	3297	2885	2228
					FEED	802	828	1070	969	1036	1025	1108	1108	1108	1092	1098	1116	1116
	26-28	Copper Alloys (Bronze / Brass)	0.1D	1.5D	Vc	80	95	105	105	110	105	105	110	105	105	105	110	105
					fz	0.006	0.011	0.016	0.023	0.029	0.037	0.048	0.063	0.081	0.096	0.115	0.125	0.162
					RPM	25465	20160	16711	11141	8754	6685	5570	4377	3342	2785	2387	2188	1671
					FEED	458	665	802	769	762	742	802	827	812	802	824	821	812
	29.1	Non Metallic Materials	1.0D	1.5D	Vc	80	95	105	105	110	105	105	110	105	105	105	110	105
					fz	0.006	0.011	0.016	0.023	0.029	0.037	0.048	0.063	0.081	0.096	0.115	0.125	0.162
					RPM	25465	20160	16711	11141	8754	6685	5570	4377	3342	2785	2387	2188	1671
					FEED	458	665	802	769	762	742	802	827	812	802	824	821	812
H	40	Chilled Cast Iron	0.1D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55	55	60	65
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037	0.037	0.038	0.037
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459	1251	1194	875
					FEED	57	89	115	129	227	229	271	249	200	162	139	136	97

Recommended parameters

Recommended cutting speeds and feeds
Parameter	Value	Unit
Spindle speed	–	rev/min
Feed rate	–	mm/min
Cutting speed (Vc)	–	m/min
Feed per tooth (Fz)	–	mm/tooth

Choose your options and calculate the recommended parameters.
