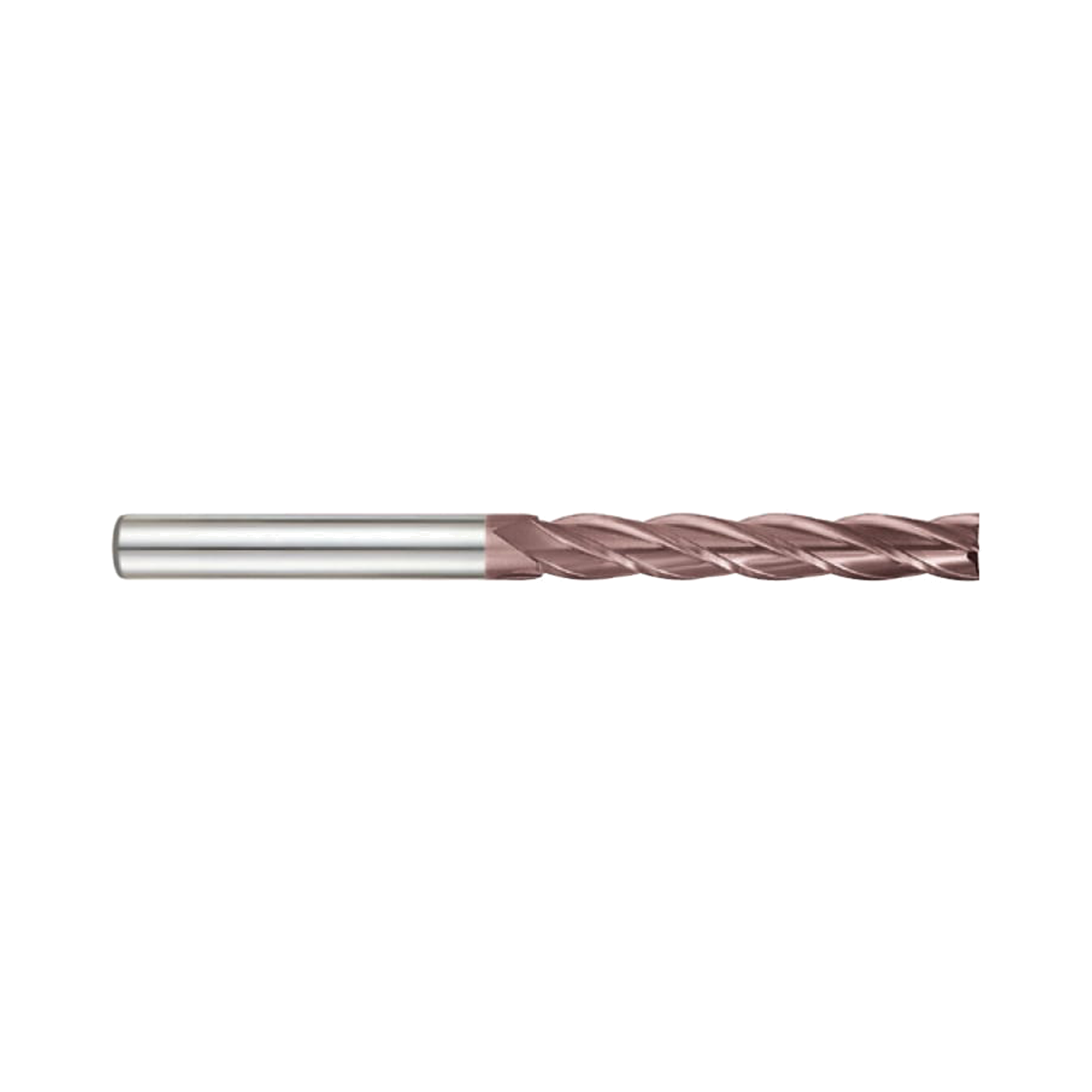

(G9453) K-2 Carbide, 4Flute End Mill, Extra Long Length
TiAlN-Coated Carbide Four-Flute Extra-Long End Mill
- SKU
- G9453030
Key features
- TiAlN coating suitable for high-temperature dry milling
- Four flutes for better workpiece finishes
- Carbide extra-long end mill design
Made in South Korea
Dry milling capability
TiAlN coating is specified for dry milling at high temperatures.
Improved workpiece finishes
The four-flute design is specified to provide better workpiece finishes.
Long-reach size selection
Selected variants combine 3 to 20 mm diameters with long cutting lengths.

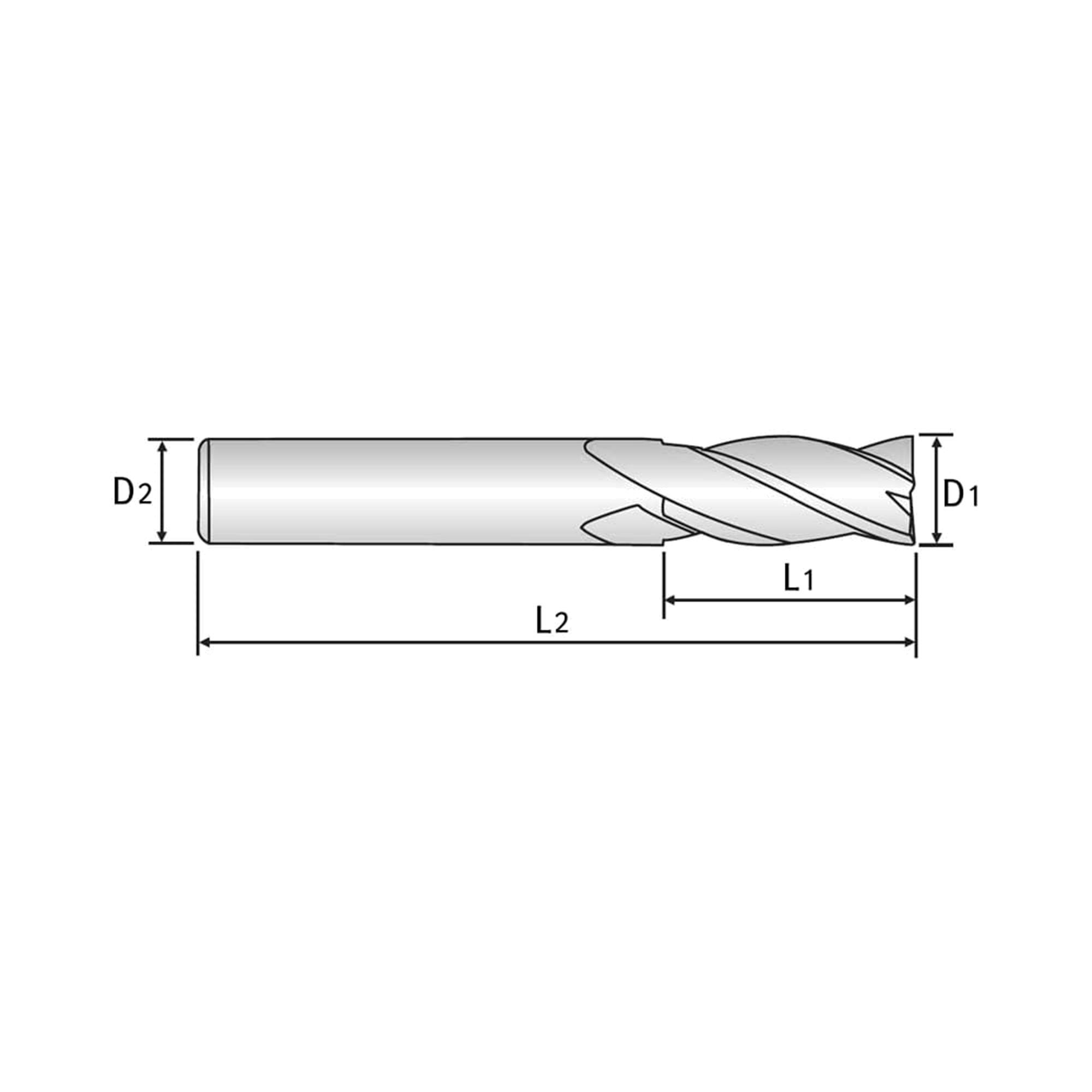

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| G9453030 | 3 | 75.0 | 3.0 | 30.0 | 1-2 Weeks | $51.10 | ||
| G9453040 | 4 | 75.0 | 4.0 | 30.0 | In stock | $54.00 | ||
| G9453050 | 5 | 100.0 | 5.0 | 40.0 | In stock | $84.20 | ||
| G9453060 | 6 | 150.0 | 6.0 | 50.0 | Low stock | $111.10 | ||
| G9453080 | 8 | 150.0 | 8.0 | 50.0 | Low stock | $142.40 | ||
| G9453100 | 10 | 150.0 | 10.0 | 60.0 | Restocking est 10 Sep 2026 | $172.00 | ||
| G9453120 | 12 | 150.0 | 12.0 | 75.0 | 1-2 Weeks | $250.00 | ||
| G9453140 | 14 | 150.0 | 14.0 | 65.0 | 1-2 Weeks | $312.10 | ||
| G9453160 | 16 | 150.0 | 16.0 | 65.0 | 1-2 Weeks | $353.30 | ||
| G9453918 | 18 | 100.0 | 18.0 | 45.0 | Low stock | $221.60 | ||
| G9453200 | 20 | 150.0 | 20.0 | 65.0 | 1-2 Weeks | $445.40 |
Add (G9453) K-2 Carbide, 4Flute End Mill, Extra Long Length to comparison
View Comparison- Overview
- Specifications
- Speeds & Feeds
- Reviews
YG-1 G9453 K-2 is a TiAlN-coated carbide four-flute extra-long end mill for high-temperature dry milling. Designed for ISO P, M and K materials, it provides long-reach milling capability in suitable applications. The four-flute geometry is specified to improve workpiece finish quality during milling operations. Plain-shank variants cover 3 to 20 mm cutter diameters for practical machining selection. Lengths of cut span 30 to 75 mm, with overall lengths from 75 to 150 mm. Matching-diameter shanks have h5 tolerance, while mill diameter tolerance is 0 to minus 0.03 mm. These high-performance end mills are suitable for dry milling applications at elevated temperatures.
- TiAlN coating suitable for high-temperature dry milling
- Four flutes for better workpiece finishes
- Carbide extra-long end mill design
- Suitable for ISO P ISO M and ISO K materials
- 3 to 20 mm cutter diameter range
- Matching-diameter plain shanks with h5 tolerance
No specifications available.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
