(G9B84) K-2 Carbide, 4Flute Corner Radius End Mill, Short Length

Name: (G9B84) K-2 Carbide, 4Flute Corner Radius End Mill, Short Length
Brand: Excision Pty Ltd
SKU: G9B84020
Price: 37.50 AUD
Availability: InStock

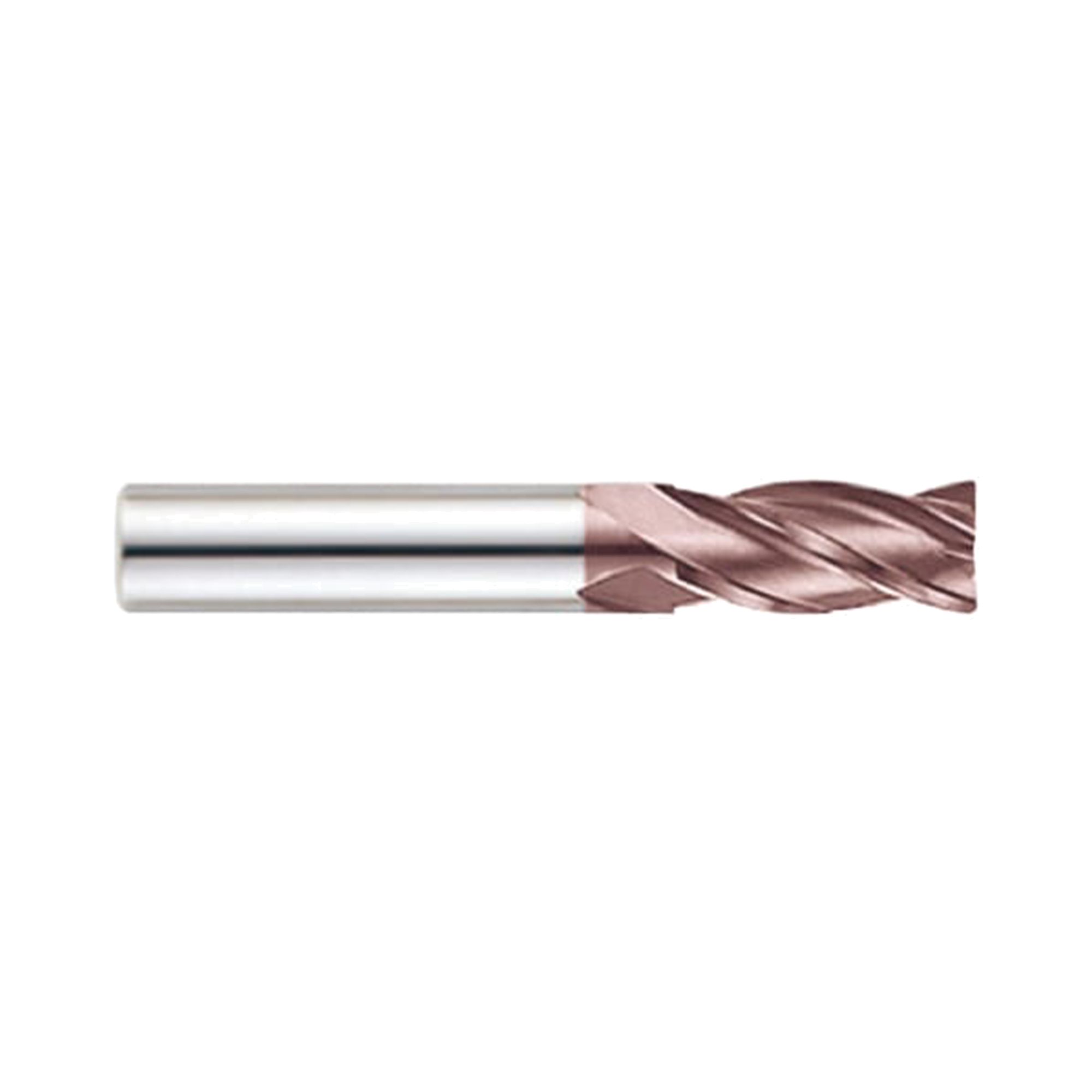

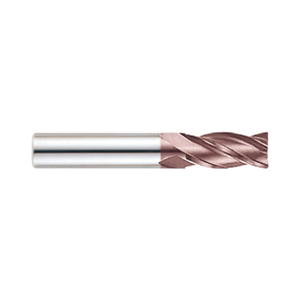

K2 coated carbide corner radius end mills

$41.25 INC GST $37.50 EX GST Price available on request

SKU: G9B84020

Key features

K2 coated carbide construction with high heat and wear resistance
Four-flute corner radius geometry for general milling
Corner radius reduces cutting forces and supports tool life

Mill Diameter (mm)

Corner Radius (mm)

Loading stock…

Made in South Korea

Free standard delivery on orders over $500.

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Reduced cutting forces

Corner radius geometry supports smoother engagement and reduced cutting forces.

General milling capability

Suitable for general milling of steel, stainless steel, cast iron and non-ferrous materials.

Compact size range

Short-length cutters cover 2 to 12 mm diameters and R0.2 to R2.5 radii.

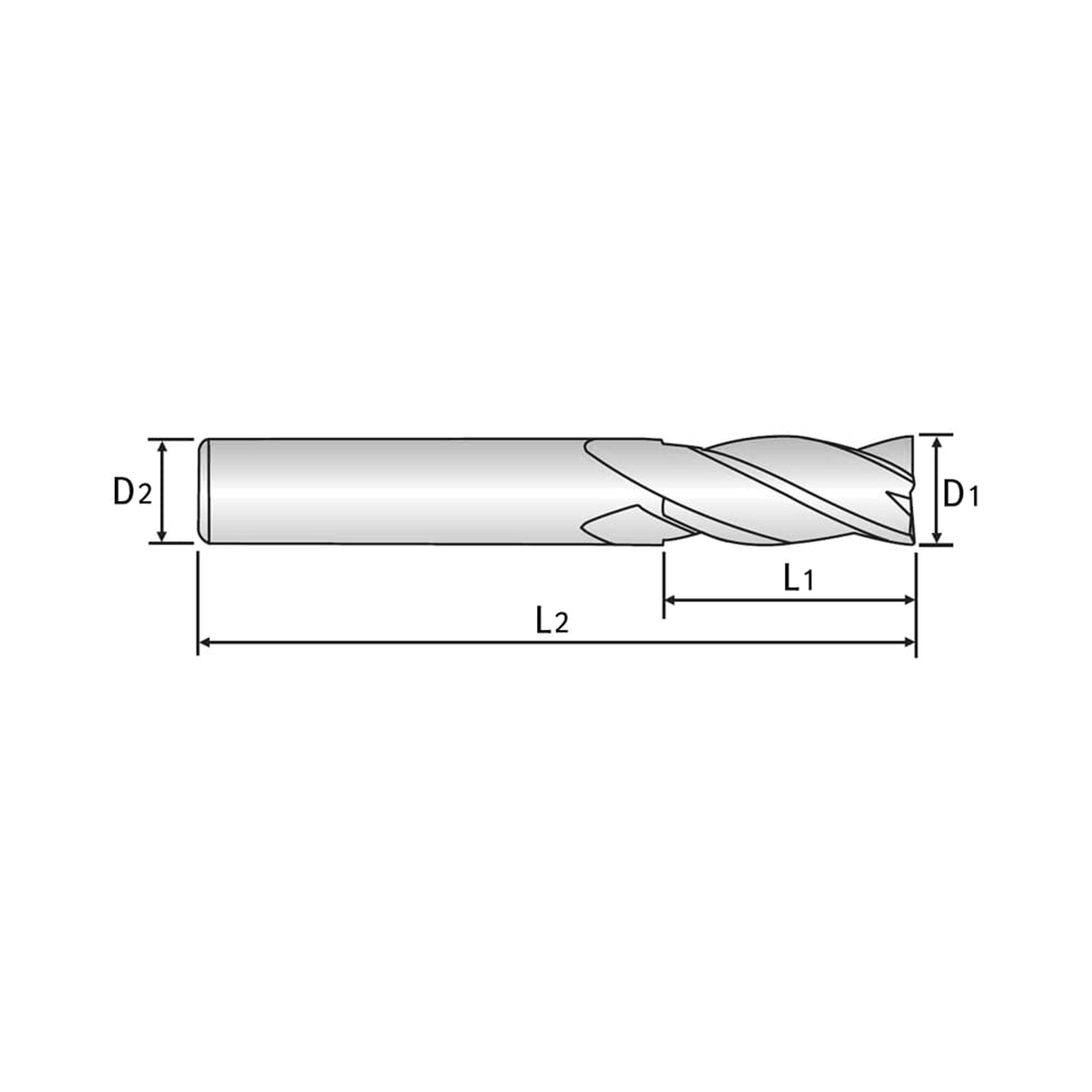

SKU	Mill Diameter (mm)	Corner Radius (mm)	Overall length (mm)	Shank dia. (mm)	Length of cut (mm)	Stock	Price
G9B84020	2	R0.2	50.0	4.0	4.0	Low stock	$37.50
G9B84901	2	R0.3	50.0	4.0	4.0	1-2 Weeks	$37.50
G9B84902	2	R0.5	50.0	4.0	4.0	1-2 Weeks	$37.50
G9B84904	2.5	R0.5	50.0	4.0	5.0	Low stock	$37.50
G9B84030	3	R0.2	50.0	4.0	6.0	Low stock	$37.50
G9B84906	3	R0.5	50.0	4.0	6.0	In stock	$37.50
G9B84907	3	R1.0	50.0	4.0	6.0	1-2 Weeks	$37.50
G9B84040	4	R0.2	50.0	4.0	8.0	1-2 Weeks	$37.50
G9B84908	4	R0.3	50.0	4.0	8.0	1-2 Weeks	$37.50
G9B84910	4	R1.0	50.0	4.0	8.0	Low stock	$37.50
G9B84050	5	R0.2	50.0	6.0	10.0	1-2 Weeks	$40.80
G9B84911	5	R0.3	50.0	6.0	10.0	1-2 Weeks	$40.80
G9B84912	5	R0.5	50.0	6.0	10.0	In stock	$40.80
G9B84913	5	R1.0	50.0	6.0	10.0	Low stock	$40.80
G9B84060	6	R0.2	50.0	6.0	12.0	In stock	$40.80
G9B84914	6	R0.3	50.0	6.0	12.0	1-2 Weeks	$40.80
G9B84915	6	R0.5	50.0	6.0	12.0	In stock	$40.80
G9B84916	6	R1.0	50.0	6.0	12.0	In stock	$40.80
G9B84080	8	R0.5	60.0	8.0	16.0	In stock	$61.60
G9B84917	8	R1.0	60.0	8.0	16.0	Low stock	$58.70
G9B84918	8	R1.5	60.0	8.0	16.0	In stock	$61.10
G9B84919	8	R2.0	60.0	8.0	16.0	1-2 Weeks	$61.10
G9B84920	8	R2.5	60.0	8.0	20.0	1-2 Weeks	$61.10
G9B84100	10	R0.5	75.0	10.0	20.0	In stock	$88.80
G9B84921	10	R1.0	75.0	10.0	20.0	In stock	$88.80
G9B84922	10	R1.5	75.0	10.0	20.0	In stock	$92.30
G9B84923	10	R2.0	75.0	10.0	20.0	Low stock	$92.30
G9B84924	10	R2.5	75.0	10.0	24.0	1-2 Weeks	$92.30
G9B84120	12	R0.5	75.0	12.0	24.0	In stock	$122.90
G9B84925	12	R1.0	75.0	12.0	24.0	In stock	$122.90
G9B84926	12	R1.5	75.0	12.0	24.0	Low stock	$127.70
G9B84927	12	R2.0	75.0	12.0	24.0	In stock	$127.70
G9B84928	12	R2.5	75.0	12.0	6.0	Low stock	$127.70

Add (G9B84) K-2 Carbide, 4Flute Corner Radius End Mill, Short Length to comparison

View Comparison

Overview
Specifications
Speeds & Feeds
Reviews

Application

Product Description

YG-1 G9B84 is a K2 coated carbide, four-flute corner radius end mill for general milling. Its short-length geometry and corner radius support controlled machining while reducing cutting forces. The K2 coating provides high heat and wear resistance for dependable cutting tool life. This carbide corner radius end mill suits general milling of steel, stainless steel, cast iron and non-ferrous materials.

The G9B84 range covers 2 to 12 mm cutter diameters with corner radii from R0.2 to R2.5. Four flutes provide a practical configuration for facing, side milling and helical interpolation. Select the required diameter and corner radius for die sinking, slotting and small-part machining applications.

K2 coated carbide construction with high heat and wear resistance
Four-flute corner radius geometry for general milling
Corner radius reduces cutting forces and supports tool life
Suitable for steel stainless steel cast iron and non-ferrous materials
Short-length range from 2 to 12 mm diameters
Corner radius options from R0.2 to R2.5

Product Data

No specifications available.

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9B84020 2 4 4 50 0~-0.030 h5 4 G9B84020 2 4 4 50 0~-0.030 h5 4 G9B84025 2.5 4 5 50 0~-0.030 h5 4 G9B84025 2.5 4 5 50 0~-0.030 h5 4 G9B84030 3 4 6 50 0~-0.030 h5 4 G9B84030 3 4 6 50 0~-0.030 h5 4 G9B84040 4 4 8 50 0~-0.030 h5 4 G9B84040 4 4 8 50 0~-0.030 h5 4 G9B84050 5 6 10 50 0~-0.030 h5 4 G9B84050 5 6 10 50 0~-0.030 h5 4 G9B84060 6 6 12 50 0~-0.030 h5 4 G9B84060 6 6 12 50 0~-0.030 h5 4 G9B84080 8 8 16 60 0~-0.030 h5 4 G9B84080 8 8 16 60 0~-0.030 h5 4 G9B84100 10 10 20 75 0~-0.030 h5 4 G9B84100 10 10 20 75 0~-0.030 h5 4 G9B84120 12 12 24 75 0~-0.030 h5 4 G9B84120 12 12 24 75 0~-0.030 h5 4 G9B84901 2 4 4 50 0~-0.030 h5 4 G9B84901 2 4 4 50 0~-0.030 h5 4 G9B84902 2 4 4 50 0~-0.030 h5 4 G9B84902 2 4 4 50 0~-0.030 h5 4 G9B84903 2.5 4 5 50 0~-0.030 h5 4 G9B84903 2.5 4 5 50 0~-0.030 h5 4 G9B84904 2.5 4 5 50 0~-0.030 h5 4 G9B84904 2.5 4 5 50 0~-0.030 h5 4 G9B84905 3 4 6 50 0~-0.030 h5 4 G9B84905 3 4 6 50 0~-0.030 h5 4 G9B84906 3 4 6 50 0~-0.030 h5 4 G9B84906 3 4 6 50 0~-0.030 h5 4 G9B84908 4 4 8 50 0~-0.030 h5 4 G9B84908 4 4 8 50 0~-0.030 h5 4 G9B84909 4 4 8 50 0~-0.030 h5 4 G9B84909 4 4 8 50 0~-0.030 h5 4 G9B84910 4 4 8 50 0~-0.030 h5 4 G9B84910 4 4 8 50 0~-0.030 h5 4 G9B84911 5 6 10 50 0~-0.030 h5 4 G9B84911 5 6 10 50 0~-0.030 h5 4 G9B84912 5 6 10 50 0~-0.030 h5 4 G9B84912 5 6 10 50 0~-0.030 h5 4 G9B84913 5 6 10 50 0~-0.030 h5 4 G9B84913 5 6 10 50 0~-0.030 h5 4 G9B84914 6 6 12 50 0~-0.030 h5 4 G9B84914 6 6 12 50 0~-0.030 h5 4 G9B84915 6 6 12 50 0~-0.030 h5 4 G9B84915 6 6 12 50 0~-0.030 h5 4 G9B84916 6 6 12 50 0~-0.030 h5 4 G9B84916 6 6 12 50 0~-0.030 h5 4 G9B84917 8 8 16 60 0~-0.030 h5 4 G9B84917 8 8 16 60 0~-0.030 h5 4 G9B84918 8 8 16 60 0~-0.030 h5 4 G9B84918 8 8 16 60 0~-0.030 h5 4 G9B84919 8 8 16 60 0~-0.030 h5 4 G9B84919 8 8 16 60 0~-0.030 h5 4 G9B84920 8 8 16 60 0~-0.030 h5 4 G9B84920 8 8 16 60 0~-0.030 h5 4 G9B84921 10 10 20 75 0~-0.030 h5 4 G9B84921 10 10 20 75 0~-0.030 h5 4 G9B84922 10 10 20 75 0~-0.030 h5 4 G9B84922 10 10 20 75 0~-0.030 h5 4 G9B84923 10 10 20 75 0~-0.030 h5 4 G9B84923 10 10 20 75 0~-0.030 h5 4 G9B84924 10 10 20 75 0~-0.030 h5 4 G9B84924 10 10 20 75 0~-0.030 h5 4 G9B84925 12 12 24 75 0~-0.030 h5 4 G9B84925 12 12 24 75 0~-0.030 h5 4 G9B84926 12 12 24 75 0~-0.030 h5 4 G9B84926 12 12 24 75 0~-0.030 h5 4 G9B84927 12 12 24 75 0~-0.030 h5 4 G9B84927 12 12 24 75 0~-0.030 h5 4 G9B84928 12 12 24 75 0~-0.030 h5 4 G9B84928 12 12 24 75 0~-0.030 h5 4

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

ISO	VDI 3323	Material Description	Ae	Ap	Parameter	Diameter (Ø)
ISO	VDI 3323	Material Description	Ae	Ap	Parameter	1.0	1.5	2.0	3.0	4.0	5.0	6.0	8.0	10.0	12.0
P	1-4	Non-Alloy Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90
					fz	0.002	0.005	0.006/td>	0.009	0.019	0.024	0.029	0.043	0.047	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387
					FEED	140	233	229	267	484	519	554	616	509	449
	5		0.1D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459
					FEED	76	119	153	172	302	306	362	333	266	216
	6-7	Low-Alloy Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90
					fz	0.002	0.005	0.006/td>	0.009	0.019	0.024	0.029	0.043	0.047	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387
					FEED	140	233	229	267	484	519	554	616	509	449
	8-9		0.1D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459
					FEED	76	119	153	172	302	306	362	333	266	216
	10	High-Alloyed Steel, and Tool Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90
					fz	0.002	0.005	0.006/td>	0.009	0.019	0.024	0.029	0.043	0.047	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387
					FEED	140	233	229	267	484	519	554	616	509	449
	11.1-11.2		0.1D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459
					FEED	76	119	153	172	302	306	362	333	266	216
M	14.1	Stainless steel	0.1D	1.0D	Vc	25	35	35	35	40	40	45	45	45	45
					fz	0.002	0.004	0.006	0.009	0.018	0.024	0.029	0.042	0.044	0.045
					RPM	7958	7427	5570	3714	3183	2546	2387	1790	1432	1194
					FEED	64	119	134	134	229	244	277	301	252	215
K	15-20	Grey cast iron Nodular cast iron Malleable cast iron	1.0D	1.0D	Vc	60	55	60	55	60	55	55	55	60	55
					fz	0.008	0.013	0.017	0.026	0.035	0.044	0.065	0.093	0.116	0.155
					RPM	19099	11671	9549	5836	4775	3501	2918	2188	1910	1459
					FEED	611	607	649	607	668	616	759	814	886	905
N	21~22	Aluminum-wrought alloy	1.0D	1.0D	Vc	140	130	140	145	140	145	145	145	145	140
					fz	0.006	0.011	0.015	0.021	0.03	0.036	0.047	0.063	0.078	0.095
					RPM	44563	27587	22282	15385	11141	9231	7692	5769	4615	3714
					FEED	1070	1214	1337	1292	1337	1329	1446	1454	1440	1411
	23~25	Aluminum-cast,alloyed	1.0D	1.0D	Vc	140	130	140	145	140	145	145	145	145	140
					fz	0.006	0.011	0.015	0.021	0.03	0.036	0.047	0.063	0.078	0.095
					RPM	44563	27587	22282	15385	11141	9231	7692	5769	4615	3714
					FEED	1070	1214	1337	1292	1337	1329	1446	1454	1440	1411
	26-28	Copper Alloys (Bronze / Brass)	1.0D	1.0D	Vc	80	95	105	105	110	105	105	110	105	105
					fz	0.006	0.011	0.016	0.024	0.029	0.038	0.048	0.063	0.081	0.096
					RPM	25465	20160	16711	11141	8754	6685	5570	4377	3342	2785
					FEED	611	887	1070	1070	1015	1016	1070	1103	1083	1070
	29.1	Non Metallic Materials	1.0D	1.0D	Vc	80	95	105	105	110	105	105	110	105	105
					fz	0.006	0.011	0.016	0.024	0.029	0.038	0.048	0.063	0.081	0.096
					RPM	25465	20160	16711	11141	8754	6685	5570	4377	3342	2785
					FEED	611	887	1070	1070	1015	1016	1070	1103	1083	1070
H	40	Chilled Cast Iron	1.0D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459
					FEED	76	119	153	172	302	306	362	333	266	216

Recommended parameters

Recommended cutting speeds and feeds
Parameter	Value	Unit
Spindle speed	–	rev/min
Feed rate	–	mm/min
Cutting speed (Vc)	–	m/min
Feed per tooth (Fz)	–	mm/tooth

Choose your options and calculate the recommended parameters.
