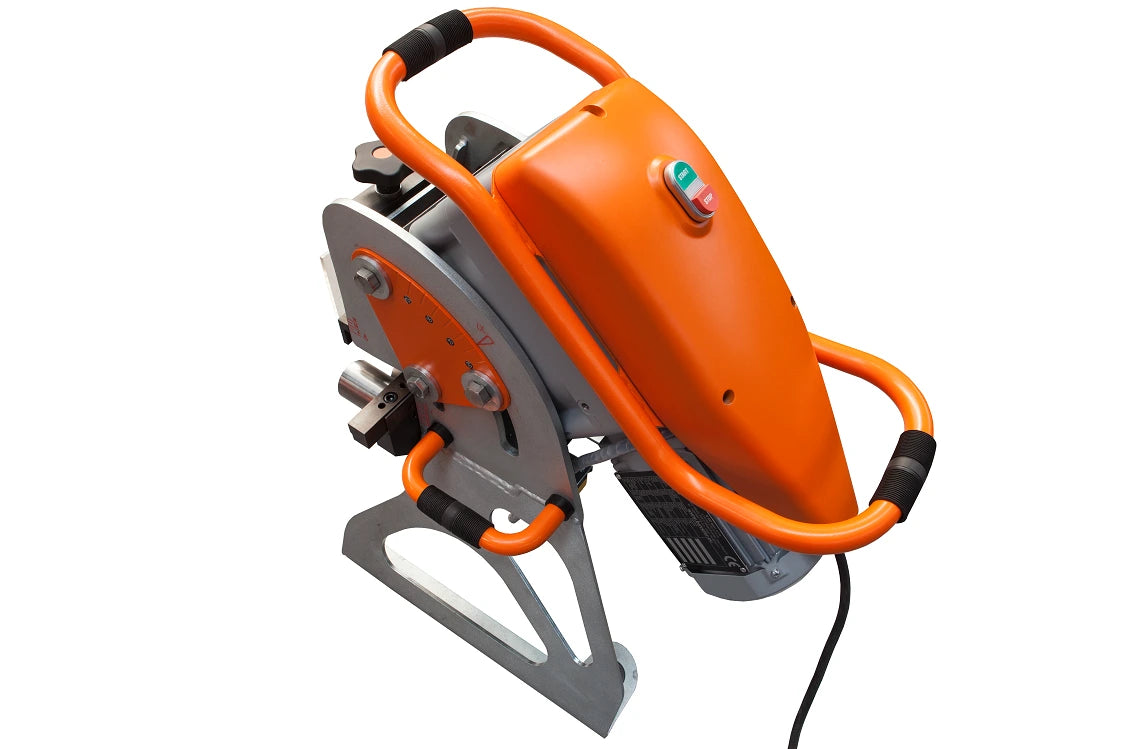

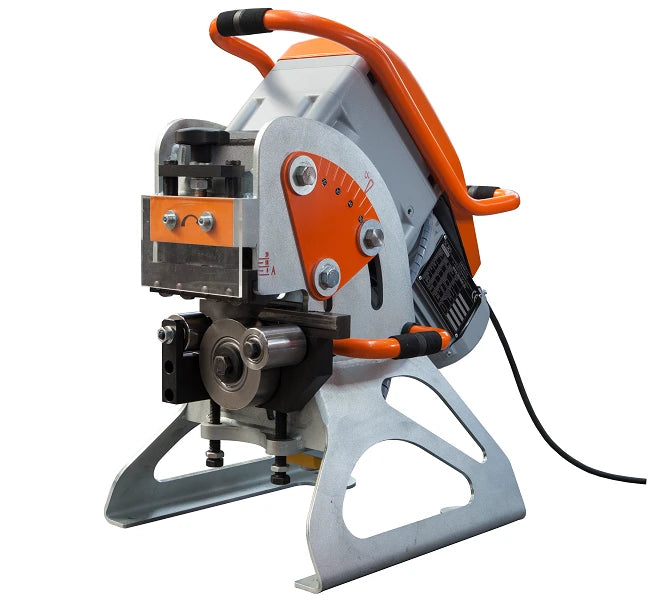

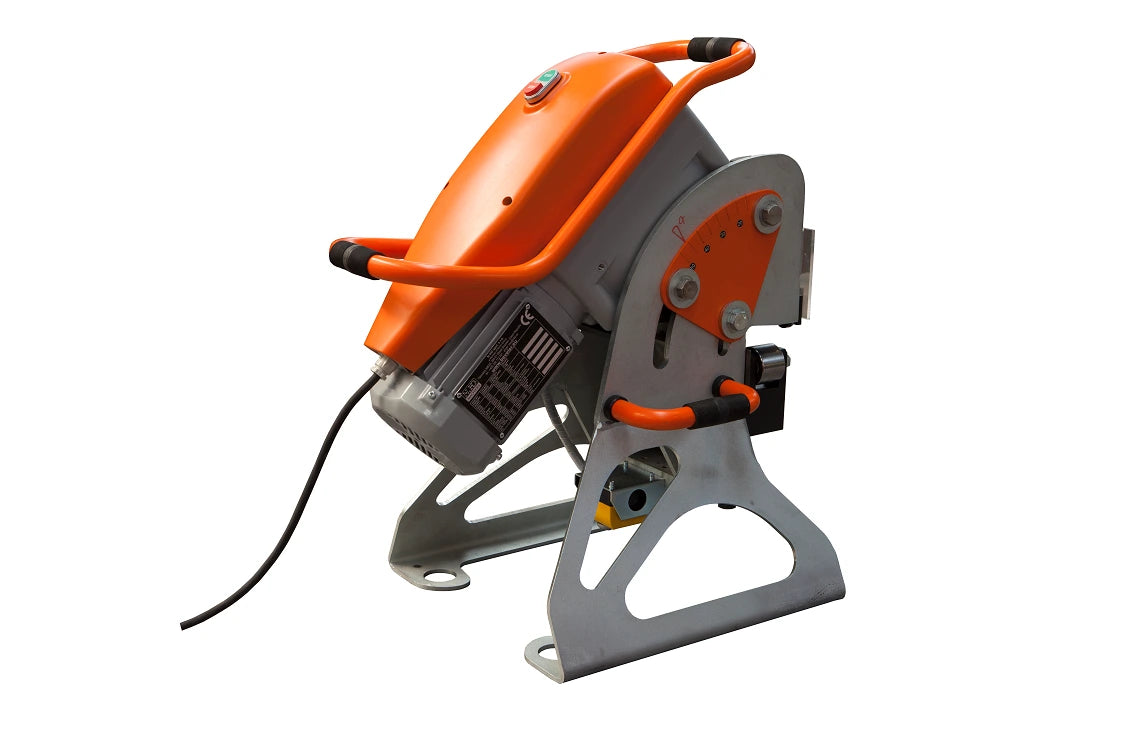

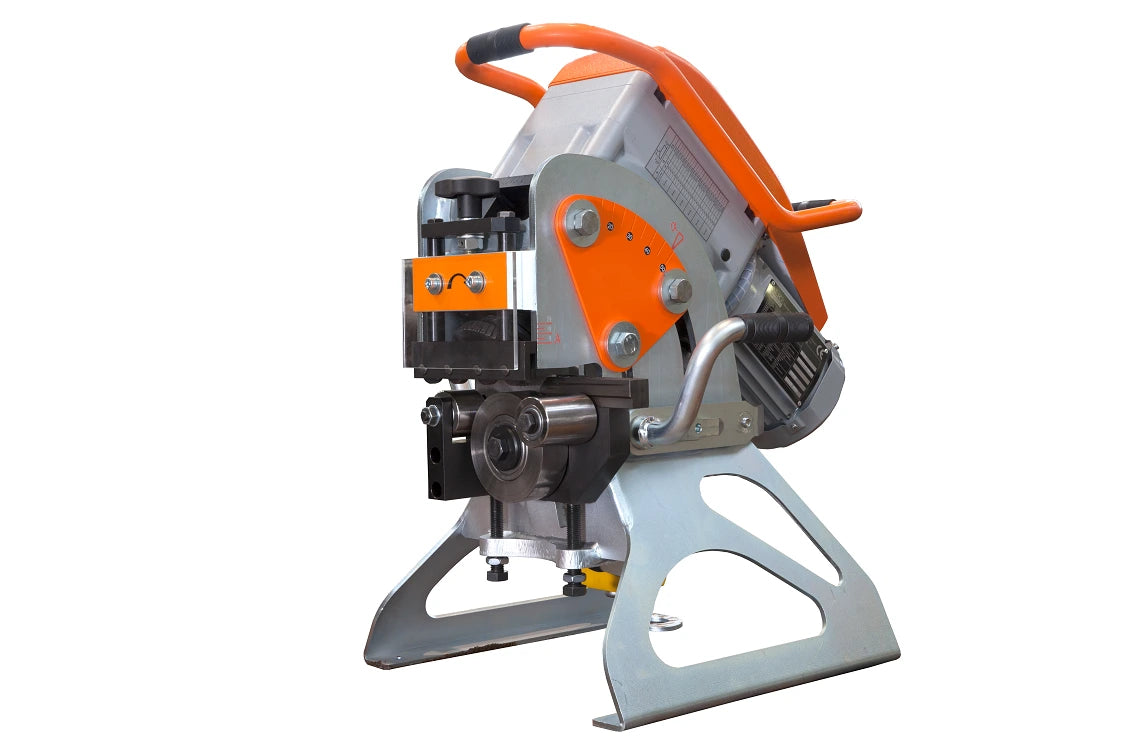

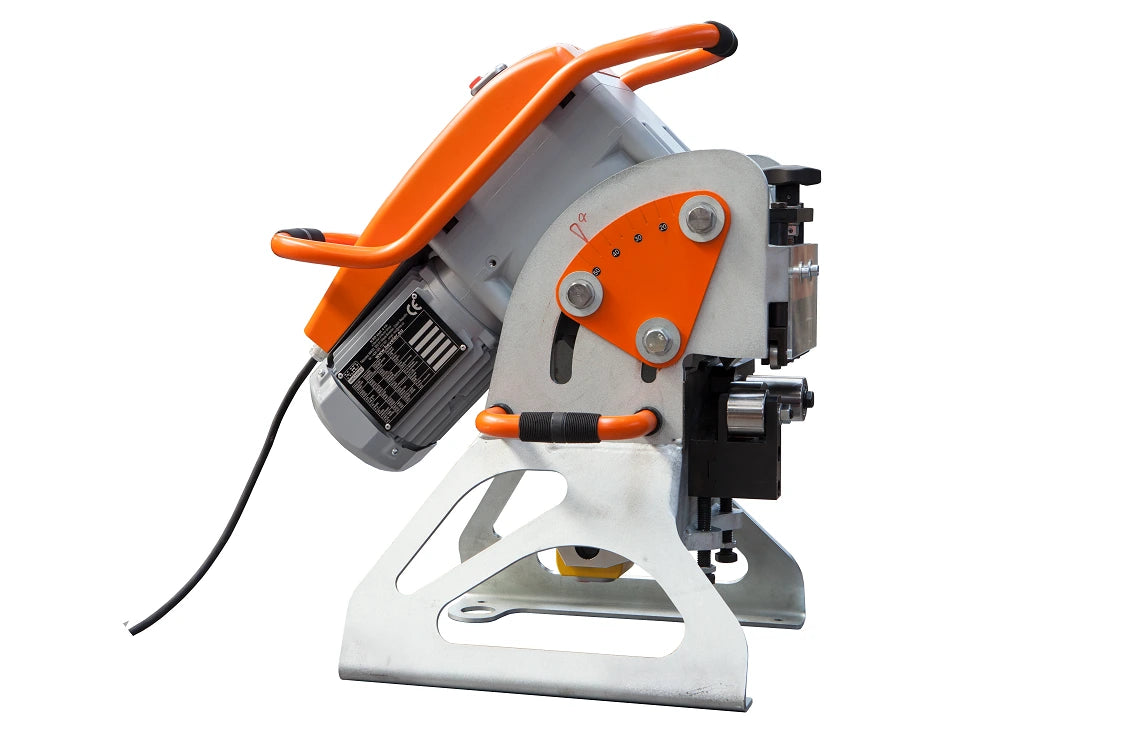

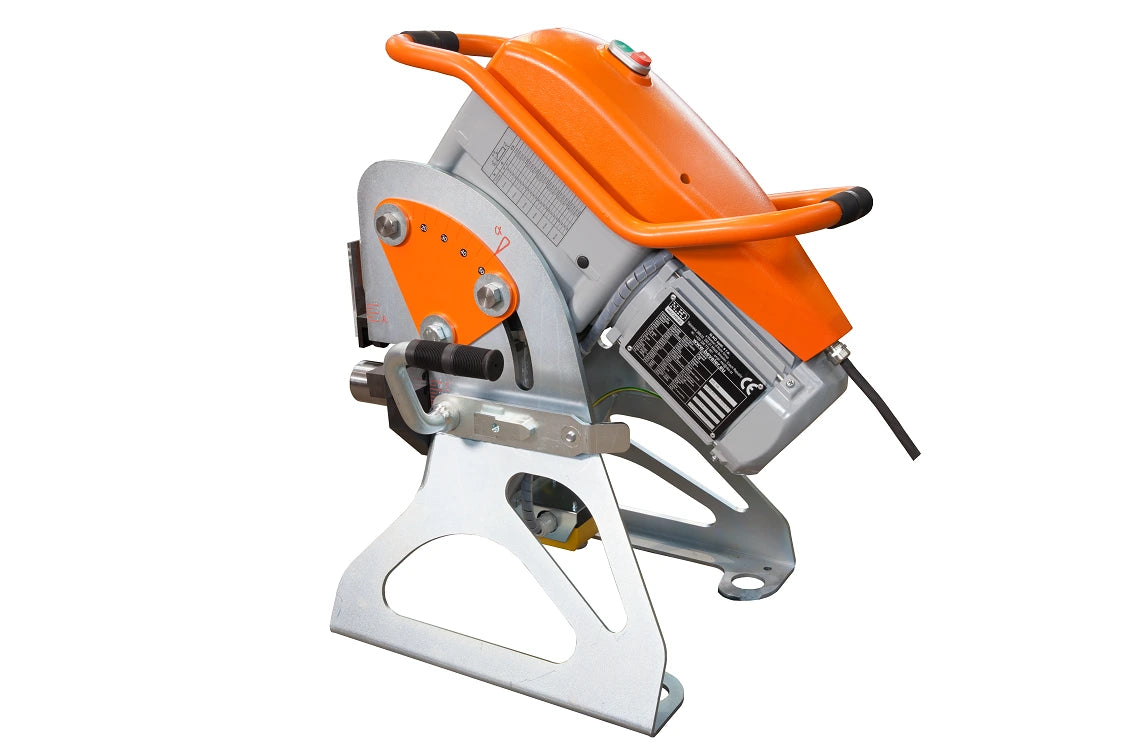

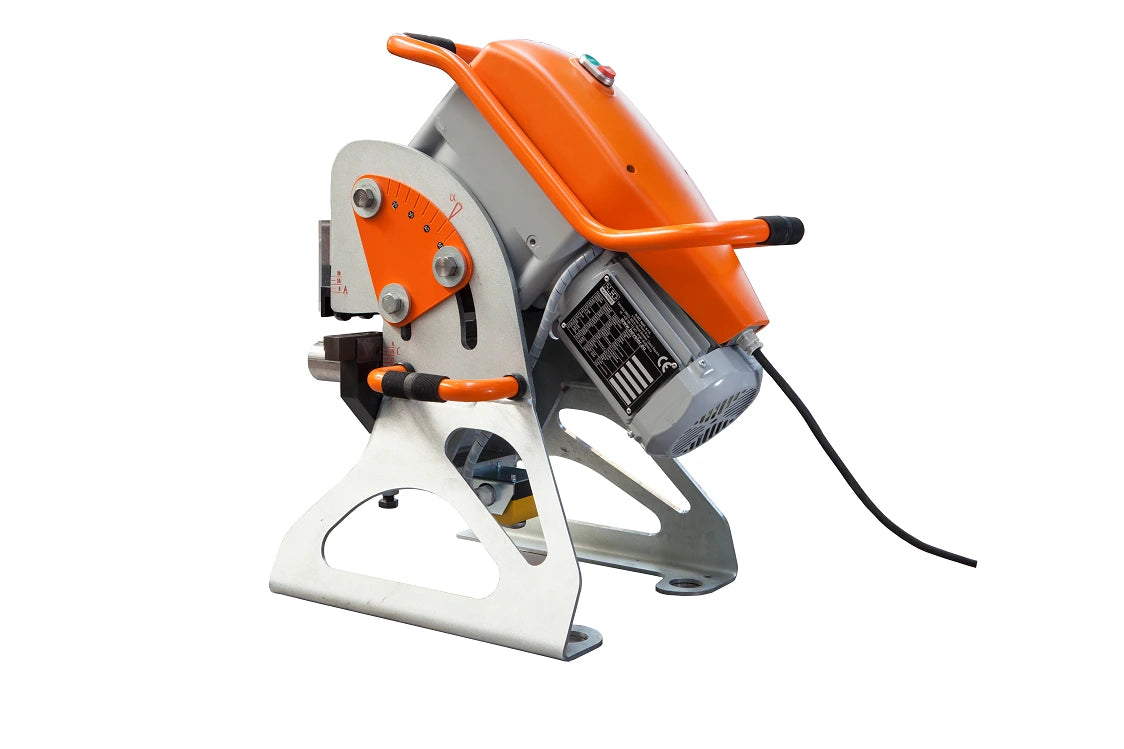

KA18 Auto Beveller
- SKU
- Product type
- Metal Preparing Machines
No Material Handling Needed
Cuts both sides in one go — saves time and strain.
Fast Angle Changes
Bevel angle adjusts on the fly with no tools or part swaps.
Tough on Steel
Eats through hard metals up to 700 MPa with ease.
Add KA18 Auto Beveller to comparison
View Comparison- Overview
- Downloads & Documents
- Reviews

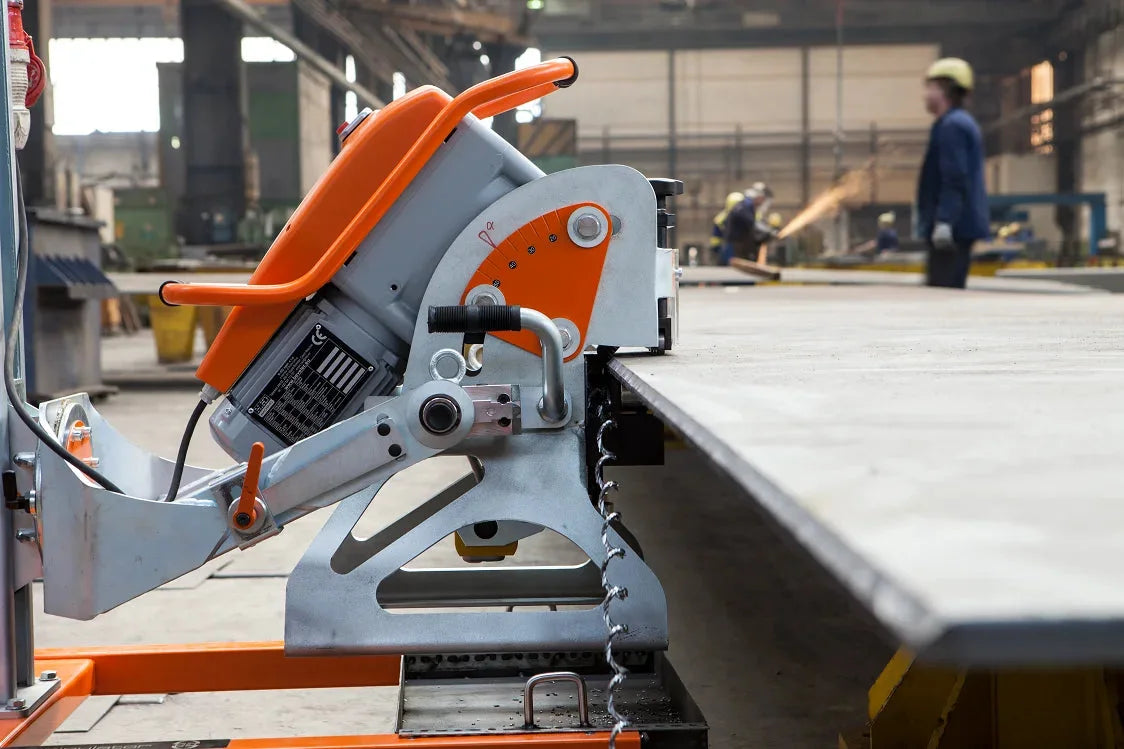

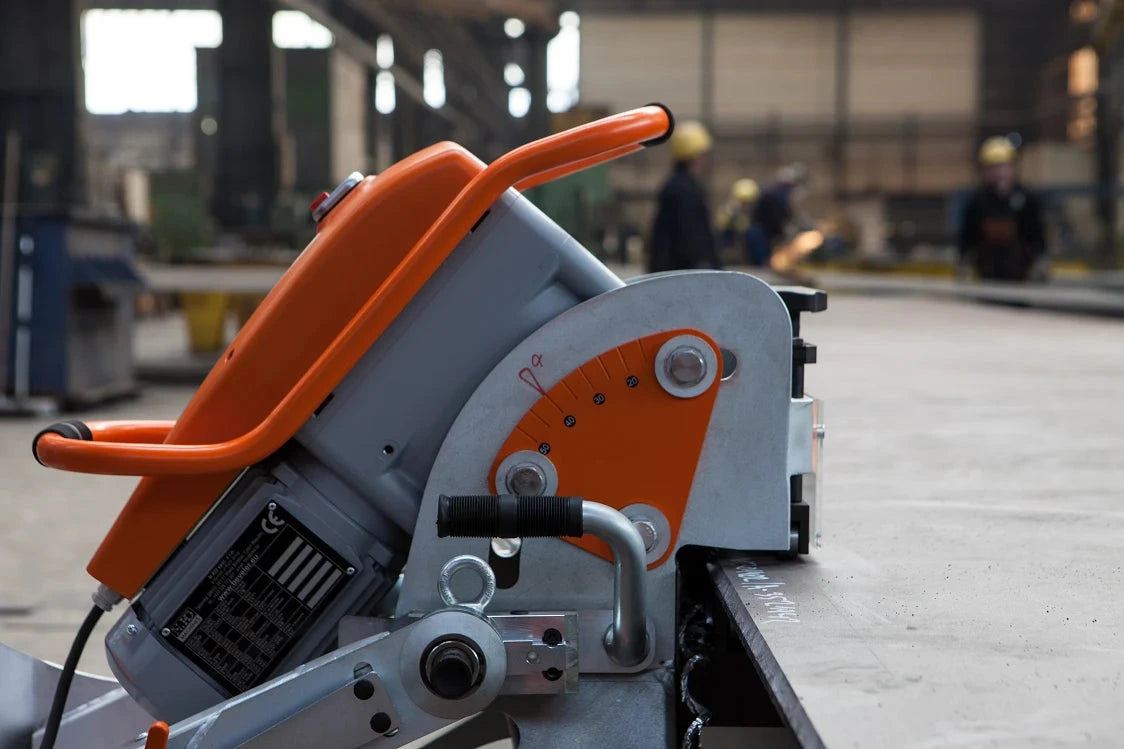

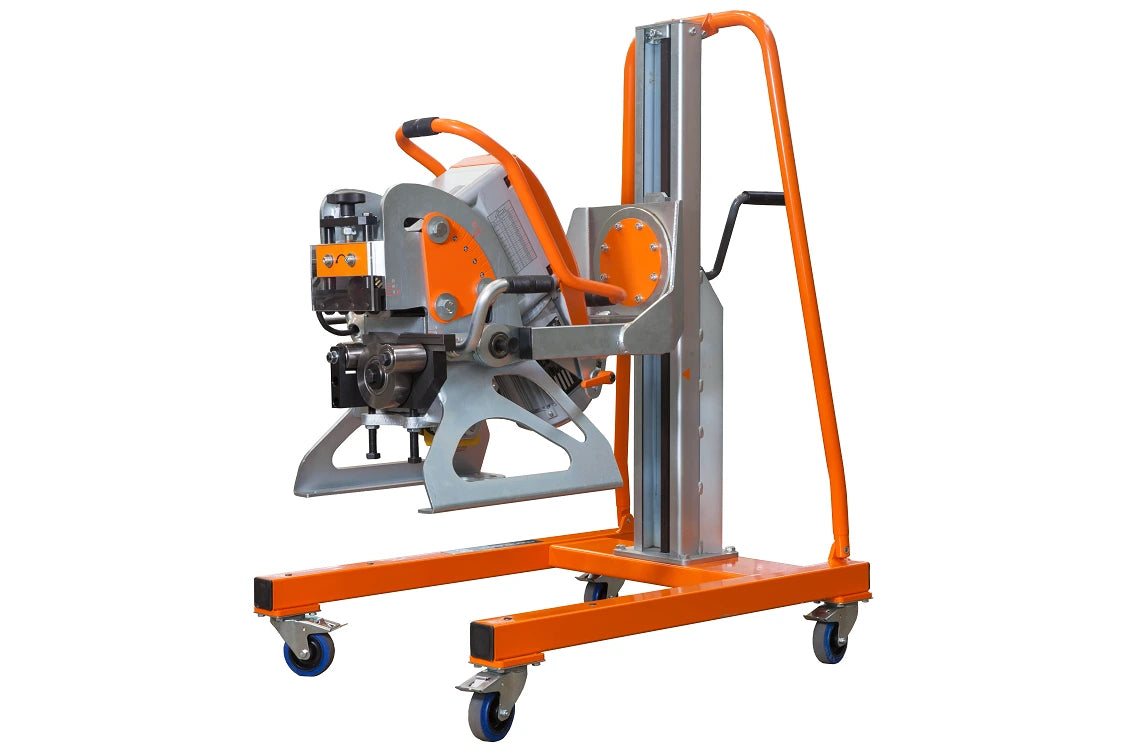

With automatic feed and smooth angle adjustment from 15° to 50°, the KA18 Auto Beveller takes the grunt work out of prepping edges. It handles both X and K bevels without flipping the plate and cuts clean on steel, brass, copper or aluminium. No swapping parts. No babysitting the feed. Add the 3D Manipulator and switch between fixed or mobile setup in seconds.

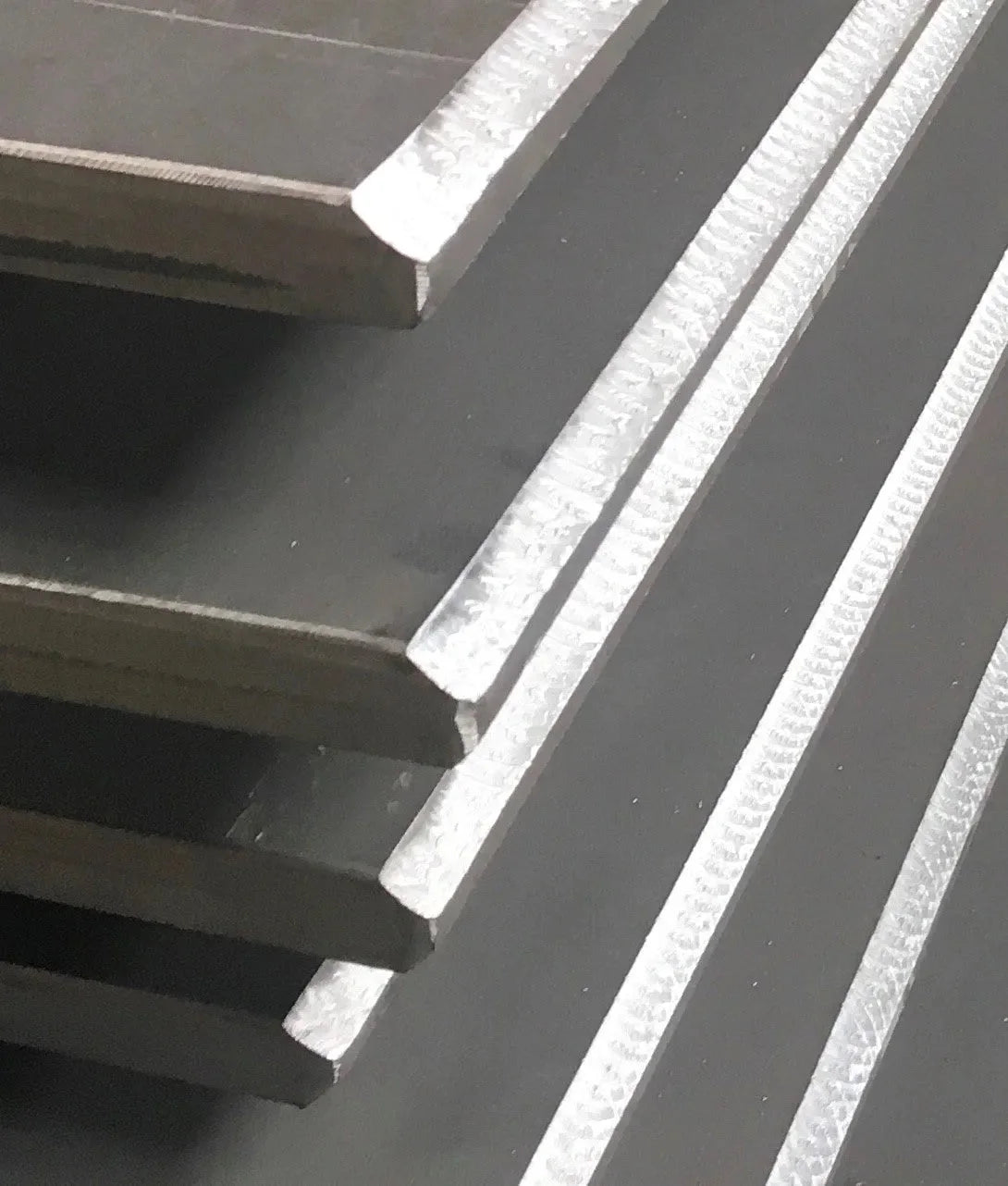

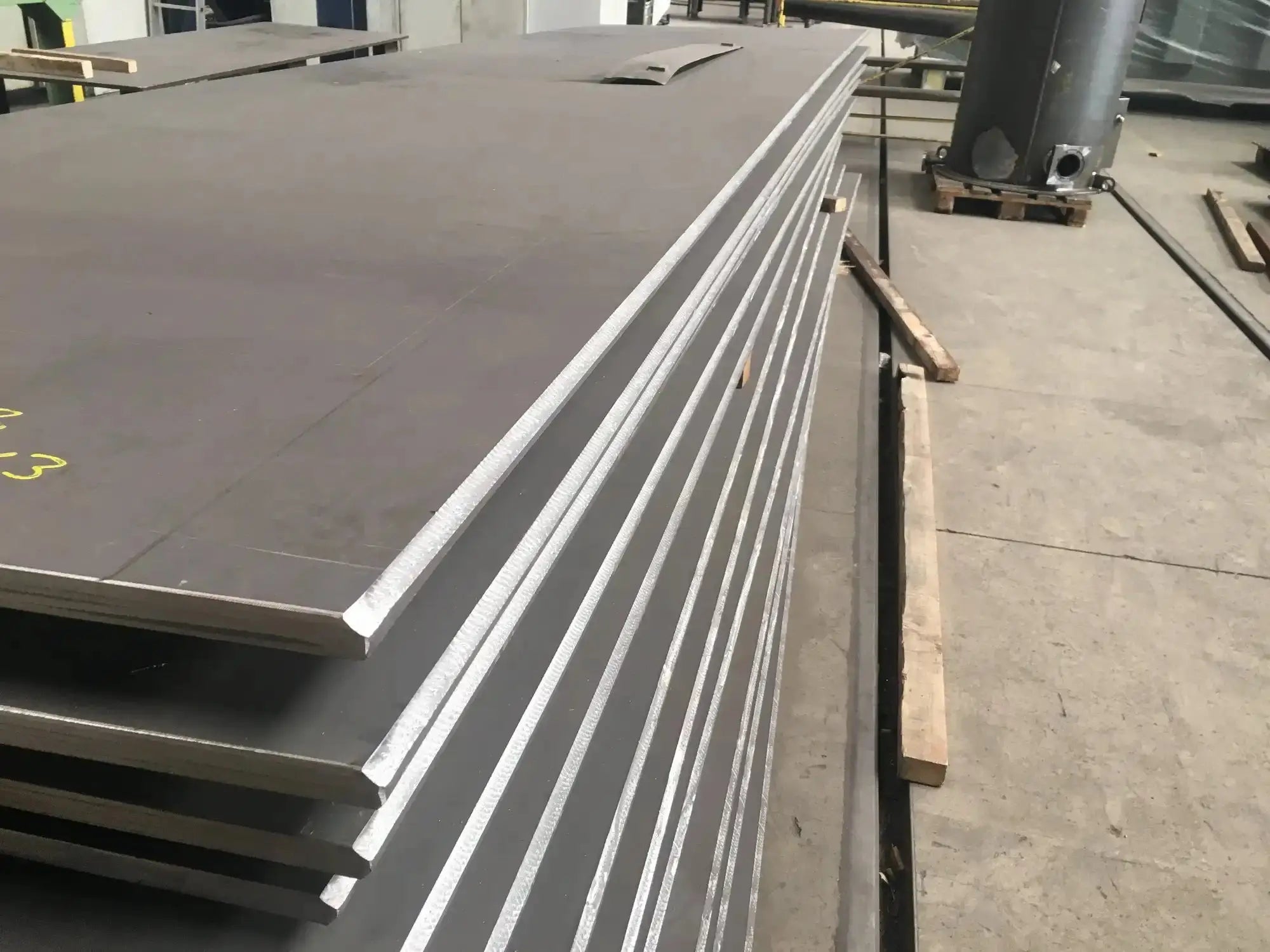

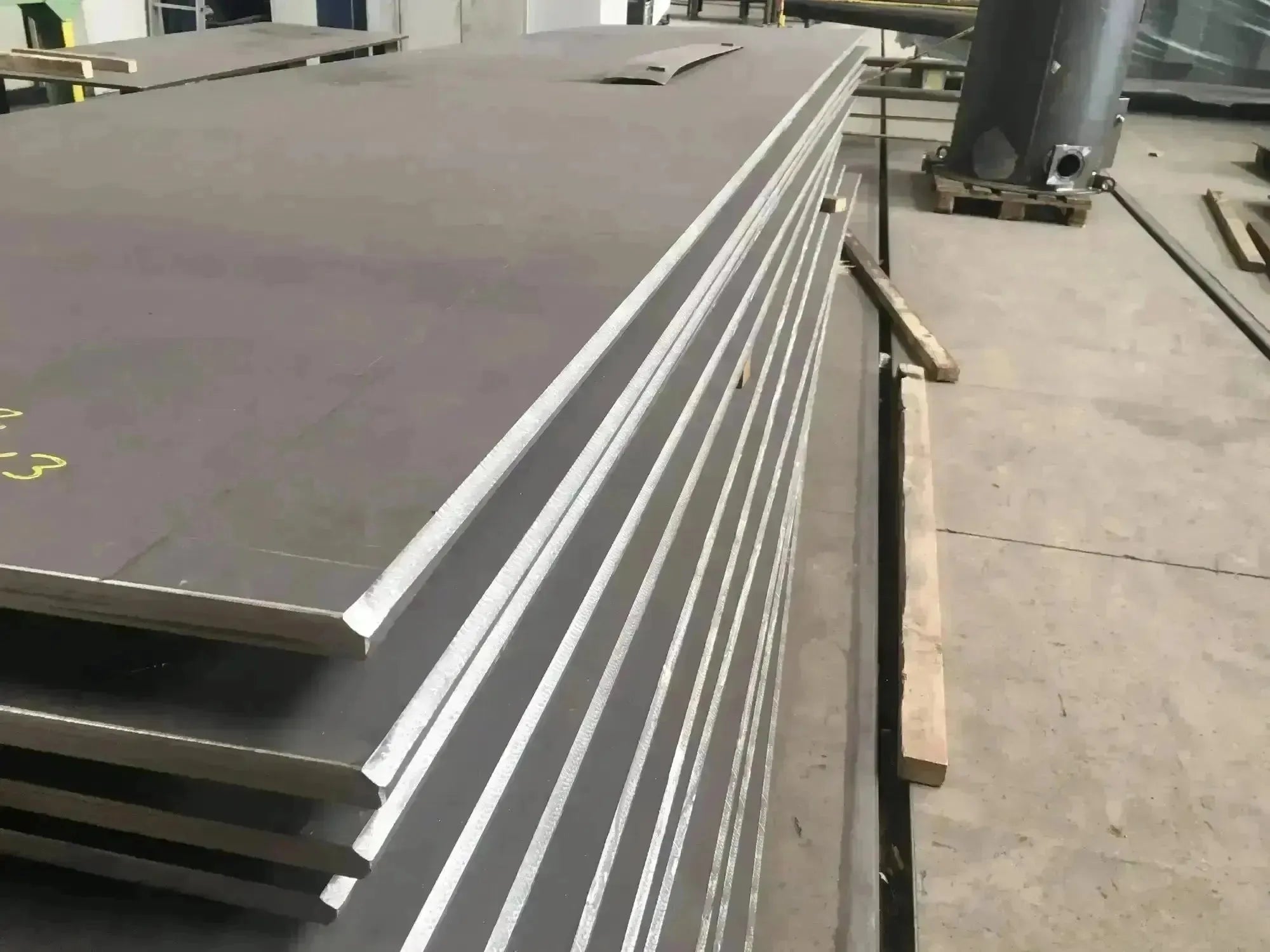

- Double-sided bevels with no material flipping
- Works stationary or mobile
- Handles rough floors or warped stock
- Cuts steel up to 700 MPa

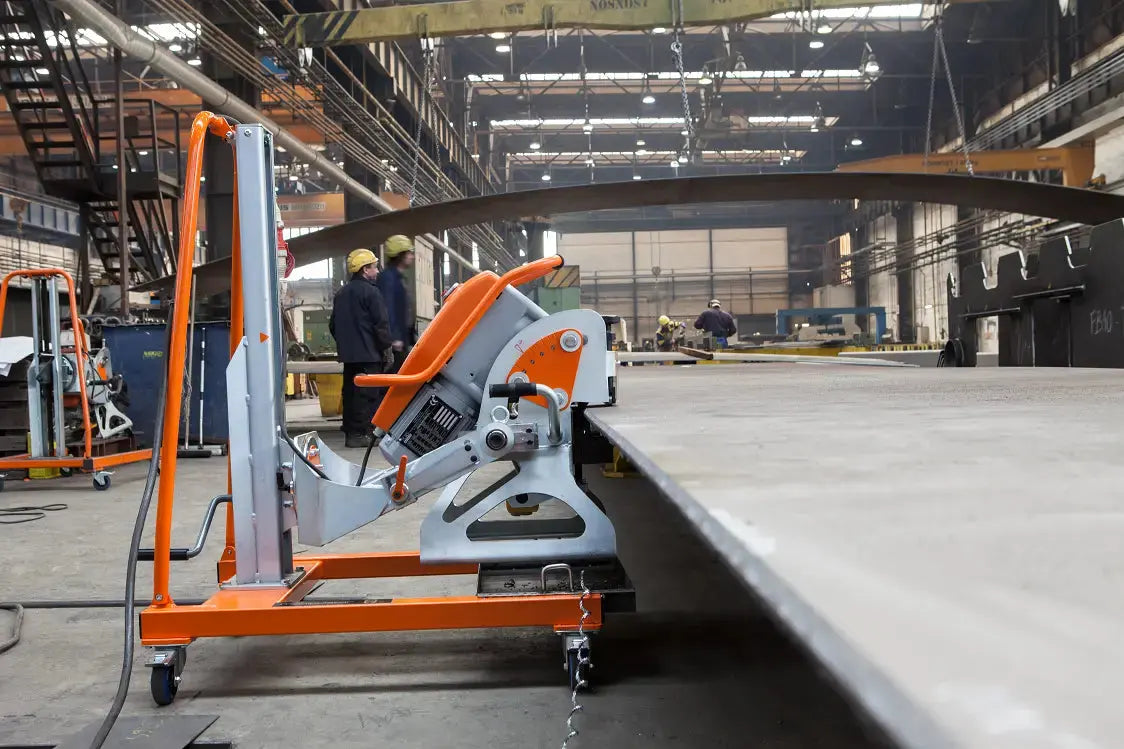

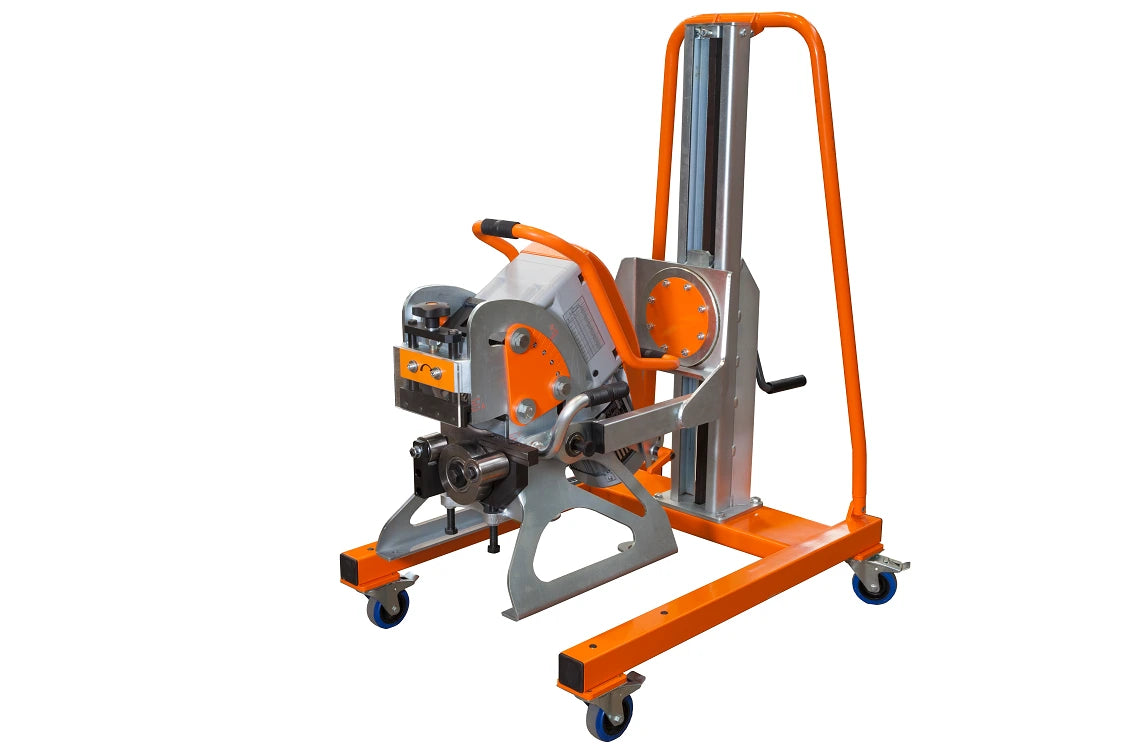

- Fast connect/disconnect with 3D Manipulator
User manual 3D MANIPULATOR User manual Catalogue sheet
Specifications
- Max. bevel width: 18 mm (600 MPa)
- Continuously adjustable angle: 15° - 50°
- Thickness of bevel. material: 6 - 40 mm
- Engine: 750 W / 380 V
- Feed: 1,9 m/min.
- Weight: 110 kg
- Dimensions (WxHxD): 43,8 x 71,9 x 64,4 cm
|
Machine name: |
400V – 3phase | 480V – 3phase | 220V – 3phase |
| KA 18 Auto Beveler | 1980 | 1981 | 1982 |
| KA 18 Auto Beveler - including the 3D MANIPULATOR |
1983 | 1984 | 1985 |
| Accessories: | Art.Nr. |
| ECO cutting tool - suitable for conventional steel |
2137 |
| ECO cutting tool - suitable for conventional steel – 2+1 free set |
2134 |
| PVD cutting tool - suitable for tougher materials |
2142 |
| PVD cutting tool - suitable for tougher materials – 2+1 free set |
1936 |
| PREMIUM cutting tool – coated TiN - suitable for conventional steel |
2136 |

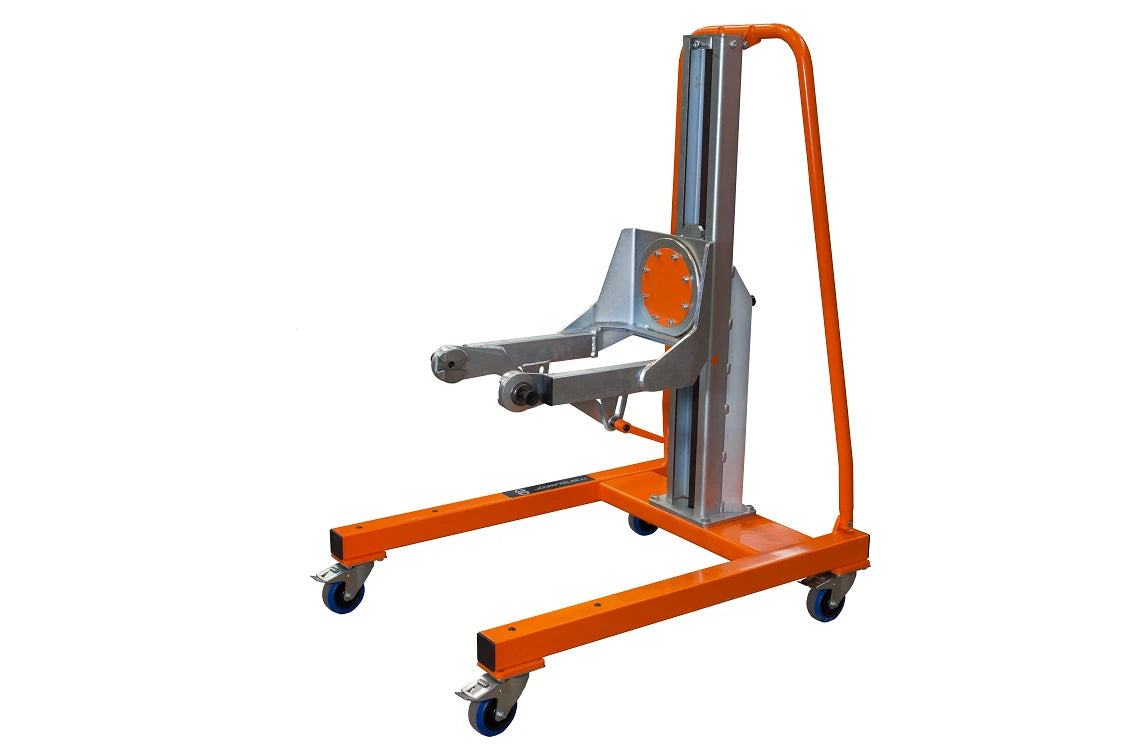

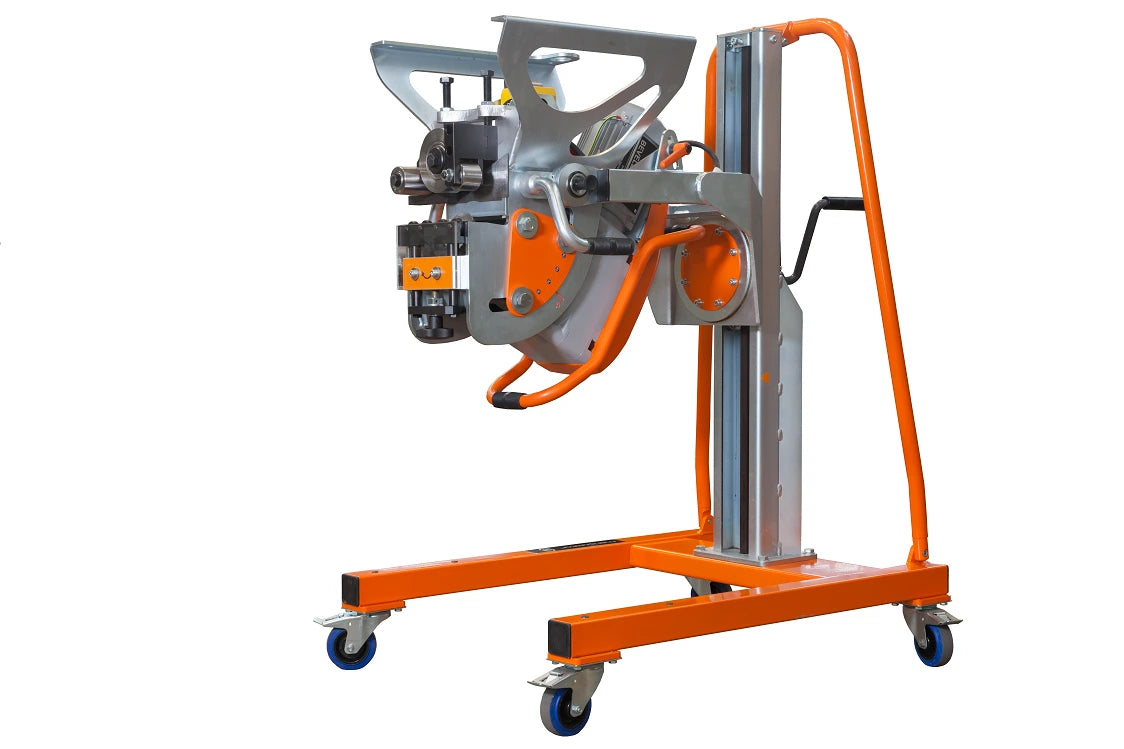

| 3D MANIPULATOR – allows to rotate the machine by 180° to create a two-sided bevel and facilitates the machine transport across the workplace. | 1930 |
| Mag Brush Maxx Large – magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in | NMF0107 |
No specifications available.
