KS22 Portable Beveller
- SKU
- Product type
- Metal Preparing Machines
Consistent Edge Control

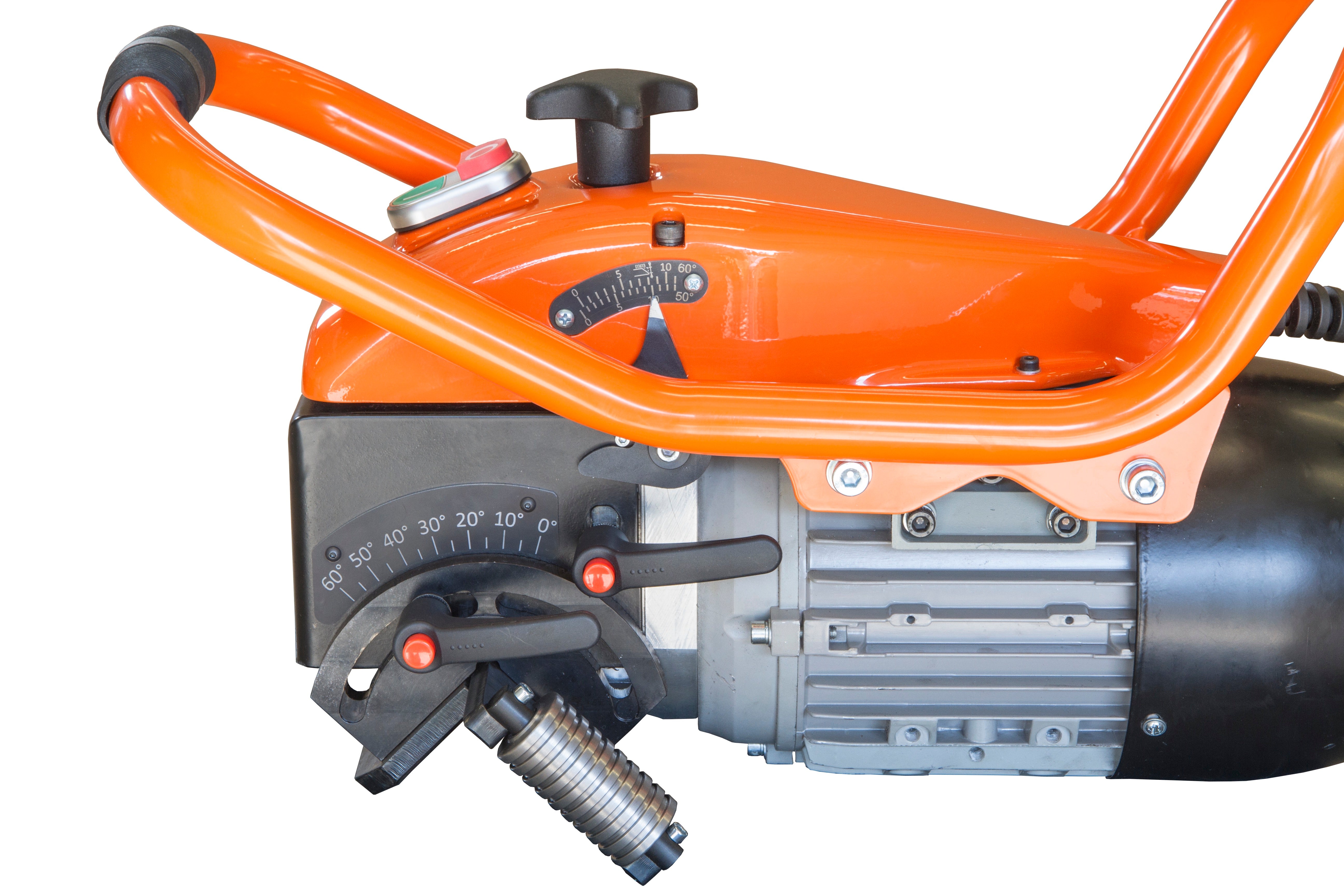

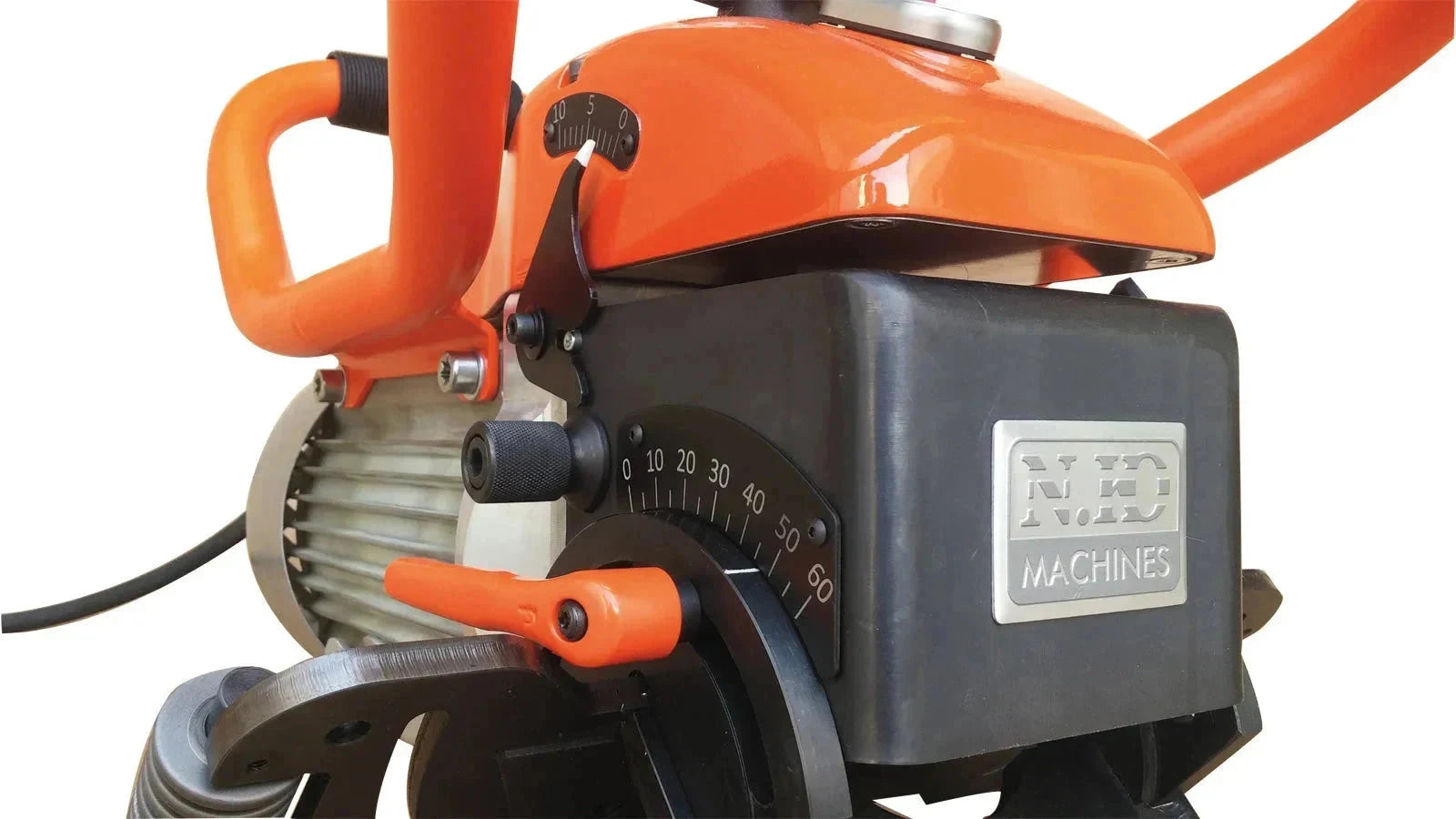

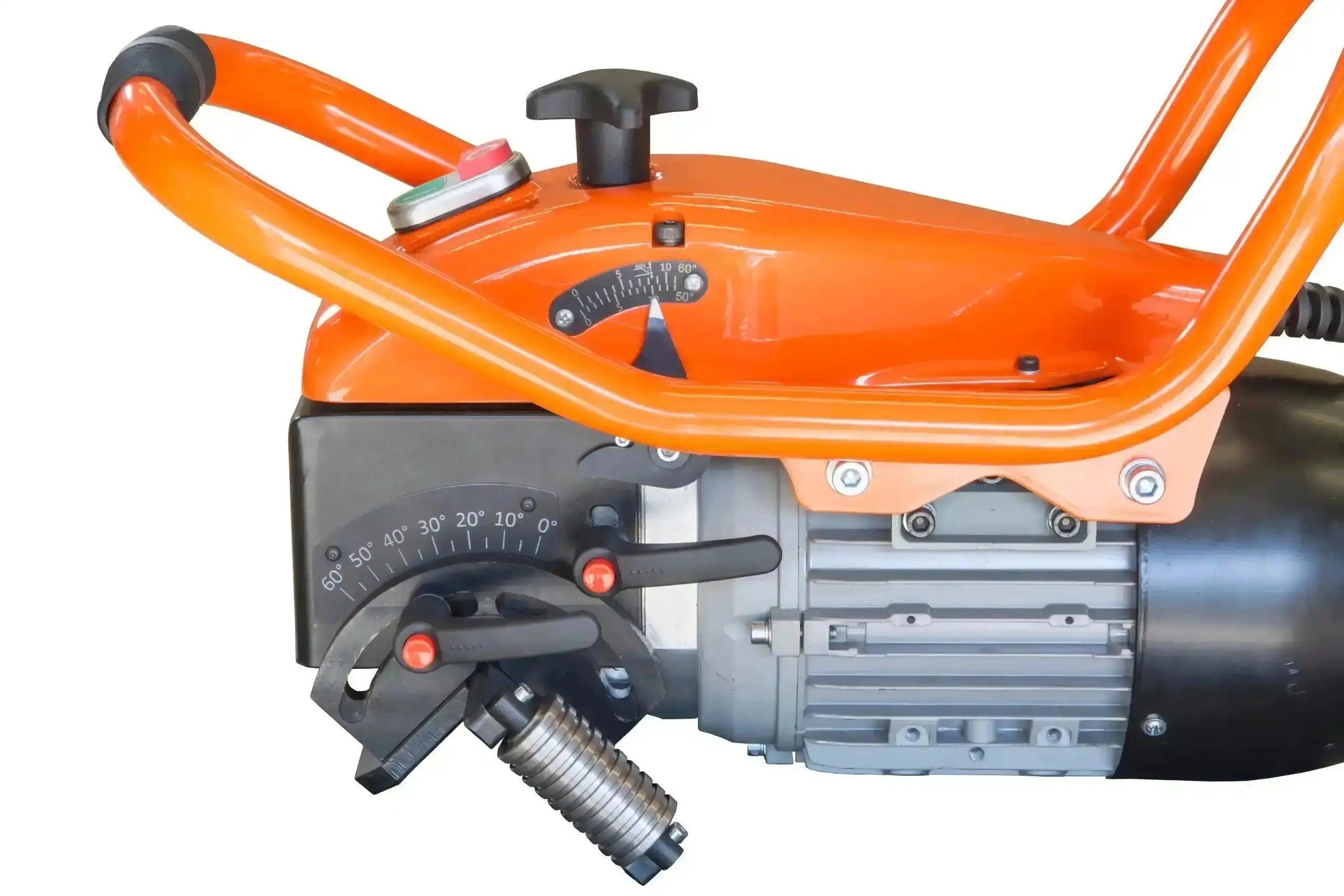

Variable angle lets you cut precisely from 0° to 60° with minimal setup.
Stronger Handling
Protective frame gives added grip and shields against impact.
Dialled-In Accuracy

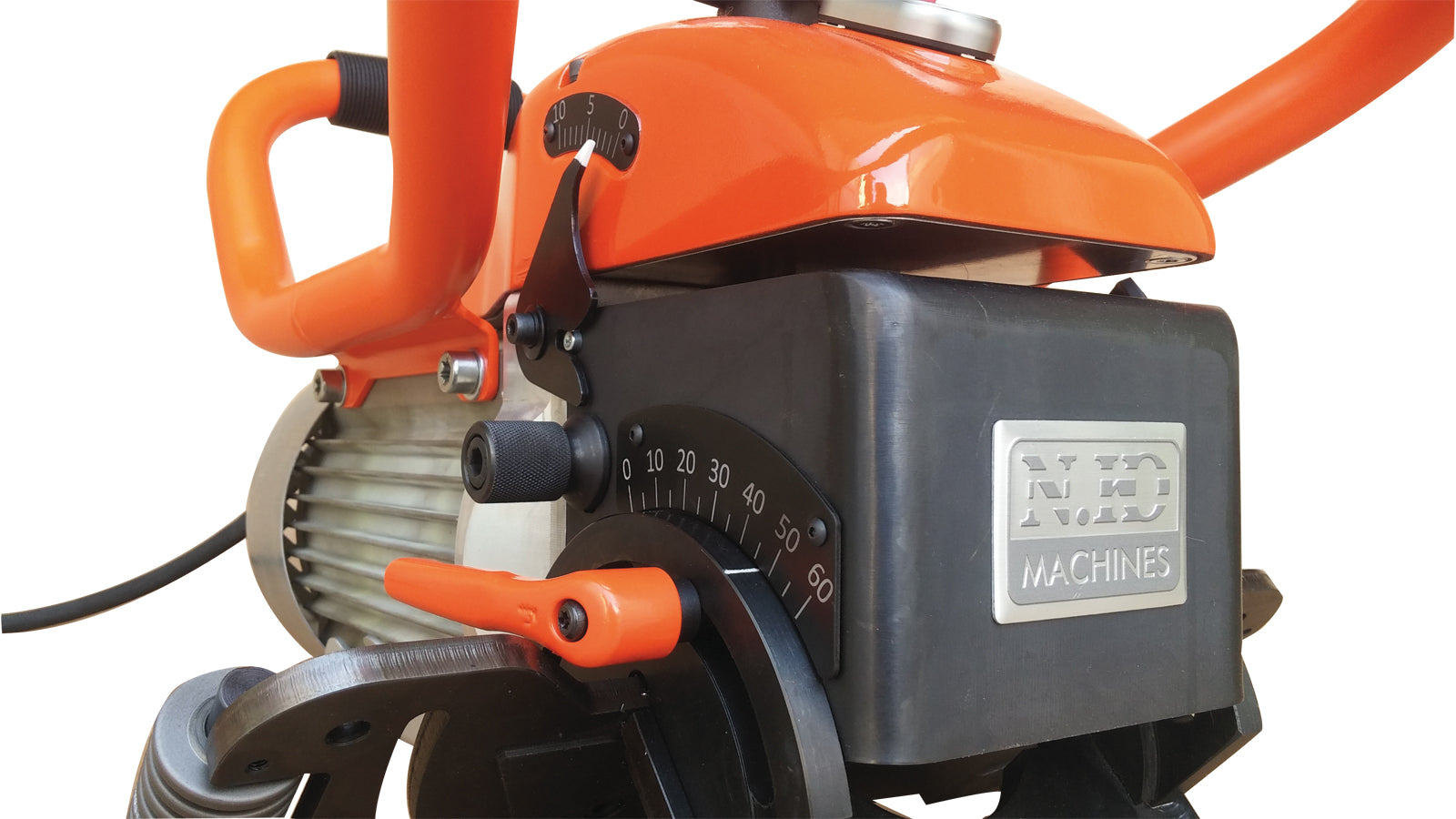

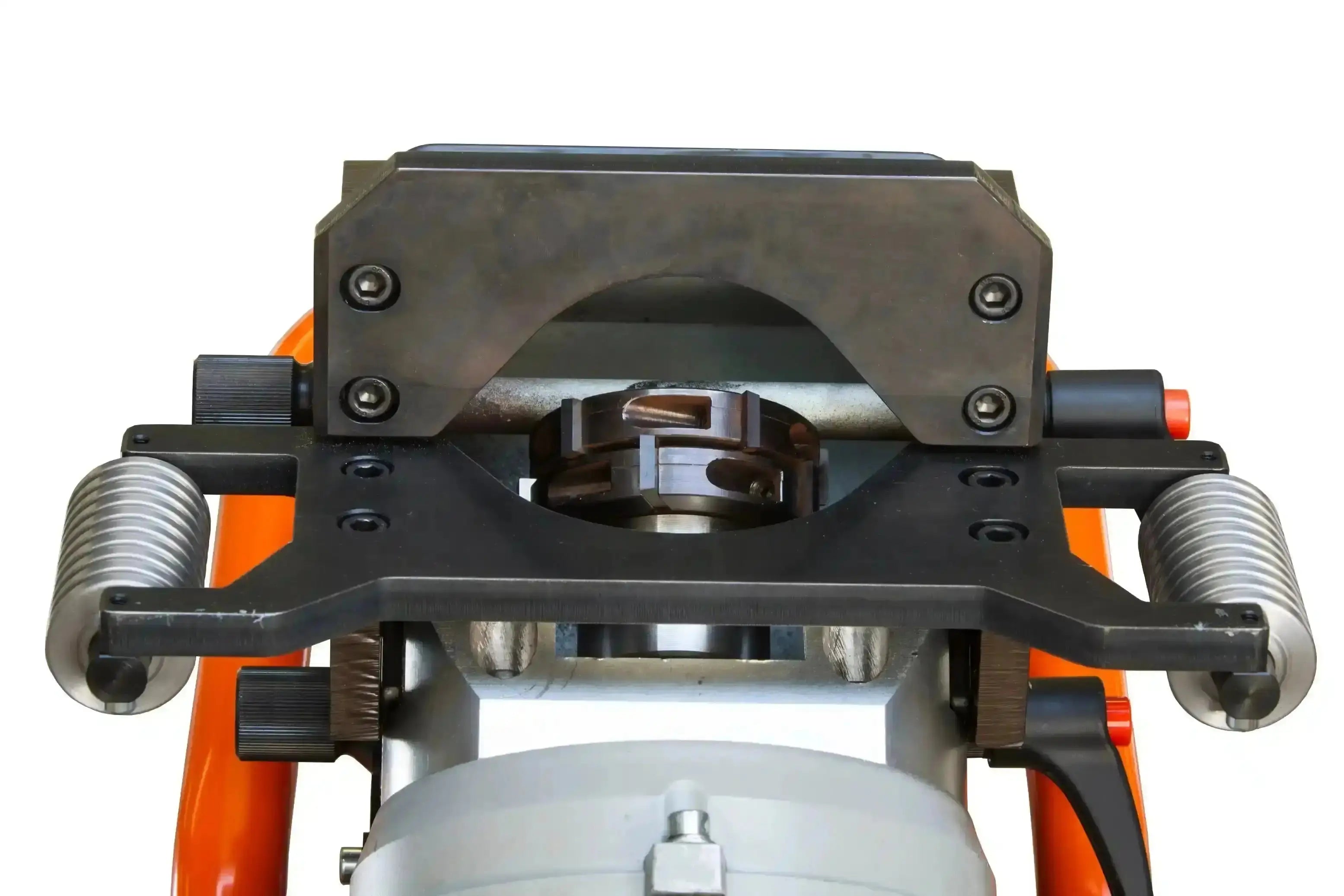

Bevel size mechanism locks in your settings and keeps them tight.
Add KS22 Portable Beveller to comparison
View Comparison- Overview
- Downloads & Documents
- Reviews

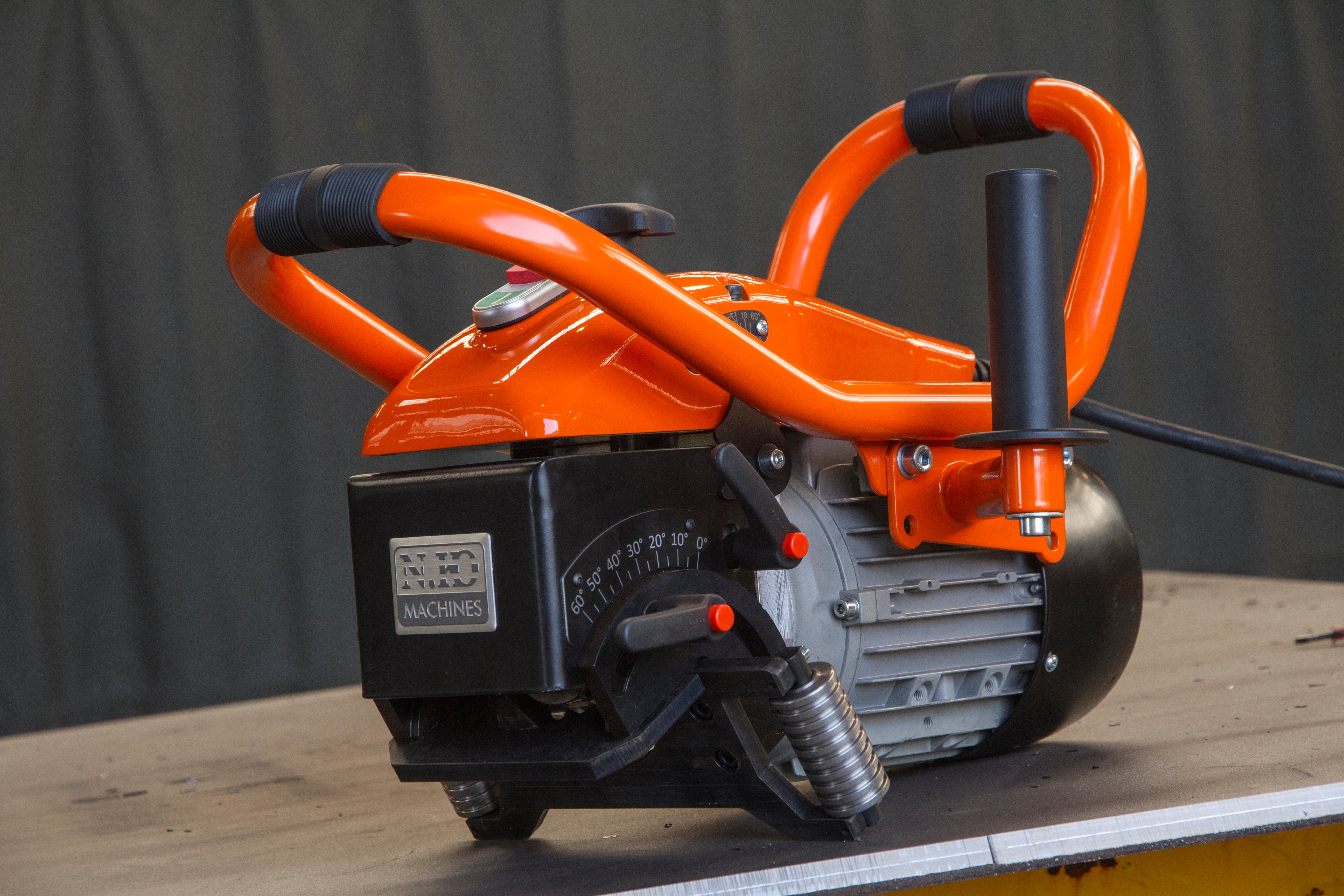

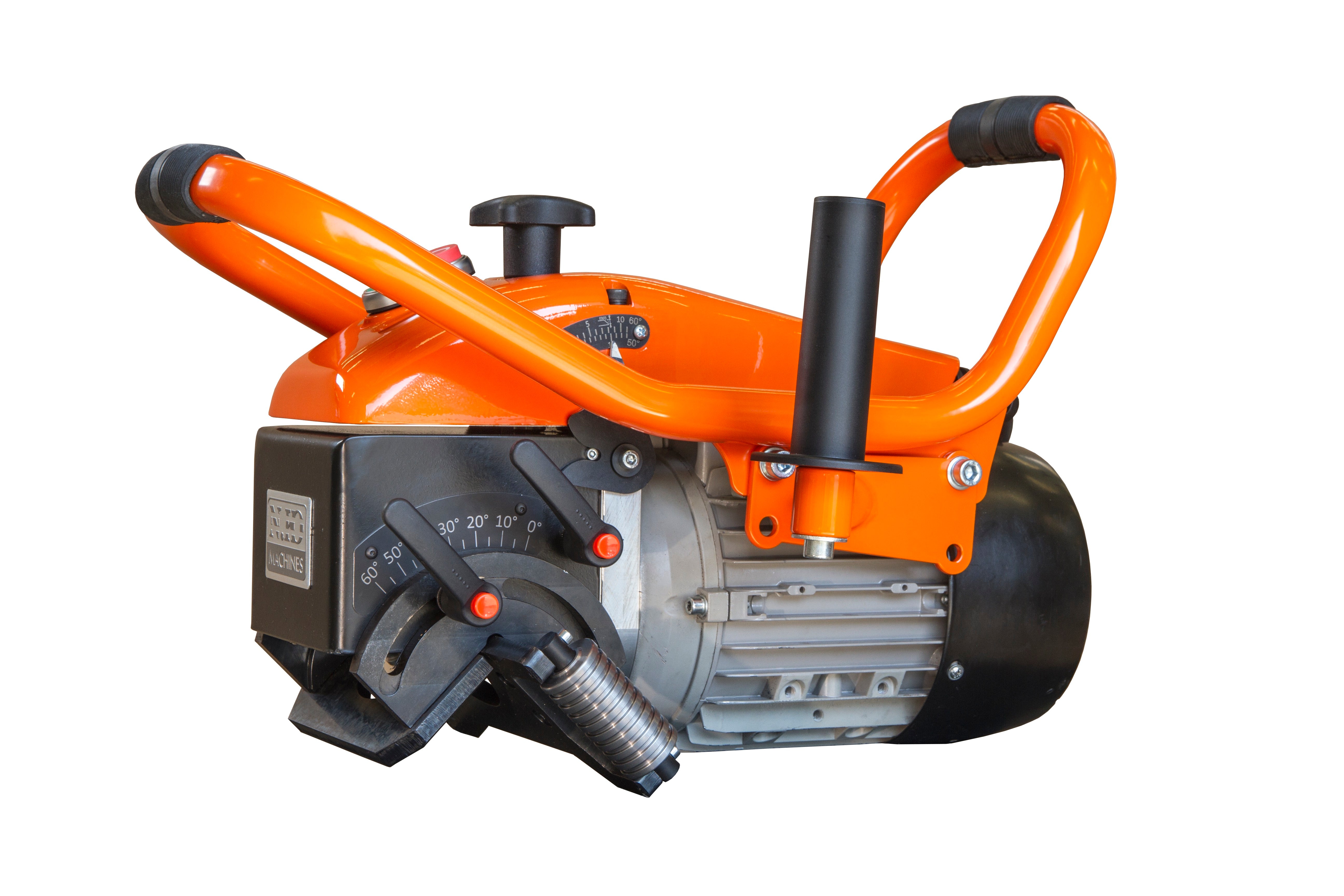

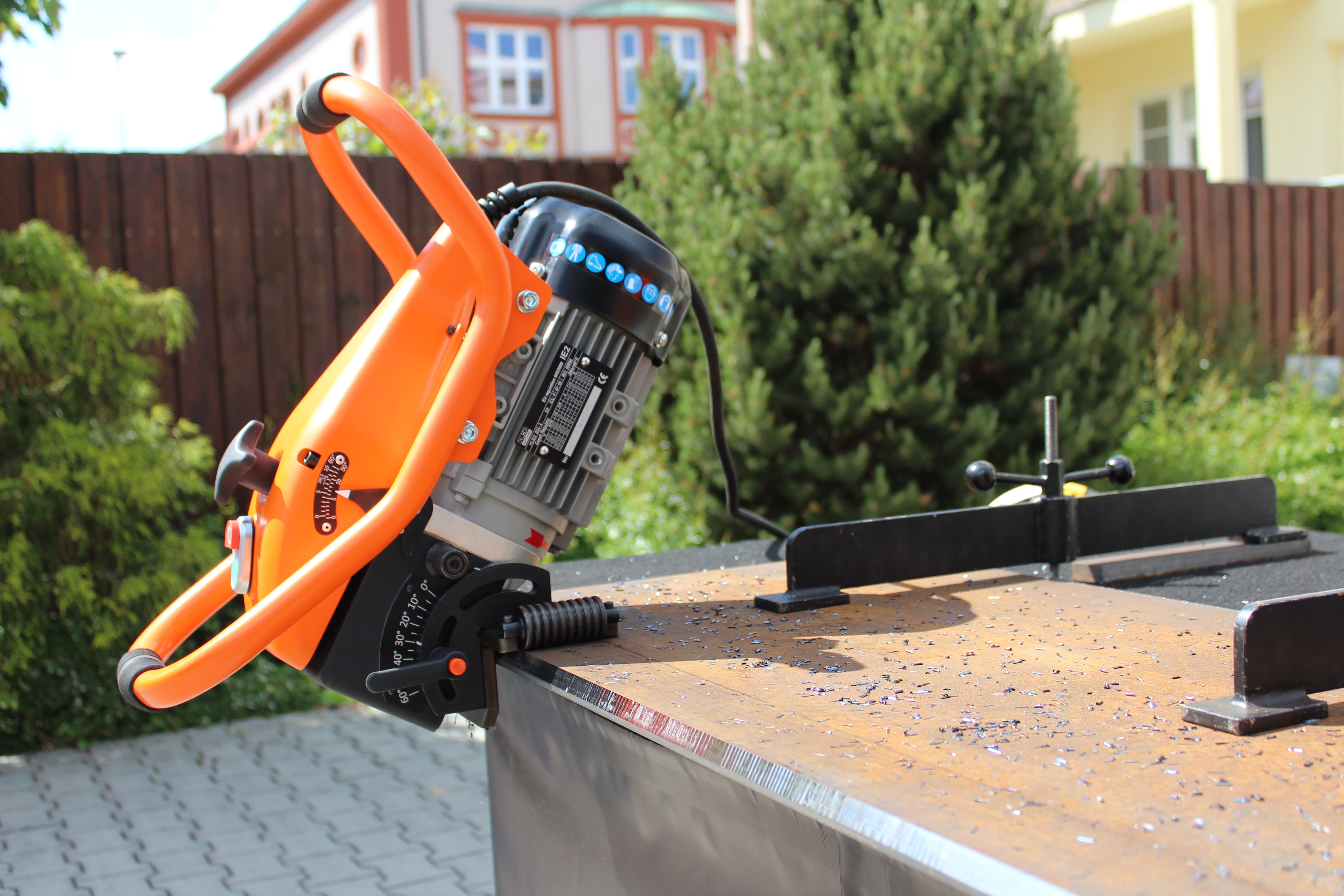

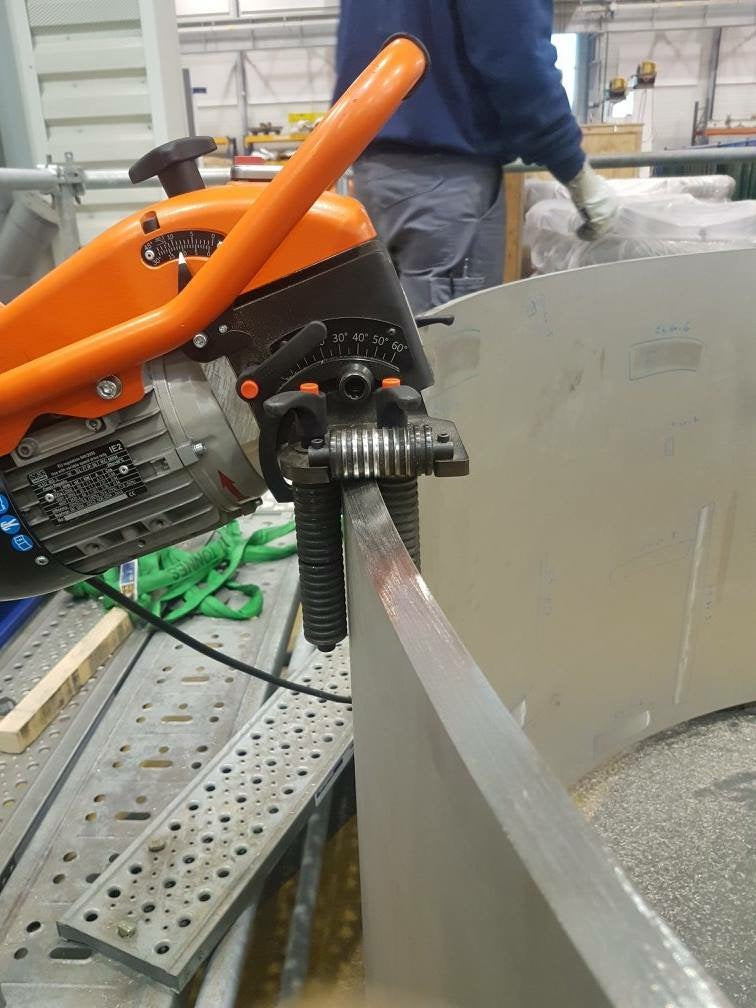

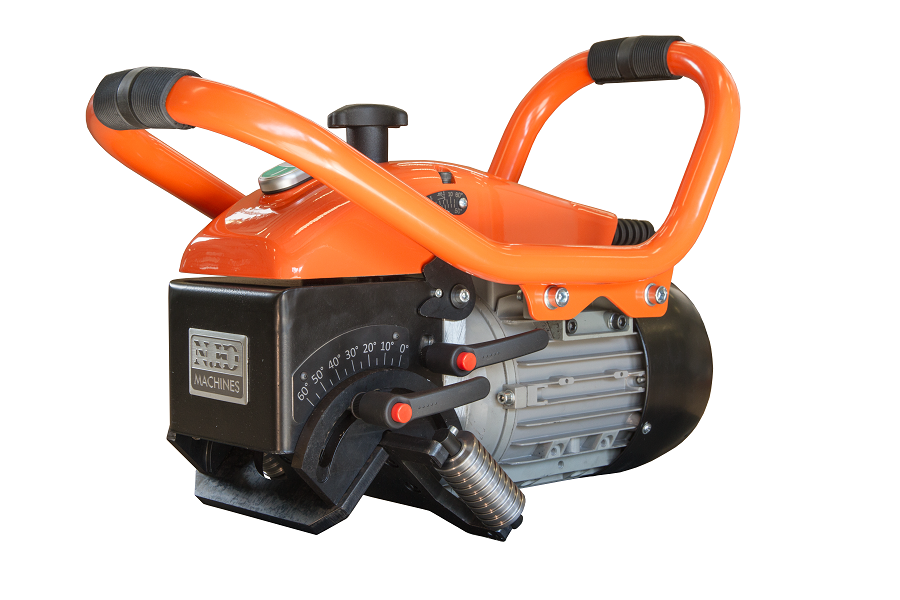

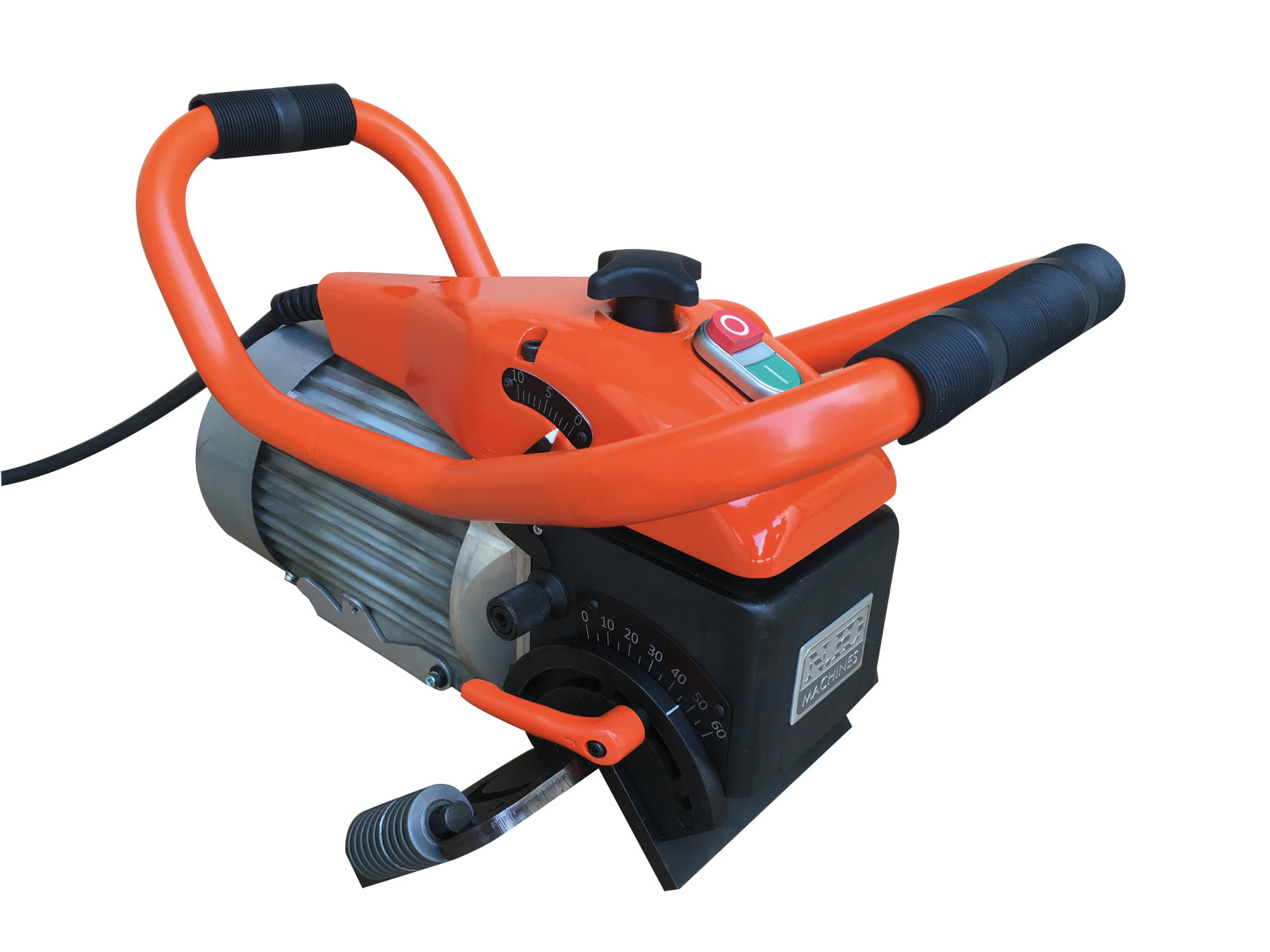

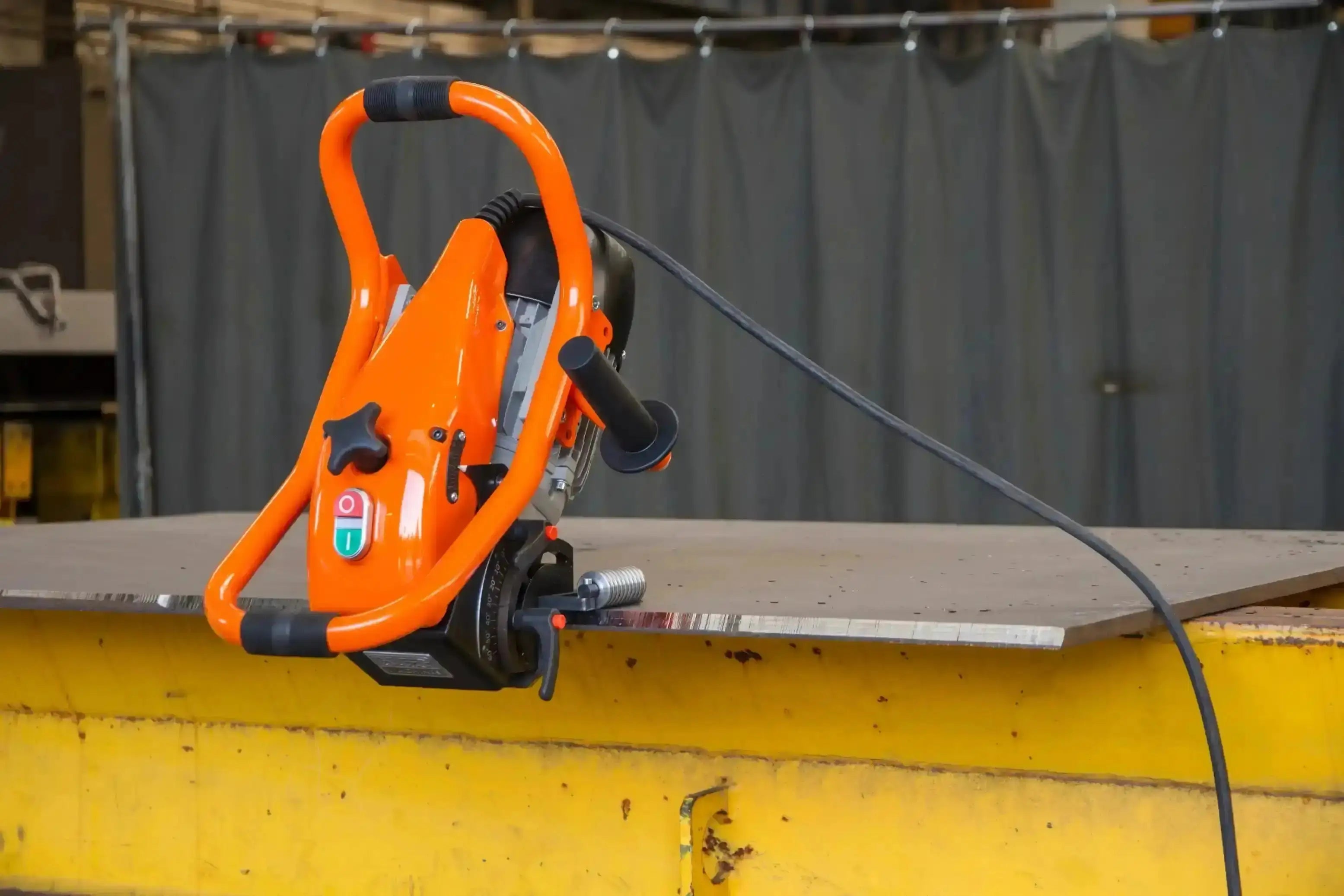

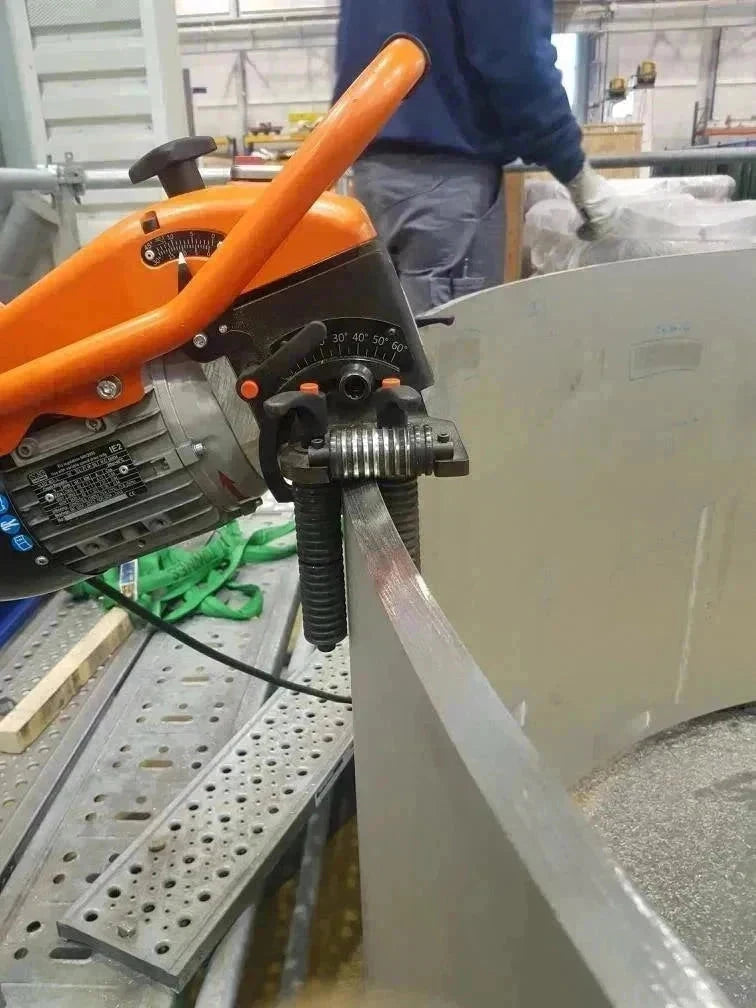

The KS22 handles bevels up to 22mm wide with a fully adjustable angle from 0° to 60°. Designed for prep after plasma or oxygen cutting, it offers fast FACING at 0°, steady control, and a compact build for tight handling. The unique adjustment system dials in bevel accuracy while the protective frame adds grip options and drop resistance. Tube bevelling to Ø 600mm with accessory.
- Adjustable angle 0°–60°

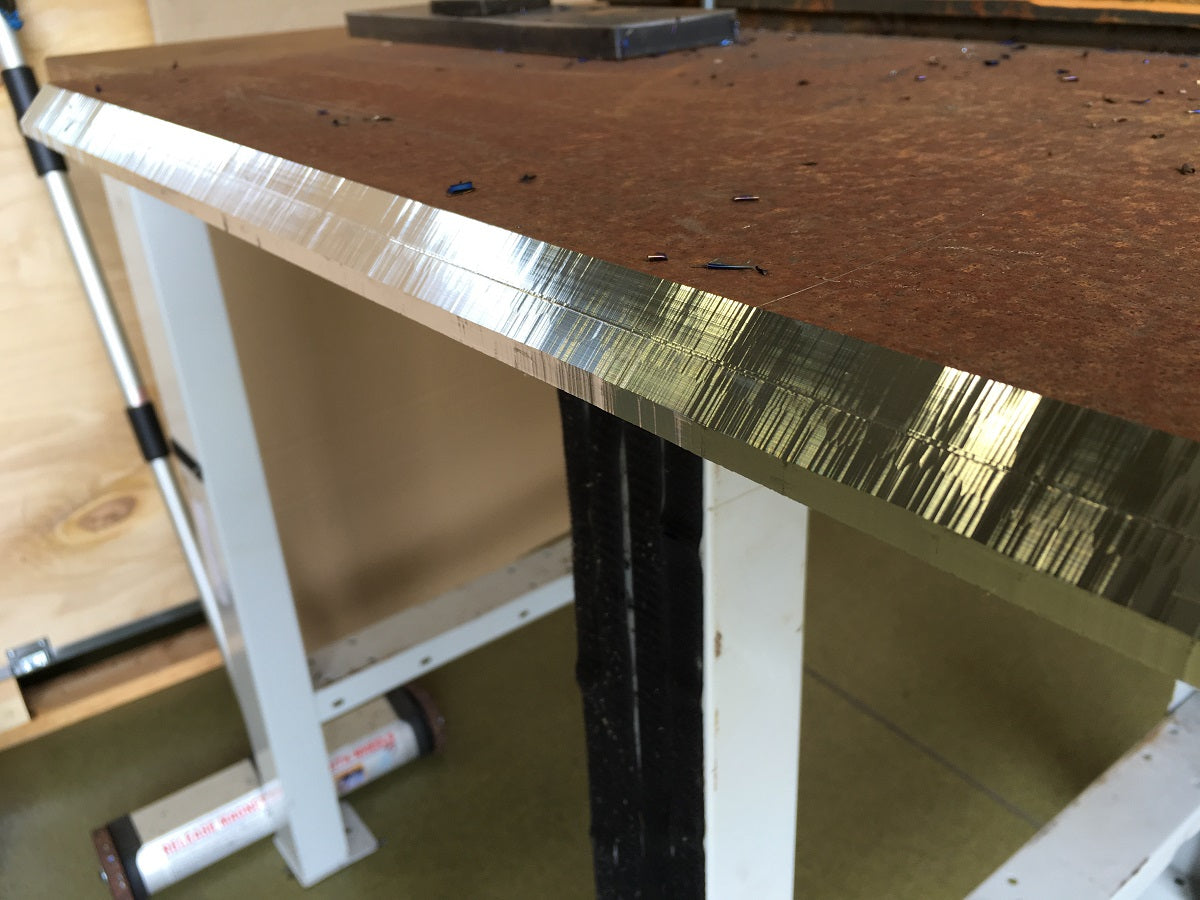

- FACING mode clears edge residue
- Compact build with fall protection

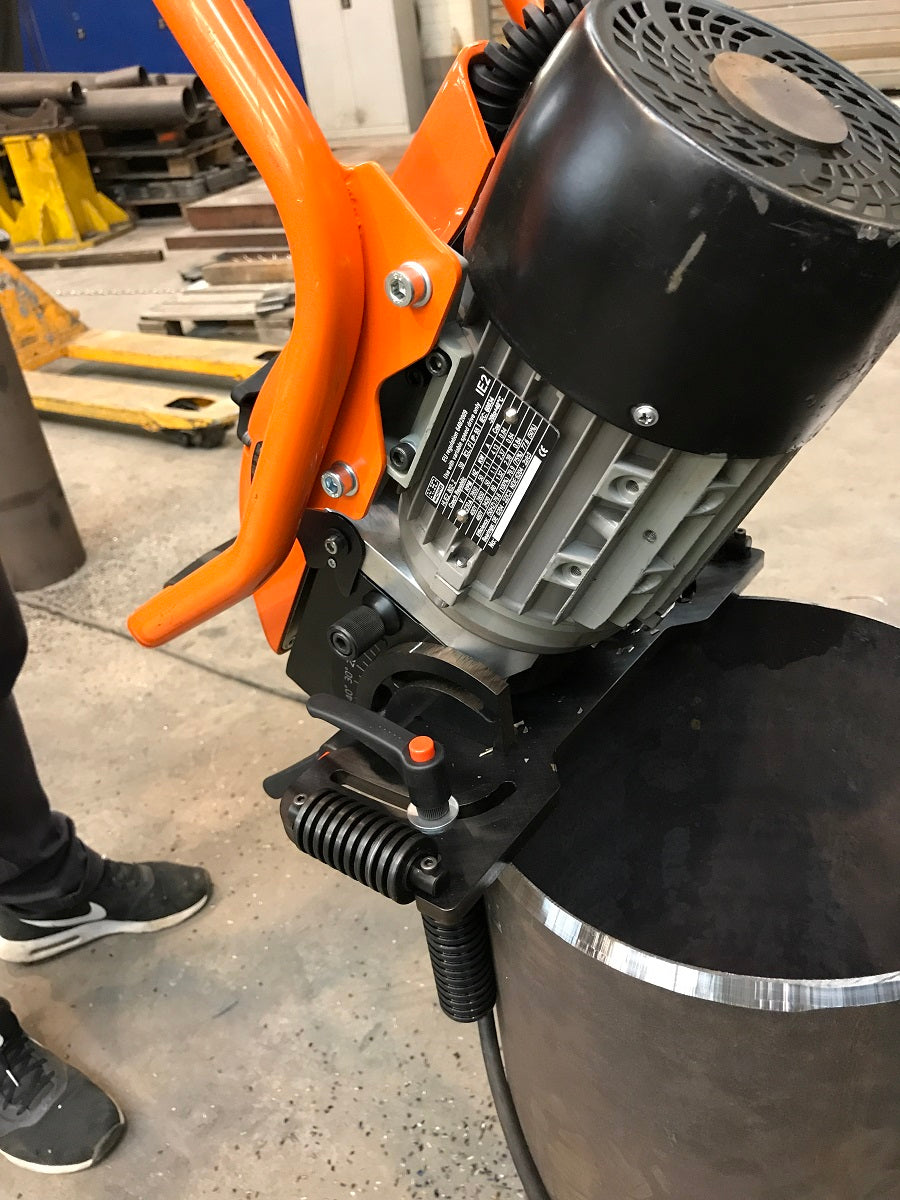

- Bevel pipes and tubes to Ø 600mm
- 1100W motor at 2850 rpm
Watch Video Watch Video Watch Video
Specifications
- Power: 1 100W
- Voltage: 240 V
- Speed: 2 850 rev/ min.
- Width of the bevel: 0°- 60° 21mm (22mm with Premium milling head art.nr. 29202)
- Dimensions: 442x381x318mm
- Weight: 21kg
|
Machine name: |
3Phase-400V | 3Phase-220V | 3Phase-480V | 1Phase-230V | 1Phase-120V |
| Bevelling and deburring system KS22 |
29200 | 29212 | 29211 | 29220 | 29221 |
| Accessories: | Art.Nr. |

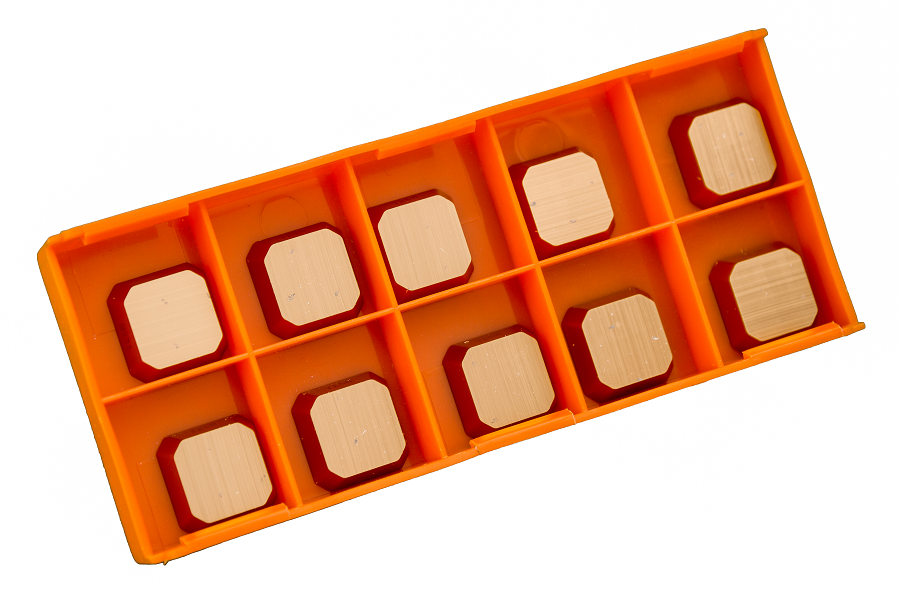

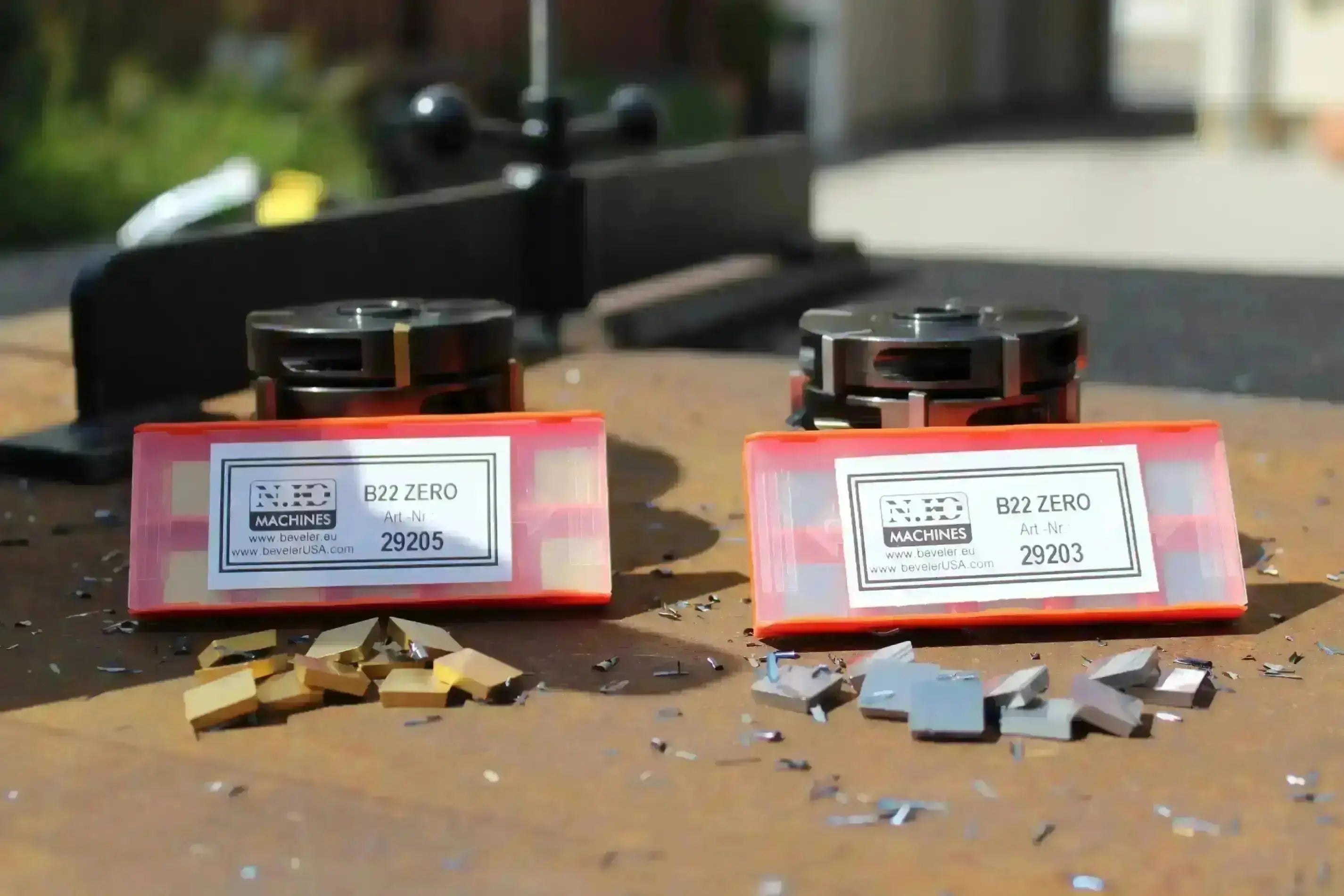

| Standard cutting inserts - four-sided - pack of 10 pcs |
29203 |

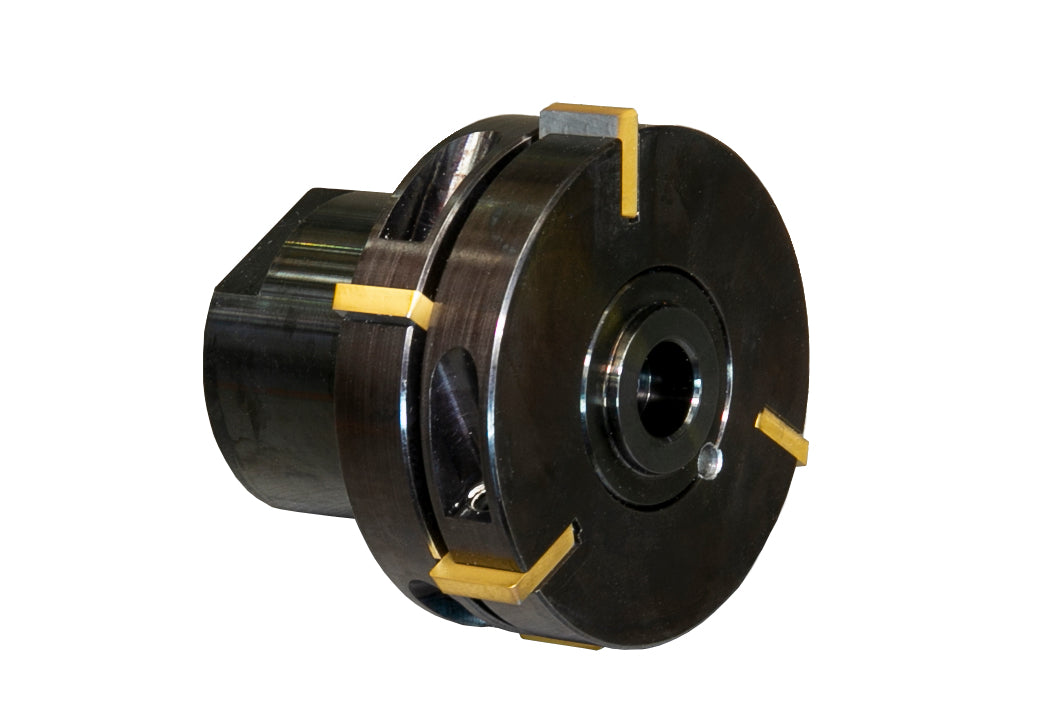

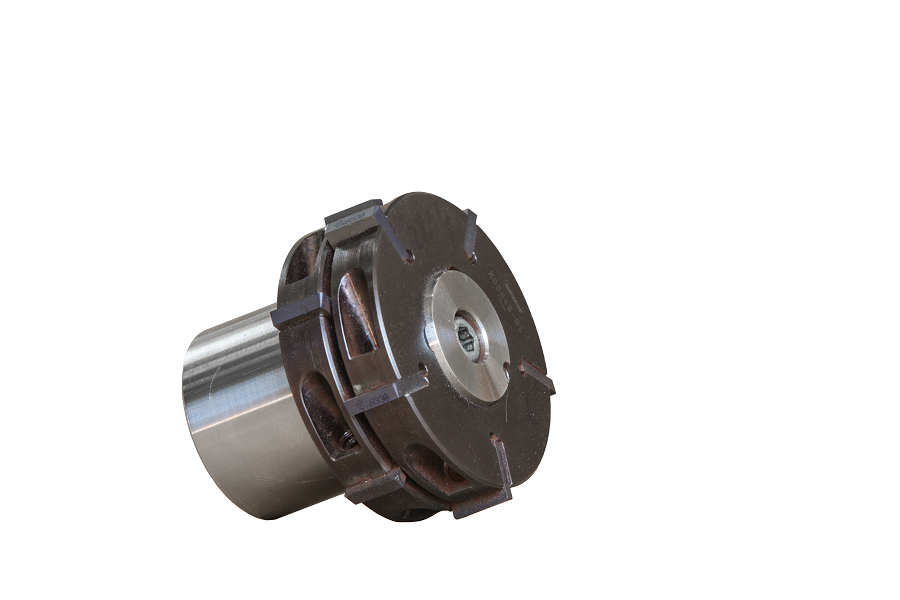

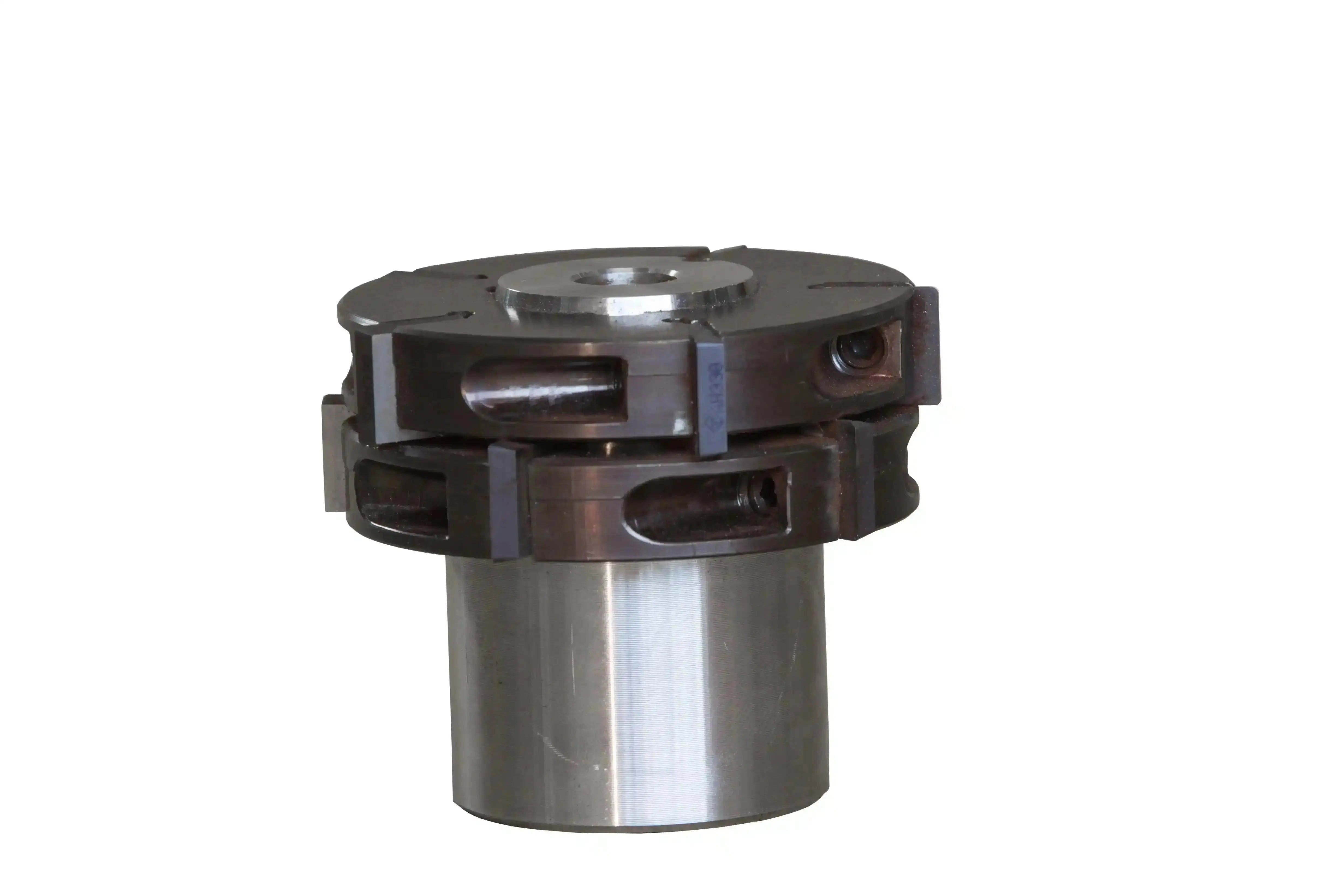

| Standard cutting head - fitted with cutting inserts and screws |
29201 |

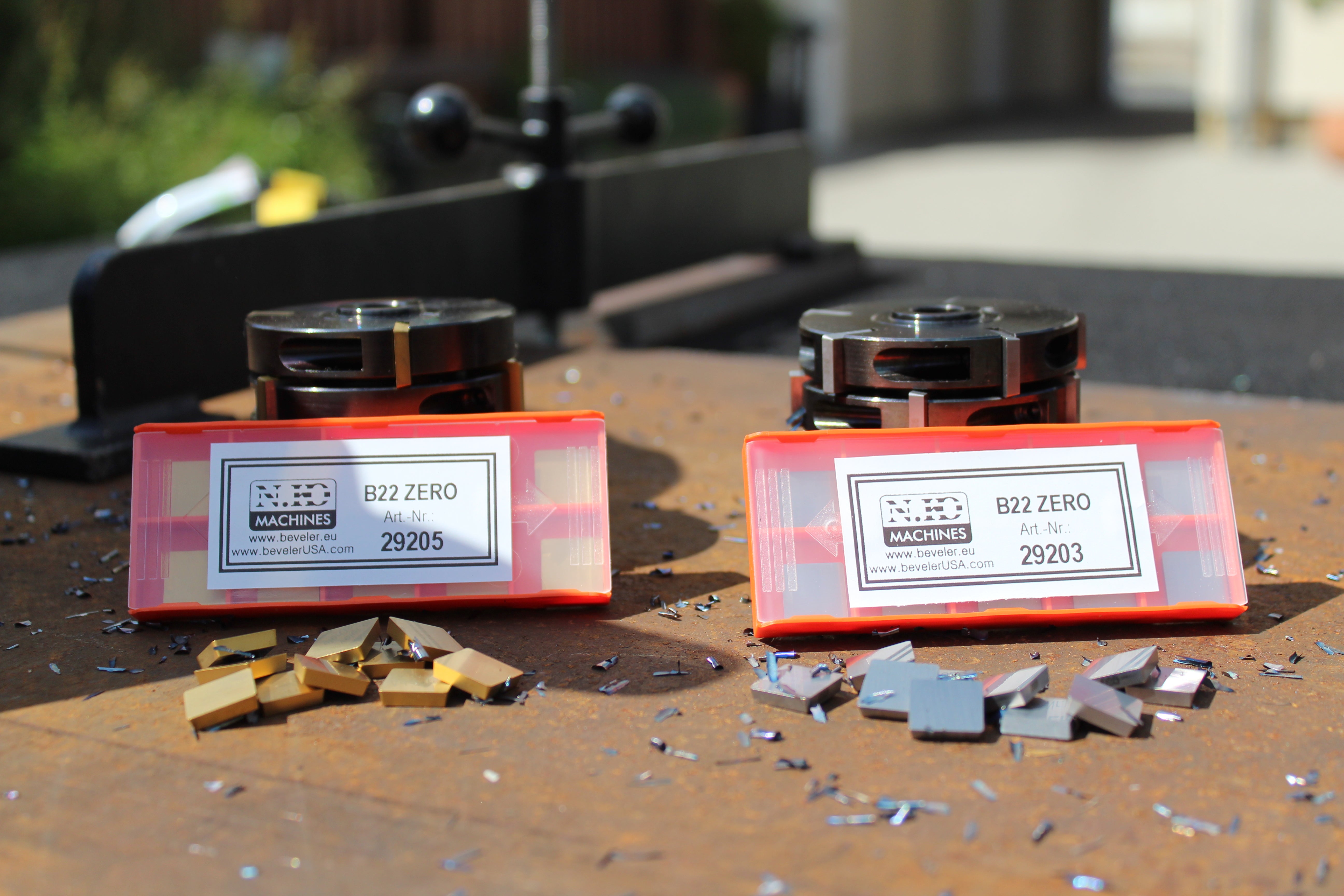

| Premium cutting inserts - four-sided - pack of 10 pcs |
29205 |
| Premium cutting head - designed for stainless steel - fitted with cutting inserts and screws |
29202 |

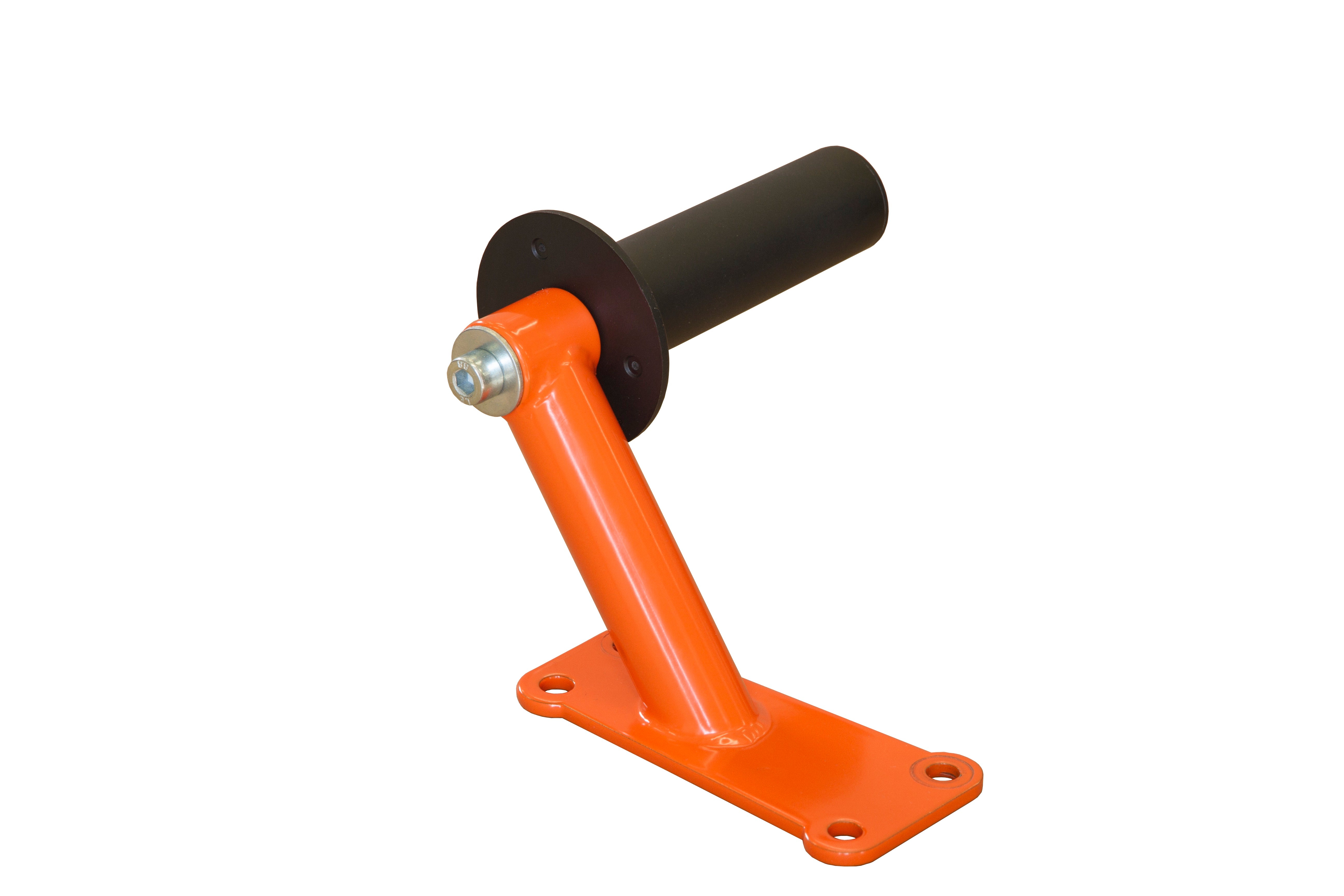

| Additional adjustable handle | 29206 |

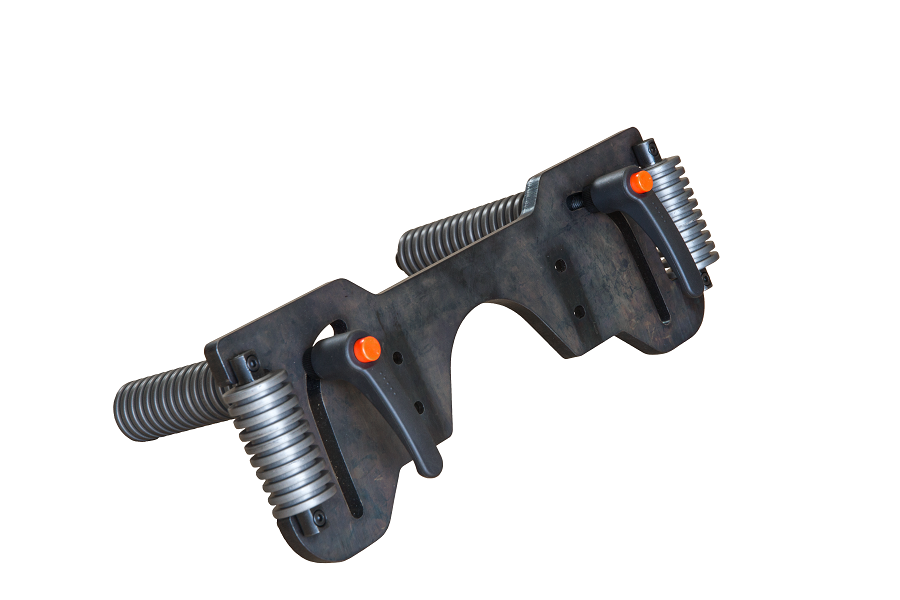

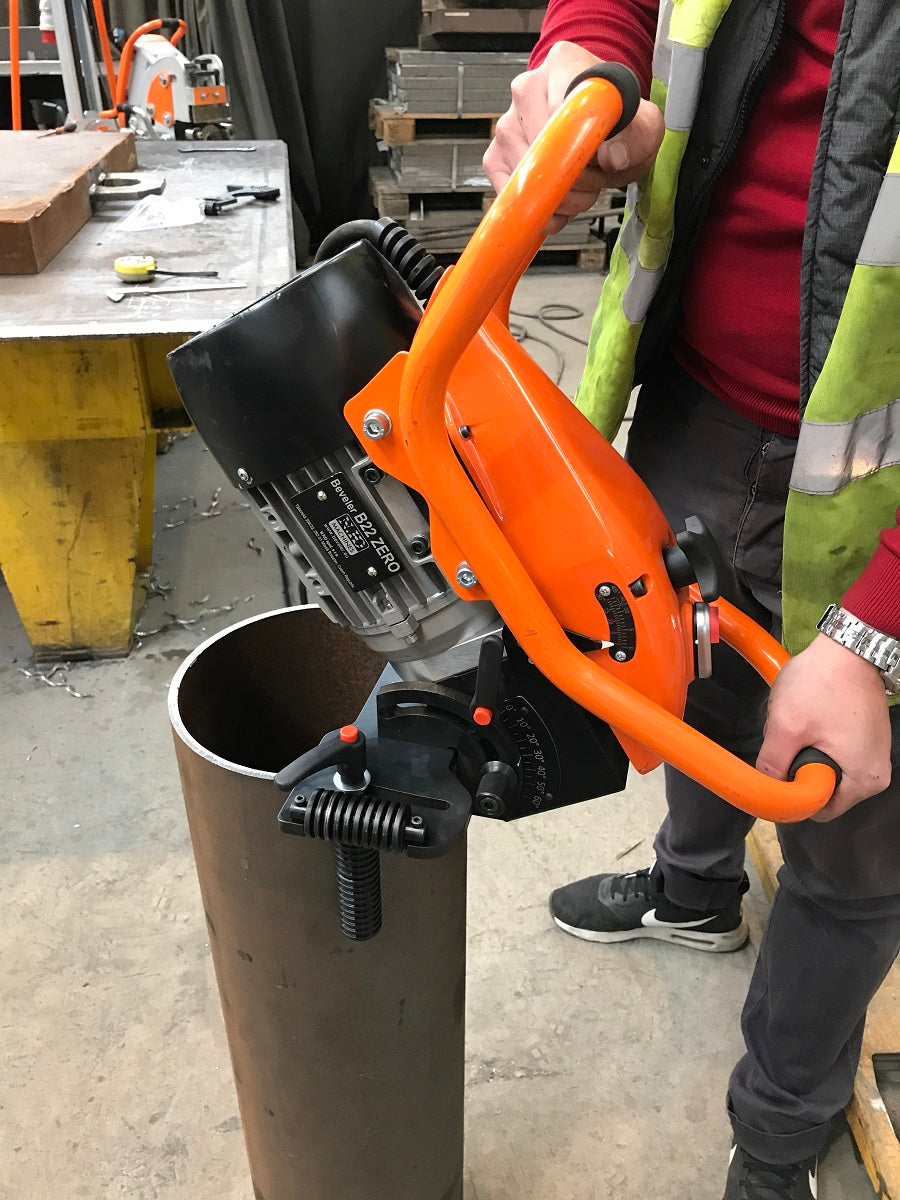

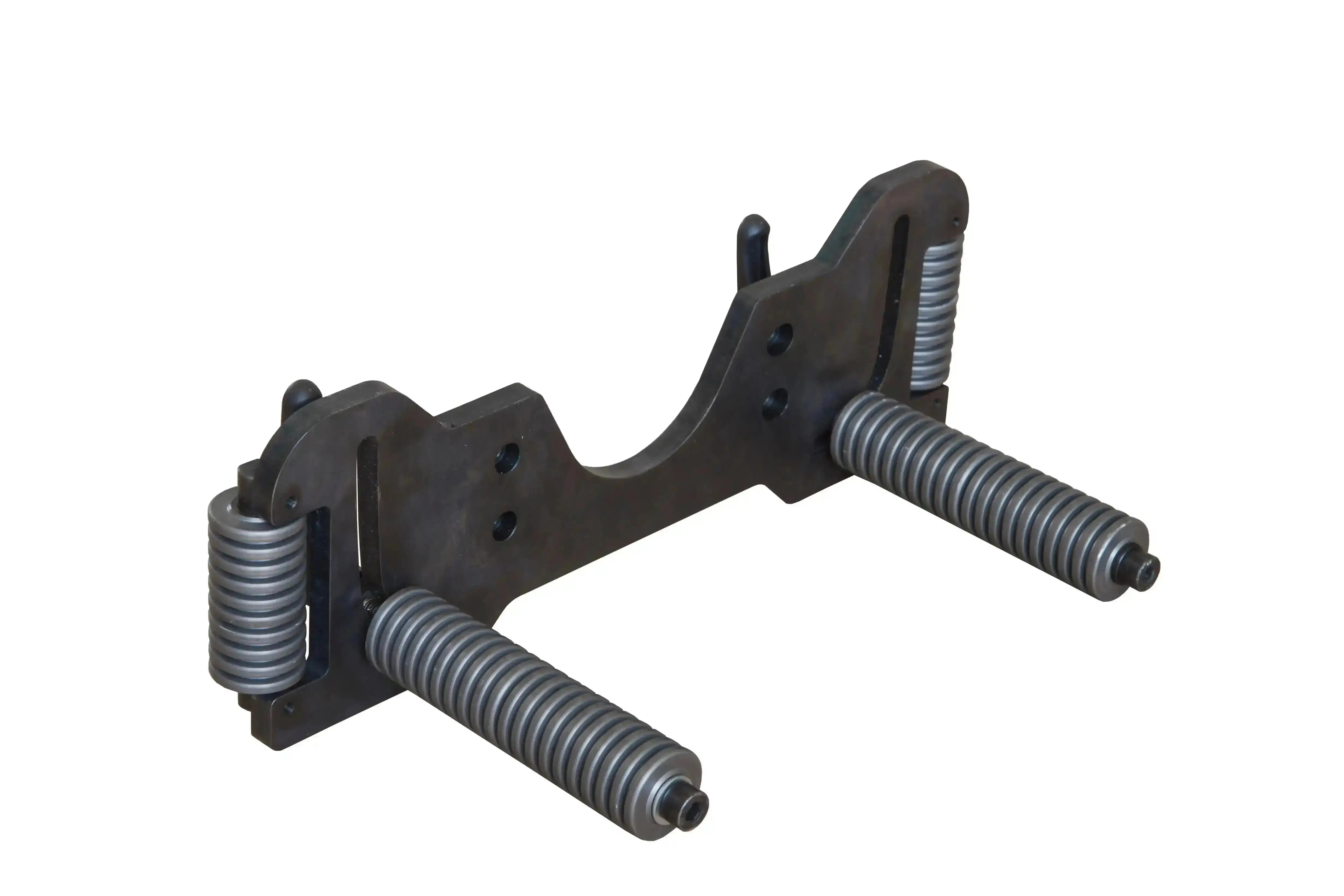

| Pipe and tube bevelling adapter from Ø 150 mm / 5.9 in | 29204 |
| Screw for the cutting inserts | 29200.9300 |
| Mag Brush Maxx Large – magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in |
NMF0107 |
No specifications available.
