KFK10 Portable Beveller

Product Code: 25300

Your preferred online distributor:

Tough and compact, the KFK10 Portable Beveller is built to take on edge prep jobs without slowing down. Its FEIN-made motor keeps power consistent while you bevel, deburr, or round off internal and external curves. The smart cutting head design lets you save inserts on shallower cuts up to 8 mm. Simple bevel size control and a replaceable head make on-site adjustments fast.

Bevels up to 10 mm
Rounds edges for coating prep
Works on steel, aluminium, and more
Electronic speed control
Built in Czech Republic with German motor

User manual Catalogue sheet

Watch Video Watch Video Watch Video Watch Video Watch Video

Specifications

Max. bevel width:

0 to 10 mm / 0 to 0.4 in < 400 MPa / 58 015 PSI
0 to 5 mm / 0 to 0.2 in > 400 MPa / 58 015 PSI

Bevel angle:

replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on demand

Rounding Radius:

R 2,5 mm / R 3,5 mm / R 4 mm
R 0.1 in / R 0.14 in / R 0.16 in

Motor: 1.700 W
Speed:2700-8500 RPM
Overload protection: thermal
Feeding: manual
Weight: 6 kg / 13.2 lb

Machine name:	1Phase-240V
Bevelling and deburring system KFK10 (without the milling head)	25300
SET Bevelling system KFK10 + dock station B-Dock (without the milling head)	25302
SET Bevelling system KFK10 + Xpipe Beveler (without the milling head)	25304
SET Bevelling system KFK10 + dock station B-Dock + Xpipe Beveler (without the milling head)	25305

Accessories – PREMIUM milling heads:	Part no.
30° milling head PREMIUM - the cutting inserts and the lead roller Ø 30 mm / 1.19“are included	27223X
37,5° milling head PREMIUM - the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included	27227X
45° milling head PREMIUM - the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included	27222X
50° milling head PREMIUM - the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included	27224X
60° milling head PREMIUM - the cutting inserts and the lead roller Ø 19 mm / 0.75“ are included	27240X
The additional special roller 30° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 33,5 mm / 1.32“	28004
The additional special roller 37,5° for shorter cutting inserts 8 mm / 0.3“	28013
The additional special roller 45° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 31 mm / 1.23“	28005
The additional special roller 50° for shorter cutting inserts 8 mm / 0.3“	28014
The additional special roller 60° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 25,5 mm / 1.01“	28006
The spare two sided cutting inserts 15 mm / 0.6“ - two-sided, coated - pack of 10 pcs - only for premium milling heads	28015
The shorter four sided cutting inserts 8 mm / 0.3“ - four-sided, coated - pack of 10 pcs - only for premium milling heads with additional special roller	28008
The fastening screws for cutting inserts (works with both cutting inserts versions) - only for premium milling heads	28007

Accessories – Edge cleaner – grinding adapter:	Part No.

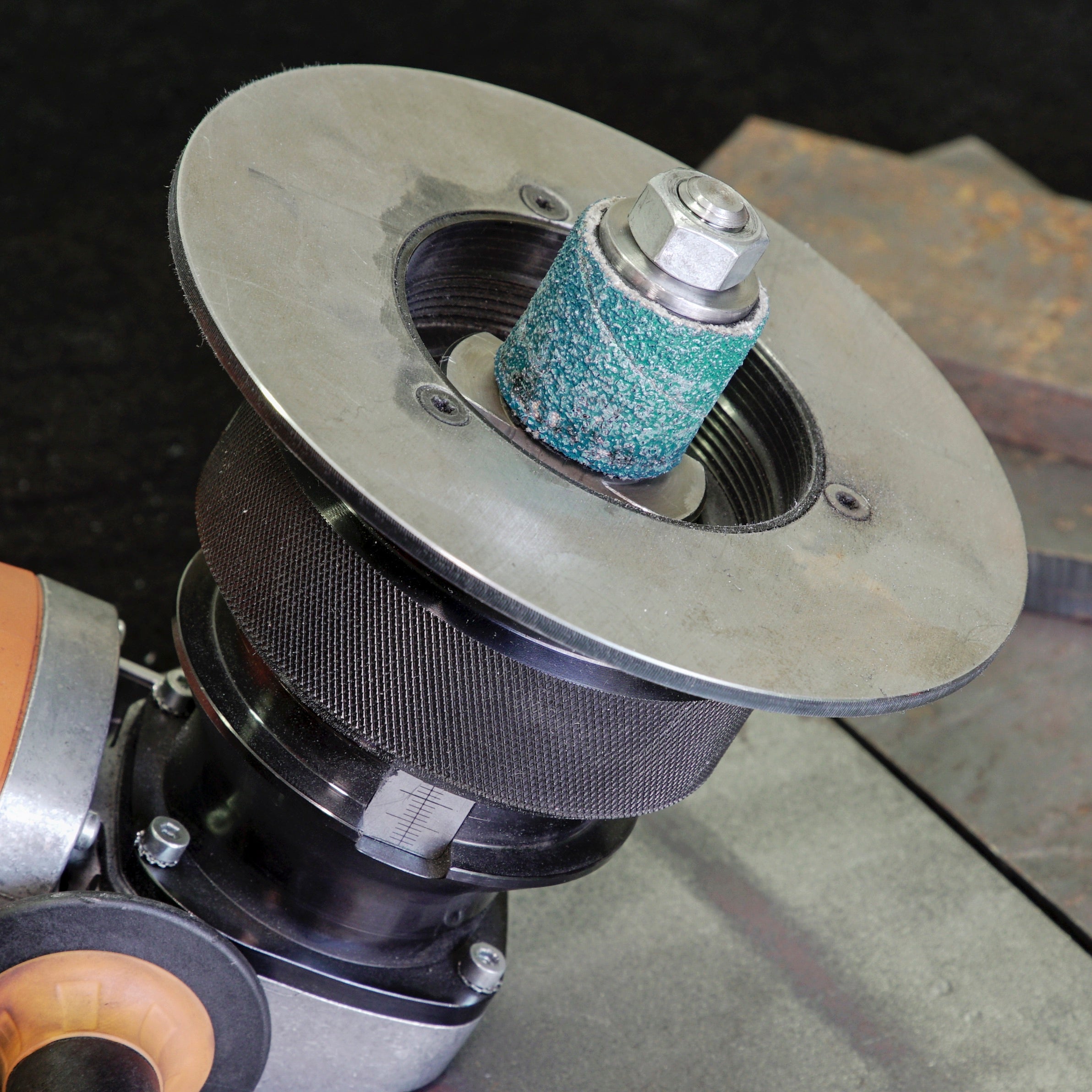

Edge Cleaner – grinding adapter - including 10 pcs grinding rings grain 40, 1 pc guiding roller	25310
Grinding rings grain 40 for Edge Cleaner - pack of 50 pcs	25312
Spare polyurethane guiding roller for Edge Cleaner	25311

Accessories – The Rounding milling heads:	Part No.
Complete radius milling head R2,5 mm / 0.08“ - including of the guiding roll and fastening screw, the cutting inserts are included - the lead roller diameter Ø 30 mm / 1.19“	27234
Complete radius milling head R3,5 mm / 0.12“ and R4 mm / 0.16“ - including of the guiding roll and fastening screw, the cutting inserts R3,5 mm / 0,12“ are included - the lead roller diameter Ø 39,5 mm / 1.55“	27233
Cutting inserts for rounding edges R2,5 mm / 0.08“ - four-sided - pack of 10 pcs	26109
Coated cutting inserts for rounding edges R3,5 mm / 0.12“ - four-sided - pack of 10 pcs	26110
Coated cutting inserts for rounding edges R4 mm / 0.16“ - four-sided - pack of 10 pcs	26111
The fastening screws for cutting inserts - only for rounding milling heads	27242

Accessories – The older ECO milling heads. Available while supplied last.	Part No.
30° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 34 mm / 1.34“	27223
37,5° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 28 mm / 1.10“	27227
45° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 28 mm / 1.10“	27222
50° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 28 mm / 1.10“	27224
60° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 27 mm / 1.06“	27240
Cutting head with non-standard angle - including inserts, screws, bolts and roller	27XXX
Coated cutting inserts - four-sided - pack of 10 pcs - only for ECO milling heads	27231
Screw for the cutting inserts - only for ECO milling heads	27241

Product Data

No specifications available.

Buy Online

Buy now from our online retailers:

NSW

National Welding Visit site

Select your preferred distributor:

More Work, Less Waste

Smart head design saves inserts when cutting up to 8 mm bevel width.

Built for Hard Materials

Handles a wide range of metals without compromising control or finish.

Compact, No-Nonsense Design

Stable, handheld unit made for fast bevel changes and on-site efficiency.
