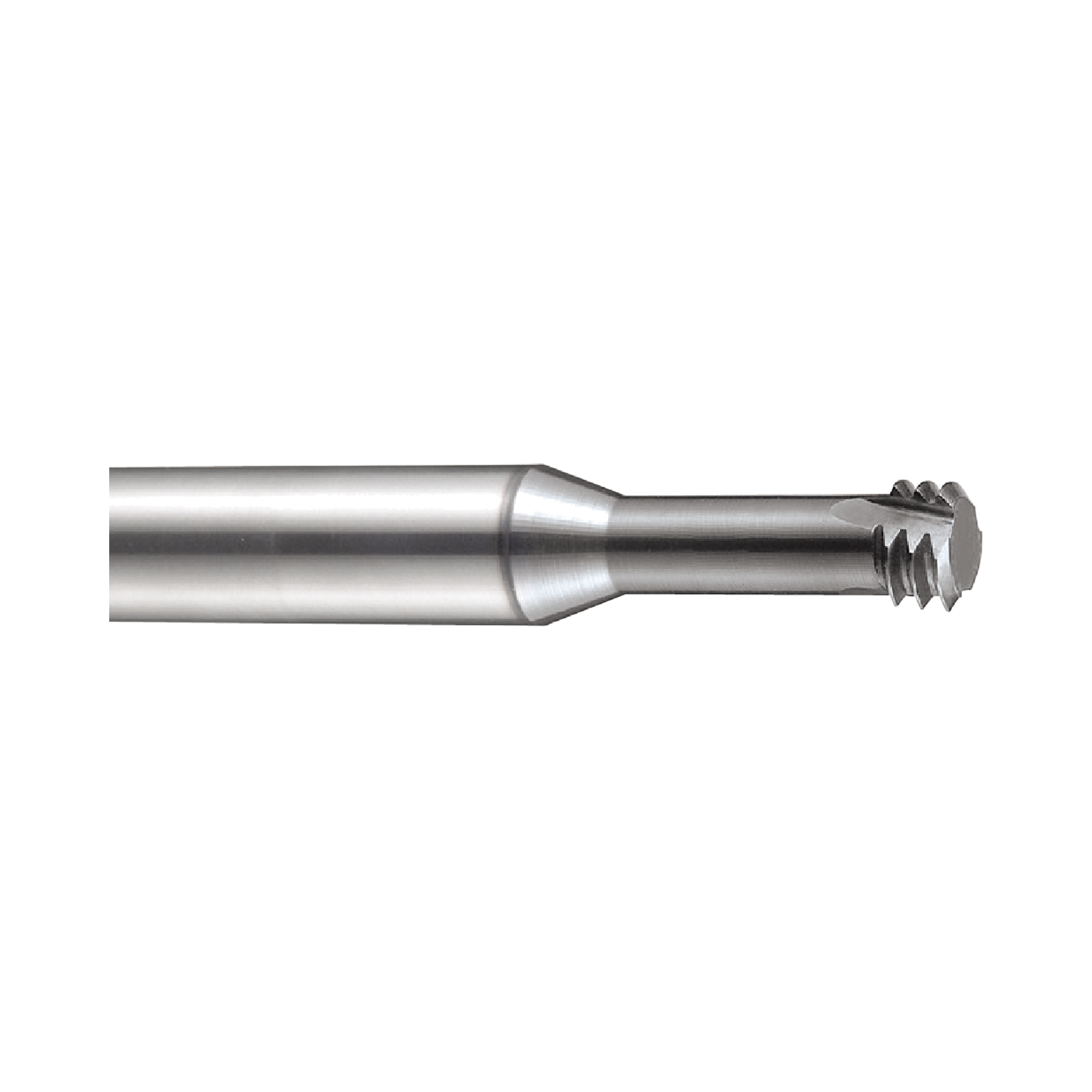

(L12D1) Carbide Miniature Metric Thread Mill

  • $237.93INC GST $216.30 EX GST
(L12D1) Carbide Miniature Metric Thread Mill
(L12D1) Carbide Miniature Metric Thread Mill

(L12D1) Carbide Miniature Metric Thread Mill

  • $237.93INC GST $216.30 EX GST

Code: L12D1010

P M K N S H
Size
Pitch (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

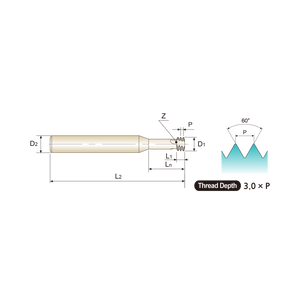

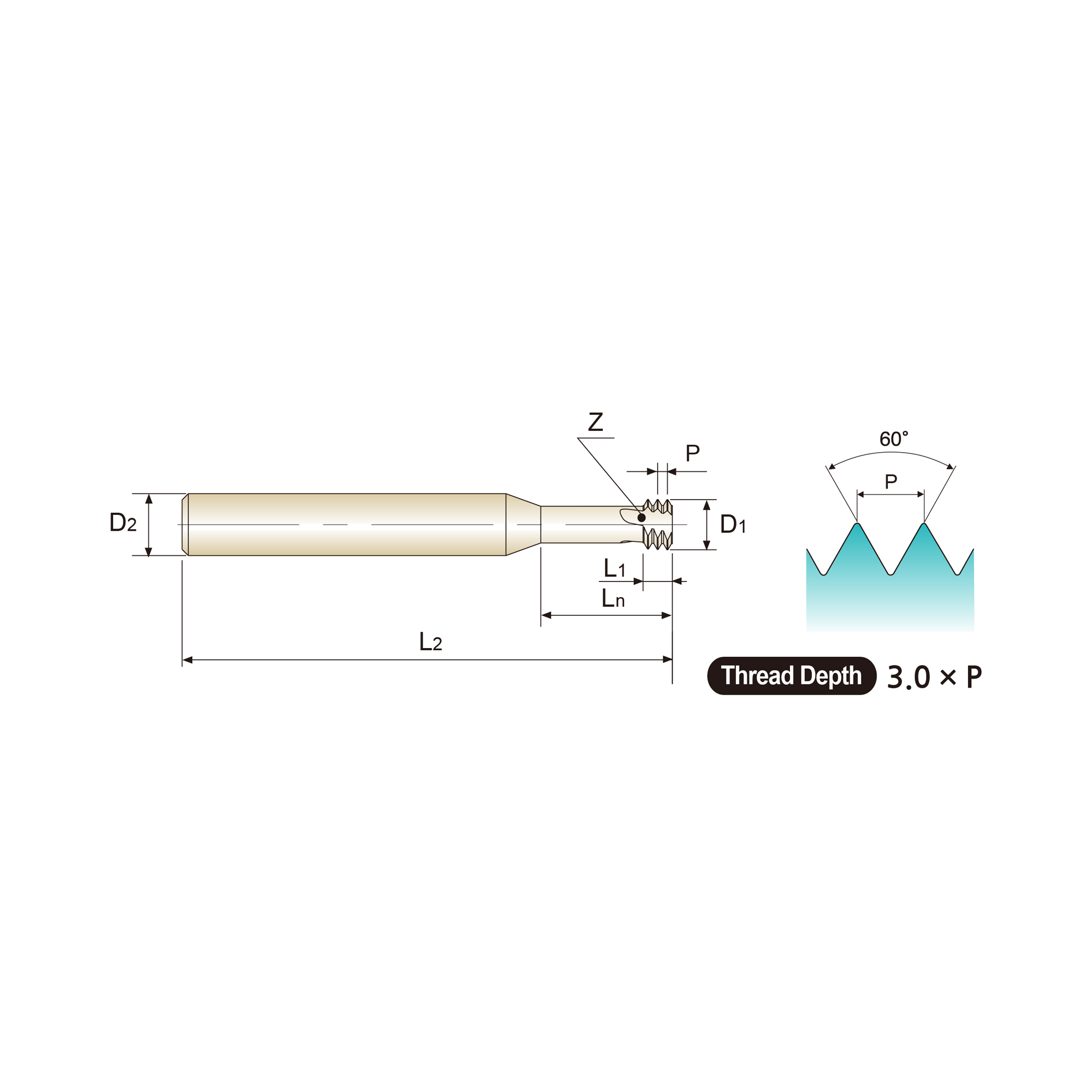

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)FlutesStock Price Qty Add
L12D1010M10.250.7530.02.13.03 Quantity unavailable $216.30
L12D1050M1.20.250.7530.02.53.03 5 days $216.30
L12D1070M1.40.30.930.02.93.03 5 days $205.40
L12D1090M1.60.351.0530.03.43.03 5 days $197.20
L12D1150M2.20.451.3557.04.66.03 5 days $155.60
L12D1170M2.50.451.3557.05.36.03 5 days $155.60
L12D1200M30.51.557.06.36.03 5 days $155.60
L12D1240M40.72.157.08.46.03 Low stock $155.60
L12D1280M50.82.457.010.56.03 In stock $155.60
L12D1310M613.057.012.66.03 Low stock $155.60
L12D1360M81.253.7563.016.88.03 Low stock $201.10
L12D1420M101.54.573.021.010.03 5 days $267.30
L12D1500M121.755.2573.025.210.03 5 days $268.00

Add (L12D1) Carbide Miniature Metric Thread Mill to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Short thread length
  • For Internal Thread
  • Thread Depth : 2.0 x D Max.
Product Data
Workpiece Material P M K N S H
Helix Angle Square 15
Operation Blind Drilling, Through Drilling
Shank Type 6535HA
Surface Treatment Titanium Aluminium Nitride Coating
Thread Angle 60
Thread Shape M
Tool Material Carbide
EDP No. Size Pitch Thread Length Overall Length No. of Flute L12D1010 M1 0.25 0.75 30 3 L12D1010 M1 0.25 0.75 30 3 L12D1050 M1.2 0.25 0.75 30 3 L12D1050 M1.2 0.25 0.75 30 3 L12D1070 M1.4 0.3 0.9 30 3 L12D1070 M1.4 0.3 0.9 30 3 L12D1090 M1.6 0.35 1.05 30 3 L12D1090 M1.6 0.35 1.05 30 3 L12D1130 M2 0.4 1.2 57 3 L12D1130 M2 0.4 1.2 57 3 L12D1150 M2.2 0.45 1.35 57 3 L12D1150 M2.2 0.45 1.35 57 3 L12D1170 M2.5 0.45 1.35 57 3 L12D1170 M2.5 0.45 1.35 57 3 L12D1200 M3 0.5 1.5 57 3 L12D1200 M3 0.5 1.5 57 3 L12D1240 M4 0.7 2.1 57 3 L12D1240 M4 0.7 2.1 57 3 L12D1280 M5 0.8 2.4 57 3 L12D1280 M5 0.8 2.4 57 3 L12D1310 M6 1 3 57 3 L12D1310 M6 1 3 57 3 L12D1360 M8 1.25 3.75 63 3 L12D1360 M8 1.25 3.75 63 3 L12D1420 M10 1.5 4.5 73 3 L12D1420 M10 1.5 4.5 73 3 L12D1500 M12 1.75 5.25 73 3 L12D1500 M12 1.75 5.25 73 3
Blind Drilling
Through Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Excellent

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P Tool Steels

Excellent

Good Great Excellent
P High Alloyed

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Aluminium

Excellent

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Excellent

Good Great Excellent
S Titanium

Great

Good Great Excellent
S Nickel

Great

Good Great Excellent
H Hardened Steels (HRc30~45)

Excellent

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size Pitch Thread Length Overall Length No. of Flute L12D1010 M1 0.25 0.75 30 3 L12D1010 M1 0.25 0.75 30 3 L12D1050 M1.2 0.25 0.75 30 3 L12D1050 M1.2 0.25 0.75 30 3 L12D1070 M1.4 0.3 0.9 30 3 L12D1070 M1.4 0.3 0.9 30 3 L12D1090 M1.6 0.35 1.05 30 3 L12D1090 M1.6 0.35 1.05 30 3 L12D1130 M2 0.4 1.2 57 3 L12D1130 M2 0.4 1.2 57 3 L12D1150 M2.2 0.45 1.35 57 3 L12D1150 M2.2 0.45 1.35 57 3 L12D1170 M2.5 0.45 1.35 57 3 L12D1170 M2.5 0.45 1.35 57 3 L12D1200 M3 0.5 1.5 57 3 L12D1200 M3 0.5 1.5 57 3 L12D1240 M4 0.7 2.1 57 3 L12D1240 M4 0.7 2.1 57 3 L12D1280 M5 0.8 2.4 57 3 L12D1280 M5 0.8 2.4 57 3 L12D1310 M6 1 3 57 3 L12D1310 M6 1 3 57 3 L12D1360 M8 1.25 3.75 63 3 L12D1360 M8 1.25 3.75 63 3 L12D1420 M10 1.5 4.5 73 3 L12D1420 M10 1.5 4.5 73 3 L12D1500 M12 1.75 5.25 73 3 L12D1500 M12 1.75 5.25 73 3
