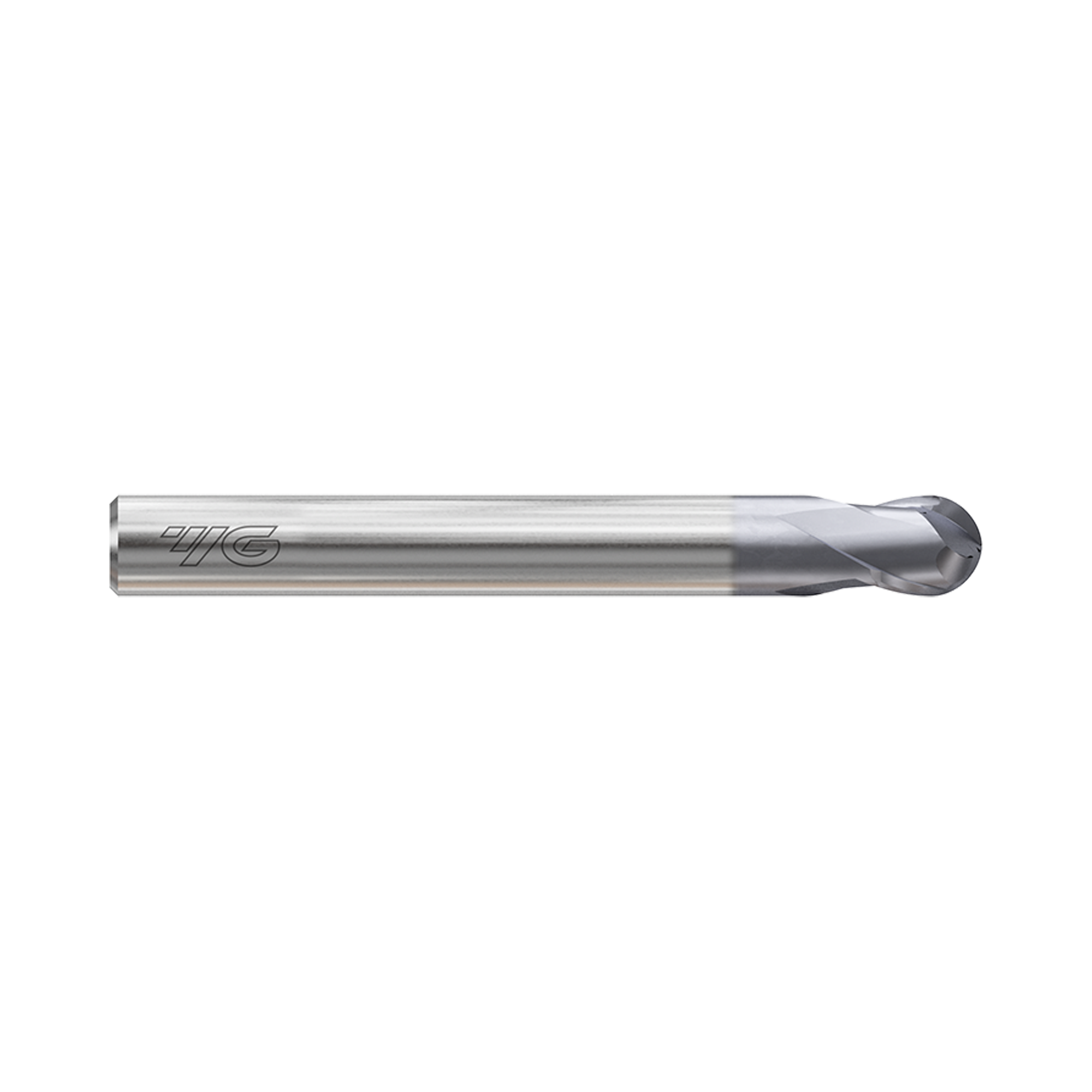

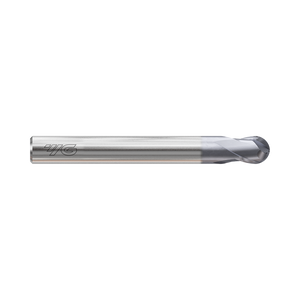

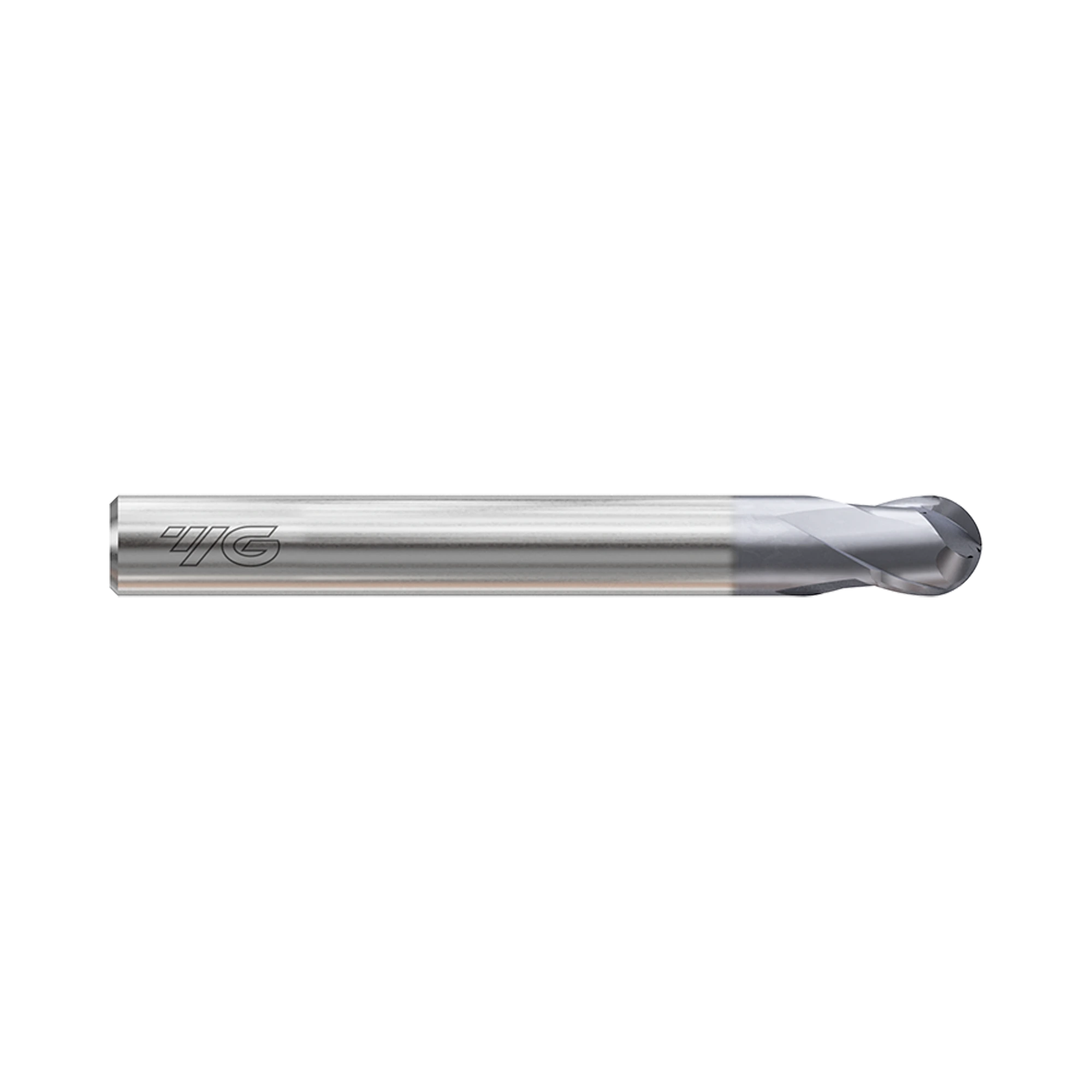

(GYF97) HSS-PM, Only One 2Flute Coated Ball Nose End Mill, Short Length, Flat Shank
PM60 2 Flute Short Ball Nose End Mill
- SKU
- GYF97010
Key features
- PM60 ball nose end mill with Y Coating
- Two-flute geometry with a 30° helix angle
- Short-length design with plain flat shank
Made in South Korea
Controlled radii
Ball radii from R0.5 to R10.0 support detailed radiused milling requirements.
Short reach geometry
Short-length construction provides a compact option for ball nose milling operations.
PM60 and Y Coating
PM60 construction and Y Coating define this YG-1 Only One cutter series.
| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| GYF97010 | 1 | R0.5 | 47.0 | 6.0 | 2.5 | 1-2 Weeks | $36.70 | ||
| GYF97020 | 2 | R1.0 | 48.0 | 6.0 | 4.0 | In stock | $33.40 | ||
| GYF97030 | 3 | R1.5 | 49.0 | 6.0 | 5.0 | 1-2 Weeks | $26.00 | ||
| GYF97040 | 4 | R2.0 | 51.0 | 6.0 | 7.0 | 1-2 Weeks | $26.00 | ||
| GYF97050 | 5 | R2.5 | 52.0 | 6.0 | 8.0 | 1-2 Weeks | $26.00 | ||
| GYF97060 | 6 | R3.0 | 52.0 | 6.0 | 8.0 | 1-2 Weeks | $26.00 | ||
| GYF97070 | 7 | R3.5 | 60.0 | 8.0 | 10.0 | 1-2 Weeks | $40.10 | ||
| GYF97080 | 8 | R4.0 | 61.0 | 8.0 | 11.0 | 1-2 Weeks | $47.70 | ||
| GYF97090 | 9 | R4.5 | 61.0 | 10.0 | 11.0 | 1-2 Weeks | $45.10 | ||
| GYF97100 | 10 | R5.0 | 63.0 | 10.0 | 13.0 | 1-2 Weeks | $45.10 | ||
| GYF97120 | 12 | R6.0 | 73.0 | 12.0 | 16.0 | 1-2 Weeks | $67.60 | ||
| GYF97140 | 14 | R7.0 | 73.0 | 12.0 | 16.0 | 1-2 Weeks | $85.20 | ||
| GYF97160 | 16 | R8.0 | 79.0 | 16.0 | 19.0 | 1-2 Weeks | $80.90 | ||
| GYF97200 | 20 | R10.0 | 88.0 | 20.0 | 22.0 | 1-2 Weeks | $160.10 |
Add (GYF97) HSS-PM, Only One 2Flute Coated Ball Nose End Mill, Short Length, Flat Shank to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GYF97 Only One is a short-length, two-flute PM60 ball nose end mill with Y Coating. Designed for machining carbon, alloy and stainless steels, it provides radiused cutting for detailed milling work. Each cutter uses a plain flat shank and a 30° helix geometry. The available family covers R0.5 to R10.0 ball radii, corresponding to 1 to 20 mm diameters. Ball radius tolerance is ±0.02, supporting accurate selection where controlled radii are required. Length of cut spans 2.5 to 22 mm across the offered range. Choose the GYF97 for short-length ball nose milling where PM60 construction and Y Coating are required.
- PM60 ball nose end mill with Y Coating
- Two-flute geometry with a 30° helix angle
- Short-length design with plain flat shank
- R0.5 to R10.0 ball radius range
- ±0.02 ball radius tolerance
- Suitable for carbon alloy and stainless steels
No specifications available.
