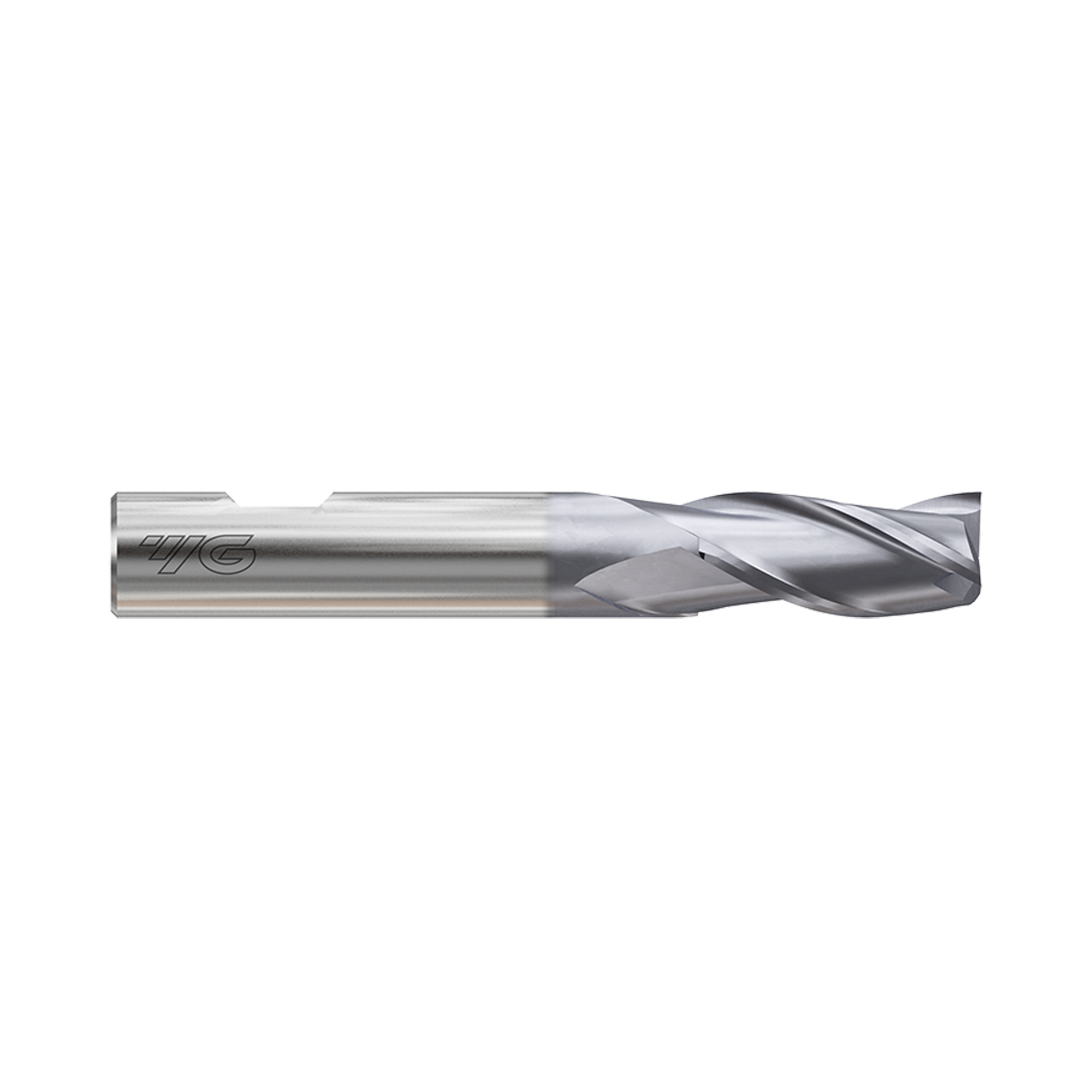

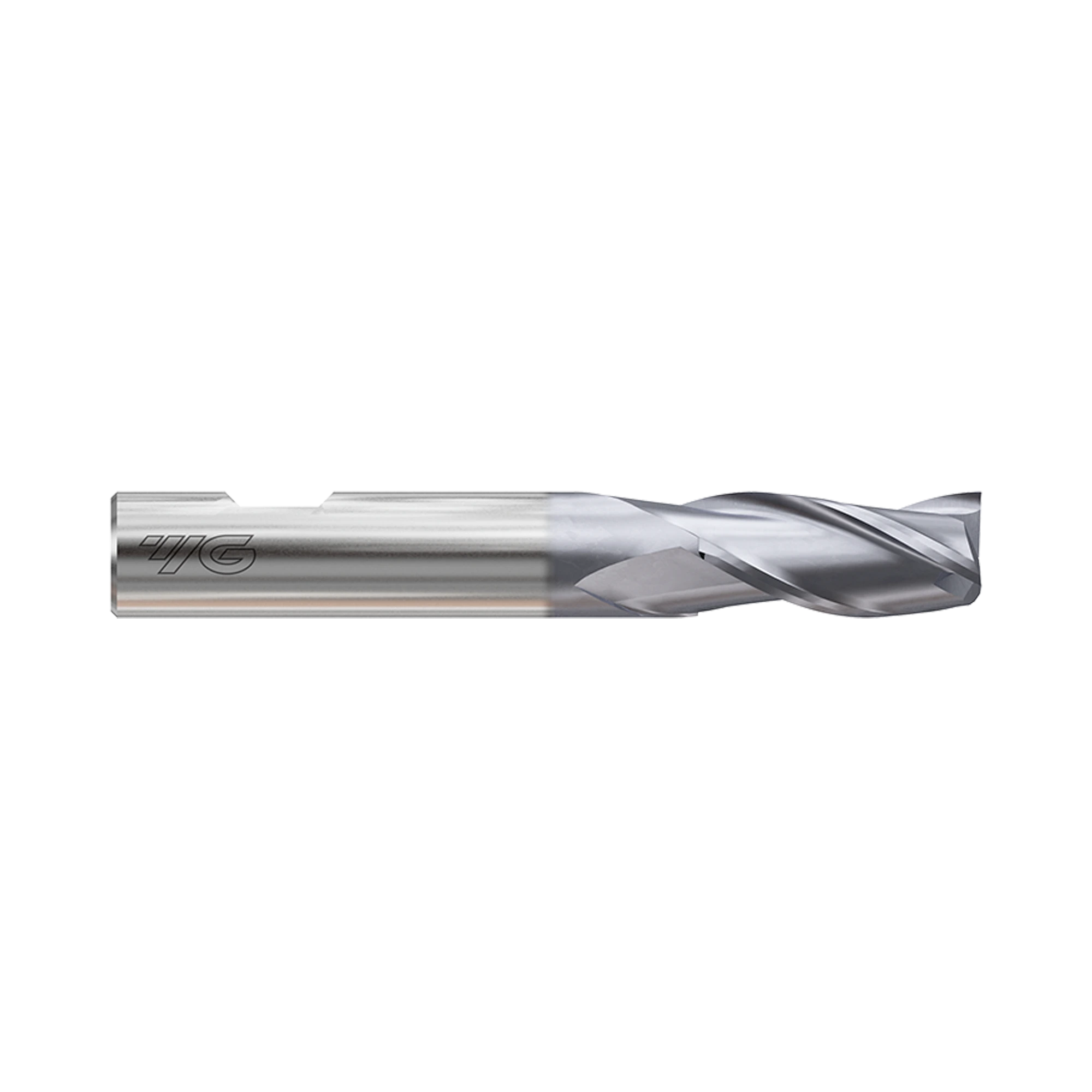

(GYG01) HSS-PM, Only One 3Flute Coated End Mill, Short Length, Flat Shank
Coated PM60 three-flute short-length centre-cut end mill
- SKU
- GYG01010
Key features
- Coated PM60 three-flute short-length centre-cut end mill
- Flat shank configuration
- Only One GYG01 series
Made in South Korea
Centre-cut capability
Centre-cut design suits milling operations that require cutting from the tool centre.
Short-length format
Compact short-length geometry provides a focused option for general milling setups.
Practical size coverage
Diameters from 1.0 to 25.0 mm cover a broad range of listed milling requirements.
| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GYG01010 | 1 | 47.0 | 6.0 | 3.0 | 1-2 Weeks | $22.50 | ||
| GYG01020 | 2 | 51.0 | 6.0 | 7.0 | 1-2 Weeks | $22.50 | ||
| GYG01030 | 3 | 52.0 | 6.0 | 8.0 | 1-2 Weeks | $22.50 | ||
| GYG01040 | 4 | 55.0 | 6.0 | 11.0 | 1-2 Weeks | $32.00 | ||
| GYG01050 | 5 | 57.0 | 6.0 | 13.0 | 1-2 Weeks | $22.50 | ||
| GYG01060 | 6 | 57.0 | 6.0 | 13.0 | 1-2 Weeks | $22.50 | ||
| GYG01070 | 7 | 66.0 | 8.0 | 16.0 | 1-2 Weeks | $36.70 | ||
| GYG01080 | 8 | 69.0 | 8.0 | 19.0 | 1-2 Weeks | $36.70 | ||
| GYG01090 | 9 | 69.0 | 10.0 | 19.0 | 1-2 Weeks | $41.70 | ||
| GYG01100 | 10 | 72.0 | 10.0 | 22.0 | 1-2 Weeks | $45.30 | ||
| GYG01120 | 12 | 83.0 | 12.0 | 26.0 | 1-2 Weeks | $61.20 | ||
| GYG01140 | 14 | 83.0 | 12.0 | 26.0 | 1-2 Weeks | $82.30 | ||
| GYG01160 | 16 | 92.0 | 16.0 | 32.0 | 1-2 Weeks | $101.80 | ||
| GYG01180 | 18 | 92.0 | 16.0 | 32.0 | 1-2 Weeks | $127.50 | ||
| GYG01200 | 20 | 104.0 | 20.0 | 38.0 | 1-2 Weeks | $162.30 | ||
| GYG01220 | 22 | 104.0 | 20.0 | 38.0 | 1-2 Weeks | $179.90 | ||
| GYG01250 | 25 | 121.0 | 25.0 | 45.0 | 1-2 Weeks | $240.20 |
Add (GYG01) HSS-PM, Only One 3Flute Coated End Mill, Short Length, Flat Shank to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GYG01 is a coated PM60 three-flute short-length centre-cut end mill with a flat shank. Designed for centre-cutting operations, this Only One series tool provides a compact short-length milling format. The GYG01 family combines three flutes, coated PM60 construction and a flat shank. Available diameters span 1.0 to 25.0 mm, with cutting lengths from 3 to 45 mm. Overall lengths range from 47 to 121 mm, supported by 6 to 25 mm shank diameters. The centre-cutting design supports operations requiring cutting from the centre of the tool. The short-length format keeps the GYG01 range focused on compact tool dimensions for milling work.
- Coated PM60 three-flute short-length centre-cut end mill
- Flat shank configuration
- Only One GYG01 series
- 1.0 to 25.0 mm mill diameter range
- 3 to 45 mm length of cut range
- 47 to 121 mm overall length range
No specifications available.
