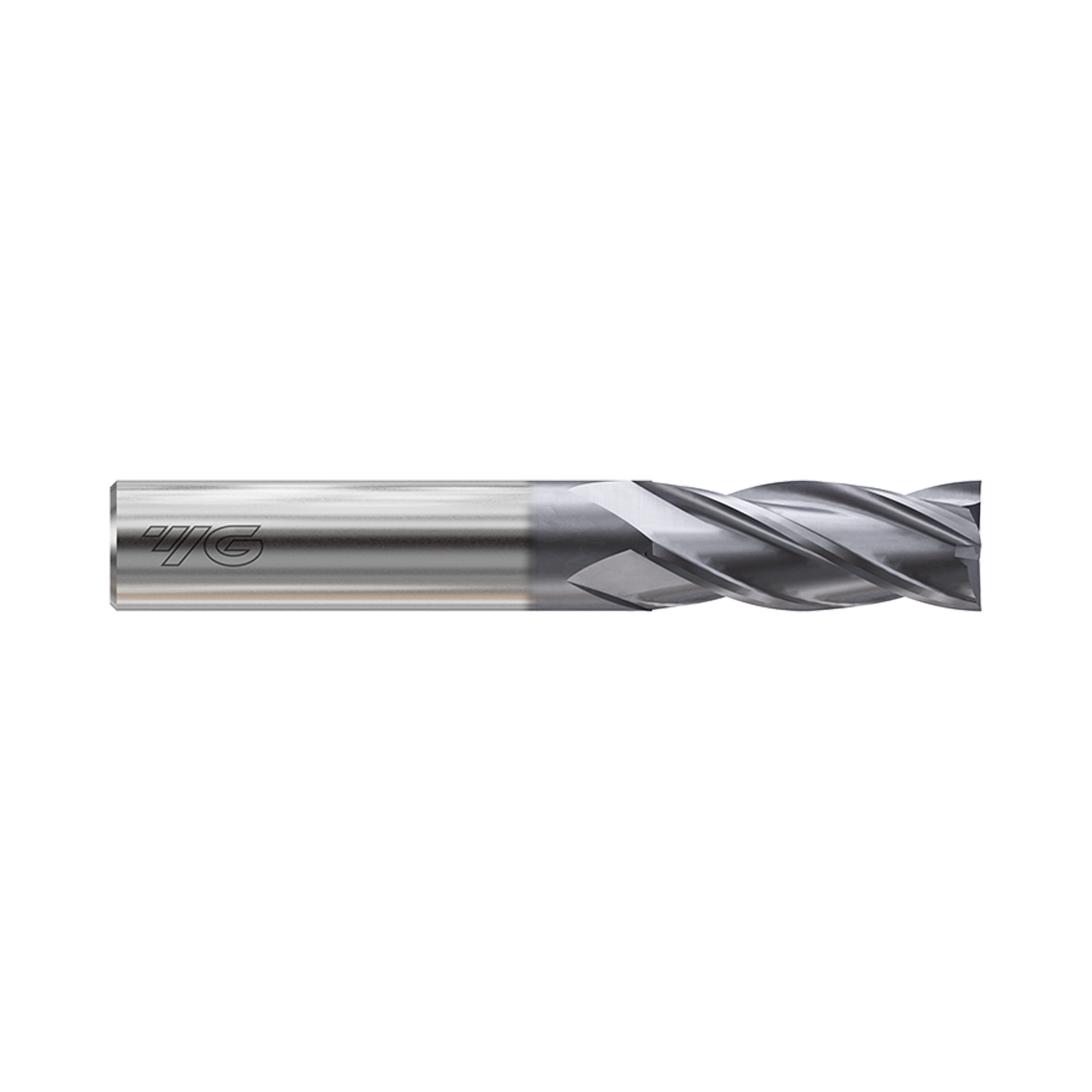

(GYG02) HSS-PM, Only One 4Flute Coated End Mill, Long Length, Flat Shank
PM60 4 Flute Long Length Centre-Cut End MillCode: GYG02020
-
Key Features
- Coated PM60 four-flute long-length square end mill
- Centre-cut geometry for axial entry milling
- 35°/37° helix configuration
Made in South Korea
Long-reach milling
Long-length geometry provides an extended-reach square end-milling option.
Centre-cut capability
Centre-cut geometry supports milling operations requiring axial tool entry.
Practical size selection
Diameters from 2 mm to 25 mm support varied feature sizes.
| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GYG02020 | 2 | 54.0 | 6.0 | 10.0 | 5 days | $27.60 | ||
| GYG02030 | 3 | 56.0 | 6.0 | 12.0 | Low stock | $27.60 | ||
| GYG02040 | 4 | 63.0 | 6.0 | 19.0 | 5 days | $27.60 | ||
| GYG02050 | 5 | 68.0 | 6.0 | 24.0 | 5 days | $27.60 | ||
| GYG02060 | 6 | 68.0 | 6.0 | 24.0 | 5 days | $27.60 | ||
| GYG02070 | 7 | 80.0 | 8.0 | 30.0 | 5 days | $47.20 | ||
| GYG02080 | 8 | 88.0 | 8.0 | 38.0 | 5 days | $47.20 | ||
| GYG02090 | 9 | 88.0 | 10.0 | 38.0 | 5 days | $52.10 | ||
| GYG02100 | 10 | 95.0 | 10.0 | 45.0 | 5 days | $52.10 | ||
| GYG02120 | 12 | 110.0 | 12.0 | 53.0 | 5 days | $80.00 | ||
| GYG02140 | 14 | 110.0 | 12.0 | 53.0 | 5 days | $108.80 | ||
| GYG02160 | 16 | 123.0 | 16.0 | 63.0 | 5 days | $139.00 | ||
| GYG02180 | 18 | 123.0 | 16.0 | 63.0 | 5 days | $176.90 | ||
| GYG02200 | 20 | 141.0 | 20.0 | 75.0 | 5 days | $200.10 | ||
| GYG02220 | 22 | 141.0 | 20.0 | 75.0 | 5 days | $247.00 | ||
| GYG02250 | 25 | 161.0 | 25.0 | 90.0 | 5 days | $365.90 |
Add (GYG02) HSS-PM, Only One 4Flute Coated End Mill, Long Length, Flat Shank to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GYG02 Only One is a coated PM60 four-flute long-length square end mill with flat shank. Designed for centre-cut milling, it provides a long-reach option for square-end end-milling operations. The GYG02 series uses a 35°/37° helix configuration with four cutting flutes. Centre-cut geometry supports axial entry where the milling operation requires it. Flat-shank variants cover mill diameters from 2 mm to 25 mm. This range provides a practical selection for matching tool diameter to the required feature size. The square cutting end suits machining operations requiring a flat-bottomed end-mill form. GYG02 is part of the YG-1 Only One coated PM60 end mill range.
- Coated PM60 four-flute long-length square end mill
- Centre-cut geometry for axial entry milling
- 35°/37° helix configuration
- Flat shank design
- Mill diameter range from 2 mm to 25 mm
- YG-1 GYG02 Only One series
