(GYF96) HSS-PM, Only One 4Flute Coated End Mill, Short Length, Flat Shank

Coated PM60 4-Flute Short-Length Square End Mill

(GYF96) HSS-PM, Only One 4Flute Coated End Mill, Short Length, Flat Shank
$24.75 INC GST $22.50 EX GST
SKU
GYF96010
Work materials
PMKNH

Key features

  • PM60 construction with YG-ALCRN Y coating
  • Four-flute short-length square end mill design
  • Centre-cutting geometry for slotting operations
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Compact cutting reach

Short cutting lengths suit milling work where compact reach is preferred

Centre-cutting capability

Centre-cutting geometry supports slotting and general milling applications

Practical size coverage

Seventeen diameters from 1 to 25 mm provide broad size selection

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
GYF960101.049.06.03.0 1-2 Weeks $22.50
GYF960202.051.06.07.0 1-2 Weeks $22.50
GYF960303.052.06.08.0 1-2 Weeks $22.50
GYF960404.055.06.011.0 Low stock $26.30
GYF960505.057.06.013.0 1-2 Weeks $22.50
GYF960606.057.06.013.0 Low stock $26.27
GYF960707.066.08.016.0 1-2 Weeks $36.70
GYF960808.069.08.019.0 In stock $51.50
GYF960909.069.010.019.0 1-2 Weeks $41.70
GYF9610010.072.010.022.0 In stock $41.70
GYF9612012.083.012.026.0 In stock $69.60
GYF9614014.083.012.026.0 1-2 Weeks $77.80
GYF9616016.092.016.032.0 In stock $101.80
GYF9618018.092.016.032.0 1-2 Weeks $127.50
GYF9620020.0104.020.038.0 1-2 Weeks $162.30
GYF9622022.0104.020.038.0 1-2 Weeks $160.50
GYF9625025.0121.025.045.0 Low stock $174.40

Add (GYF96) HSS-PM, Only One 4Flute Coated End Mill, Short Length, Flat Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

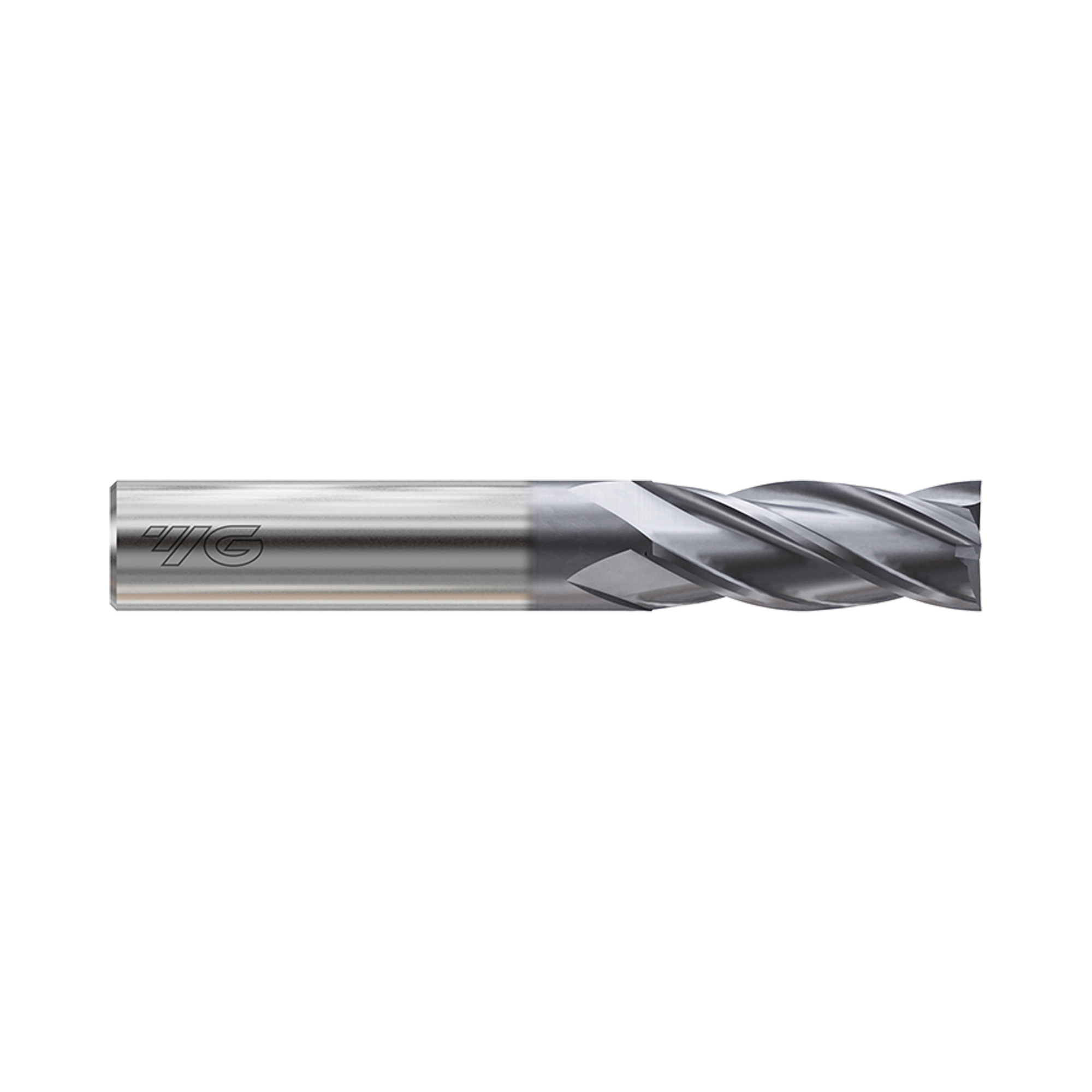

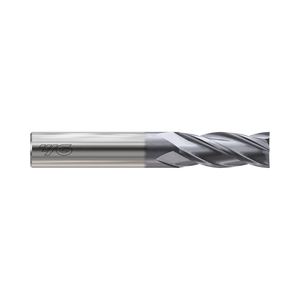

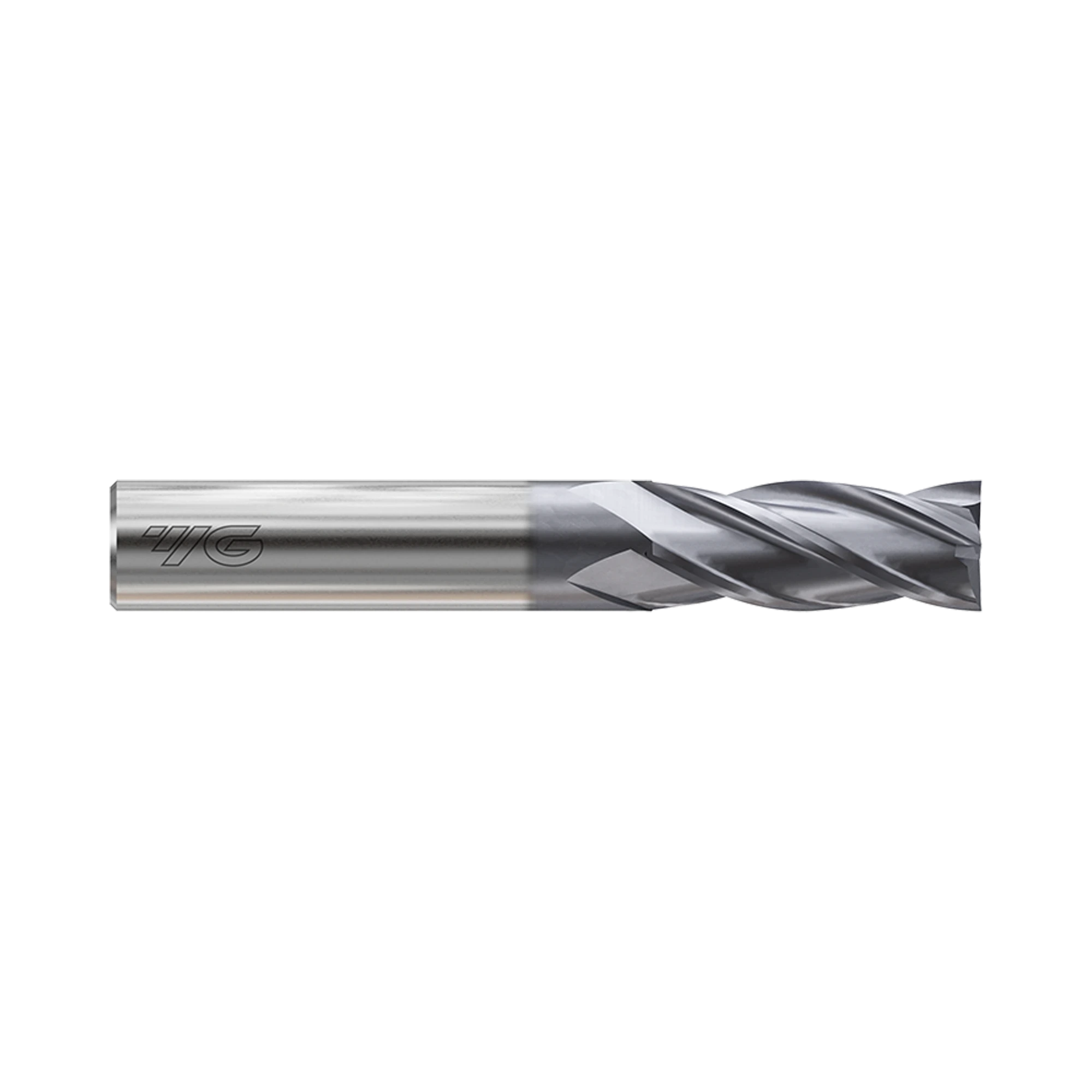

YG-1 GYF96 ONLY ONE is a coated PM60 four-flute, short-length square end mill with flat shank. Centre-cutting geometry supports slotting and general milling where a short cutting length is preferred. The Y coating is YG-ALCRN, providing the series' defining coated cutting-tool construction. Available diameters run from 1 to 25 mm, with 3 to 45 mm cutting lengths. These end mills suit carbon steels, alloy steels, prehardened steels, stainless steels, copper and cast iron. Four flutes provide the specified cutting-edge configuration for square-profile milling operations in compatible machining centres. Matched sizes use 6 to 25 mm shank diameters and 49 to 121 mm overall lengths.

  • PM60 construction with YG-ALCRN Y coating
  • Four-flute short-length square end mill design
  • Centre-cutting geometry for slotting operations
  • Flat shank configuration
  • 1 to 25 mm milling diameter range
  • 3 to 45 mm cutting length range
Product Data
Cutting Shape Square
Length Short
No. Flutes 4
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYF96010 1 6 3 49 0~-0.030 h6 4 GYF96020 2 6 7 51 0~-0.030 h6 4 GYF96030 3 6 8 52 0~-0.030 h6 4 GYF96040 4 6 11 55 0~-0.030 h6 4 GYF96050 5 6 13 57 0~-0.030 h6 4 GYF96060 6 6 13 57 0~-0.030 h6 4 GYF96070 7 8 16 66 0~-0.030 h6 4 GYF96080 8 8 19 69 0~-0.030 h6 4 GYF96090 9 10 19 69 0~-0.030 h6 4 GYF96100 10 10 22 72 0~-0.030 h6 4 GYF96120 12 12 26 83 0~-0.030 h6 4 GYF96140 14 12 26 83 0~-0.030 h6 4 GYF96160 16 16 32 92 0~-0.030 h6 4 GYF96180 18 16 32 92 0~-0.030 h6 4 GYF96200 20 20 38 104 0~-0.030 h6 4 GYF96220 22 20 38 104 0~-0.030 h6 4 GYF96250 25 25 45 121 0~-0.030 h6 4

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 1–5
Low-alloy steel
ExcellentVDI 6–8
GoodVDI 9
High-alloy and tool steel
ExcellentVDI 10
GoodVDI 11

Cast iron

6 grades
Grey cast iron
ExcellentVDI 15–16
Nodular cast iron
ExcellentVDI 17–18
Malleable cast iron
ExcellentVDI 19–20

Hardened materials

1 grade
Chilled cast iron
GoodVDI 40

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Non-ferrous materials

3 grades
Copper, bronze and brass
GoodVDI 26–28
VDI grade reference24 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelGood35038
10PHigh-alloy and tool steelExcellent20015
11PHigh-alloy and tool steelGood32535
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironExcellent18010
16KGrey cast ironExcellent26026
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
19KMalleable cast ironExcellent130-
20KMalleable cast ironExcellent23021
26NCopper, bronze and brassGood110-
27NCopper, bronze and brassGood90-
28NCopper, bronze and brassGood100-
40HChilled cast ironGood40042

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
