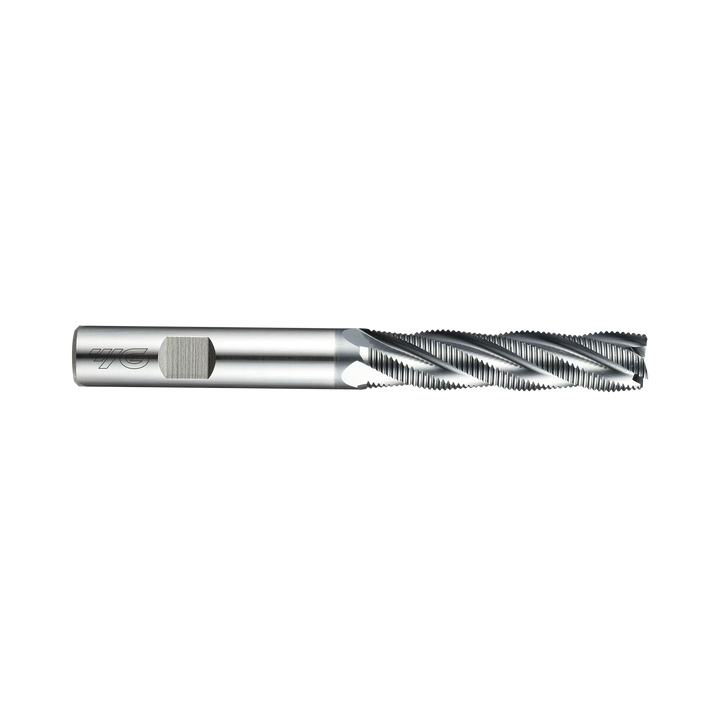

(GYF98) HSS-PM, Only One Multi Flute Coated Roughing End Mill, Long Length, Flat Shank (Fine)

  • $76.01INC GST $69.10 EX GST
(GYF98) HSS-PM, Only One Multi Flute Coated Roughing End Mill, Long Length, Flat Shank (Fine)

(GYF98) HSS-PM, Only One Multi Flute Coated Roughing End Mill, Long Length, Flat Shank (Fine)

  • $76.01INC GST $69.10 EX GST

Code: GYF98060

P M K
Mill Diameter (mm)
Chamfer (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Chamfer (mm)Overall length (mm)Shank dia. (mm)FlutesLength of cut (mm)Stock Price Qty Add
GYF9806060.1868.06.0324.0 5 days $69.10
GYF9807070.1880.010.0330.0 5 days $71.30
GYF9808080.1888.010.0338.0 5 days $71.30
GYF9809090.1888.010.0338.0 5 days $74.40
GYF98100100.1895.010.0445.0 5 days $74.40
GYF98120120.18110.012.0453.0 5 days $106.90
GYF98140140.25110.012.0453.0 5 days $141.40
GYF98160160.25123.016.0463.0 5 days $136.10
GYF98180180.25123.016.0463.0 5 days $199.90
GYF98200200.25141.020.0475.0 5 days $232.30
GYF98250250.36166.025.0590.0 5 days $316.70

Add (GYF98) HSS-PM, Only One Multi Flute Coated Roughing End Mill, Long Length, Flat Shank (Fine) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

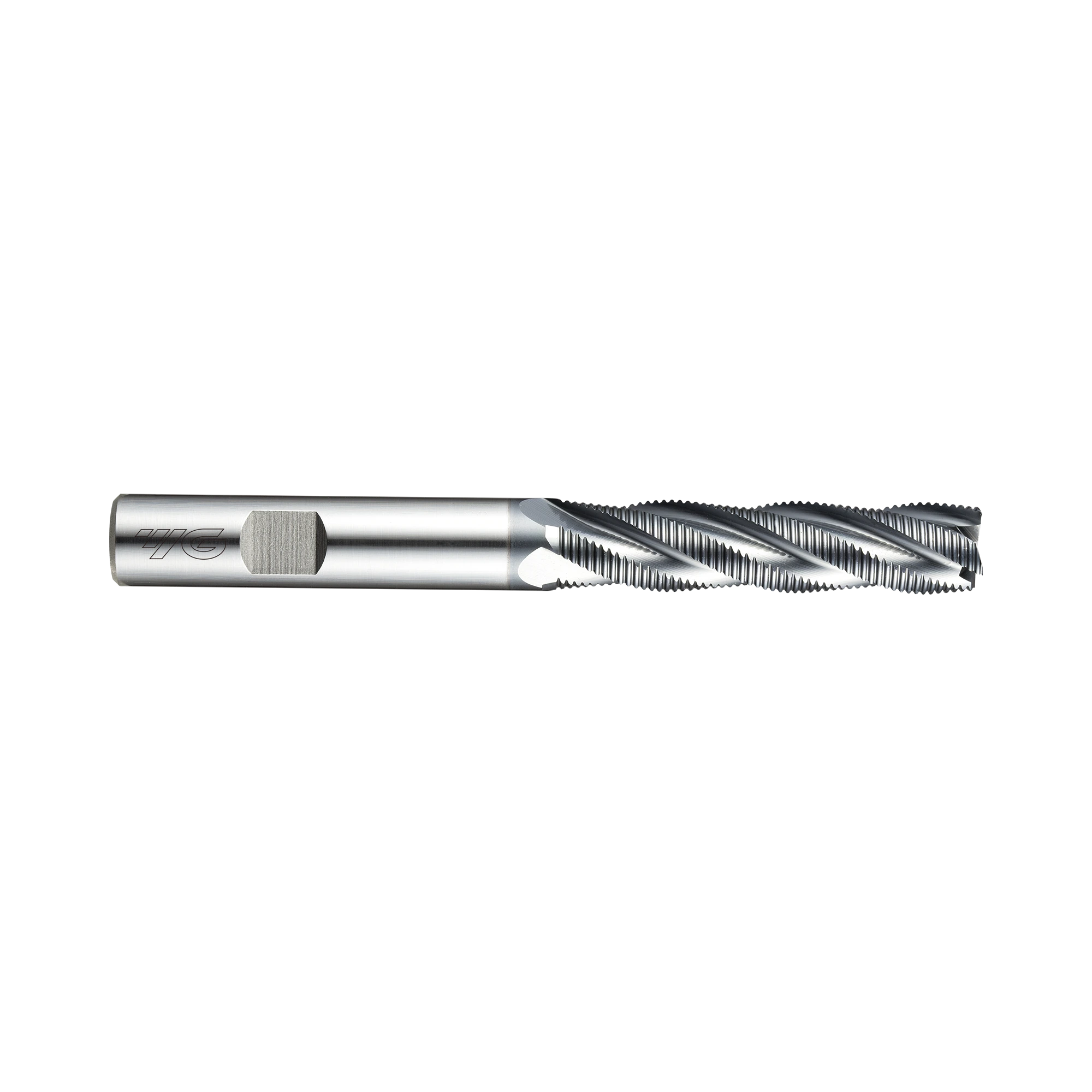

The YG-1 GYF98 series long length Only One PM60 Powder Metal Cutters have 3-5 flutes and a weldon shank. The fine pitch rippers range in diameter from 6mm-25mm and have a 45° chamfer preparation to protect the cutting edge in demanding roughing operations. They provide excellent performance on stainless steels, pre-hardened steels, carbon steels, alloy steels and cast iron. Ideal for applications where carbide is too brittle, but HSS wears too fast.

  • ASP60 Powder Metal substrate gives similar cutting performance and wear resistance to general carbide cutters.
  • YG-1's own high performance 'Y1200' coating allows for machining up to 1200°C.
  • The most cost effective milling cutters from YG-1 in unstable machining conditions.
  • Exceptional tool life and performance on CNC, NC and conventional milling machines in general machining.
  • Wide range of geometries including chamfer preps, coarse & fine pitch roughers and multiple helix.
  • Available on weldon shanks.
  • Fine pitch ripper style is ideal for roughing applications and gives a good surface finish.
Product Data
Workpiece Material P M K
Chamfer Angle 45
Cutting Shape Chamfer Prep, Roughing
Hardened Steels(HRc40~45) Great
Helix Angle Square 30
Length Long
No. Flutes 3-5
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Periphery Type Roughing - Fine
Shank Type Flat
Surface Treatment YG-1 Y Coating
Tool Material PM 60
Flutes Multi Flute
Helix Angle 30°
Cutting Edge Shape ROUGHING
Size Min D6.1
Size Max D25.0
Length LONG LENGTH (Center Cut)
Coating Y-Coating

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYF98060 6 6 24 68 js12 h6 3 GYF98070 7 10 30 80 js12 h6 3 GYF98080 8 10 38 88 js12 h6 3 GYF98090 9 10 38 88 js12 h6 3 GYF98100 10 10 45 95 js12 h6 4 GYF98120 12 12 53 110 js12 h6 4 GYF98140 14 12 53 110 js12 h6 4 GYF98160 16 16 63 123 js12 h6 4 GYF98180 18 16 63 123 js12 h6 4 GYF98200 20 20 75 141 js12 h6 4 GYF98250 25 25 90 166 js12 h6 5
Side Milling
Small Part
Slotting
Die Sinking
Facing
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
P

Non-alloy steel

Excellent Excellent
HRc
13252832
HB
125190250270300
P

Low alloy steel

Excellent Excellent
HRc
10293238
HB
180275300350
P

High alloy & tool steel

Excellent Excellent
HRc
1535
HB
200325
M

Stainless steel

Excellent Excellent
HRc
152310
HB
200240180
K

Grey cast iron

Excellent Excellent
HRc
1026
HB
180260
K

Nodular cast iron

Excellent Excellent
HRc
325
HB
160250
K

Malleable cast iron

Excellent Excellent
HRc
21
HB
130230
N

Copper. bronze. brass

Good Good
HRc
HB
11090100
H

Hardened steels & cast irons

Good Good
HRc
40
HB
630
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYF98060 6 6 24 68 js12 h6 3 GYF98070 7 10 30 80 js12 h6 3 GYF98080 8 10 38 88 js12 h6 3 GYF98090 9 10 38 88 js12 h6 3 GYF98100 10 10 45 95 js12 h6 4 GYF98120 12 12 53 110 js12 h6 4 GYF98140 14 12 53 110 js12 h6 4 GYF98160 16 16 63 123 js12 h6 4 GYF98180 18 16 63 123 js12 h6 4 GYF98200 20 20 75 141 js12 h6 4 GYF98250 25 25 90 166 js12 h6 5
