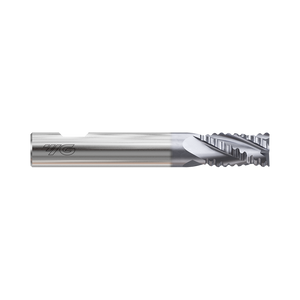

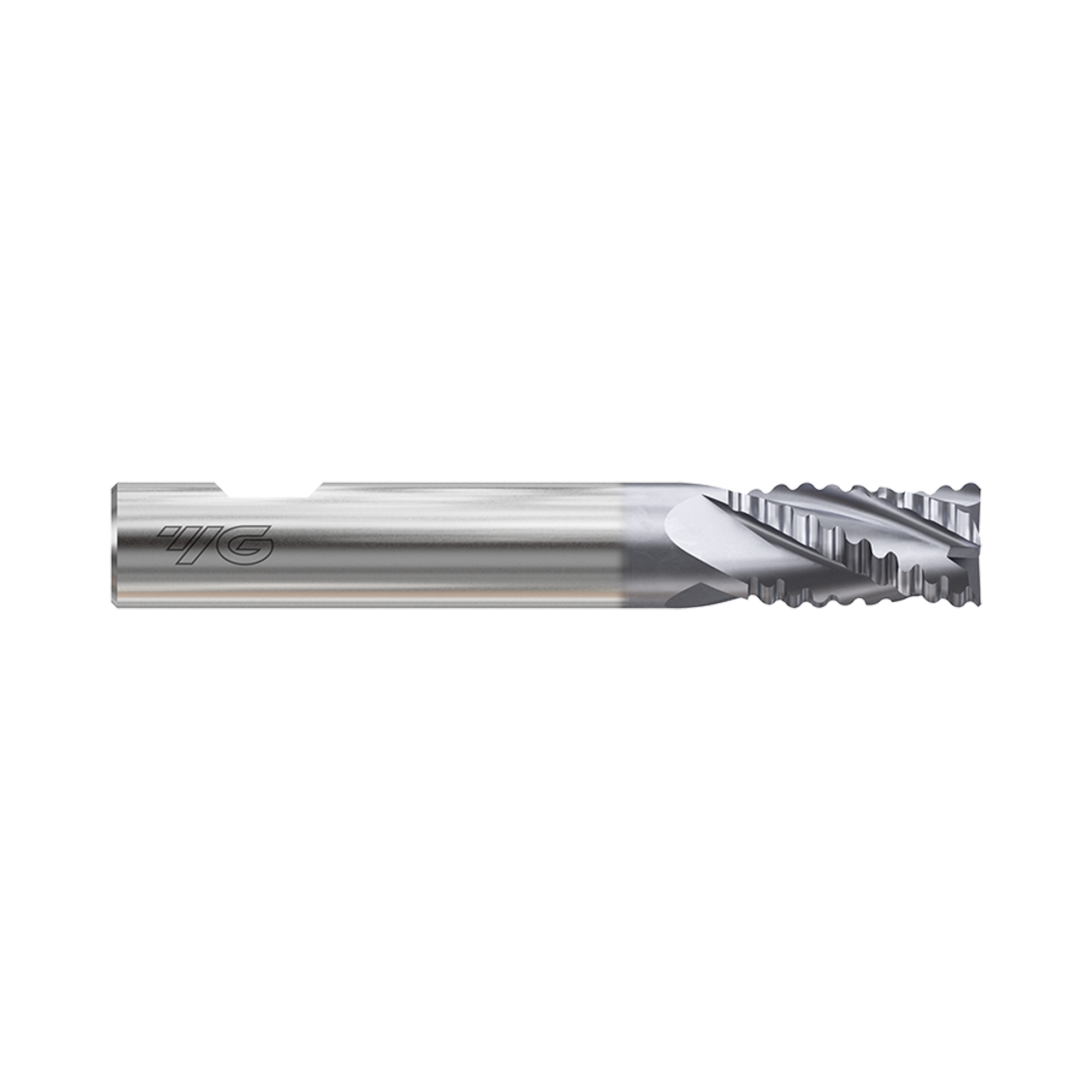

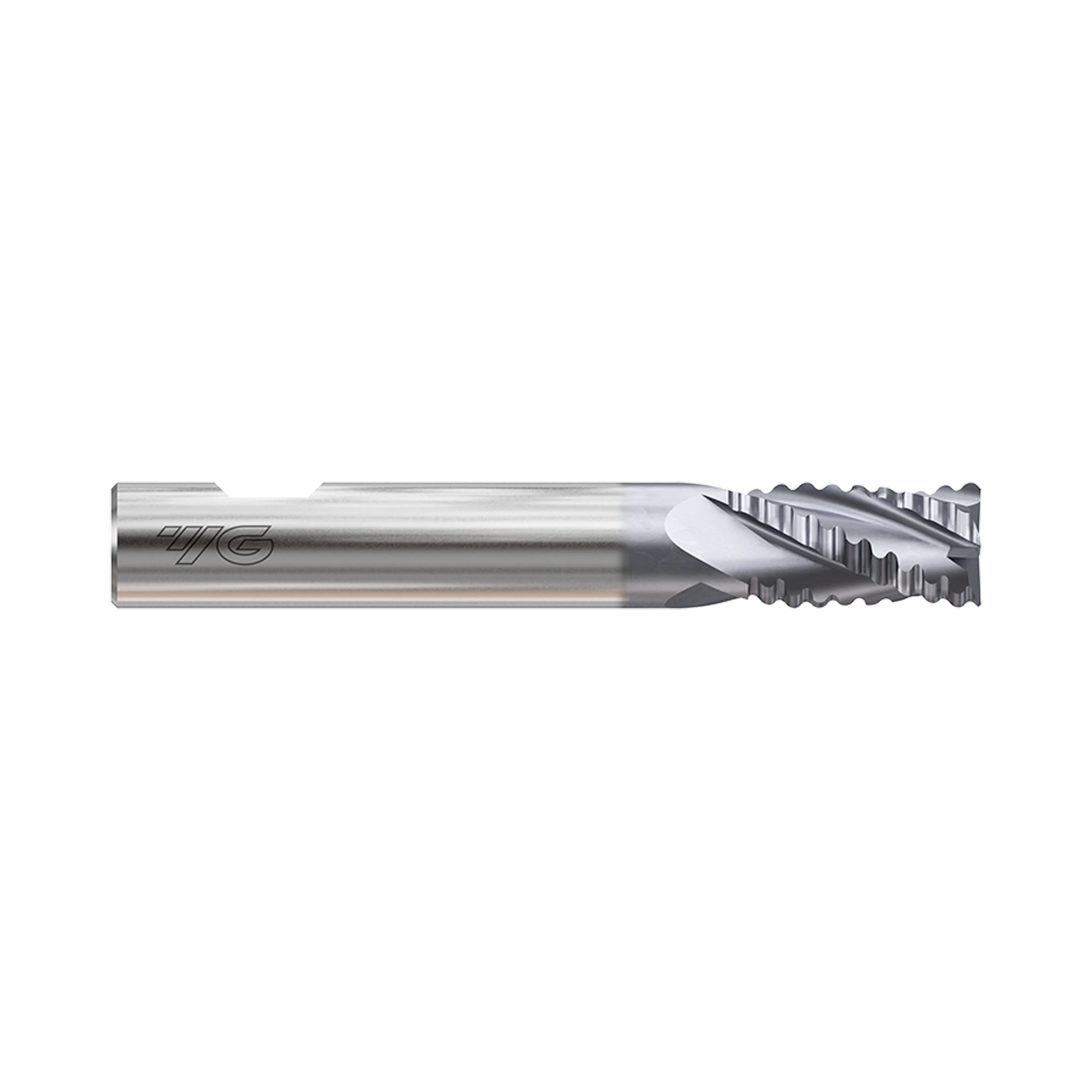

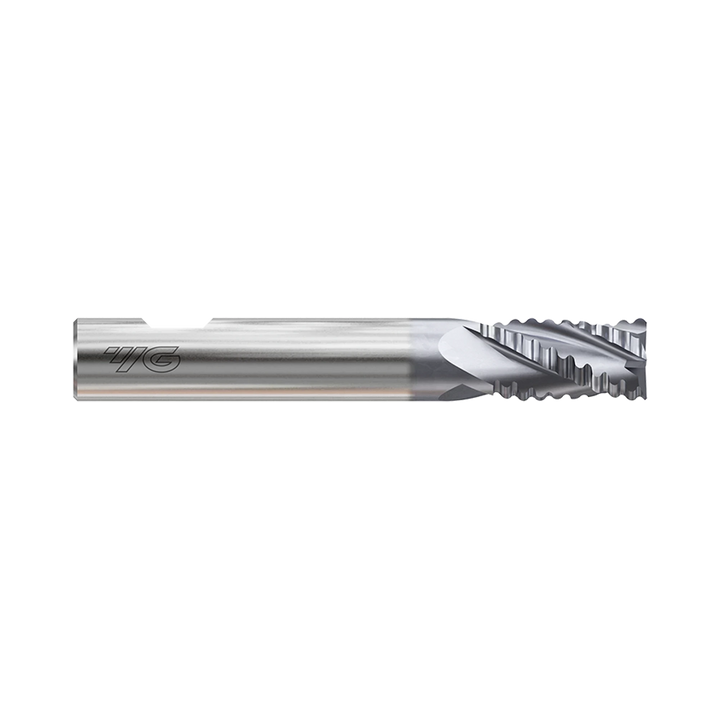

(GYG03) HSS-PM, Only One Multi Flute Coated Roughing End Mill, Short Length, Flat Shank (Coarse)
Short-Length Coarse Roughing End Mill
- SKU
- GYG03060
Key features
- Coated PM60 HSS-PM coarse roughing end mill
- Short-length centre-cut geometry for roughing operations
- Flat shank configuration
Made in South Korea
Built for coarse roughing
Multi-flute coarse roughing geometry supports productive material removal in milling operations
Centre-cut short design
Short-length centre-cut construction suits compact roughing applications and side cutting
Useful diameter coverage
A 6 to 25 mm range covers common roughing cutter requirements
| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GYG03060 | 6 | 57.0 | 6.0 | 13.0 | 1-2 Weeks | $48.80 | ||
| GYG03070 | 7 | 66.0 | 10.0 | 16.0 | 1-2 Weeks | $55.50 | ||
| GYG03080 | 8 | 69.0 | 10.0 | 19.0 | 1-2 Weeks | $55.50 | ||
| GYG03090 | 9 | 69.0 | 10.0 | 19.0 | 1-2 Weeks | $59.50 | ||
| GYG03100 | 10 | 72.0 | 10.0 | 22.0 | 1-2 Weeks | $59.50 | ||
| GYG03120 | 12 | 83.0 | 12.0 | 26.0 | 1-2 Weeks | $82.00 | ||
| GYG03140 | 14 | 83.0 | 12.0 | 26.0 | 1-2 Weeks | $95.40 | ||
| GYG03160 | 16 | 92.0 | 16.0 | 32.0 | 1-2 Weeks | $106.60 | ||
| GYG03180 | 18 | 92.0 | 16.0 | 32.0 | 1-2 Weeks | $131.50 | ||
| GYG03200 | 20 | 104.0 | 20.0 | 38.0 | Low stock | $135.80 | ||
| GYG03250 | 25 | 121.0 | 25.0 | 45.0 | Low stock | $212.80 |
Add (GYG03) HSS-PM, Only One Multi Flute Coated Roughing End Mill, Short Length, Flat Shank (Coarse) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GYG03 is a coated PM60 multi-flute coarse roughing end mill with flat shank. Its short-length, centre-cut design supports side-cutting roughing operations in suitable milling applications. The Y Coating and HSS-PM construction form part of the Only One PM60 range. Available diameters span 6 to 25 mm, with three, four, or five flutes.
Each listed tool includes a chamfer, ranging from 0.25 to 0.60 mm. Short cutting lengths range from 13 to 45 mm across the available diameters. Overall lengths extend from 57 to 121 mm for the selected size range. The series is recommended for steels, stainless steels, and cast irons.
- Coated PM60 HSS-PM coarse roughing end mill
- Short-length centre-cut geometry for roughing operations
- Flat shank configuration
- Y Coating
- 6 to 25 mm diameter range
- Three to five flutes across the series
