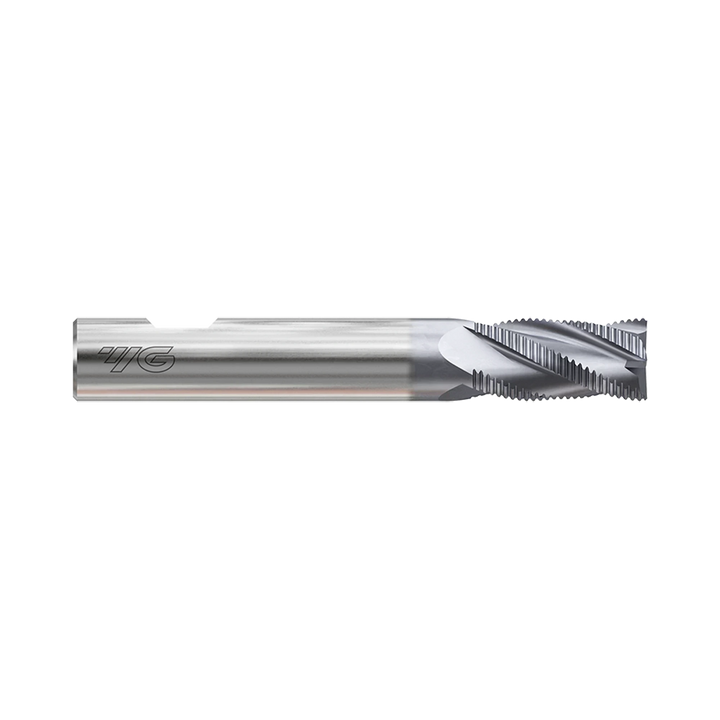

(GYF94) HSS-PM, Only One Multi Flute Coated Roughing End Mill, Short Length, Flat Shank (Fine)
PM60 Fine Roughing End Mill with Flat Shank
$54.89
INC GST
$49.90
EX GST
Price available on request
Unit price per
- SKU
- GYF94060
Key features
- Coated PM60 construction
- Short-length centre-cut fine roughing geometry
- Multi-flute design with three to five flutes
Made in South Korea
Free standard delivery on orders over
$500.
If you're not 100% happy with your purchase, we'll replace or refund.
Fine Roughing Profile
Fine roughing geometry for centre-cut roughing work
Short-Length Design
Compact proportions with overall lengths from 57 to 121 mm
Useful Size Range
Eleven flat-shank variants from 6 to 25 mm
| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| GYF94060 | 6.0 | 0.18 | 57.0 | 6.0 | 3 | 13.0 | In stock | $49.90 | ||
| GYF94070 | 7.0 | 0.18 | 66.0 | 10.0 | 3 | 16.0 | 1-2 Weeks | $57.00 | ||
| GYF94080 | 8.0 | 0.18 | 66.0 | 10.0 | 3 | 19.0 | In stock | $55.10 | ||
| GYF94090 | 9.0 | 0.18 | 69.0 | 10.0 | 3 | 19.0 | 1-2 Weeks | $60.80 | ||
| GYF94100 | 10.0 | 0.18 | 72.0 | 10.0 | 4 | 22.0 | In stock | $61.00 | ||
| GYF94120 | 12.0 | 0.18 | 83.0 | 12.0 | 4 | 26.0 | In stock | $65.00 | ||
| GYF94140 | 14.0 | 0.25 | 83.0 | 12.0 | 4 | 26.0 | 1-2 Weeks | $100.00 | ||
| GYF94160 | 16.0 | 0.25 | 92.0 | 16.0 | 4 | 32.0 | In stock | $90.90 | ||
| GYF94180 | 18.0 | 0.25 | 92.0 | 16.0 | 4 | 32.0 | 1-2 Weeks | $136.10 | ||
| GYF94200 | 20.0 | 0.25 | 104.0 | 20.0 | 4 | 38.0 | 1-2 Weeks | $131.80 | ||
| GYF94250 | 25.0 | 0.36 | 121.0 | 25.0 | 5 | 45.0 | 1-2 Weeks | $196.90 |
Add (GYF94) HSS-PM, Only One Multi Flute Coated Roughing End Mill, Short Length, Flat Shank (Fine) to comparison
View Comparison- Overview
- Specifications
- Work Material
- Speeds & Feeds
- Reviews
Application
Product Description
YG-1 GYF94 is a coated PM60 multi-flute short-length fine roughing end mill with a flat shank. Its centre-cutting geometry supports roughing work requiring controlled stock removal and a fine roughing profile. The series combines three, four or five flutes across the listed diameters. Diameters run from 6 to 25 mm, supporting compact and larger milling tasks. This fine roughing end mill is intended for centre-cut roughing operations. Flat shanks range from 6 to 25 mm, matched to the selected cutter diameter. Selected variants carry 0.18, 0.25 or 0.36 chamfer dimensions. Overall lengths extend from 57 to 121 mm throughout the GYF94 range.
- Coated PM60 construction
- Short-length centre-cut fine roughing geometry
- Multi-flute design with three to five flutes
- Flat shank configuration
- 6 to 25 mm cutter diameter range
- 0.18 to 0.36 chamfer depending on variant
Product Data
| Cutting Shape | Rougher |
| Length | Short |
Work materials
VDI 3323 recommendations for this tool.
ExcellentGood
Steel
11 gradesNon-alloy steel
Low-alloy steel
High-alloy and tool steel
Cast iron
6 gradesGrey cast iron
Nodular cast iron
Malleable cast iron
Hardened materials
1 gradeChilled cast iron
Stainless steel
3 gradesStainless steel
Non-ferrous materials
3 gradesCopper, bronze and brass
VDI grade reference24 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Excellent | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Good | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Excellent | 200 | 15 |
| 11 | PHigh-alloy and tool steel | Good | 325 | 35 |
| 12 | MStainless steel | Excellent | 200 | 15 |
| 13 | MStainless steel | Excellent | 240 | 23 |
| 14 | MStainless steel | Excellent | 180 | 10 |
| 15 | KGrey cast iron | Excellent | 180 | 10 |
| 16 | KGrey cast iron | Excellent | 260 | 26 |
| 17 | KNodular cast iron | Excellent | 160 | 3 |
| 18 | KNodular cast iron | Excellent | 250 | 25 |
| 19 | KMalleable cast iron | Excellent | 130 | - |
| 20 | KMalleable cast iron | Excellent | 230 | 21 |
| 26 | NCopper, bronze and brass | Good | 110 | - |
| 27 | NCopper, bronze and brass | Good | 90 | - |
| 28 | NCopper, bronze and brass | Good | 100 | - |
| 40 | HChilled cast iron | Good | 400 | 42 |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
