New

ONLY ONE PM60 4 Flute 30°Helix Short End Mill (GYG74)

ONLY ONE PM60 4 Flute 30°Helix Short End Mill (GYG74)
New

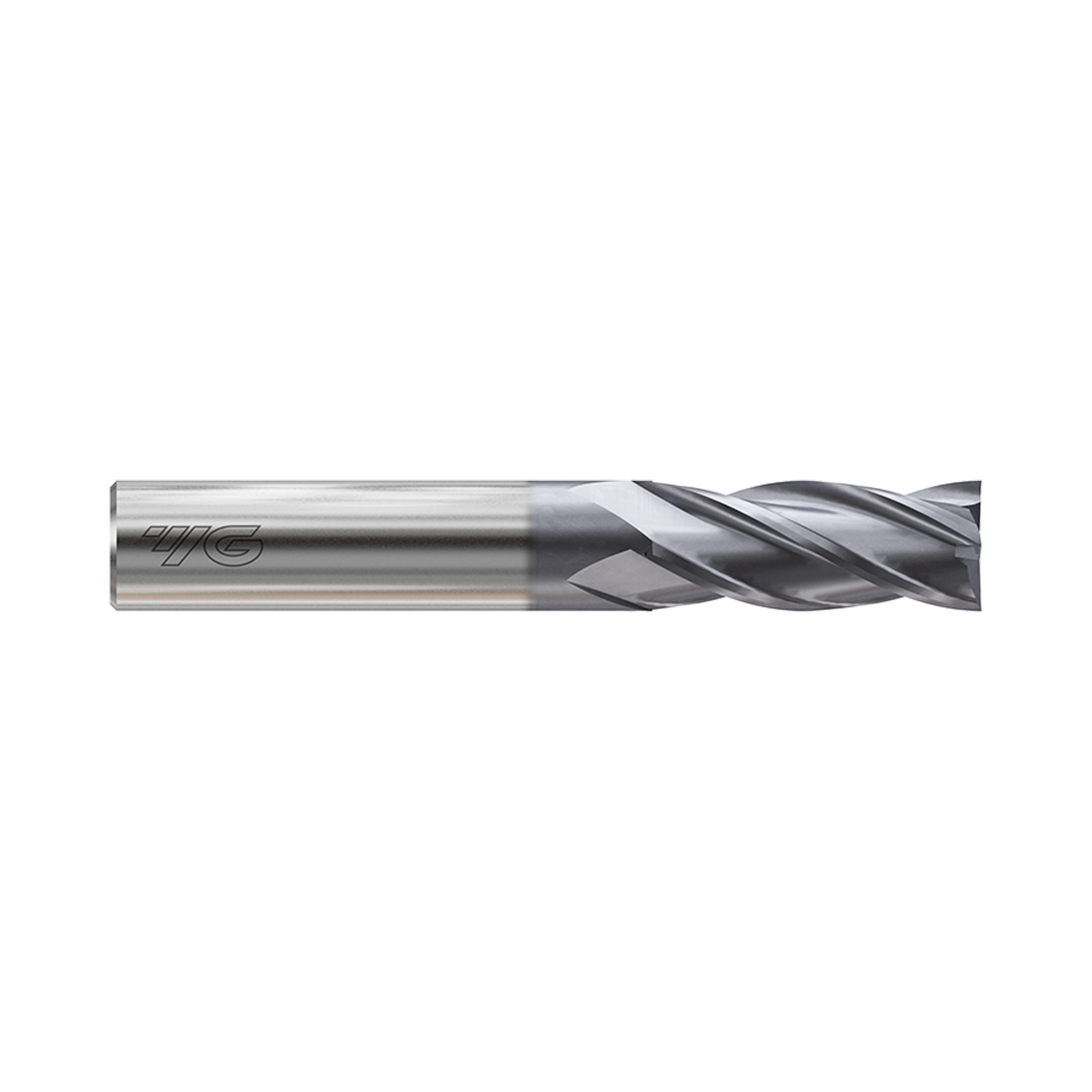

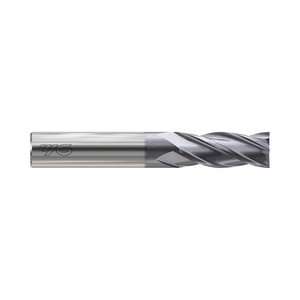

ONLY ONE PM60 4 Flute 30°Helix Short End Mill (GYG74)

Product Code: GYG74

No. Flutes: 4 YG-1 LEGEND Y COATING Surface Treatment: YG-1 Y Coating YG-1 LEGEND PM 60 Tool Material: PM 60 YG-1 LEGEND HELIX SQUARE 30 Helix Angle: Square 30° YG-1 LEGEND SHANK PLAIN Shank Type: Plain
Buy Local



Specifications

Flutes 4
Helix Angle 30°
Cutting Edge Shape SQUARE
Size Min D1.0
Size Max D25.0
Length SHORT LENGTH (Center Cut)
Coating Y-Coating



Product Data
Workpiece Material P M K N
Hardened Steels(HRc40~45) Great
Helix Angle Square 30
No. Flutes 4
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material PM 60
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ONLY ONE PM60 4 Flute 30°Helix Short End Mill (GYG74) to comparison

View Comparison
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYG74010 1 6 3 49 0~-0.030 h6 4 GYG74020 2 6 7 51 0~-0.030 h6 4 GYG74030 3 6 8 52 0~-0.030 h6 4 GYG74040 4 6 11 55 0~-0.030 h6 4 GYG74050 5 6 13 57 0~-0.030 h6 4 GYG74060 6 6 13 57 0~-0.030 h6 4 GYG74070 7 8 16 66 0~-0.030 h6 4 GYG74080 8 8 19 69 0~-0.030 h6 4 GYG74090 9 10 19 69 0~-0.030 h6 4 GYG74100 10 10 22 72 0~-0.030 h6 4 GYG74120 12 12 26 83 0~-0.030 h6 4 GYG74140 14 12 26 83 0~-0.030 h6 4 GYG74160 16 16 32 92 0~-0.030 h6 4 GYG74180 18 16 32 92 0~-0.030 h6 4 GYG74200 20 20 38 104 0~-0.030 h6 4 GYG74220 22 20 38 104 0~-0.030 h6 4 GYG74250 25 25 45 121 0~-0.030 h6 4

Video

Operation

Side Milling
Small Part
Slotting
Die Sinking
Facing

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
