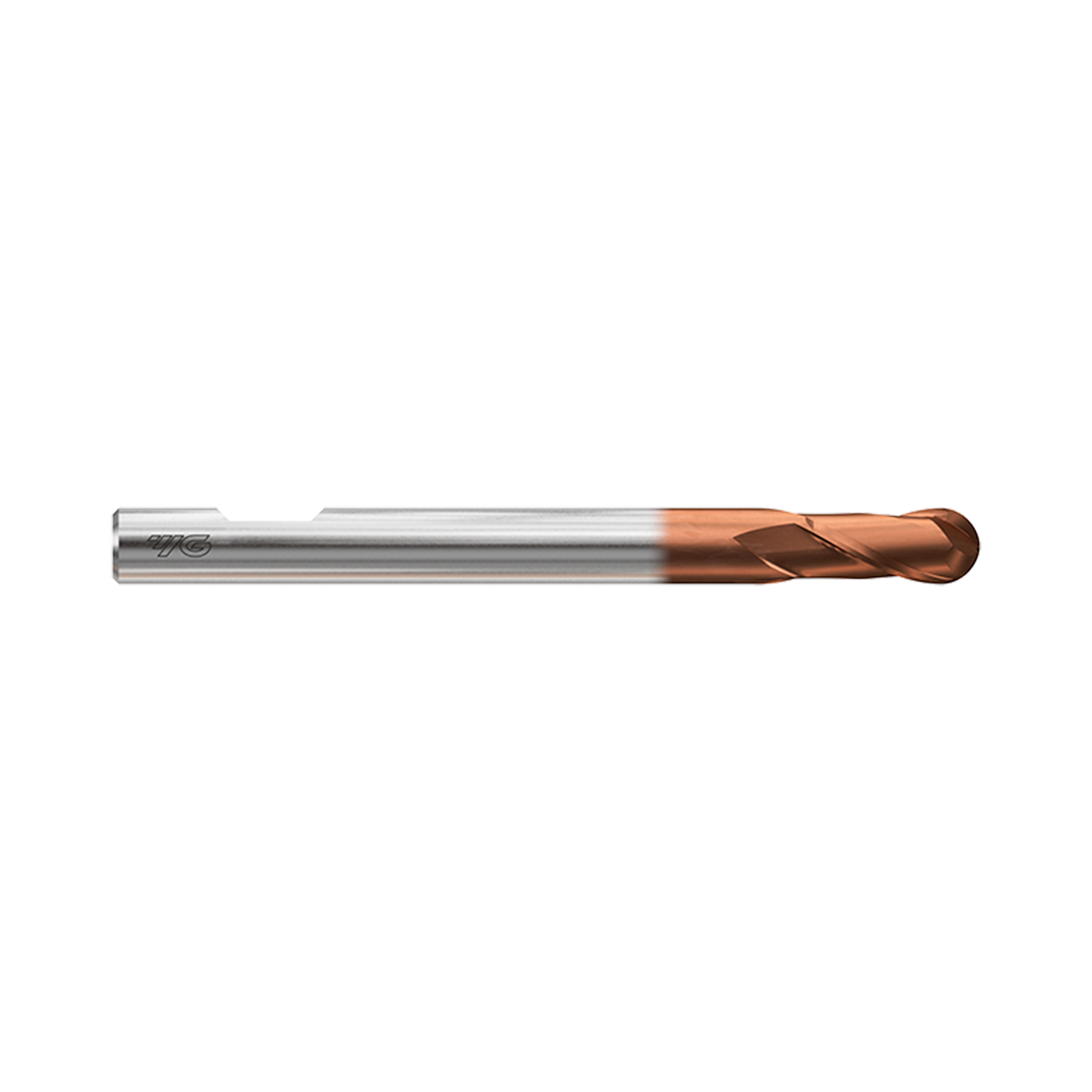

TANK-POWER 2 Flute 30°Helix Long Ball Mill (GAA32)

TANK-POWER 2 Flute 30°Helix Long Ball Mill (GAA32)
TANK-POWER 2 Flute 30°Helix Long Ball Mill (GAA32)
New

TANK-POWER 2 Flute 30°Helix Long Ball Mill (GAA32)

Product Code: GAA32

No. Flutes: 2 YG-1 LEGEND TiAIN Surface Treatment: Titanium Aluminium Nitride Coating YG-1 LEGEND YPM Tool Material: YPM YG-1 LEGEND DIN 844 Tool Standard: DIN 844 YG-1 LEGEND HELIX SQUARE 30 Helix Angle: Square 30° YG-1 LEGEND move square side cutting YG-1 LEGEND SHANK 1835B Shank Type: 1835B
Buy Local
  • Designed to machine carbon steels, alloyed steels, stainless steels.
  • Designed for milling of radius bottom slots, fillets and special contours.
  • YG-1’s new developed TANK-POWER Coating suitable for high speed cutting.

Specifications

Flutes 2
Helix Angle 30°
Cutting Edge Shape BALL NOSE
Size Min R1.0
Size Max R12.5
Length

Long Length
Coating TiAIN



Product Data
Workpiece Material P M K N
Helix Angle Square 30
No. Flutes 2
Operation Profiling, Side Milling, Small Part
Shank Type 1835B
Surface Treatment Titanium Aluminium Nitride Coating
Tool Material YPM
Tool Standard DIN 844
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add TANK-POWER 2 Flute 30°Helix Long Ball Mill (GAA32) to comparison

View Comparison

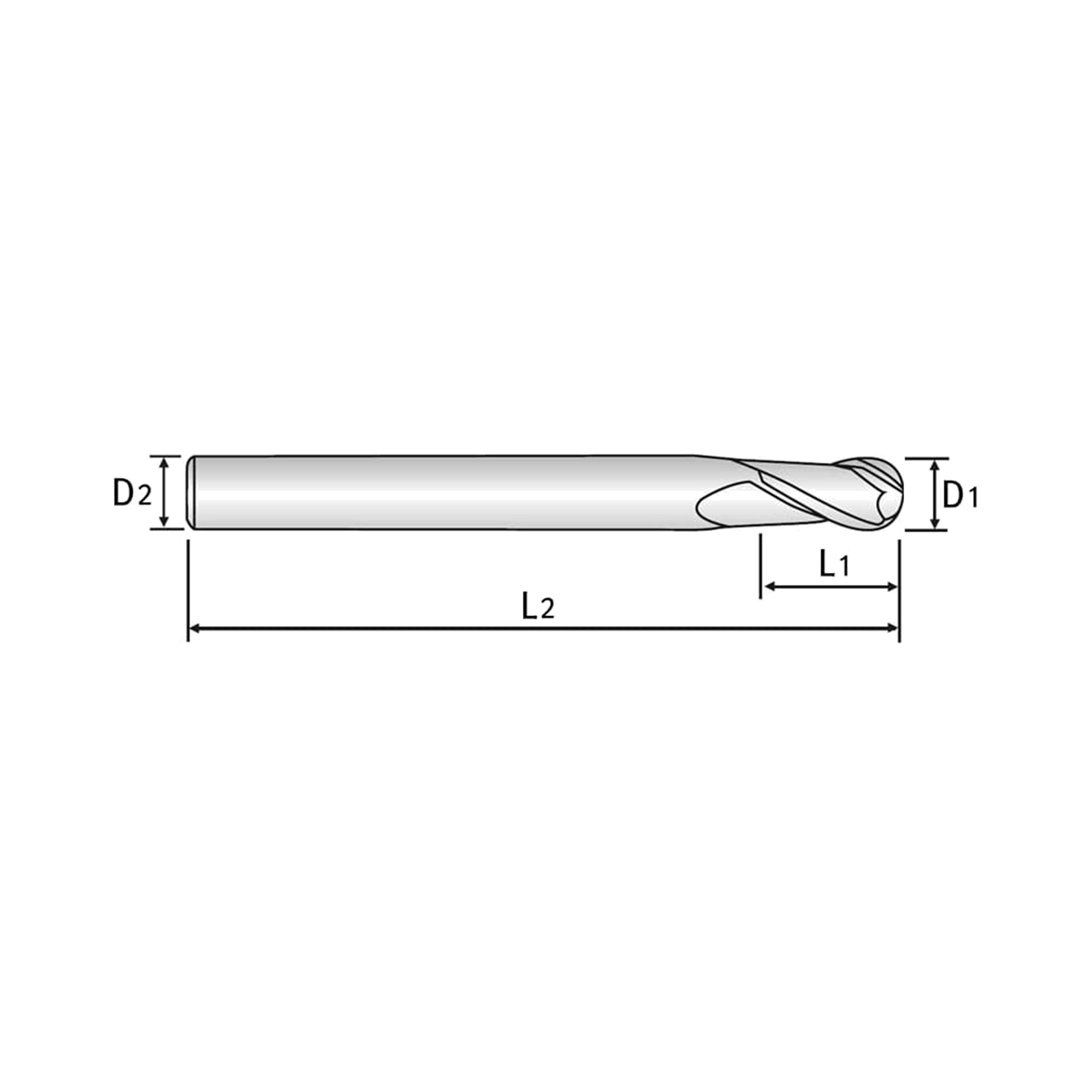

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GAA32020 2 6 7 54 0~-0.030 h6 2 GAA32030 3 6 8 56 0~-0.030 h6 2 GAA32040 4 6 11 63 0~-0.030 h6 2 GAA32050 5 6 13 68 0~-0.030 h6 2 GAA32060 6 6 13 68 0~-0.030 h6 2 GAA32070 7 10 16 80 0~-0.030 h6 2 GAA32080 8 10 19 88 0~-0.030 h6 2 GAA32090 9 10 19 88 0~-0.030 h6 2 GAA32100 10 10 22 95 0~-0.030 h6 2 GAA32120 12 12 26 110 0~-0.030 h6 2 GAA32140 14 12 26 110 0~-0.030 h6 2 GAA32160 16 16 32 123 0~-0.030 h6 2 GAA32180 18 16 32 123 0~-0.030 h6 2 GAA32200 20 20 38 141 0~-0.030 h6 2 GAA32220 22 20 38 141 0~-0.030 h6 2 GAA32250 25 25 45 166 0~-0.030 h6 2

Operation

Profiling
Side Milling
Small Part

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
