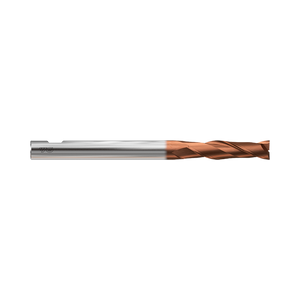

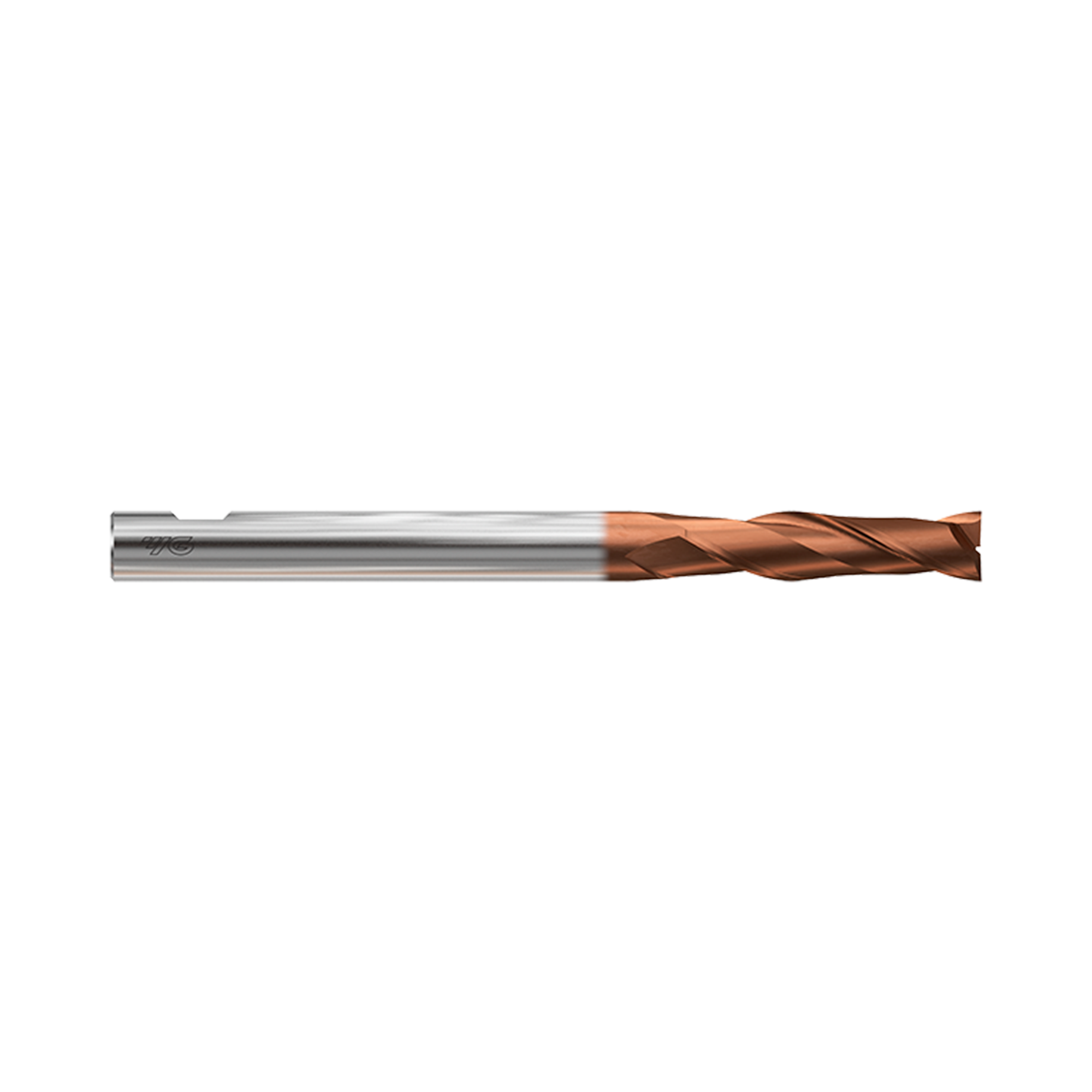

(GAA29) HSS-PM, Tank-Power, 2Flute Coated End Mill, Long Length
Long-length HSS-PM two-flute square end millCode: GAA29020
-
Key Features
- HSS-PM square end mill with two flutes
- TiAlN-coated Tank-Power series
- Designed for slotting carbon alloyed and stainless steels
Made in South Korea
Built for slotting
Two-flute square geometry supports practical slotting operations in steel and stainless steel materials.
High-speed cutting support
Tank-Power TiAlN coating is specified for high-speed cutting and difficult-to-cut material applications.
Useful long reach
Long-length variants provide 7 mm to 38 mm cutting lengths for extended-reach milling tasks.
| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GAA29020 | 2 | 51.0 | 6.0 | 7.0 | 5 days | $42.80 | ||
| GAA29030 | 3 | 52.0 | 6.0 | 8.0 | 5 days | $42.80 | ||
| GAA29040 | 4 | 55.0 | 6.0 | 11.0 | 5 days | $42.80 | ||
| GAA29050 | 5 | 57.0 | 6.0 | 13.0 | 5 days | $42.80 | ||
| GAA29060 | 6 | 57.0 | 6.0 | 13.0 | 5 days | $42.80 | ||
| GAA29070 | 8 | 66.0 | 10.0 | 16.0 | 5 days | $64.50 | ||
| GAA29080 | 9 | 69.0 | 10.0 | 19.0 | 5 days | $64.50 | ||
| GAA29090 | 10 | 69.0 | 10.0 | 19.0 | 5 days | $66.80 | ||
| GAA29100 | 12 | 72.0 | 10.0 | 22.0 | 5 days | $66.80 | ||
| GAA29120 | 14 | 83.0 | 12.0 | 26.0 | 5 days | $63.40 | ||
| GAA29140 | 16 | 83.0 | 12.0 | 26.0 | 5 days | $98.80 | ||
| GAA29160 | 18 | 92.0 | 16.0 | 32.0 | 5 days | $117.20 | ||
| GAA29180 | 20 | 92.0 | 16.0 | 32.0 | 5 days | $146.70 | ||
| GAA29200 | 22 | 104.0 | 20.0 | 38.0 | 5 days | $190.80 | ||
| GAA29220 | 25 | 104.0 | 20.0 | 38.0 | 5 days | $211.40 |
Add (GAA29) HSS-PM, Tank-Power, 2Flute Coated End Mill, Long Length to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GAA29 Tank-Power is a long-length, two-flute HSS-PM square end mill with TiAlN coating. It is designed for slotting carbon steels, alloyed steels and stainless steels. Two flutes support slotting work where a square end profile is required. The coating is specified for high-speed cutting and difficult-to-cut material applications. The GAA29 range covers 2 mm through 22 mm mill diameters. Listed variants use 6 mm to 20 mm shank diameters. Cutting lengths run from 7 mm to 38 mm, with overall lengths from 51 mm to 104 mm. Select the square end profile for practical slotting and extended-reach milling work.
- HSS-PM square end mill with two flutes
- TiAlN-coated Tank-Power series
- Designed for slotting carbon alloyed and stainless steels
- Specified for high-speed cutting applications
- Long-length configuration for additional milling reach
- 2 mm to 22 mm mill diameter range
