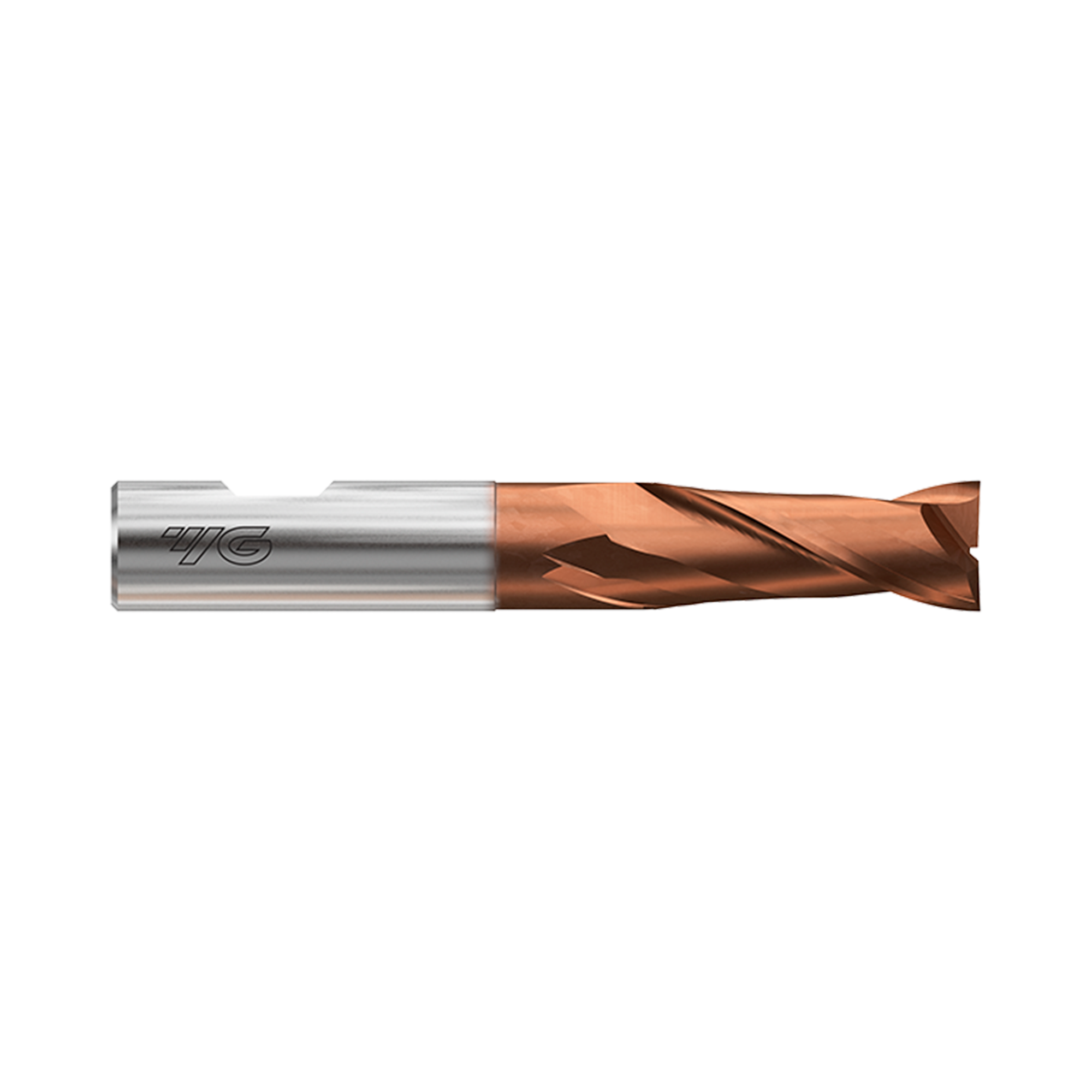

(GA936) HSS-PM, Tank-Power, 2 Flute End Mill, Short Length (TiAlN Coated)
HSS-PM two flute short-length square end millCode: GA936010
-
Key Features
- HSS-PM square end mill with TiAlN coating
- Two flute geometry designed for slotting
- 30° helix angle
Made in South Korea
Slotting geometry
Two flutes support slotting applications with a square cutting edge.
Steel machining focus
Designed for carbon steels, alloy steels and stainless steels.
Short-length range
Covers 1.0 to 25.0 mm diameters for compact milling setups.

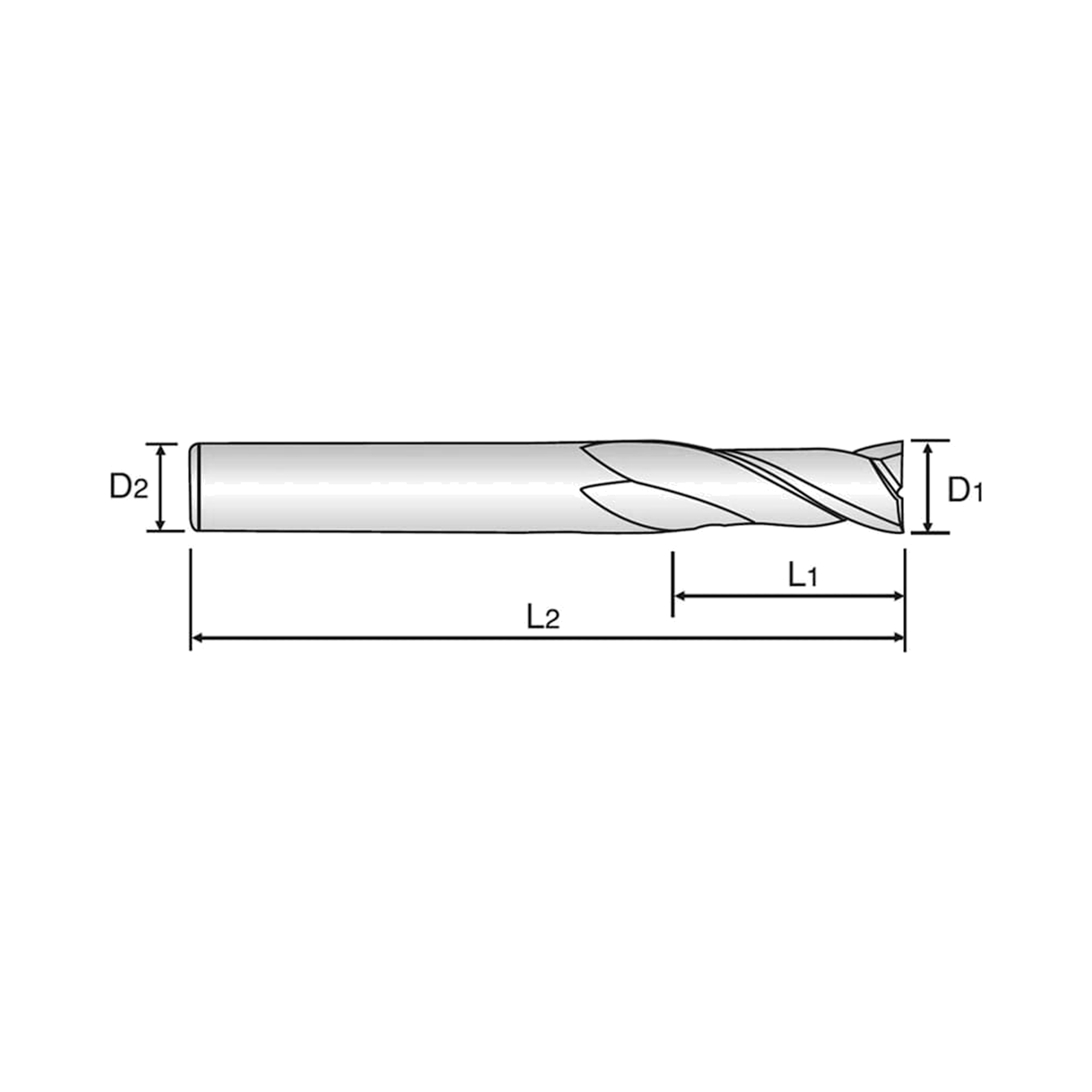

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GA936010 | 1 | 47.0 | 6.0 | 2.5 | 5 days | $41.70 | ||
| GA936020 | 2 | 48.0 | 6.0 | 4.0 | 5 days | $37.00 | ||
| GA936030 | 3 | 49.0 | 6.0 | 5.0 | 5 days | $20.40 | ||
| GA936040 | 4 | 51.0 | 6.0 | 7.0 | 5 days | $20.40 | ||
| GA936050 | 5 | 52.0 | 6.0 | 8.0 | 5 days | $20.40 | ||
| GA936060 | 6 | 52.0 | 6.0 | 8.0 | 5 days | $20.40 | ||
| GA936070 | 7 | 60.0 | 10.0 | 10.0 | 5 days | $58.40 | ||
| GA936080 | 8 | 61.0 | 10.0 | 11.0 | 5 days | $34.90 | ||
| GA936090 | 9 | 61.0 | 10.0 | 11.0 | 5 days | $60.40 | ||
| GA936100 | 10 | 63.0 | 10.0 | 13.0 | 5 days | $47.70 | ||
| GA936120 | 12 | 73.0 | 12.0 | 16.0 | Low stock | $56.70 | ||
| GA936140 | 14 | 73.0 | 12.0 | 16.0 | 5 days | $64.00 | ||
| GA936160 | 16 | 79.0 | 16.0 | 19.0 | 5 days | $100.50 | ||
| GA936180 | 18 | 79.0 | 16.0 | 19.0 | 5 days | $125.50 | ||
| GA936200 | 20 | 88.0 | 20.0 | 22.0 | 5 days | $164.60 | ||
| GA936220 | 22 | 88.0 | 20.0 | 22.0 | 5 days | $185.40 | ||
| GA936250 | 25 | 102.0 | 25.0 | 26.0 | 5 days | $243.10 |
Add (GA936) HSS-PM, Tank-Power, 2 Flute End Mill, Short Length (TiAlN Coated) to comparison
View Comparison- Overview
- Reviews
YG-1 GA936 TANK-POWER HSS-PM two flute short-length square end mills feature a TiAlN coating. These end mills are designed for machining carbon steels, alloy steels and stainless steels. The two-flute geometry is intended for slotting operations in practical milling applications. YG-1 specifies the TANK-POWER coating as suitable for high-speed cutting applications. The range covers 1.0 to 25.0 mm mill diameters for compact short-length milling. Each tool has a square cutting edge and a 30° helix angle. GA936 variants combine listed cutting diameters with shanks from 6 to 25 mm. Overall lengths span 47 to 102 mm across the stated GA936 variant family.
- HSS-PM square end mill with TiAlN coating
- Two flute geometry designed for slotting
- 30° helix angle
- Suitable for carbon steels alloy steels and stainless steels
- TANK-POWER coating specified for high-speed cutting
- 1.0 to 25.0 mm cutting diameter range
No specifications available.
