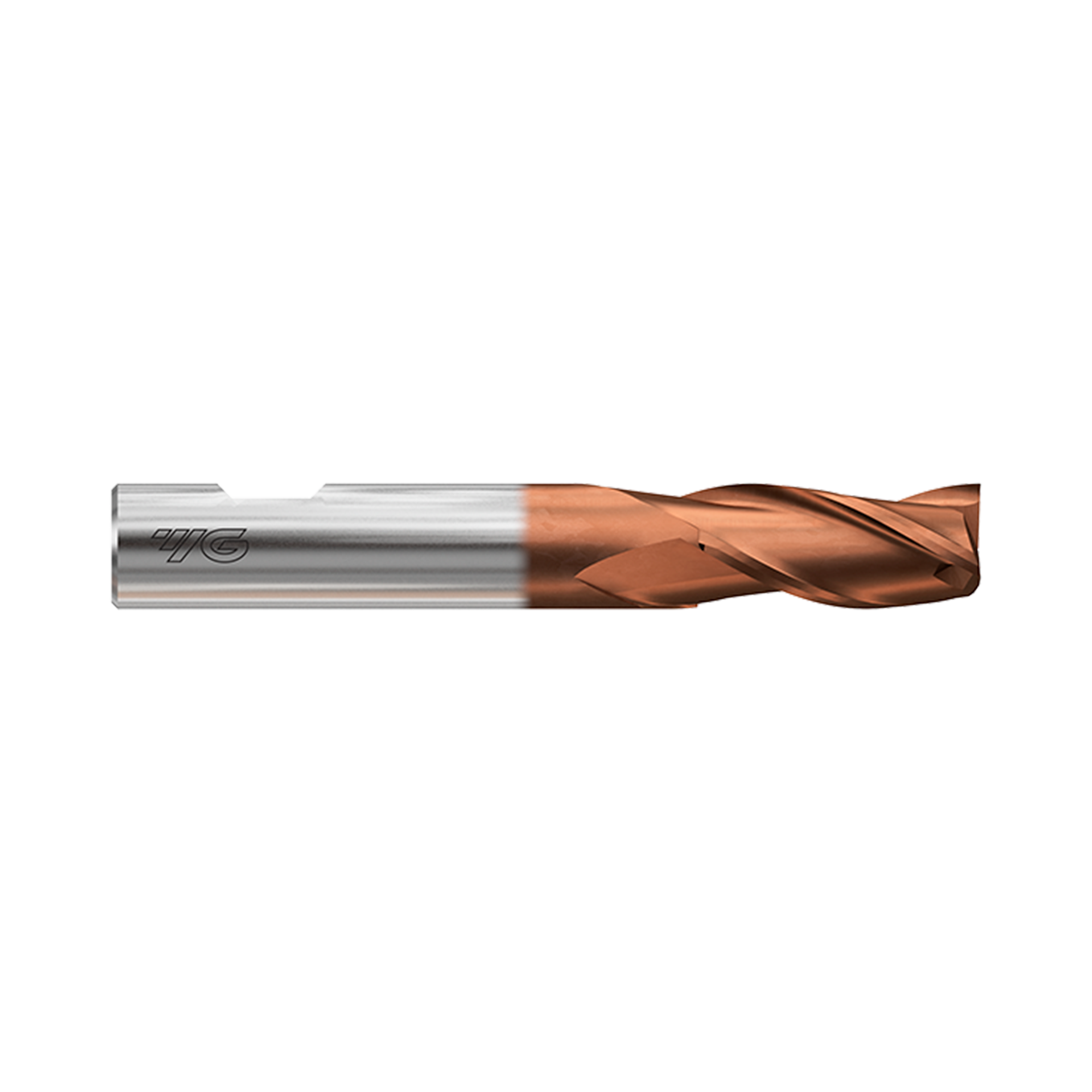

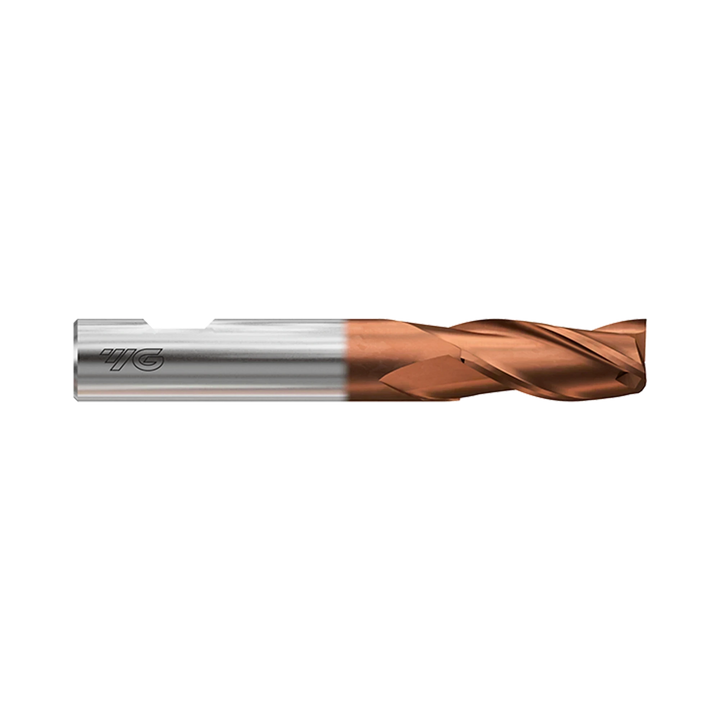

(GAA30) HSS-PM, Tank-Power, 3Flute Coated End Mill, Stub Length
HSS-PM 3 Flute TiAlN-Coated Stub End Mill
- SKU
- GAA30010
Key features
- HSS-PM square end mill in the YG-1 TANK-POWER series
- Three flute geometry with a 30° helix
- TiAlN-coated cutting tool
Made in South Korea
Steel milling focus
Designed for milling carbon steels, alloyed steels and stainless steels.
High-speed coating
TANK-POWER coating is specified by YG-1 for high-speed cutting.
Practical size coverage
The GAA30 family covers 1.0 mm to 25.0 mm cutting diameters.

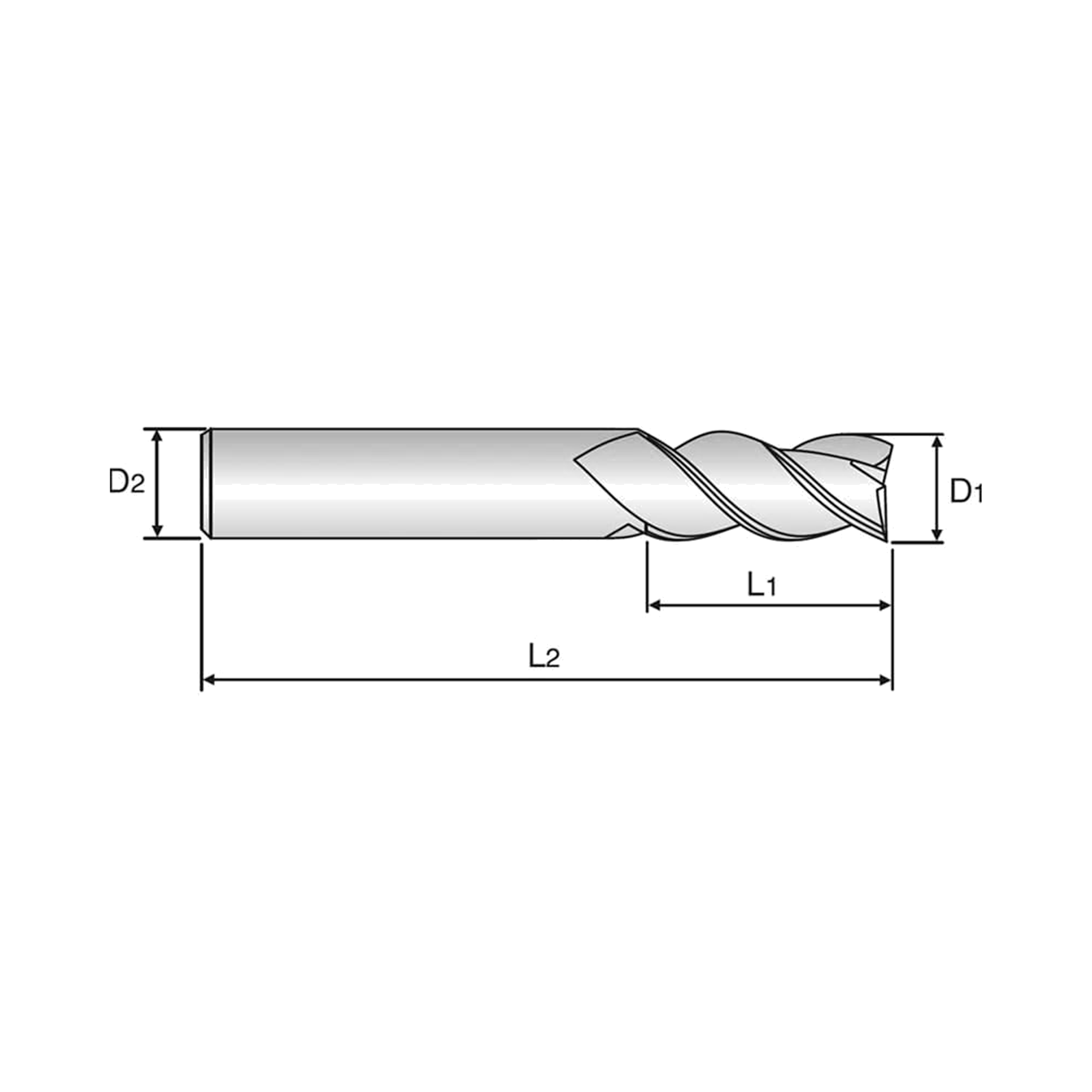

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GAA30010 | 1 | 47.0 | 6.0 | 3.0 | 1-2 Weeks | $47.20 | ||
| GAA30020 | 2 | 51.0 | 6.0 | 7.0 | 1-2 Weeks | $42.80 | ||
| GAA30030 | 3 | 52.0 | 6.0 | 8.0 | 1-2 Weeks | $42.80 | ||
| GAA30040 | 4 | 55.0 | 6.0 | 11.0 | 1-2 Weeks | $42.80 | ||
| GAA30050 | 5 | 57.0 | 6.0 | 13.0 | 1-2 Weeks | $42.80 | ||
| GAA30060 | 6 | 57.0 | 6.0 | 13.0 | 1-2 Weeks | $42.80 | ||
| GAA30070 | 7 | 66.0 | 10.0 | 16.0 | 1-2 Weeks | $64.50 | ||
| GAA30080 | 8 | 69.0 | 10.0 | 19.0 | 1-2 Weeks | $64.50 | ||
| GAA30090 | 9 | 69.0 | 10.0 | 19.0 | 1-2 Weeks | $66.80 | ||
| GAA30100 | 10 | 72.0 | 10.0 | 22.0 | 1-2 Weeks | $66.80 | ||
| GAA30120 | 12 | 83.0 | 12.0 | 26.0 | 1-2 Weeks | $88.60 | ||
| GAA30140 | 14 | 83.0 | 12.0 | 26.0 | 1-2 Weeks | $98.80 | ||
| GAA30160 | 16 | 92.0 | 16.0 | 32.0 | 1-2 Weeks | $117.20 | ||
| GAA30180 | 18 | 92.0 | 16.0 | 32.0 | 1-2 Weeks | $146.70 | ||
| GAA30200 | 20 | 104.0 | 20.0 | 38.0 | 1-2 Weeks | $190.80 | ||
| GAA30220 | 22 | 104.0 | 20.0 | 38.0 | 1-2 Weeks | $211.40 | ||
| GAA30250 | 25 | 121.0 | 25.0 | 45.0 | 1-2 Weeks | $282.10 |
Add (GAA30) HSS-PM, Tank-Power, 3Flute Coated End Mill, Stub Length to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GAA30 TANK-POWER is an HSS-PM three flute TiAlN-coated square end mill with stub length. It is intended for milling carbon steels, alloyed steels and stainless steels. The series uses a 30° helix and DIN 844 geometry for square-end milling. YG-1 specifies its TANK-POWER coating as suitable for high-speed cutting operations. The GAA30 designation identifies the three-flute stub-length square end mill series within TANK-POWER. Available cutting diameters span 1.0 mm to 25.0 mm across the stated SKU family. Specified variants run from GAA30010 to GAA30250, supporting a consolidated tooling selection. Choose this square end mill where HSS-PM construction, TiAlN coating and three flutes are required.
- HSS-PM square end mill in the YG-1 TANK-POWER series
- Three flute geometry with a 30° helix
- TiAlN-coated cutting tool
- Stub-length configuration to DIN 844
- Designed for carbon steels alloyed steels and stainless steels
- 1.0 mm to 25.0 mm cutting diameter family
No specifications available.
