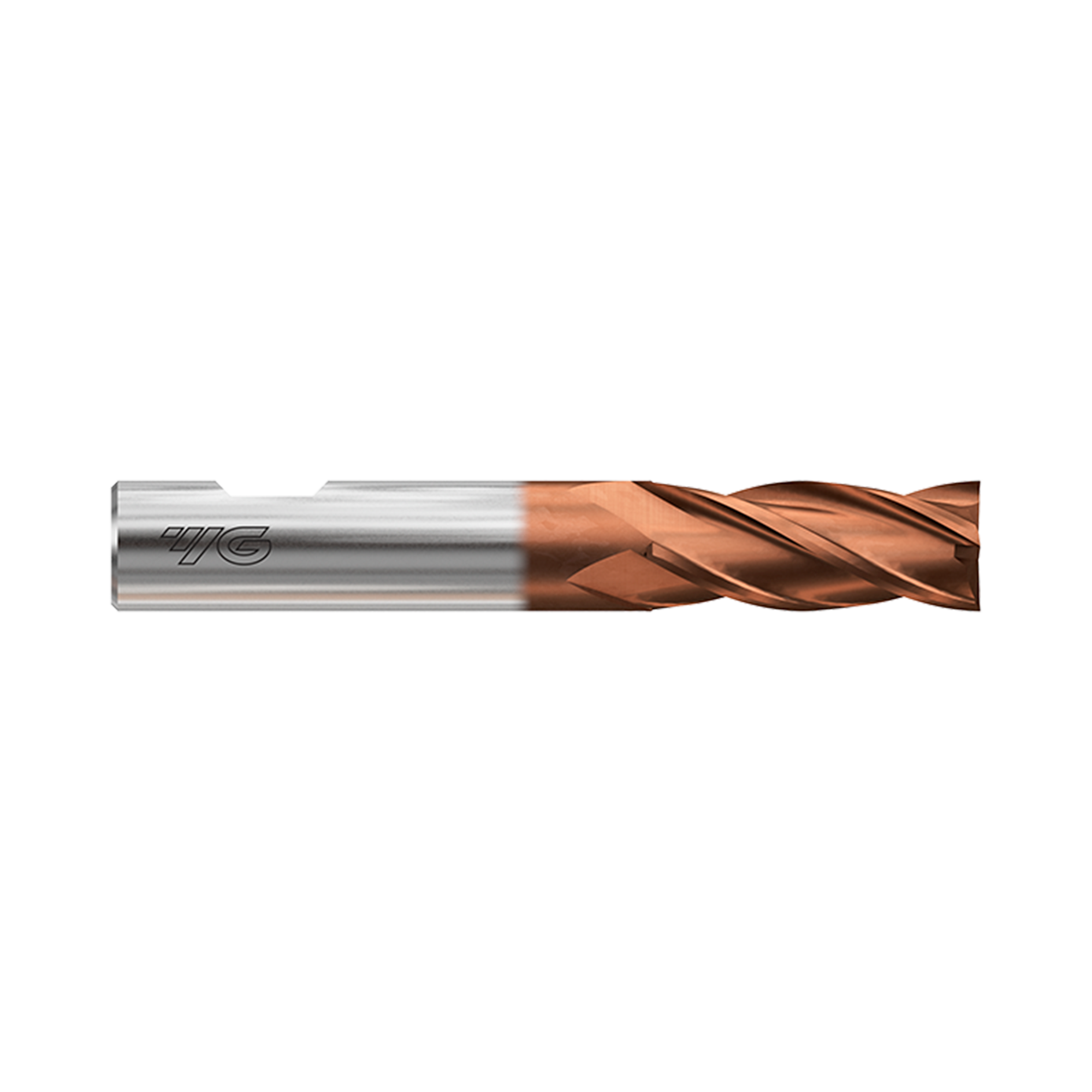

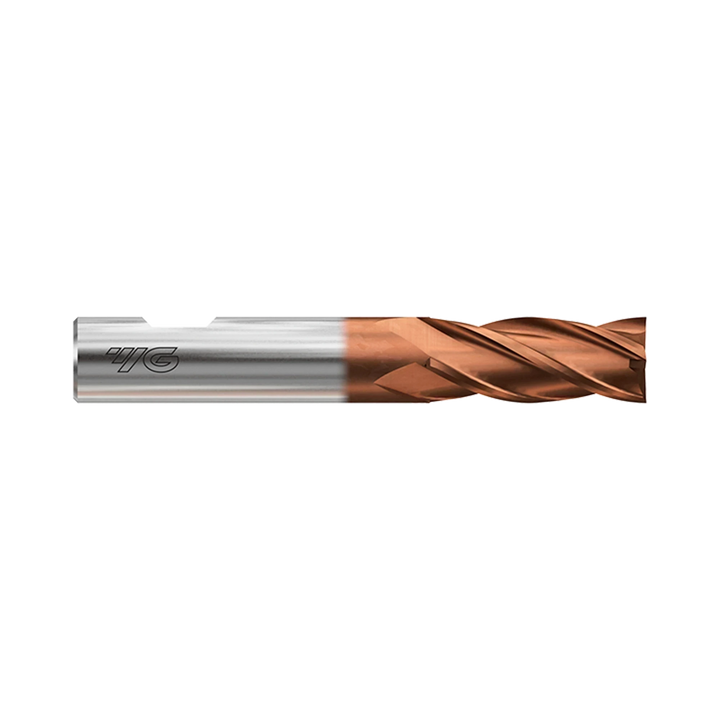

(GA938) HSS-PM, Tank-Power, 4 Flute End Mill, Short Length (TiAlN Coated)
TiAlN-coated HSS-PM four-flute short-length end millCode: GA938010
-
Key Features
- TiAlN-coated HSS-PM four-flute short-length end mill
- Designed for carbon steels alloyed steels and stainless steels
- Recommended for pocketing cam milling die sinking and slotting
Made in South Korea
Steel machining focus
Designed to machine carbon steels, alloyed steels and stainless steels.
High-speed cutting coating
TiAlN-coated with YG-1 Tank-Power coating developed for high-speed cutting.
Versatile milling operations
Recommended for pocketing, cam milling, die sinking and slotting.

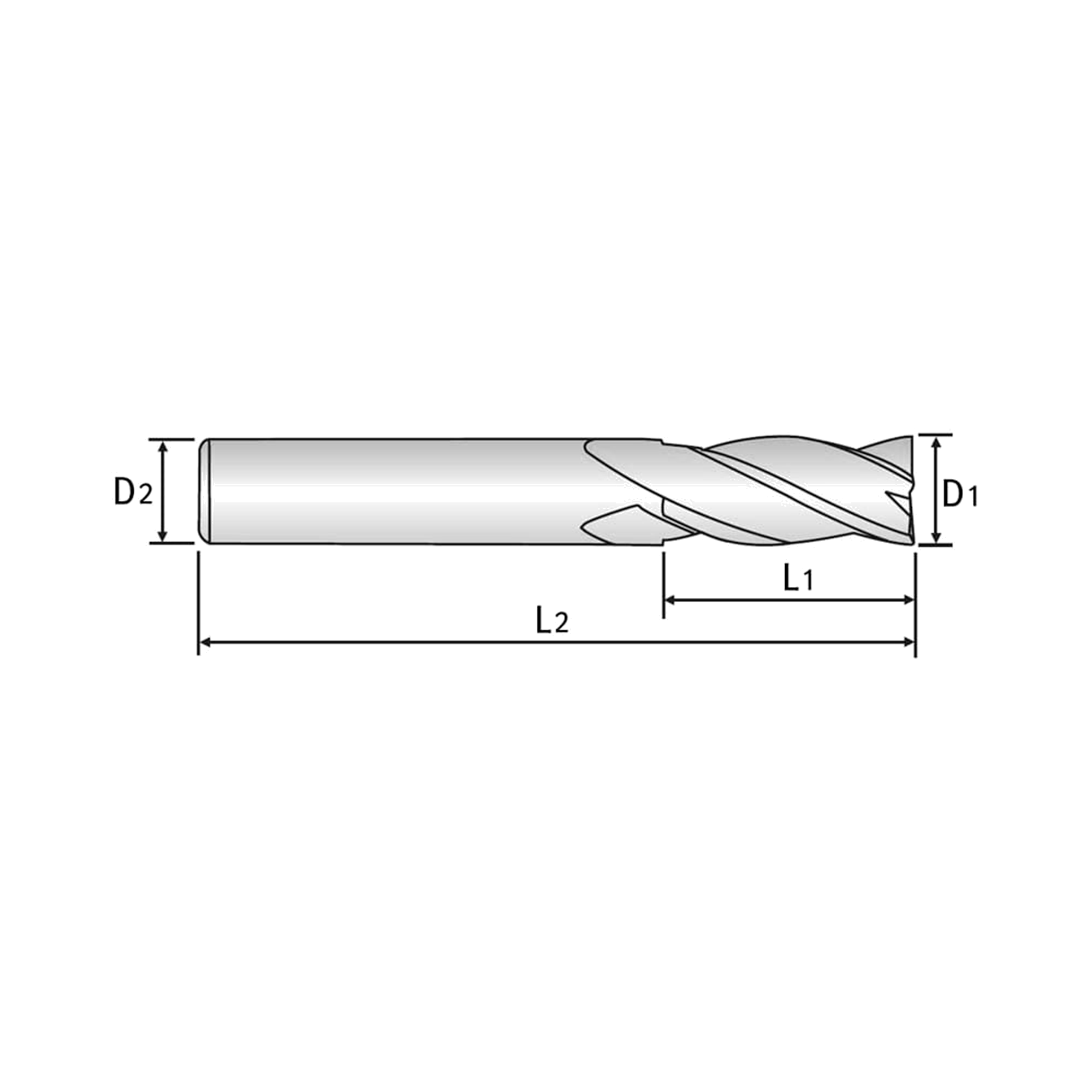

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GA938010 | 1 | 49.0 | 6.0 | 3.0 | 5 days | $47.20 | ||
| GA938020 | 2 | 51.0 | 6.0 | 7.0 | 5 days | $42.80 | ||
| GA938030 | 3 | 52.0 | 6.0 | 8.0 | 5 days | $42.80 | ||
| GA938040 | 4 | 55.0 | 6.0 | 11.0 | 5 days | $42.80 | ||
| GA938050 | 5 | 57.0 | 6.0 | 13.0 | 5 days | $42.80 | ||
| GA938060 | 6 | 57.0 | 6.0 | 13.0 | In stock | $26.30 | ||
| GA938070 | 7 | 66.0 | 10.0 | 16.0 | 5 days | $64.50 | ||
| GA938080 | 8 | 69.0 | 10.0 | 19.0 | 5 days | $51.50 | ||
| GA938090 | 9 | 69.0 | 10.0 | 19.0 | 5 days | $66.80 | ||
| GA938100 | 10 | 72.0 | 10.0 | 22.0 | 5 days | $54.60 | ||
| GA938120 | 12 | 83.0 | 12.0 | 26.0 | 5 days | $88.60 | ||
| GA938140 | 14 | 83.0 | 12.0 | 26.0 | 5 days | $98.80 | ||
| GA938160 | 16 | 92.0 | 16.0 | 32.0 | In stock | $85.40 | ||
| GA938180 | 18 | 92.0 | 16.0 | 32.0 | 5 days | $146.70 | ||
| GA938200 | 20 | 104.0 | 20.0 | 38.0 | 5 days | $190.80 | ||
| GA938250 | 25 | 121.0 | 25.0 | 45.0 | Low stock | $194.96 |
Add (GA938) HSS-PM, Tank-Power, 4 Flute End Mill, Short Length (TiAlN Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GA938 Tank-Power is a TiAlN-coated HSS-PM four-flute short-length end mill. It machines carbon steels, alloyed steels and stainless steels in high-speed cutting applications. The four-flute design is recommended for pocketing, cam milling, die sinking and slotting. YG-1’s Tank-Power coating is newly developed for high-speed cutting applications. Mill diameters cover 1 to 25 mm, providing options for a broad range of milling sizes. Lengths of cut range from 3 to 45 mm across the GA938 series. Overall lengths range from 49 to 121 mm, and shank diameters range from 6 to 25 mm. The smallest 1 mm GA938010 variant features centre-cut end teeth.
- TiAlN-coated HSS-PM four-flute short-length end mill
- Designed for carbon steels alloyed steels and stainless steels
- Recommended for pocketing cam milling die sinking and slotting
- Tank-Power coating developed for high-speed cutting
- 1 to 25 mm mill diameter range
- GA938010 1 mm variant features centre-cut end teeth
