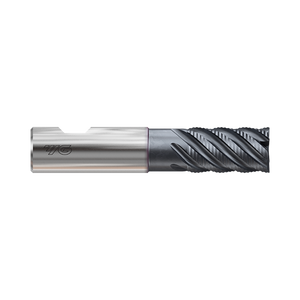

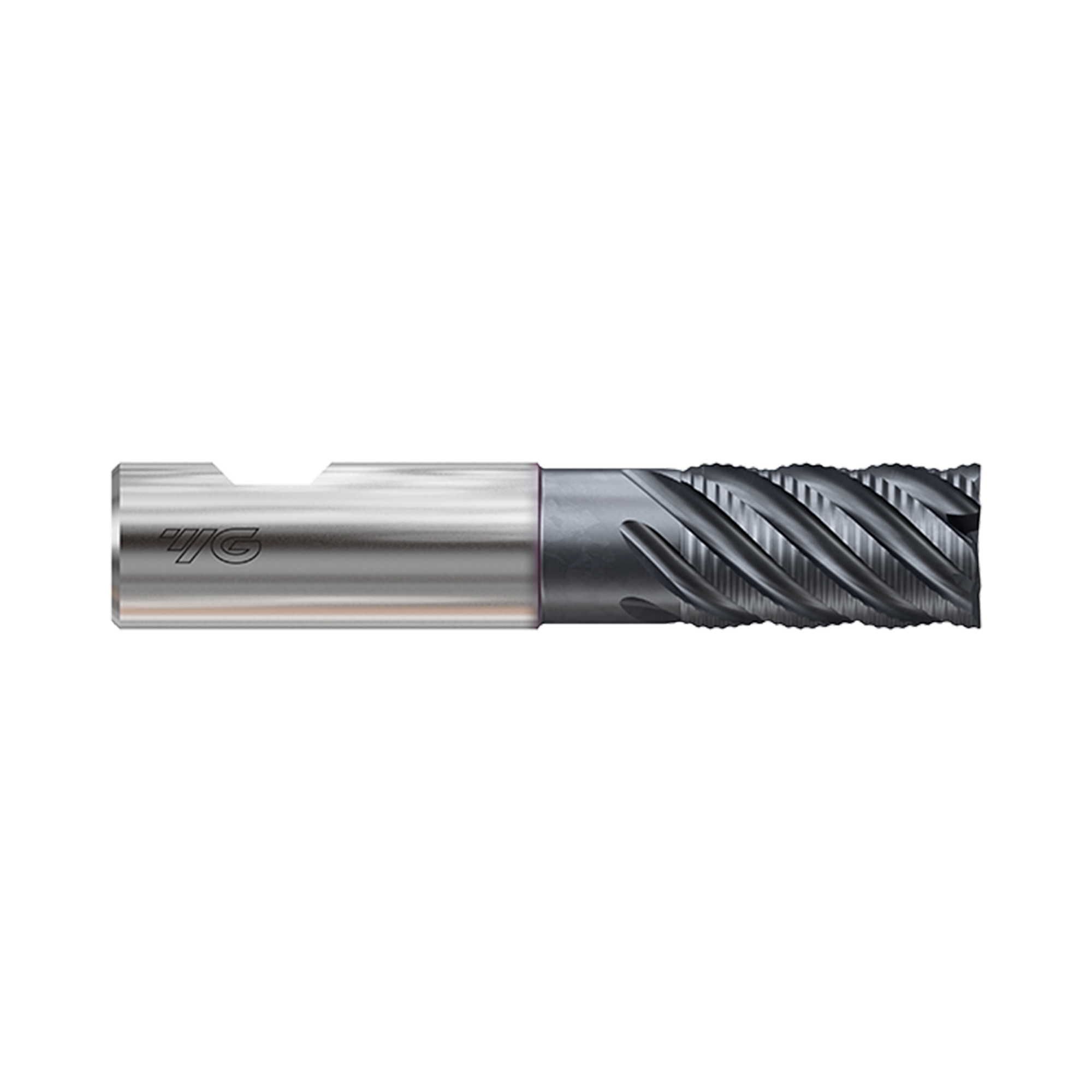

(GAA26) HSS-PM, Tank-Power, Multi Flute Coated Roughing End Mill, Short Length (Coarse)
HSS-PM Coarse Roughing End Mill with X-Coating
$59.73
INC GST
$54.30
EX GST
Price available on request
Unit price per
- SKU
- GAA26040
Key features
- HSS-PM multi-flute short-length coarse roughing end mill
- X-Coating Tank-Power coating suitable for high-speed cutting
- Designed for carbon steels alloy steels and stainless steels
Made in South Korea
Free standard delivery on orders over
$500.
If you're not 100% happy with your purchase, we'll replace or refund.
Efficient roughing
Coarse roughing geometry supports high chip removal for productive material removal.
High-speed cutting support
Tank-Power X-Coating is designed to support high-speed cutting applications.
Steel machining coverage
Designed for machining carbon steels, alloy steels and stainless steels.

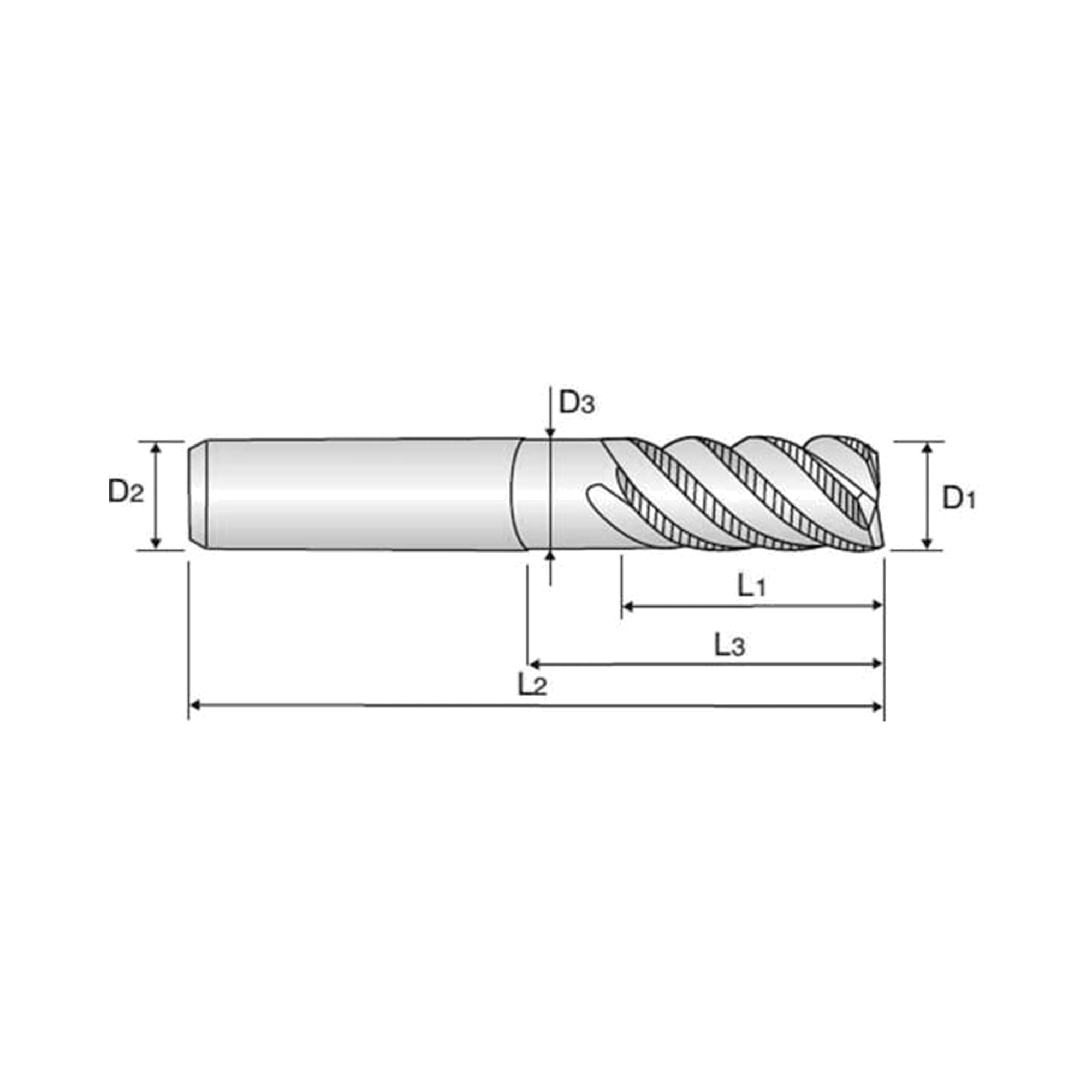

| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GAA26040 | 4.0 | 0.1 | 57.0 | 6.0 | 3 | 11.0 | - | - | Low stock | $54.30 | ||
| GAA26050 | 5.0 | 0.13 | 57.0 | 6.0 | 4 | 13.0 | - | - | Low stock | $54.30 | ||
| GAA26060 | 6.0 | 0.15 | 57.0 | 6.0 | 4 | 13.0 | - | - | 1-2 Weeks | $74.30 | ||
| GAA26070 | 7.0 | 0.15 | 66.0 | 10.0 | 4 | 16.0 | - | - | 1-2 Weeks | $99.20 | ||
| GAA26080 | 8.0 | 0.18 | 69.0 | 10.0 | 4 | 19.0 | - | - | 1-2 Weeks | $99.20 | ||
| GAA26090 | 9.0 | 0.18 | 69.0 | 10.0 | 4 | 19.0 | - | - | 1-2 Weeks | $102.00 | ||
| GAA26100 | 10.0 | 0.2 | 72.0 | 10.0 | 4 | 22.0 | 31.0 | 9.5 | Low stock | $73.80 | ||
| GAA26120 | 12.0 | 0.2 | 83.0 | 12.0 | 4 | 26.0 | 37.0 | 11.5 | 1-2 Weeks | $124.50 | ||
| GAA26140 | 14.0 | 0.2 | 83.0 | 12.0 | 5 | 26.0 | - | - | 1-2 Weeks | $149.00 | ||
| GAA26160 | 16.0 | 0.2 | 92.0 | 16.0 | 5 | 32.0 | 44.0 | 15.0 | 1-2 Weeks | $124.40 | ||
| GAA26180 | 18.0 | 0.2 | 92.0 | 16.0 | 6 | 32.0 | - | - | 1-2 Weeks | $186.00 | ||
| GAA26200 | 20.0 | 0.2 | 104.0 | 20.0 | 6 | 38.0 | 54.0 | 19.0 | 1-2 Weeks | $237.90 | ||
| GAA26250 | 25.0 | 0.2 | 121.0 | 25.0 | 6 | 45.0 | 63.0 | 24.0 | 1-2 Weeks | $350.00 |
Add (GAA26) HSS-PM, Tank-Power, Multi Flute Coated Roughing End Mill, Short Length (Coarse) to comparison
View Comparison- Overview
- Specifications
- Work Material
- Speeds & Feeds
- Reviews
Application
Product Description
YG-1 GAA26 Tank-Power is a short-length HSS-PM multi-flute coarse roughing end mill with X-Coating. Designed for high-feed roughing, it machines carbon steels, alloy steels and stainless steels. Tank-Power coating supports high-speed cutting, while the coarse roughing geometry promotes high chip removal. Available diameters span 4 to 25 mm, with three to six flutes across the series. Tools through 20 mm are centre cutting, while the 25 mm variant is non-centre-cutting. Chamfers range from 0.1 to 0.2 mm for practical edge preparation. The short-length design suits stable milling setups where robust material removal is required. This coated series provides a practical option for dedicated steel roughing operations.
- HSS-PM multi-flute short-length coarse roughing end mill
- X-Coating Tank-Power coating suitable for high-speed cutting
- Designed for carbon steels alloy steels and stainless steels
- High chip removal roughing geometry
- 4 to 25 mm cutter diameter range
- Centre cutting through 20 mm diameter
Product Data
| Cutting Shape | Rougher |
| Length | Short |
| Surface Treatment | YG-1 X Coating |
| Tool Material | HSS PM |
Work materials
VDI 3323 recommendations for this tool.
ExcellentGood
Steel
11 gradesNon-alloy steel
Low-alloy steel
High-alloy and tool steel
Cast iron
6 gradesGrey cast iron
Nodular cast iron
Malleable cast iron
Stainless steel
3 gradesStainless steel
Non-ferrous materials
3 gradesCopper, bronze and brass
VDI grade reference23 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Excellent | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Good | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Excellent | 200 | 15 |
| 11 | PHigh-alloy and tool steel | Good | 325 | 35 |
| 12 | MStainless steel | Excellent | 200 | 15 |
| 13 | MStainless steel | Excellent | 240 | 23 |
| 14 | MStainless steel | Excellent | 180 | 10 |
| 15 | KGrey cast iron | Excellent | 180 | 10 |
| 16 | KGrey cast iron | Excellent | 260 | 26 |
| 17 | KNodular cast iron | Excellent | 160 | 3 |
| 18 | KNodular cast iron | Excellent | 250 | 25 |
| 19 | KMalleable cast iron | Excellent | 130 | - |
| 20 | KMalleable cast iron | Excellent | 230 | 21 |
| 26 | NCopper, bronze and brass | Good | 110 | - |
| 27 | NCopper, bronze and brass | Good | 90 | - |
| 28 | NCopper, bronze and brass | Good | 100 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
