New

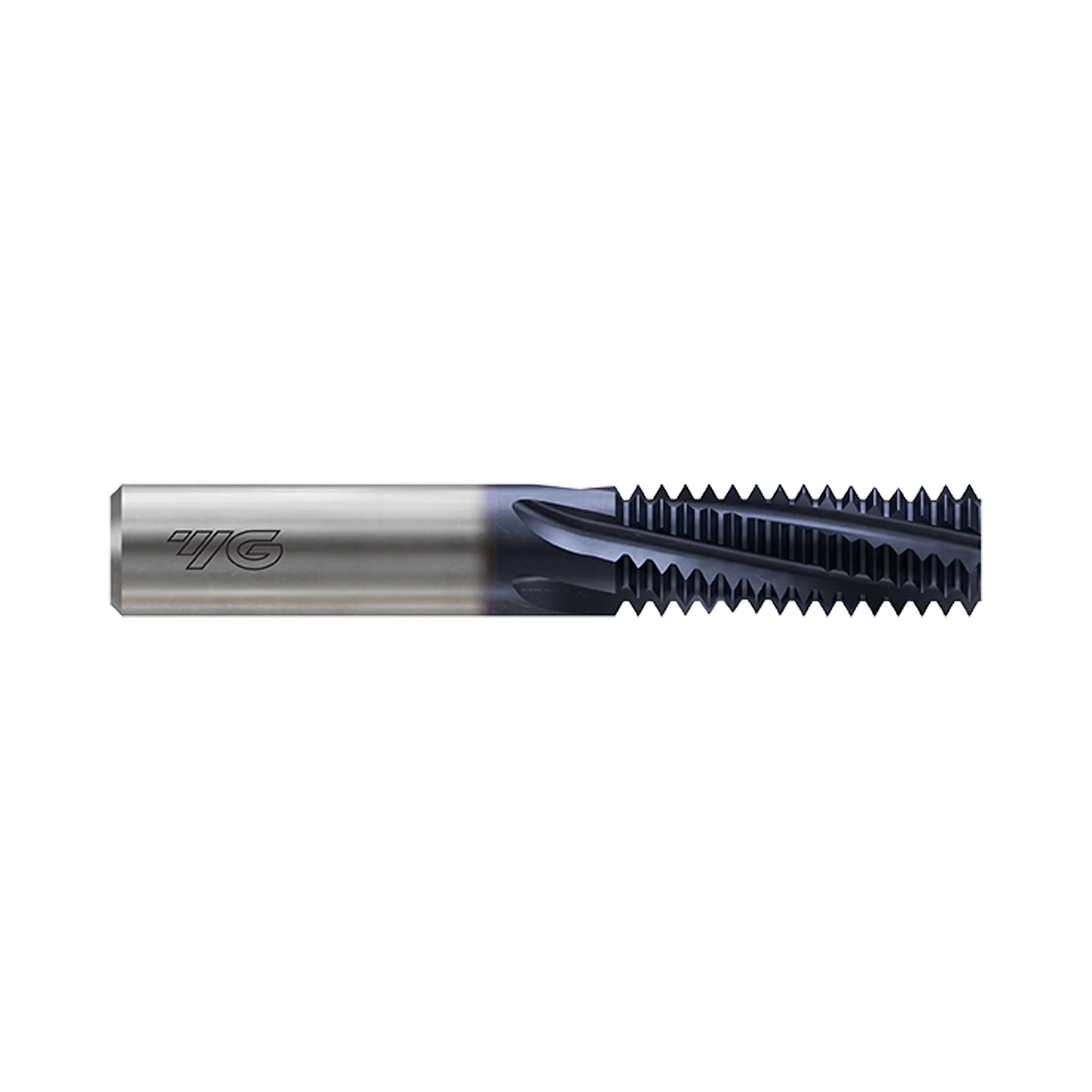

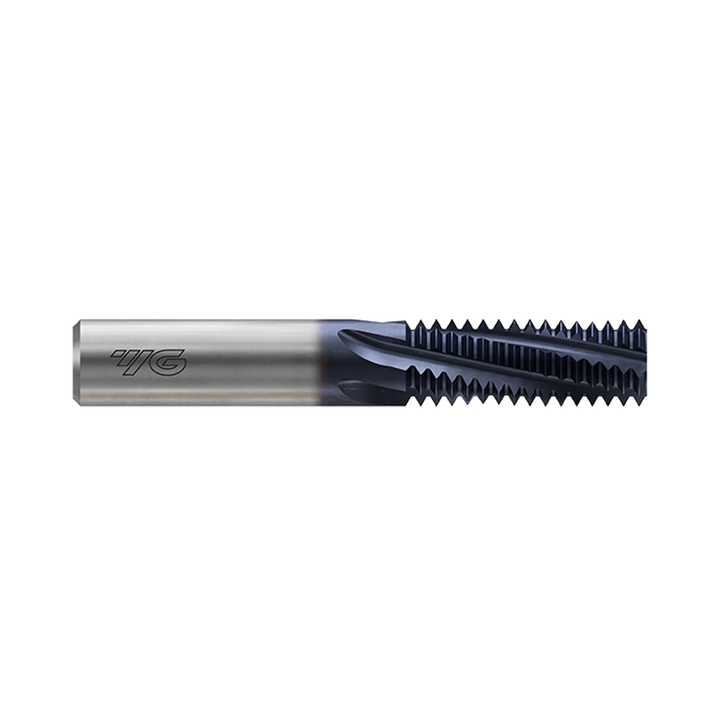

THREAD MILL TiAlN (L1212)

Metric Fine Internal Thread Mill
  • $166.76INC GST $151.60 EX GST
THREAD MILL TiAlN (L1212)
THREAD MILL TiAlN (L1212)
New

THREAD MILL TiAlN (L1212)

Metric Fine Internal Thread Mill
  • $166.76INC GST $151.60 EX GST

Code: L1212380

P M K N S
Size
Pitch (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add THREAD MILL TiAlN (L1212) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Easy to cut threads even if exotic materials like Nickel, Titanium or their alloys.
  • For Internal Thread
  • Thread Depth : 1.5 x D Max.
Product Data
Workpiece Material P M K N S
Helix Angle Square 15
Operation Blind Drilling, Through Drilling
Shank Type 6535HA
Surface Treatment Titanium Aluminium Nitride Coating
Thread Angle 60
Thread Shape MF
Tool Material Carbide

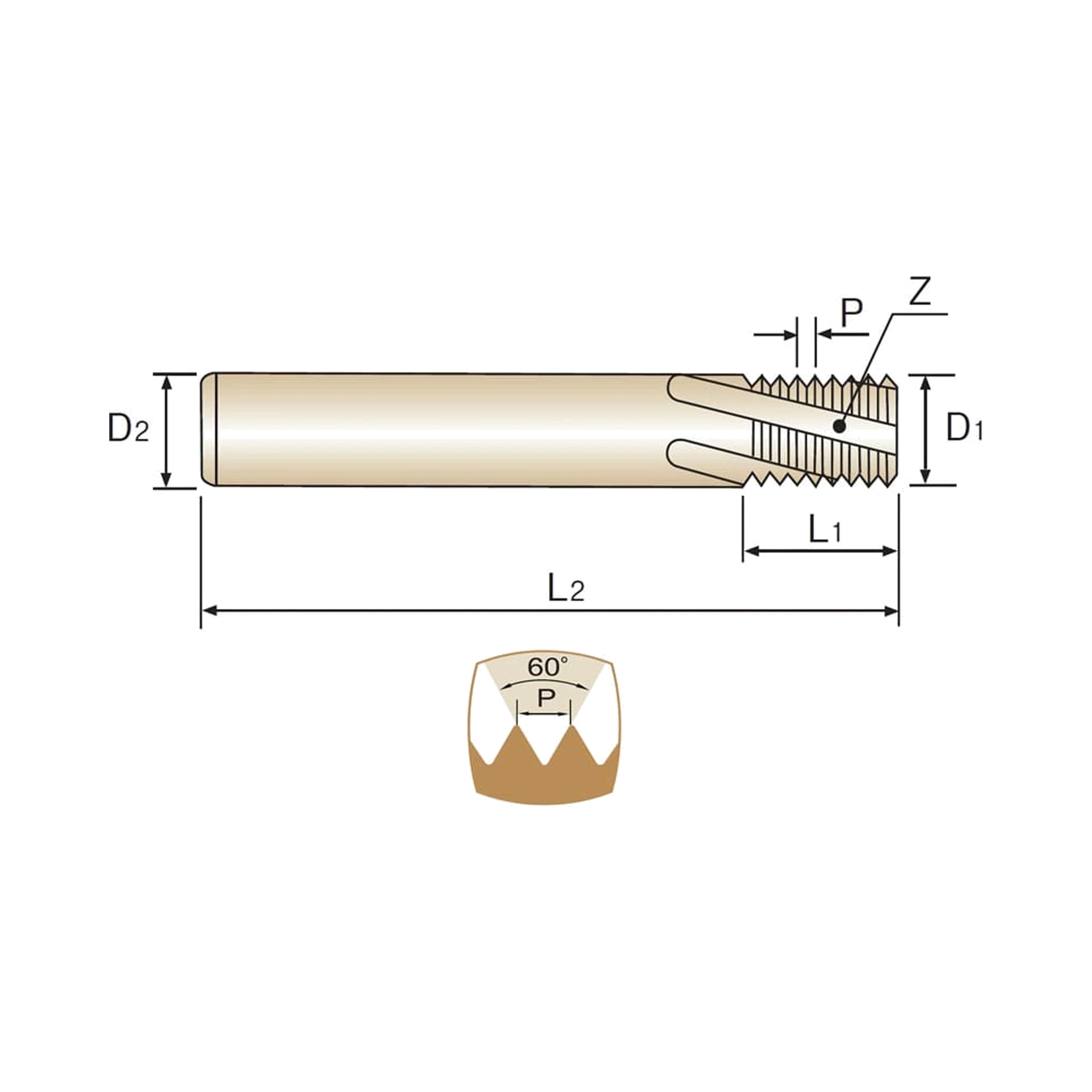

EDP No. Size Pitch Thread Length Overall Length Shank Diameter No. of Flute L1212370 M8 1 13 57 6 3 L1212370 M8 1 13 57 6 3 L1212370 M8 1 13 57 6 3 L1212380 M8 0.75 12.75 57 6 3 L1212380 M8 0.75 12.75 57 6 3 L1212380 M8 0.75 12.75 57 6 3 L1212440 M10 1 16 63 8 4 L1212440 M10 1 16 63 8 4 L1212440 M10 1 16 63 8 4 L1212510 M12 1.5 19.5 72 10 4 L1212510 M12 1.5 19.5 72 10 4 L1212510 M12 1.5 19.5 72 10 4 L1212520 M12 1.25 18.75 72 10 4 L1212520 M12 1.25 18.75 72 10 4 L1212520 M12 1.25 18.75 72 10 4 L1212530 M12 1 19 72 10 4 L1212530 M12 1 19 72 10 4 L1212530 M12 1 19 72 10 4 L1212550 M14 1.5 22.5 83 10 4 L1212550 M14 1.5 22.5 83 10 4 L1212550 M14 1.5 22.5 83 10 4 L1212570 M14 1 22 83 10 4 L1212570 M14 1 22 83 10 4 L1212570 M14 1 22 83 10 4 L1212610 M16 1.5 25.5 83 12 4 L1212610 M16 1.5 25.5 83 12 4 L1212610 M16 1.5 25.5 83 12 4 L1212620 M16 1 25 83 12 4 L1212620 M16 1 25 83 12 4 L1212620 M16 1 25 83 12 4 L1212670 M18 1.5 28.5 92 14 5 L1212670 M18 1.5 28.5 92 14 5 L1212670 M18 1.5 28.5 92 14 5 L1212680 M18 1 28 92 14 5 L1212680 M18 1 28 92 14 5 L1212680 M18 1 28 92 14 5 L1212720 M20 1.5 31.5 92 16 5 L1212720 M20 1.5 31.5 92 16 5 L1212720 M20 1.5 31.5 92 16 5 L1212730 M20 1 31 92 16 5 L1212730 M20 1 31 92 16 5 L1212730 M20 1 31 92 16 5
Blind Drilling
Through Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Excellent

Good Great Excellent
P Tool Steels

Excellent

Good Great Excellent
P High Alloyed

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Excellent

Good Great Excellent
S Titanium

Great

Good Great Excellent
S Nickel

Great

Good Great Excellent
EDP No. Size Pitch Thread Length Overall Length Shank Diameter No. of Flute L1212370 M8 1 13 57 6 3 L1212370 M8 1 13 57 6 3 L1212370 M8 1 13 57 6 3 L1212380 M8 0.75 12.75 57 6 3 L1212380 M8 0.75 12.75 57 6 3 L1212380 M8 0.75 12.75 57 6 3 L1212440 M10 1 16 63 8 4 L1212440 M10 1 16 63 8 4 L1212440 M10 1 16 63 8 4 L1212510 M12 1.5 19.5 72 10 4 L1212510 M12 1.5 19.5 72 10 4 L1212510 M12 1.5 19.5 72 10 4 L1212520 M12 1.25 18.75 72 10 4 L1212520 M12 1.25 18.75 72 10 4 L1212520 M12 1.25 18.75 72 10 4 L1212530 M12 1 19 72 10 4 L1212530 M12 1 19 72 10 4 L1212530 M12 1 19 72 10 4 L1212550 M14 1.5 22.5 83 10 4 L1212550 M14 1.5 22.5 83 10 4 L1212550 M14 1.5 22.5 83 10 4 L1212570 M14 1 22 83 10 4 L1212570 M14 1 22 83 10 4 L1212570 M14 1 22 83 10 4 L1212610 M16 1.5 25.5 83 12 4 L1212610 M16 1.5 25.5 83 12 4 L1212610 M16 1.5 25.5 83 12 4 L1212620 M16 1 25 83 12 4 L1212620 M16 1 25 83 12 4 L1212620 M16 1 25 83 12 4 L1212670 M18 1.5 28.5 92 14 5 L1212670 M18 1.5 28.5 92 14 5 L1212670 M18 1.5 28.5 92 14 5 L1212680 M18 1 28 92 14 5 L1212680 M18 1 28 92 14 5 L1212680 M18 1 28 92 14 5 L1212720 M20 1.5 31.5 92 16 5 L1212720 M20 1.5 31.5 92 16 5 L1212720 M20 1.5 31.5 92 16 5 L1212730 M20 1 31 92 16 5 L1212730 M20 1 31 92 16 5 L1212730 M20 1 31 92 16 5
