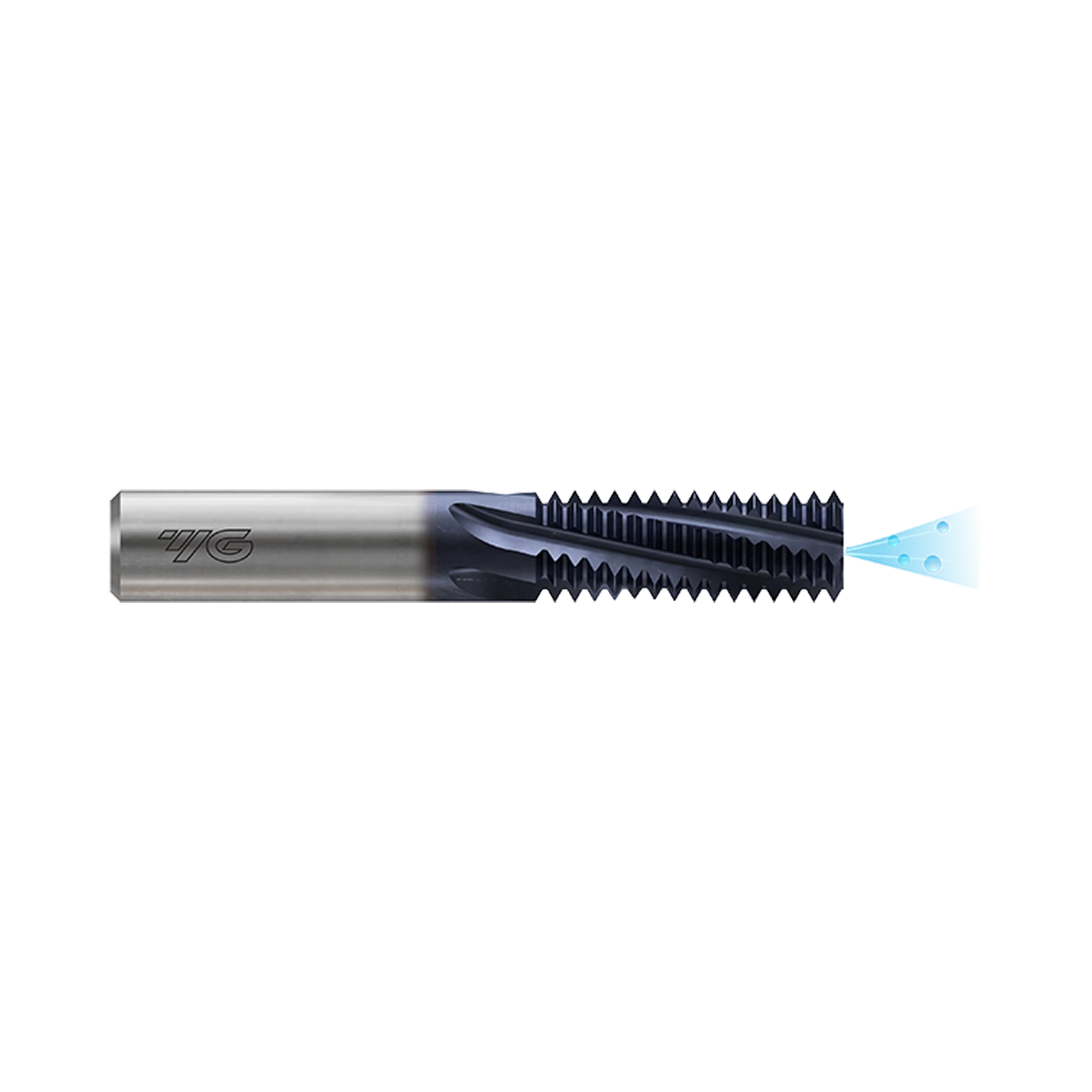

(L4212) Carbide Metric Fine Thread Mill with Coolant Hole

TiAlN-Coated Coolant-Fed Metric Fine
  • $362.45INC GST $329.50 EX GST
(L4212) Carbide Metric Fine Thread Mill with Coolant Hole
(L4212) Carbide Metric Fine Thread Mill with Coolant Hole

(L4212) Carbide Metric Fine Thread Mill with Coolant Hole

TiAlN-Coated Coolant-Fed Metric Fine
  • $362.45INC GST $329.50 EX GST

Code: L4212370

P M K N S
Size
Pitch (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Shank dia. (mm)FlutesStock Price Qty Add
L4212370M8113.057.06.03 5 days $329.50
L4212440M10116.063.08.04 5 days $439.40
L4212510M121.519.572.010.04 5 days $355.50
L4212550M141.522.583.010.04 5 days $569.00
L4212610M161.525.583.012.04 5 days $439.60
L4212670M181.528.592.014.05 5 days $924.00
L4212720M201.531.592.016.05 5 days $664.10

Add (L4212) Carbide Metric Fine Thread Mill with Coolant Hole to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Easy to cut threads even if exotic materials like Nickel, Titanium or their alloys.
  • With Internal Coolant
  • For Internal Thread
  • Thread Depth : 1.5 x D Max.
Product Data
Workpiece Material P M K N S
Helix Angle Square 15
Operation Blind Drilling, Through Drilling
Shank Type 6535HA
Surface Treatment Titanium Aluminium Nitride Coating
Thread Angle 60
Thread Shape MF
Tool Material Carbide
EDP No. Size Pitch Thread Length Overall Length Shank Diameter No. of Flute L4212370 M8 1 13 57 6 3 L4212370 M8 1 13 57 6 3 L4212370 M8 1 13 57 6 3 L4212380 M8 0.75 12.75 57 6 3 L4212380 M8 0.75 12.75 57 6 3 L4212380 M8 0.75 12.75 57 6 3 L4212440 M10 1 16 63 8 4 L4212440 M10 1 16 63 8 4 L4212440 M10 1 16 63 8 4 L4212510 M12 1.5 19.5 72 10 4 L4212510 M12 1.5 19.5 72 10 4 L4212510 M12 1.5 19.5 72 10 4 L4212520 M12 1.25 18.75 72 10 4 L4212520 M12 1.25 18.75 72 10 4 L4212520 M12 1.25 18.75 72 10 4 L4212530 M12 1 19 72 10 4 L4212530 M12 1 19 72 10 4 L4212530 M12 1 19 72 10 4 L4212550 M14 1.5 22.5 83 10 4 L4212550 M14 1.5 22.5 83 10 4 L4212550 M14 1.5 22.5 83 10 4 L4212570 M14 1 22 83 10 4 L4212570 M14 1 22 83 10 4 L4212570 M14 1 22 83 10 4 L4212610 M16 1.5 25.5 83 12 4 L4212610 M16 1.5 25.5 83 12 4 L4212610 M16 1.5 25.5 83 12 4 L4212620 M16 1 25 83 12 4 L4212620 M16 1 25 83 12 4 L4212620 M16 1 25 83 12 4 L4212670 M18 1.5 28.5 92 14 5 L4212670 M18 1.5 28.5 92 14 5 L4212670 M18 1.5 28.5 92 14 5 L4212680 M18 1 28 92 14 5 L4212680 M18 1 28 92 14 5 L4212680 M18 1 28 92 14 5 L4212720 M20 1.5 31.5 92 16 5 L4212720 M20 1.5 31.5 92 16 5 L4212720 M20 1.5 31.5 92 16 5 L4212730 M20 1 31 92 16 5 L4212730 M20 1 31 92 16 5 L4212730 M20 1 31 92 16 5
Blind Drilling
Through Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Excellent

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P Tool Steels

Excellent

Good Great Excellent
P High Alloyed

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Aluminium

Excellent

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Excellent

Good Great Excellent
S Titanium

Great

Good Great Excellent
S Nickel

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size Pitch Thread Length Overall Length Shank Diameter No. of Flute L4212370 M8 1 13 57 6 3 L4212370 M8 1 13 57 6 3 L4212370 M8 1 13 57 6 3 L4212380 M8 0.75 12.75 57 6 3 L4212380 M8 0.75 12.75 57 6 3 L4212380 M8 0.75 12.75 57 6 3 L4212440 M10 1 16 63 8 4 L4212440 M10 1 16 63 8 4 L4212440 M10 1 16 63 8 4 L4212510 M12 1.5 19.5 72 10 4 L4212510 M12 1.5 19.5 72 10 4 L4212510 M12 1.5 19.5 72 10 4 L4212520 M12 1.25 18.75 72 10 4 L4212520 M12 1.25 18.75 72 10 4 L4212520 M12 1.25 18.75 72 10 4 L4212530 M12 1 19 72 10 4 L4212530 M12 1 19 72 10 4 L4212530 M12 1 19 72 10 4 L4212550 M14 1.5 22.5 83 10 4 L4212550 M14 1.5 22.5 83 10 4 L4212550 M14 1.5 22.5 83 10 4 L4212570 M14 1 22 83 10 4 L4212570 M14 1 22 83 10 4 L4212570 M14 1 22 83 10 4 L4212610 M16 1.5 25.5 83 12 4 L4212610 M16 1.5 25.5 83 12 4 L4212610 M16 1.5 25.5 83 12 4 L4212620 M16 1 25 83 12 4 L4212620 M16 1 25 83 12 4 L4212620 M16 1 25 83 12 4 L4212670 M18 1.5 28.5 92 14 5 L4212670 M18 1.5 28.5 92 14 5 L4212670 M18 1.5 28.5 92 14 5 L4212680 M18 1 28 92 14 5 L4212680 M18 1 28 92 14 5 L4212680 M18 1 28 92 14 5 L4212720 M20 1.5 31.5 92 16 5 L4212720 M20 1.5 31.5 92 16 5 L4212720 M20 1.5 31.5 92 16 5 L4212730 M20 1 31 92 16 5 L4212730 M20 1 31 92 16 5 L4212730 M20 1 31 92 16 5

Thread Mill
