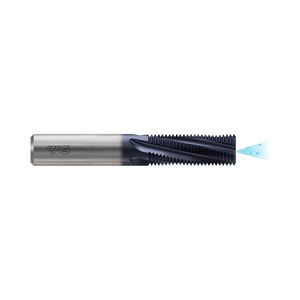

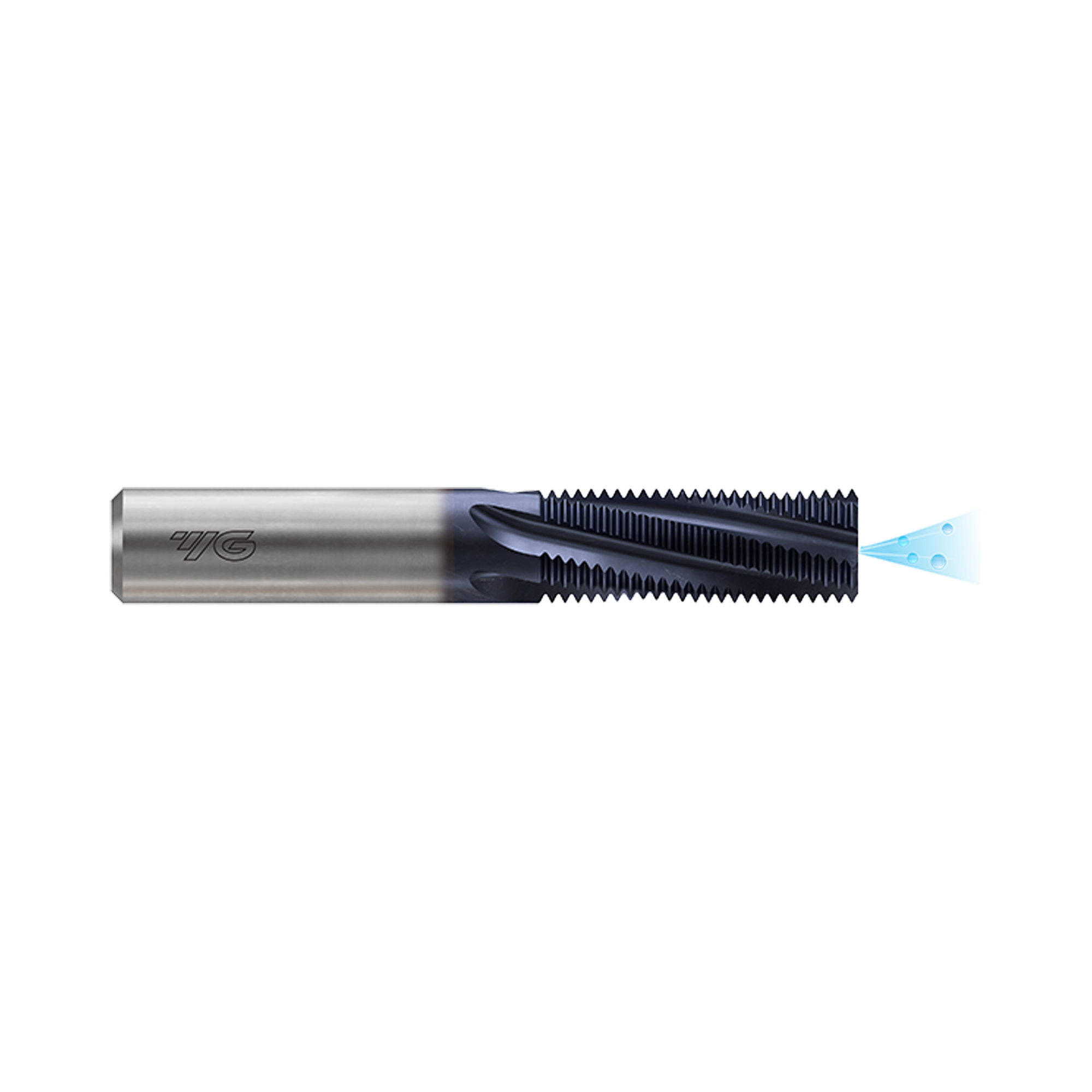

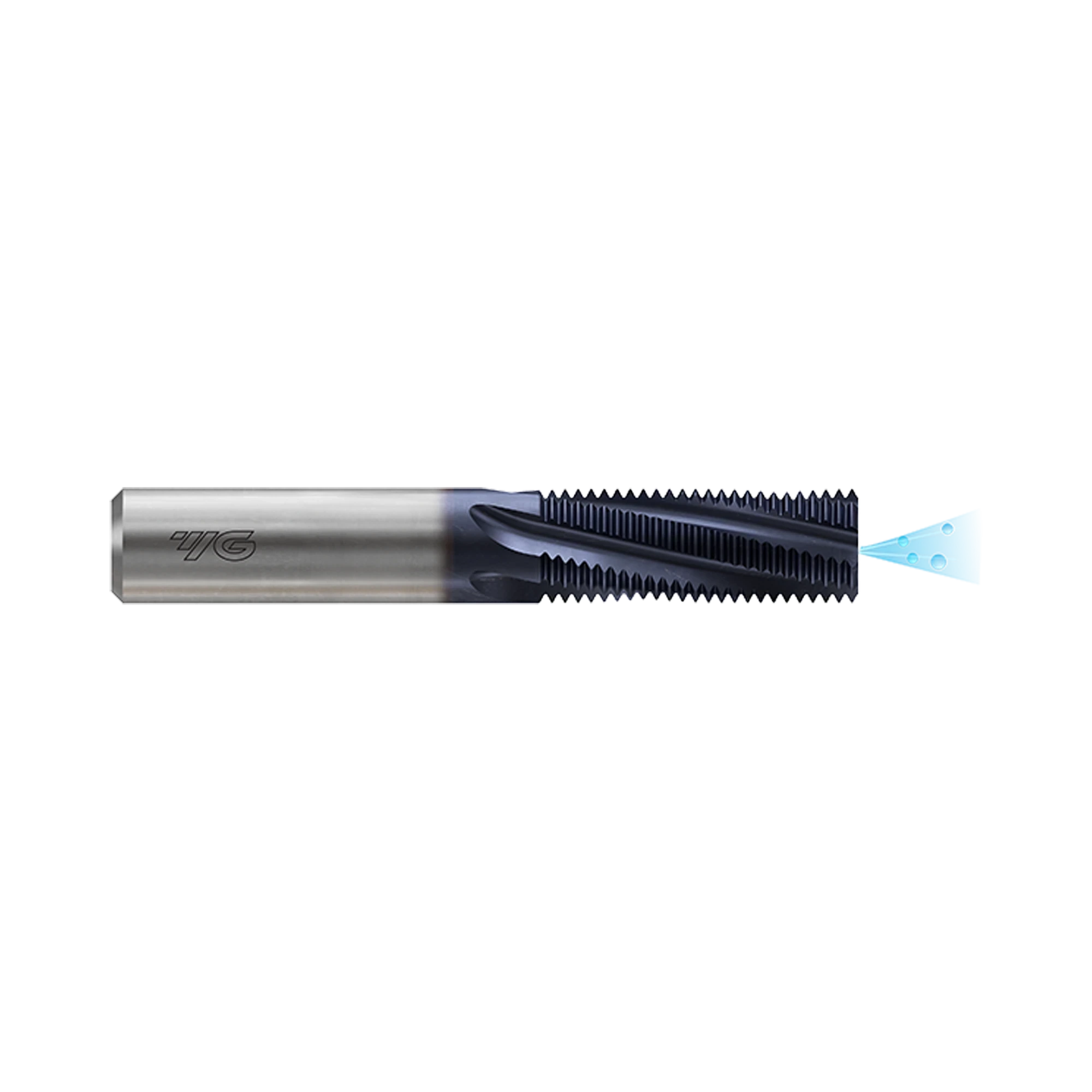

THREAD MILL TiAlN (L6215)

THREAD MILL TiAlN (L6215)
THREAD MILL TiAlN (L6215)
New

THREAD MILL TiAlN (L6215)

Product Code: L6215

YG-1 LEGEND G Thread Shape: G YG-1 LEGEND 55° Thread Angle: 55° YG-1 LEGEND TiAIN Surface Treatment: Titanium Aluminium Nitride Coating YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND HELIX SQUARE 15 Helix Angle: Square 15° YG-1 LEGEND SHANK 6535HA Shank Type: 6535HA
Buy Local
  • Easy to cut threads even if exotic materials like Nickel, Titanium or their alloys.
  • With Internal Coolant
  • For Internal/External Thread
Product Data
Workpiece Material P M K N S H
Helix Angle Square 15
Operation Blind Drilling, Through Drilling
Shank Type 6535HA
Surface Treatment Titanium Aluminium Nitride Coating
Thread Angle 55
Thread Shape G
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add THREAD MILL TiAlN (L6215) to comparison

View Comparison

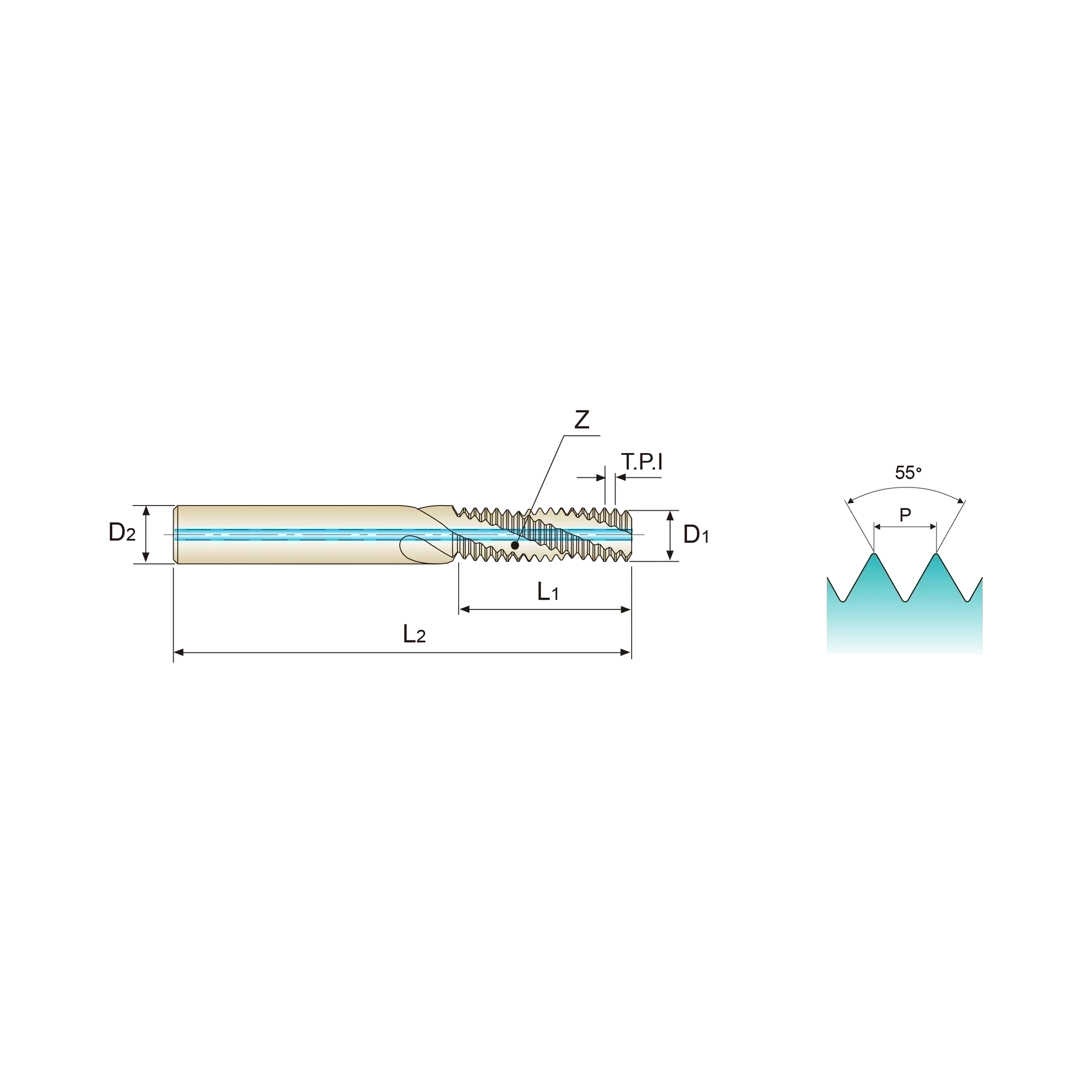

EDP No. Size TPI Thread Length Overall Length Shank Diameter No. of Flute L6215020 G1/16 28 16.3 65 6 3 L6215020 PF1/16 28 16.3 65 6 3 L6215200 G1/8 28 20 70 8 4 L6215200 PF1/8 28 20 70 8 4 L6215400 G1/4 19 26.7 80 10 4 L6215400 PF1/4 19 26.7 80 10 4 L6215480 G3/8 19 33.4 92 14 4 L6215480 PF3/8 19 33.4 92 14 4 L6215560 G1/2 14 43.5 104 16 5 L6215560 PF1/2 14 43.5 104 16 5 L6215700 G3/4 14 34.5 100 18 5 L6215700 PF3/4 14 34.5 100 18 5 L6215780 G1 11 34.6 100 20 5 L6215780 PF1 11 34.6 100 20 5

Operation

Blind Drilling
Through Drilling

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Excellent

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P Tool Steels

Excellent

Good Great Excellent
P High Alloyed

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Excellent

Good Great Excellent
S Titanium

Great

Good Great Excellent
S Nickel

Great

Good Great Excellent
H Hardened Steels (HRc30~45)

Great

Good Great Excellent
