M
Stainless steel
HRc
152310
HB
200240180
S
Heat-resistant superalloys
HRc
HB
200280250350
S
Titanium alloys
HRc
HB

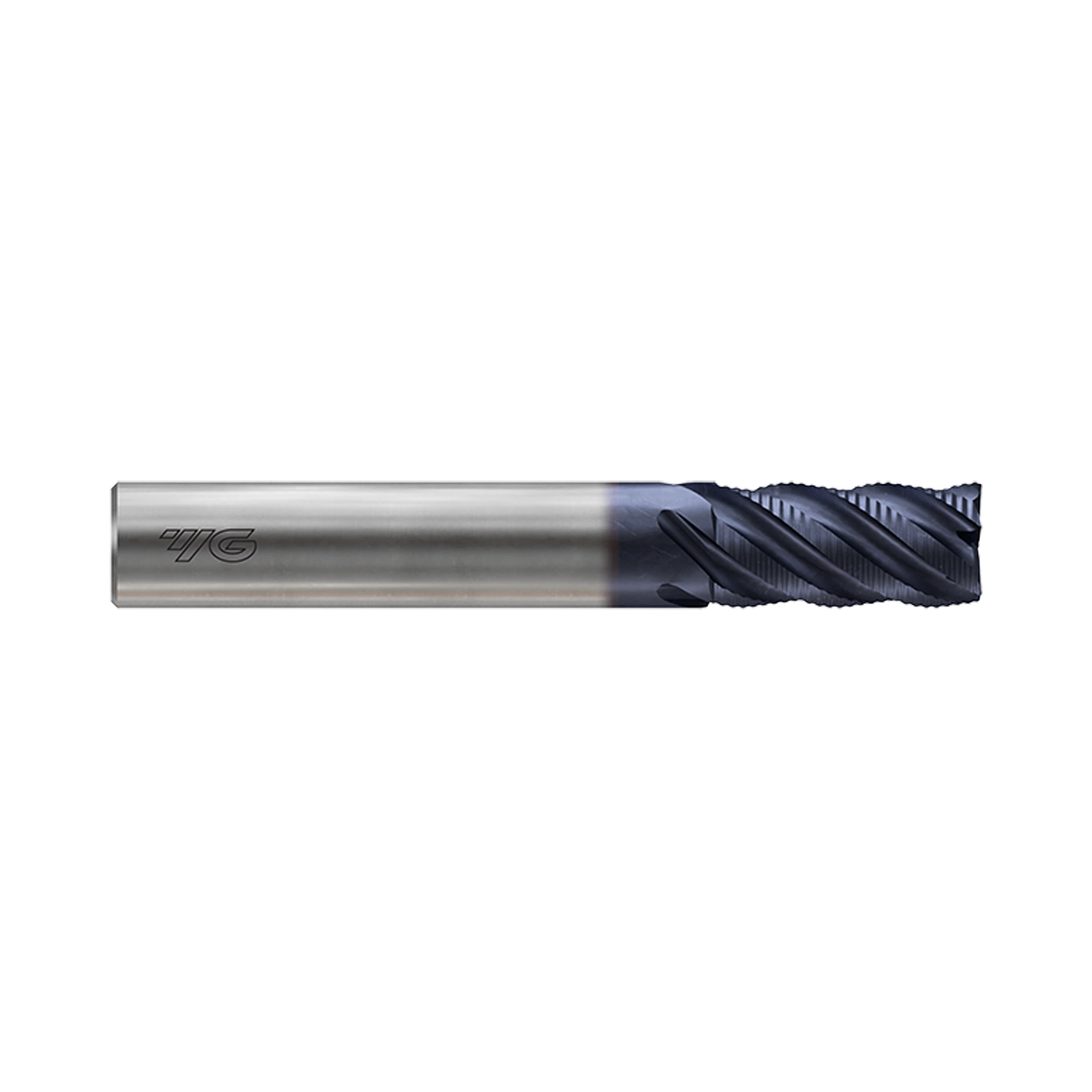

(EHE54) TitaNox-Power Carbide 5Flute Corner Radius Roughing End Mill for Stainless/Titanium, Plain Shank
Code: EHE54060
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.
| SKU | Mill Diameter (mm) | Corner Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| EHE54060 | 6 | R0.2 | 57.0 | 6.0 | 16.0 | Low stock | $112.70 | ||
| EHE54080 | 8 | R0.2 | 63.0 | 8.0 | 16.0 | 5 days | $136.00 | ||
| EHE54100 | 10 | R0.3 | 72.0 | 10.0 | 22.0 | 5 days | $192.80 | ||
| EHE54120 | 12 | R0.3 | 83.0 | 12.0 | 26.0 | 5 days | $242.10 | ||
| EHE54140 | 14 | R0.3 | 83.0 | 14.0 | 26.0 | 5 days | $293.60 | ||
| EHE54160 | 16 | R0.3 | 92.0 | 16.0 | 32.0 | Low stock | $393.30 | ||
| EHE54200 | 20 | R0.3 | 104.0 | 20.0 | 38.0 | 5 days | $633.60 | ||
| EHE54250 | 25 | R0.3 | 121.0 | 25.0 | 45.0 | 5 days | $1,111.00 |
Add (EHE54) TitaNox-Power Carbide 5Flute Corner Radius Roughing End Mill for Stainless/Titanium, Plain Shank to comparison
View Comparison- Overview
- Specifications
- Specifications
- Operation
- Work Material
- Reviews
Product Description
The EHE54 series 40° helix fine pitch rippers range from 6-25mm diameter. These corner radius roughers have 5 flutes and a plain shank. The TitaNox Power range from YG-1 have exceptional tool life on Titanium Hastelloy, Stainless Steel, Inconel and Steel up to HRc40.
- Extreme Machining of Titanium, Inconel, Hastelloy, Stainless Steel & Steels
- HPC (High performance cutting)
- Special roughing profile for stainless steel and titanium.
- Optimized flute design for chip evacuation and rigidity when machining difficult-to-cut materials.
- Special design for sticky materials prevents flutes from clogging in slotting operations
- Special high heat resistant Y1200 coating
- Micrograin carbide substrate
- To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck)
Product Data
| Workpiece Material | M S |
| Cutting Shape | Corner Radius, Roughing |
| Helix Angle | Square 40 |
| No. Flutes | 5 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part, Trochoidal |
| Periphery Type | Roughing - Fine |
| Shank Type | Plain |
| Surface Treatment | Titanium Aluminium Nitride Coating |
| Tool Material | Carbide |
| Flutes | 5 |
| Helix Angle | 40° |
| Cutting Edge Shape | ROUGHING CORNER RADIUS |
| Size Min | D6.0 |
| Size Max | D25.0 |
| Length |
- |
| Coating | TIAIN |
Side Milling
Small Part
Slotting
Die Sinking
Facing
Trochoidal
Stainless Steels
Great
Good
Great
Excellent
Inconel
Great
Good
Great
Excellent
Titanium
Excellent
Good
Great
Excellent
