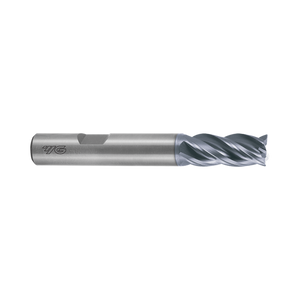

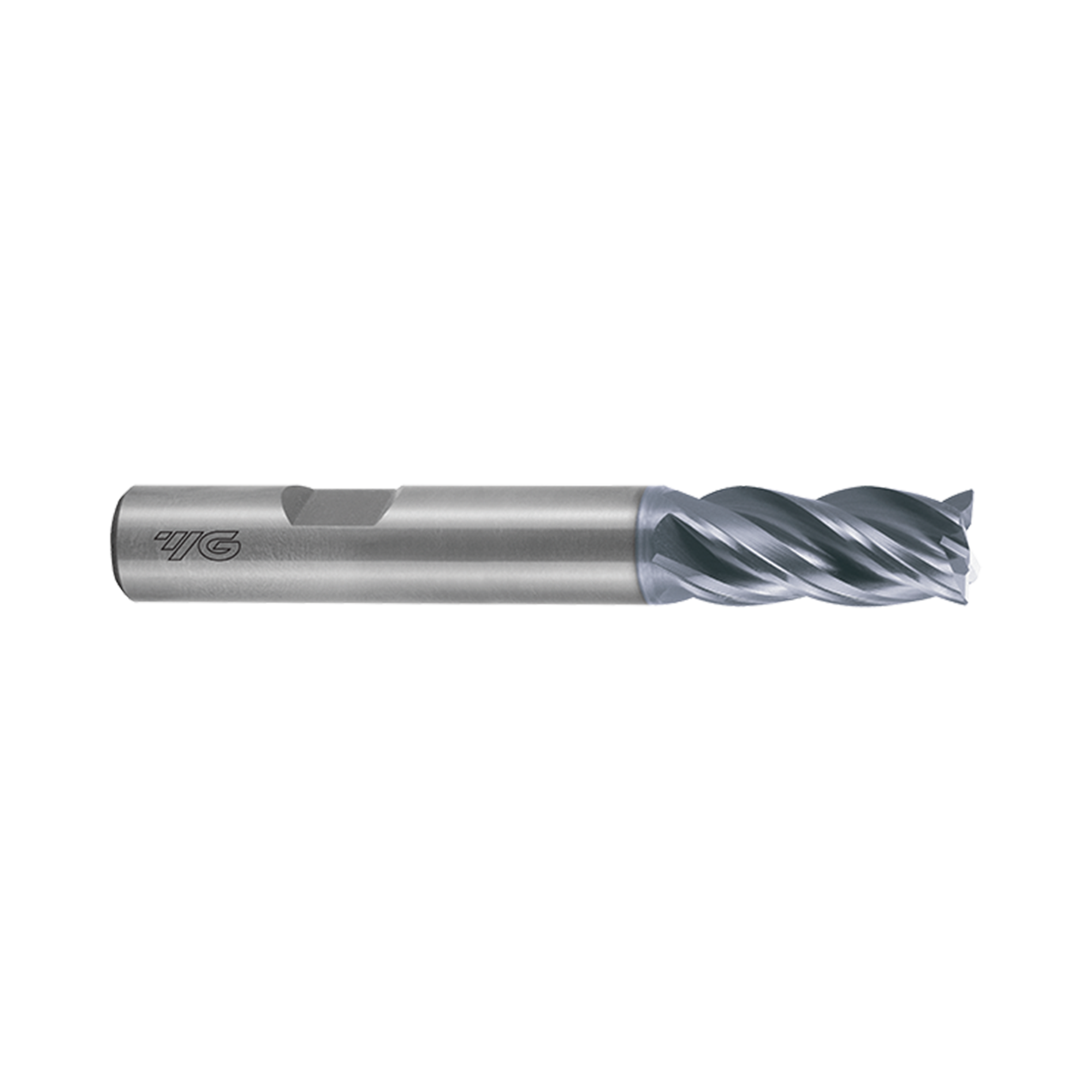

(GMF52) V7 Plus Carbide, 4Flute Multi Helix End Mill, Short length, Plain Shank
Short-Length Four-Flute Multiple Helix End Mill
Carbide 4-Flute Extended-Neck End Mill
Buy now from our online retailers:
Select your preferred distributor:
Special flute geometry and a 35°/37° multiple helix are designed to eliminate vibrations during machining.
Reduced neck diameters provide the specified extended-neck tool form behind the cutting section.
Specified for stainless steels, mild steels, cast iron and low-to-medium hardness materials under HRc40.
| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | CAD files | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GMF60030 | 3.0 | R0.10 | 54.0 | 6.0 | 7.0 | 12.0 | 2.7 | STEPDXF | 1-2 Weeks | $55.80 | ||
| GMF60040 | 4.0 | R0.15 | 57.0 | 6.0 | 8.0 | 15.0 | 3.7 | STEPDXF | 1-2 Weeks | $55.80 | ||
| GMF60050 | 5.0 | R0.15 | 57.0 | 6.0 | 10.0 | 17.0 | 4.7 | STEPDXF | 1-2 Weeks | $55.80 | ||
| GMF60060 | 6.0 | R0.20 | 57.0 | 6.0 | 10.0 | 15.0 | 5.5 | STEPDXF | 1-2 Weeks | $55.80 | ||
| GMF60080 | 8.0 | R0.20 | 63.0 | 8.0 | 12.0 | 20.0 | 7.5 | STEPDXF | 1-2 Weeks | $86.90 | ||
| GMF60100 | 10.0 | R0.30 | 72.0 | 10.0 | 14.0 | 25.0 | 9.2 | STEPDXF | 1-2 Weeks | $125.90 | ||
| GMF60120 | 12.0 | R0.35 | 83.0 | 12.0 | 16.0 | 30.0 | 11.0 | STEPDXF | In stock | $171.90 | ||
| GMF60160 | 16.0 | R0.40 | 92.0 | 16.0 | 22.0 | 38.0 | 15.0 | STEPDXF | 1-2 Weeks | $301.90 | ||
| GMF60200 | 20.0 | R0.50 | 104.0 | 20.0 | 26.0 | 50.0 | 19.0 | STEPDXF | 1-2 Weeks | $397.30 |
Add (GMF60) V7 Plus Carbide, 4Flute Multi Helix End Mill, Long length with Neck, Plain Shank to comparison
View ComparisonYG-1 GMF60 V7 Plus is a carbide four-flute extended-neck end mill with a plain shank for professional metal milling. It combines special flute geometry with a 35°/37° multiple helix designed to eliminate vibrations during machining. Designed for milling, it delivers excellent performance in stainless steels, mild steels, cast iron, and low-to-medium hardness materials under HRc40.
The extended-neck design includes a neck diameter smaller than the listed cutter diameter on selected variants. The selected SKU range spans 3 to 20 mm cutter diameters and 0.10 to 0.50 mm chamfers. Corresponding product dimensions include shank diameter, length of cut, length below shank and overall length.
| Cutting Shape | Square |
| Length | Long |
| No. Flutes | 4 |
| Tool Material | Carbide |
VDI 3323 recommendations for this tool.
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Excellent | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Excellent | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Excellent | 200 | 15 |
| 11 | PHigh-alloy and tool steel | Excellent | 325 | 35 |
| 12 | MStainless steel | Excellent | 200 | 15 |
| 13 | MStainless steel | Excellent | 240 | 23 |
| 14 | MStainless steel | Excellent | 180 | 10 |
| 15 | KGrey cast iron | Excellent | 180 | 10 |
| 16 | KGrey cast iron | Excellent | 260 | 26 |
| 17 | KNodular cast iron | Excellent | 160 | 3 |
| 18 | KNodular cast iron | Excellent | 250 | 25 |
| 19 | KMalleable cast iron | Excellent | 130 | - |
| 20 | KMalleable cast iron | Excellent | 230 | 21 |
| 31 | SHeat-resistant superalloys | Good | 200 | 15 |
| 32 | SHeat-resistant superalloys | Good | 280 | 30 |
| 33 | SHeat-resistant superalloys | Good | 250 | 25 |
| 34 | SHeat-resistant superalloys | Good | 350 | 38 |
| 35 | SHeat-resistant superalloys | Good | 320 | 34 |
| 36 | STitanium alloys | Good | - | - |
| 37 | STitanium alloys | Good | - | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
