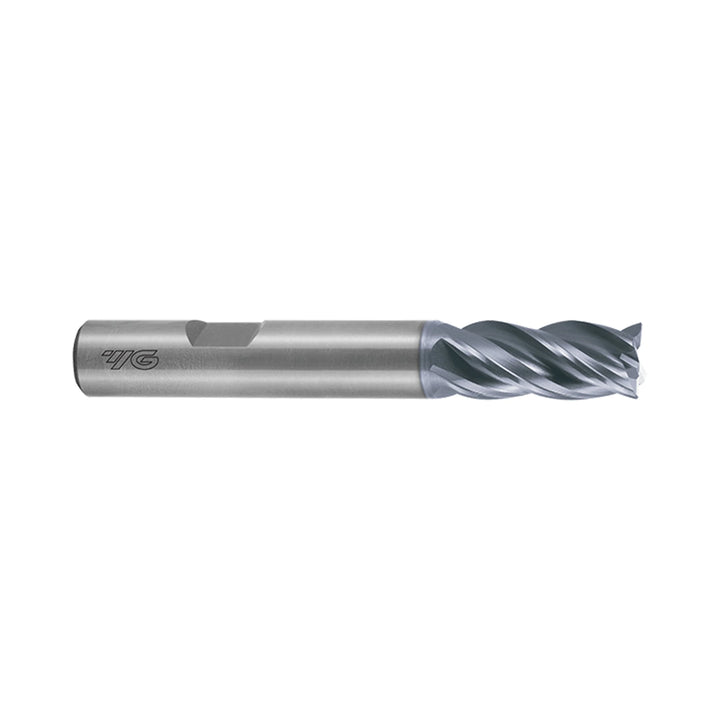

(GMF52) V7 Plus Carbide, 4Flute Multi Helix End Mill, Short length, Plain Shank
Short-Length Four-Flute Multiple Helix End Mill
$60.74
INC GST
$55.22
EX GST
Price available on request
Unit price per
- SKU
- GMF52030
Key features
- Carbide short-length end mill with four flutes
- 35°/37° multiple helix geometry
- Special flute geometry designed to eliminate vibration
Made in South Korea
Free standard delivery on orders over
$500.
If you're not 100% happy with your purchase, we'll replace or refund.
Reduced vibration
Special flute geometry and multiple helix are designed to eliminate vibration during milling.
Broad material suitability
Suitable for stainless steels, mild steels, cast iron and low to medium hardness materials under HRc40.
Compact size range
Short-length plain-shank variants cover 3 to 20 mm mill diameters.
| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| GMF52030 | 3.0 | 0.1 | 54.0 | 6.0 | 7.0 | 1-2 Weeks | $55.22 | ||
| GMF52040 | 4.0 | 0.15 | 54.0 | 6.0 | 8.0 | 1-2 Weeks | $55.22 | ||
| GMF52050 | 5.0 | 0.15 | 54.0 | 6.0 | 10.0 | 1-2 Weeks | $55.22 | ||
| GMF52060 | 6.0 | 0.2 | 54.0 | 6.0 | 10.0 | In stock | $55.22 | ||
| GMF52080 | 8.0 | 0.2 | 58.0 | 8.0 | 12.0 | 1-2 Weeks | $78.01 | ||
| GMF52100 | 10.0 | 0.3 | 66.0 | 10.0 | 14.0 | 1-2 Weeks | $115.90 | ||
| GMF52120 | 12.0 | 0.35 | 73.0 | 12.0 | 16.0 | 1-2 Weeks | $149.72 | ||
| GMF52140 | 14.0 | 0.4 | 75.0 | 14.0 | 18.0 | 1-2 Weeks | $237.44 | ||
| GMF52160 | 16.0 | 0.4 | 82.0 | 16.0 | 22.0 | 1-2 Weeks | $311.12 | ||
| GMF52200 | 20.0 | 0.5 | 92.0 | 20.0 | 26.0 | 1-2 Weeks | $478.08 |
Add (GMF52) V7 Plus Carbide, 4Flute Multi Helix End Mill, Short length, Plain Shank to comparison
View Comparison- Overview
- Specifications
- Work Material
- Speeds & Feeds
- Reviews
Application
Product Description
YG-1 V7 Plus GMF52 is a short-length four-flute carbide end mill with a plain shank and 35°/37° multiple helix. Its special flute geometry and multiple helix are designed to eliminate vibration during milling operations. This short-length milling cutter is suited to stainless steels, mild steels, cast iron, and low to medium hardness materials. The GMF52 plain-shank family covers 3 to 20 mm mill diameters for general milling applications. Specified cutting lengths range from 7 to 26 mm, paired with product-specific shank and overall lengths. Chamfer dimensions span 0.10 to 0.50 mm within the available GMF52 size selection. It provides a compact four-flute option where short cutting lengths are required.
- Carbide short-length end mill with four flutes
- 35°/37° multiple helix geometry
- Special flute geometry designed to eliminate vibration
- Plain-shank GMF52 series configuration
- For stainless steels mild steels and cast iron
- 3 to 20 mm mill diameter range
Product Data
| Cutting Shape | Square |
| Length | Short |
| No. Flutes | 4 |
Work materials
VDI 3323 recommendations for this tool.
ExcellentGood
Steel
11 gradesNon-alloy steel
Low-alloy steel
High-alloy and tool steel
Cast iron
6 gradesGrey cast iron
Nodular cast iron
Malleable cast iron
Stainless steel
3 gradesStainless steel
Superalloys & titanium
7 gradesHeat-resistant superalloys
Titanium alloys
VDI grade reference27 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Excellent | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Excellent | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Excellent | 200 | 15 |
| 11 | PHigh-alloy and tool steel | Excellent | 325 | 35 |
| 12 | MStainless steel | Excellent | 200 | 15 |
| 13 | MStainless steel | Excellent | 240 | 23 |
| 14 | MStainless steel | Excellent | 180 | 10 |
| 15 | KGrey cast iron | Excellent | 180 | 10 |
| 16 | KGrey cast iron | Excellent | 260 | 26 |
| 17 | KNodular cast iron | Excellent | 160 | 3 |
| 18 | KNodular cast iron | Excellent | 250 | 25 |
| 19 | KMalleable cast iron | Excellent | 130 | - |
| 20 | KMalleable cast iron | Excellent | 230 | 21 |
| 31 | SHeat-resistant superalloys | Good | 200 | 15 |
| 32 | SHeat-resistant superalloys | Good | 280 | 30 |
| 33 | SHeat-resistant superalloys | Good | 250 | 25 |
| 34 | SHeat-resistant superalloys | Good | 350 | 38 |
| 35 | SHeat-resistant superalloys | Good | 320 | 34 |
| 36 | STitanium alloys | Good | - | - |
| 37 | STitanium alloys | Good | - | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
