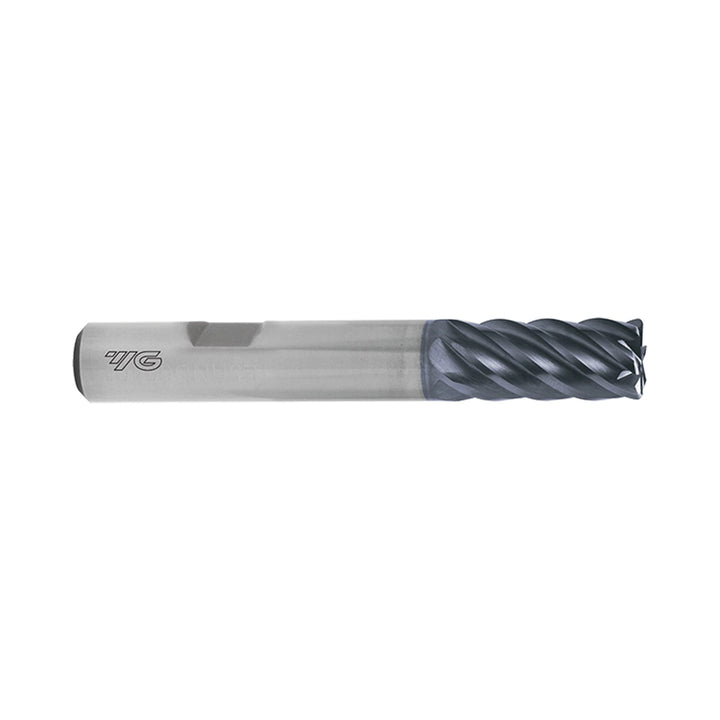

(GMG14) V7 Plus Carbide, 6Flute End Mill, Extra Long length, Plain Shank
Extra-long six-flute carbide square end mill
- SKU
- GMG14060
Key features
- Extra-long GMG14 solid carbide square end mill
- Six-flute design with plain shank
- Special flute geometry designed to minimise vibration
Made in South Korea
Extended reach
Extra-long GMG14 geometry provides reach for demanding milling access.
Controlled cutting
Six flutes and special geometry are designed to minimise vibration.
Versatile material use
Suitable for high-performance milling of steel, stainless steel and cast iron.
| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GMG14060 | 6 | 75.0 | 6.0 | 24.0 | 1-2 Weeks | $90.50 | ||
| GMG14080 | 8 | 75.0 | 8.0 | 32.0 | 1-2 Weeks | $132.70 | ||
| GMG14100 | 10 | 100.0 | 10.0 | 40.0 | 1-2 Weeks | $220.40 | ||
| GMG14120 | 12 | 120.0 | 12.0 | 48.0 | 1-2 Weeks | $274.40 | ||
| GMG14160 | 16 | 140.0 | 16.0 | 64.0 | 1-2 Weeks | $485.00 | ||
| GMG14200 | 20 | 150.0 | 20.0 | 80.0 | 1-2 Weeks | $714.50 | ||
| GMG14250 | 25 | 170.0 | 25.0 | 100.0 | 1-2 Weeks | $1,068.40 |
Add (GMG14) V7 Plus Carbide, 6Flute End Mill, Extra Long length, Plain Shank to comparison
View Comparison- Overview
- Specifications
- Speeds & Feeds
- Reviews
YG-1 V7 Plus GMG14 is an extra-long solid carbide six-flute square end mill with a plain shank. It provides extended reach for high-performance milling in steel, stainless steel and cast iron applications. The six-flute configuration and special flute geometry are designed to minimise vibration during milling. This square-profile cutter supports high axial machining and helps achieve an excellent finished workpiece surface. It is suited to high-performance machining of steels, stainless steels, cast iron and titanium alloys. The GMG14 variant family includes nominal cutting diameters from 6 mm to 25 mm. A Y coating is identified for the V7 Plus series.
- Extra-long GMG14 solid carbide square end mill
- Six-flute design with plain shank
- Special flute geometry designed to minimise vibration
- Supports high axial machining
- Suitable for steels stainless steels cast iron and titanium alloys
- Available in 6 mm to 25 mm nominal diameters
No specifications available.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
