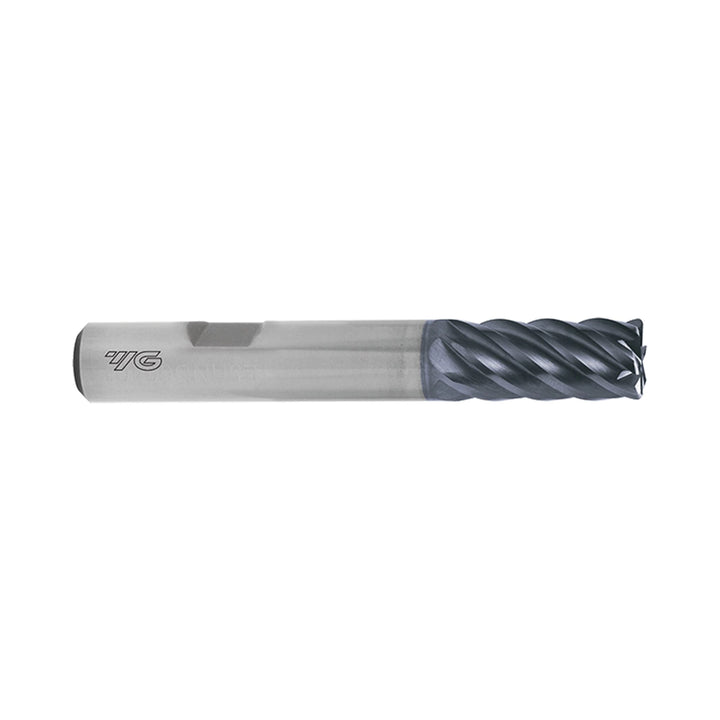

(GMG13) V7 Plus Carbide, 6Flute End Mill, Long length, Flat Shank

Six-flute long-length flat-shank carbide end mill

(GMG13) V7 Plus Carbide, 6Flute End Mill, Long length, Flat Shank
$76.67 INC GST $69.70 EX GST
SKU
GMG13060
Work materials
PMKS

Key features

  • Six-flute long-length solid carbide end mill
  • Flat-shank GMG13 series for positive toolholding
  • Variable-pitch geometry for chatter-free high-speed and trochoidal milling
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Stable milling geometry

Variable pitch supports chatter-free high-speed and trochoidal milling operations.

Broad ferrous-material suitability

Designed for steels, cast iron and stainless steels, including materials below 40 HRc.

Useful long-length range

Covers 6 to 25 mm diameters with 13 to 44 mm lengths of cut.

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
GMG130606.057.06.013.0 1-2 Weeks $69.70
GMG130808.063.08.019.0 1-2 Weeks $98.30
GMG1310010.072.010.022.0 1-2 Weeks $157.20
GMG1312012.083.012.026.0 1-2 Weeks $189.30
GMG1316016.092.016.032.0 1-2 Weeks $336.30
GMG1320020.0104.020.038.0 1-2 Weeks $446.60
GMG1325025.0104.025.044.0 1-2 Weeks $838.60

Add (GMG13) V7 Plus Carbide, 6Flute End Mill, Long length, Flat Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Speeds & Feeds
  • Reviews
Application
Product Description

The YG-1 V7 Plus GMG13 is a six-flute long-length solid carbide end mill with a flat shank. Its variable-pitch geometry supports chatter-free high-speed and trochoidal milling in steels, cast iron and stainless steels. The Y-coated cutting tool is designed for stainless steels, mild steels, cast iron and low-to-medium hardness materials below 40 HRc. A 45° helix and six-flute configuration provide a capable option for productive side milling and finishing operations.

GMG13 flat-shank variants cover 6 to 25 mm cutting diameters. Length of cut ranges from 13 to 44 mm, with overall lengths from 57 to 104 mm. The flat shank supports secure toolholding where a positive drive location is required. This long-length end mill range suits machinists seeking stable milling performance across common ferrous workpiece materials.

  • Six-flute long-length solid carbide end mill
  • Flat-shank GMG13 series for positive toolholding
  • Variable-pitch geometry for chatter-free high-speed and trochoidal milling
  • 45° helix design
  • Y-coated cutting edges
  • 6 to 25 mm cutting diameter range
Product Data
Cutting Shape Square
Length Long
No. Flutes 6
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMG13060 6 6 13 57 0~-0.02 h5 6 GMG13080 8 8 19 63 0~-0.030 h5 6 GMG13100 10 10 22 72 0~-0.030 h5 6 GMG13120 12 12 26 83 0~-0.030 h6 6 GMG13160 16 16 32 92 0~-0.030 h6 6 GMG13200 20 20 38 104 0~-0.030 h6 6 GMG13250 25 25 44 104 0~-0.030 h6 6

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 1–5
Low-alloy steel
ExcellentVDI 6–9
High-alloy and tool steel
ExcellentVDI 10–11

Cast iron

6 grades
Grey cast iron
ExcellentVDI 15–16
Nodular cast iron
ExcellentVDI 17–18
Malleable cast iron
ExcellentVDI 19–20

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Superalloys & titanium

7 grades
Heat-resistant superalloys
GoodVDI 31–35
Titanium alloys
GoodVDI 36–37
VDI grade reference27 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelExcellent20015
11PHigh-alloy and tool steelExcellent32535
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironExcellent18010
16KGrey cast ironExcellent26026
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
19KMalleable cast ironExcellent130-
20KMalleable cast ironExcellent23021
31SHeat-resistant superalloysGood20015
32SHeat-resistant superalloysGood28030
33SHeat-resistant superalloysGood25025
34SHeat-resistant superalloysGood35038
35SHeat-resistant superalloysGood32034
36STitanium alloysGood--
37STitanium alloysGood--

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for (GMG13) V7 Plus Carbide, 6Flute End Mill, Long length, Flat Shank

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (fz) – mm/tooth

Choose your options and calculate the recommended parameters.

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GMG13060 6 6 13 57 0~-0.02 h5 6 GMG13080 8 8 19 63 0~-0.030 h5 6 GMG13100 10 10 22 72 0~-0.030 h5 6 GMG13120 12 12 26 83 0~-0.030 h6 6 GMG13160 16 16 32 92 0~-0.030 h6 6 GMG13200 20 20 38 104 0~-0.030 h6 6 GMG13250 25 25 44 104 0~-0.030 h6 6
