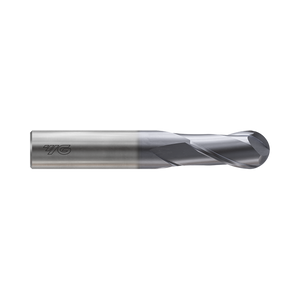

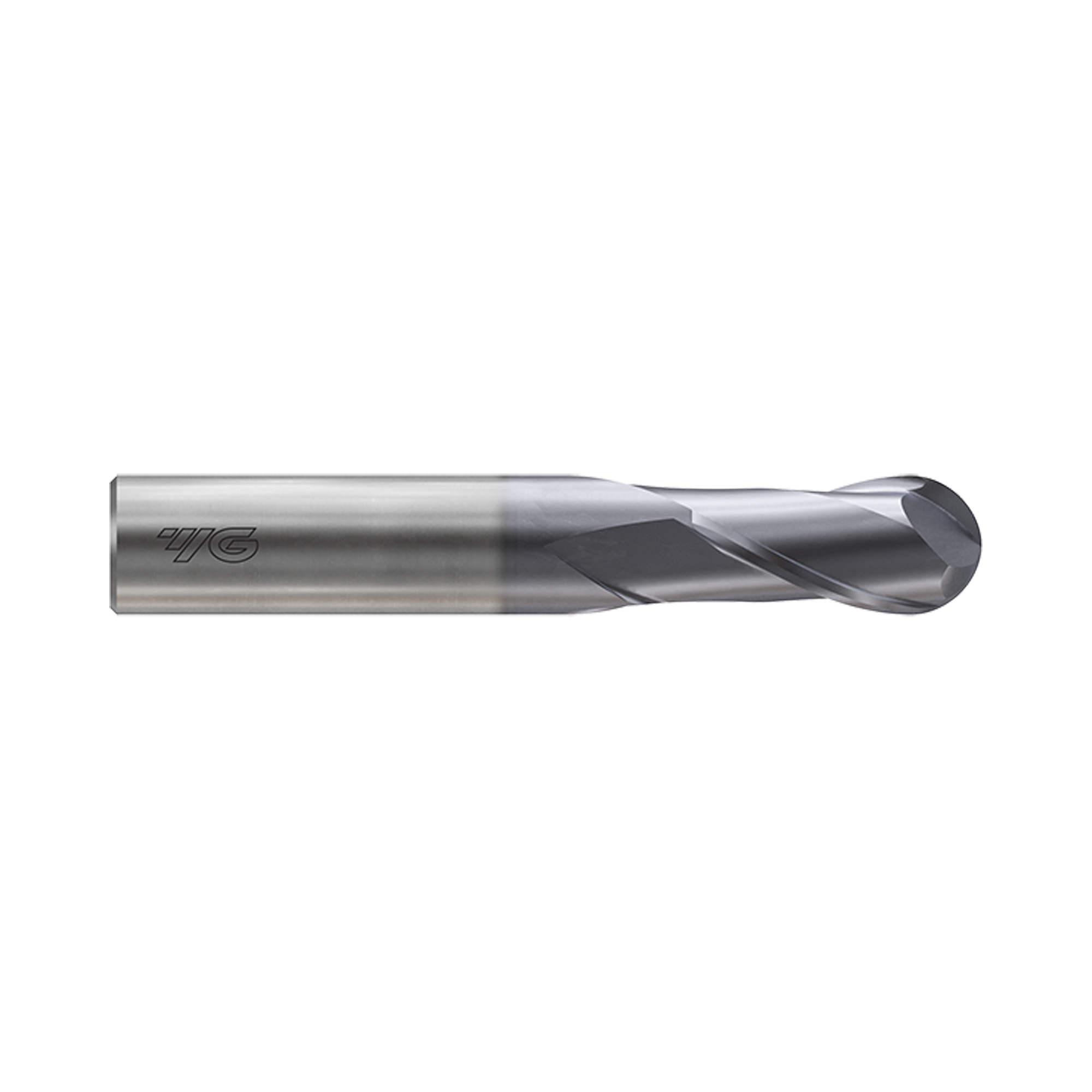

(GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length

  • $0.00INC GST $0.00 EX GST
(GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length
(GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length

(GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length

  • $0.00INC GST $0.00 EX GST Price available on request

Code: GM876010

P K H
    Key Features
  • 2 flute 30° helix ball nose for precise 3D contouring and pocketing
  • Advanced ‘Z Coating’ with ultrafine micrograin carbide substrate extends tool life
  • Performs in steels hardened steels to 55 Rockwell stainless steel and cast iron
Mill Diameter (mm)
Ball Nose Radius (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

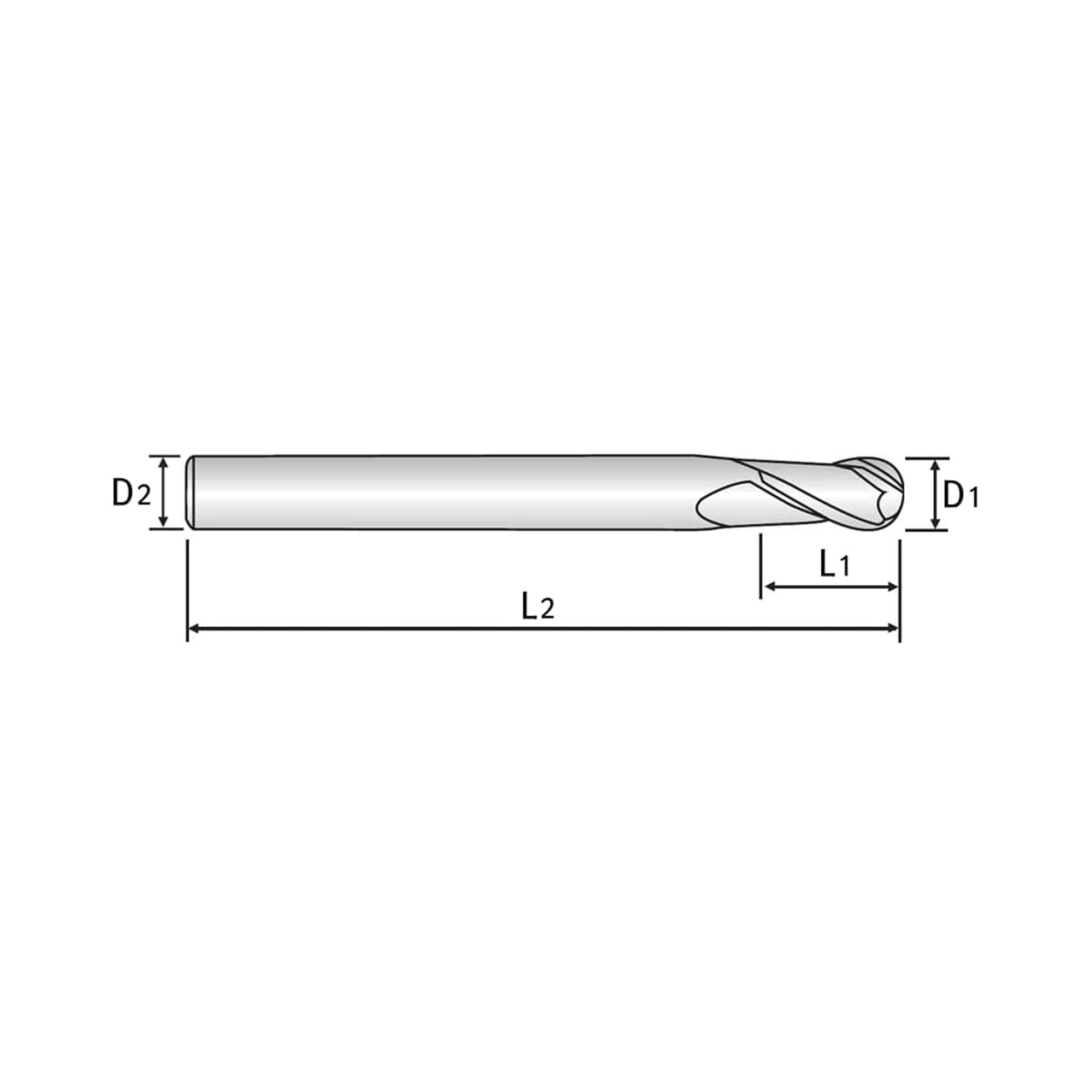

SKUMill Diameter (mm)Ball Nose Radius (mm)Overall length (mm)Shank dia. (mm)FlutesLength of cut (mm)Stock Price Qty Add
GM8760101.0R0.538.03.023.0 5 days -
GM8760202.0R1.050.06.023.0 5 days -
GM8760303.0R1.550.06.024.0 5 days -
GM8760404.0R2.054.06.025.0 5 days -
GM8760606.0R.3.054.06.027.0 In stock $50.00
GM8760808.0R4.058.08.029.0 In stock $80.00
GM87610010.0R5.066.010.0211.0 In stock $125.10
GM87612012.0R6.073.012.0212.0 5 days -
GM87616016.0R8.082.016.0216.0 Low stock $247.90

Add (GM876) X-Power Pro Carbide 2Flute Ball Nose End Mill, Short Length to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Speeds & Feeds
  • Reviews
Product Description

X-POWER 2 Flute 30° Helix Short Ball End Mill GM876 delivers accurate contouring in steels and cast iron. Advanced ‘Z Coating’ with an ultrafine micrograin carbide substrate supports long tool life in wet or dry cutting. It handles stainless steel and hardened steels to 55 Rockwell with stable, clean finishes. Diameters span 1–16 mm, with 20–30% longer life and over 20% faster cutting.

  • 2 flute 30° helix ball nose for precise 3D contouring and pocketing
  • Advanced ‘Z Coating’ with ultrafine micrograin carbide substrate extends tool life
  • Performs in steels hardened steels to 55 Rockwell stainless steel and cast iron
  • Reliable wet or dry cutting for flexible process setup
  • Short length improves rigidity and dimensional control in shallow features
  • 1–16 mm diameter range with over 20% faster cutting and improved finish
Product Data
Workpiece Material P K H
Ball Radius Tolerance 0.02
Cutting Shape Ball Nose
Hardened Steels(HRc40~45) Excellent
Helix Angle Ball Nose 30
Length Short
No. Flutes 2
Operation Profiling, Side Milling, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide
Flutes 2
Helix Angle 30°
Cutting Edge Shape BALL NOSE
Size Min R0.5
Size Max R8.0
Length

Short Length
Coating Y-Coating

Profiling
Side Milling
Small Part
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Excellent

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
H High Hardened Steels (HRc55~70)

Great

Good Great Excellent
P

Non-alloy steel

Excellent Excellent
HRc
13252832
HB
125190250270300
P

Low alloy steel

Excellent Excellent
HRc
10293238
HB
180275300350
P

High alloy & tool steel

Excellent Excellent
HRc
1535
HB
200325
K

Grey cast iron

Good Good
HRc
1026
HB
180260
K

Nodular cast iron

Good Good
HRc
325
HB
160250
K

Malleable cast iron

Good Good
HRc
21
HB
130230
H

Hardened steels & cast irons

Excellent Excellent
HRc
38394041
HB
400630

Speeds & Feeds

MATERIAL P K
NON-ALLOYED STEELS ALLOY STEELS ALLOY STEELS HEAT RESISTANT STEELS HARDENED STEELS CAST IRON
HARDNESS ~HRc30 HRc30~HRc40 HRc45~HRc55
STRENGTH ~1000N/mm2 1000 ~ 1250N/mm2 1500 ~ 2000N/mm2
DIAMETER RPM FEED Vc Fz RPM FEED Vc Fz RPM FEED Vc Fz RPM FEED Vc Fz
R0.5 × 1.0 17650 280 55 0.008 14250 225 45 0.008 6500 100 20 0.008 17490 280 55 0.008
R0.75 × 1.5 17650 390 85 0.011 13600 300 65 0.011 5960 135 30 0.011 17490 390 80 0.011
R1.0 × 2.0 16130 840 100 0.026 11980 550 75 0.023 5240 170 35 0.016 15980 835 100 0.026
R1.25 × 2.5 16130 840 125 0.026 11980 550 95 0.023 5240 170 40 0.016 15980 835 125 0.026
R1.5 × 3.0 14670 760 140 0.026 11200 515 105 0.023 5060 170 50 0.017 14540 755 135 0.026
R2.0 × 4.0 11760 830 150 0.035 9410 595 120 0.032 4700 200 60 0.021 11660 820 145 0.035
R2.5 × 5.0 10240 920 160 0.045 8180 650 130 0.040 4120 200 65 0.024 10150 910 160 0.045
R3.0 × 6.0 9510 1140 180 0.060 7730 930 145 0.060 3560 215 65 0.030 9420 1130 180 0.060
R4.0 × 8.0 8020 1445 200 0.090 6460 1030 160 0.080 2770 245 70 0.044 7950 1430 200 0.090
R5.0 × 10.0 7130 1715 225 0.120 5700 1140 180 0.100 2280 250 70 0.055 7070 1700 220 0.120
R6.0 × 12.0 6540 1960 245 0.150 5200 1245 195 0.120 1960 275 75 0.070 6480 1945 245 0.150
R8.0 × 16.0 5340 1925 270 0.180 4230 1185 215 0.140 1510 275 75 0.091 5290 1910 265 0.181
R10.0 × 20.0 4640 1860 290 0.200 3650 1165 230 0.160 1240 280 80 0.113 4600 1845 290 0.201
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand

View the range

X-Power Pro Endmills

You Might Also Like

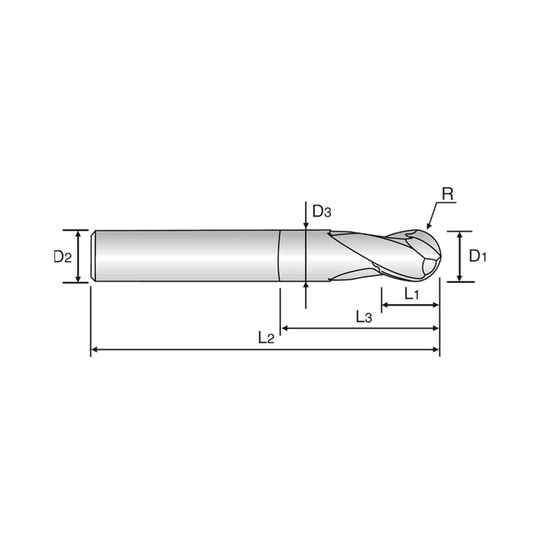

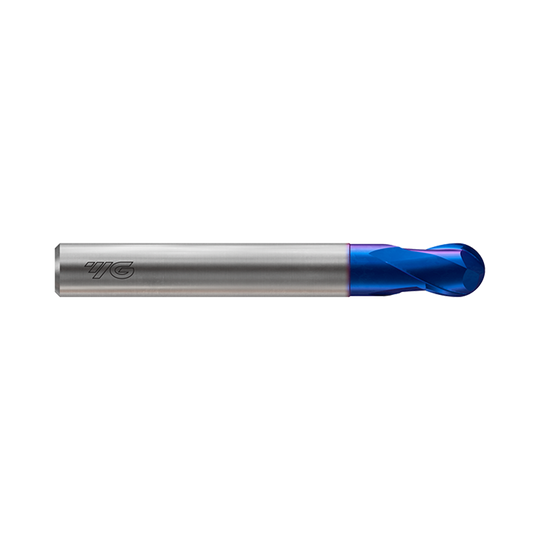

(G8A28) X5070 Carbide, 2Flute Ball Nose End Mill, Regular Length for (HRc45 to HRc70) (G8A28) X5070 Carbide, 2Flute Ball Nose End Mill, Regular Length for (HRc45 to HRc70)

(G8A28) X5070 Carbide, 2Flute Ball Nose End Mill, Regular Length for (HRc45 to HRc70)

2-Flute Ball Nose for HRc45–70
Pricing available on request
5 days
YG-1 LEGEND BLUE YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND move square side cutting YG-1 LEGEND SHANK PLAIN
Request Quote
View Comparison

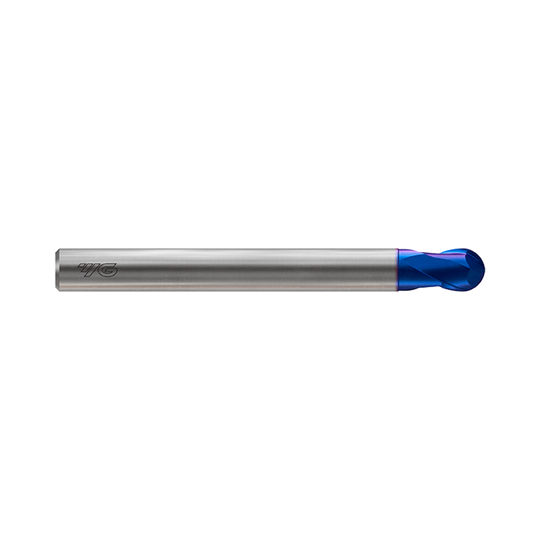

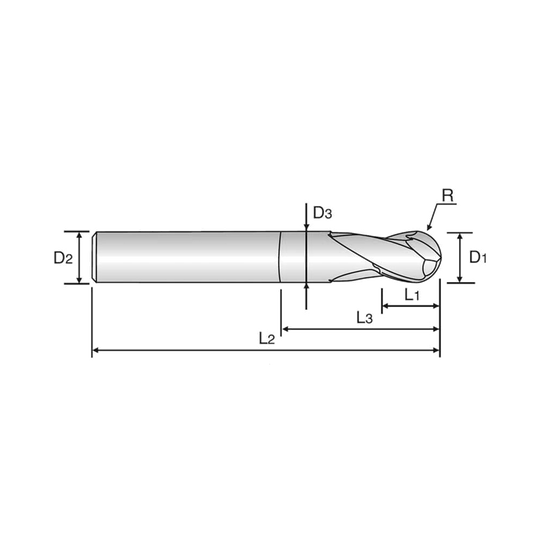

(G8A38) X5070 Carbide, 2Flute Ball Nose End Mill, Extended Neck for (HRc45 to HRc70) (G8A38) X5070 Carbide, 2Flute Ball Nose End Mill, Extended Neck for (HRc45 to HRc70)

(G8A38) X5070 Carbide, 2Flute Ball Nose End Mill, Extended Neck for (HRc45 to HRc70)

2-Flute Ball Nose Extended-Neck for HRc45–70
From $64.68INC GST
From $58.80 EX GST
Available in Mill Diameter (mm)
1.0 1.2 1.5 +14
In stock
YG-1 LEGEND BLUE YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND move ball profiling YG-1 LEGEND SHANK PLAIN
Add to Cart
View Comparison

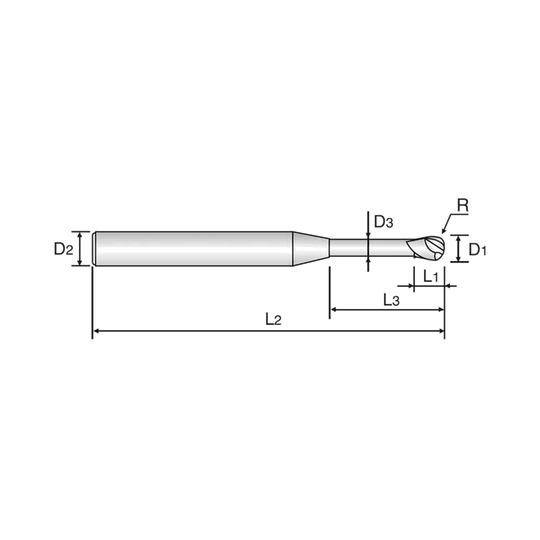

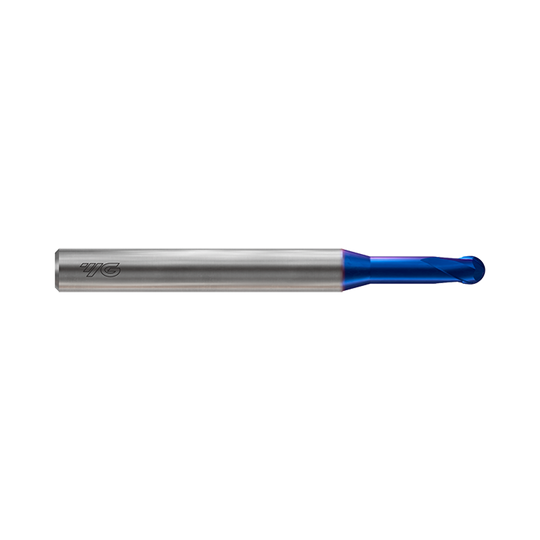

(G8A46) X5070 Carbide, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70) (G8A46) X5070 Carbide, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70)

(G8A46) X5070 Carbide, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70)

Pricing available on request
5 days
YG-1 LEGEND BLUE YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND move ball profiling YG-1 LEGEND SHANK PLAIN
Request Quote
View Comparison
(G8A53) X5070 Carbide, 2Flute Ball Nose End Mill, Miniature Type for (HRc45 to HRc70) (G8A53) X5070 Carbide, 2Flute Ball Nose End Mill, Miniature Type for (HRc45 to HRc70)

(G8A53) X5070 Carbide, 2Flute Ball Nose End Mill, Miniature Type for (HRc45 to HRc70)

2-Flute Miniature Ball Nose for HRc45–70
From $82.83INC GST
From $75.30 EX GST
Available in Mill Diameter (mm)
0.4 0.5 0.6 +5
In stock
YG-1 LEGEND BLUE YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND move ball profiling YG-1 LEGEND SHANK PLAIN
Request Quote
View Comparison

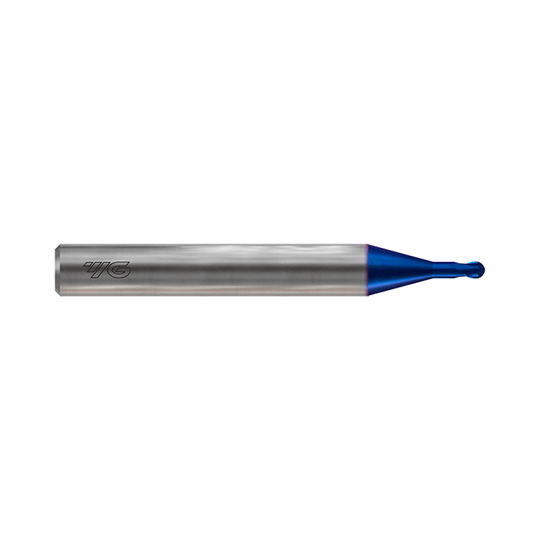

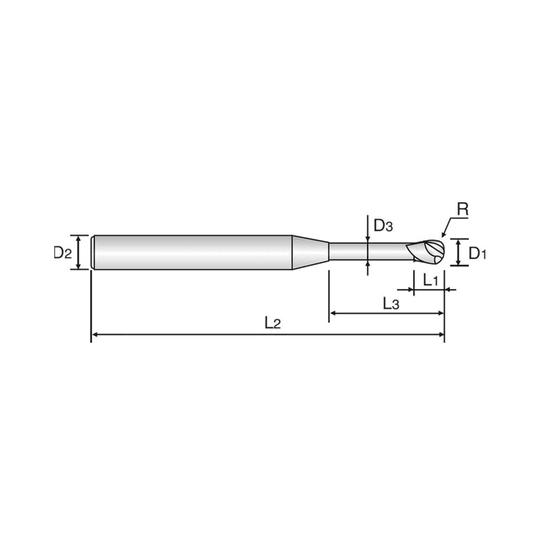

(G8A54) X5070 Carbide, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70) (G8A54) X5070 Carbide, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70)

(G8A54) X5070 Carbide, 2Flute Ball Nose Rib Processing End Mill, for (HRc45 to HRc70)

2-Flute Ball Nose Rib-Processing for HRc45–70
From $83.38INC GST
From $75.80 EX GST
Available in Mill Diameter (mm)
0.5 0.6 0.8 +4
In stock
YG-1 LEGEND BLUE YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND move ball profiling YG-1 LEGEND SHANK PLAIN
Add to Cart
View Comparison

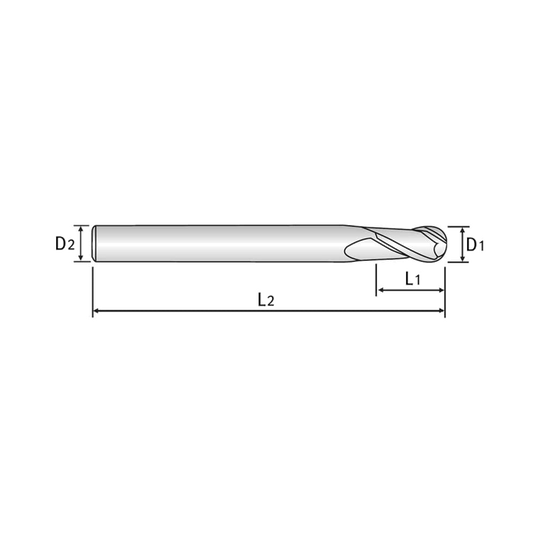

(GM813) X-Power Pro Carbide 2Flute Ball Nose End Mill, Long Length (GM813) X-Power Pro Carbide 2Flute Ball Nose End Mill, Long Length

(GM813) X-Power Pro Carbide 2Flute Ball Nose End Mill, Long Length

From $54.56INC GST
From $49.60 EX GST
Available in Mill Diameter (mm)
1.0 2.0 3.0 +8
In stock
YG-1 LEGEND Y COATING YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND SHANK PLAIN
Add to Cart
View Comparison

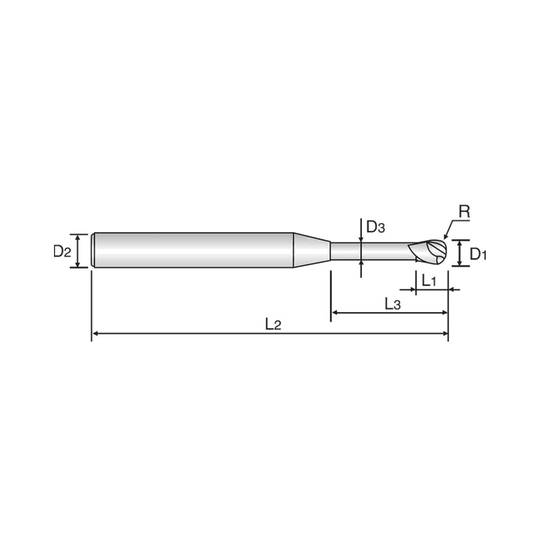

(GM886) X-Power Pro Carbide 2Flute Corner Radius Rib Processing End Mill, (GM886) X-Power Pro Carbide 2Flute Corner Radius Rib Processing End Mill,

(GM886) X-Power Pro Carbide 2Flute Corner Radius Rib Processing End Mill,

From $65.12INC GST
From $59.20 EX GST
Available in Mill Diameter (mm)
0.5 0.6 0.8 +8
In stock
YG-1 LEGEND Y COATING YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX BALL 30 YG-1 LEGEND SHANK PLAIN
Add to Cart
View Comparison

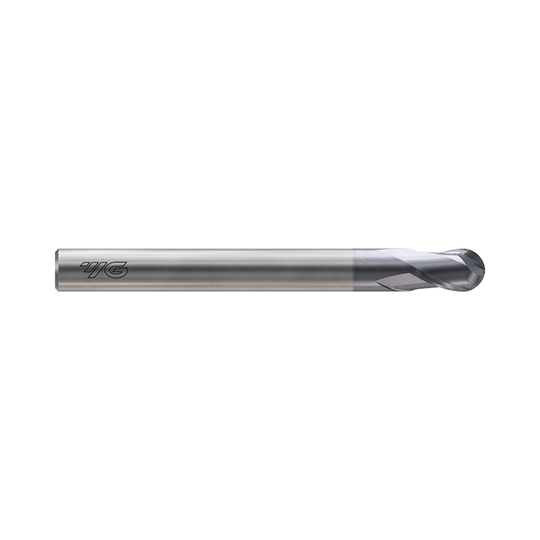

4G MILL 2 Flute 30°Helix Ball End Mill (SEMD98) 4G MILL 2 Flute 30°Helix Ball End Mill (SEMD98)

4G MILL 2 Flute 30°Helix Ball End Mill (SEMD98)

From $65.45INC GST
From $59.50 EX GST
Available in Mill Diameter (mm)
0.1 0.15 0.2 +34
In stock
YG-1 LEGEND Y COATING YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX SQUARE 30 YG-1 LEGEND SHANK PLAIN
Add to Cart
View Comparison

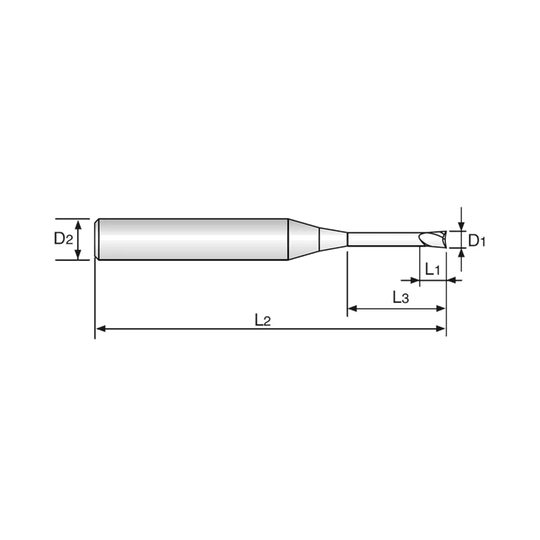

4G MILL 2 Flute 30°Helix Rib Ball End Mill (SEM846) 4G MILL 2 Flute 30°Helix Rib Ball End Mill (SEM846)
