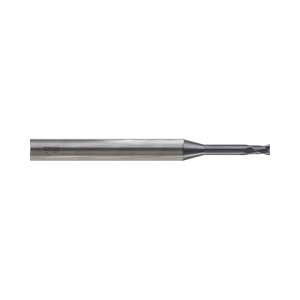

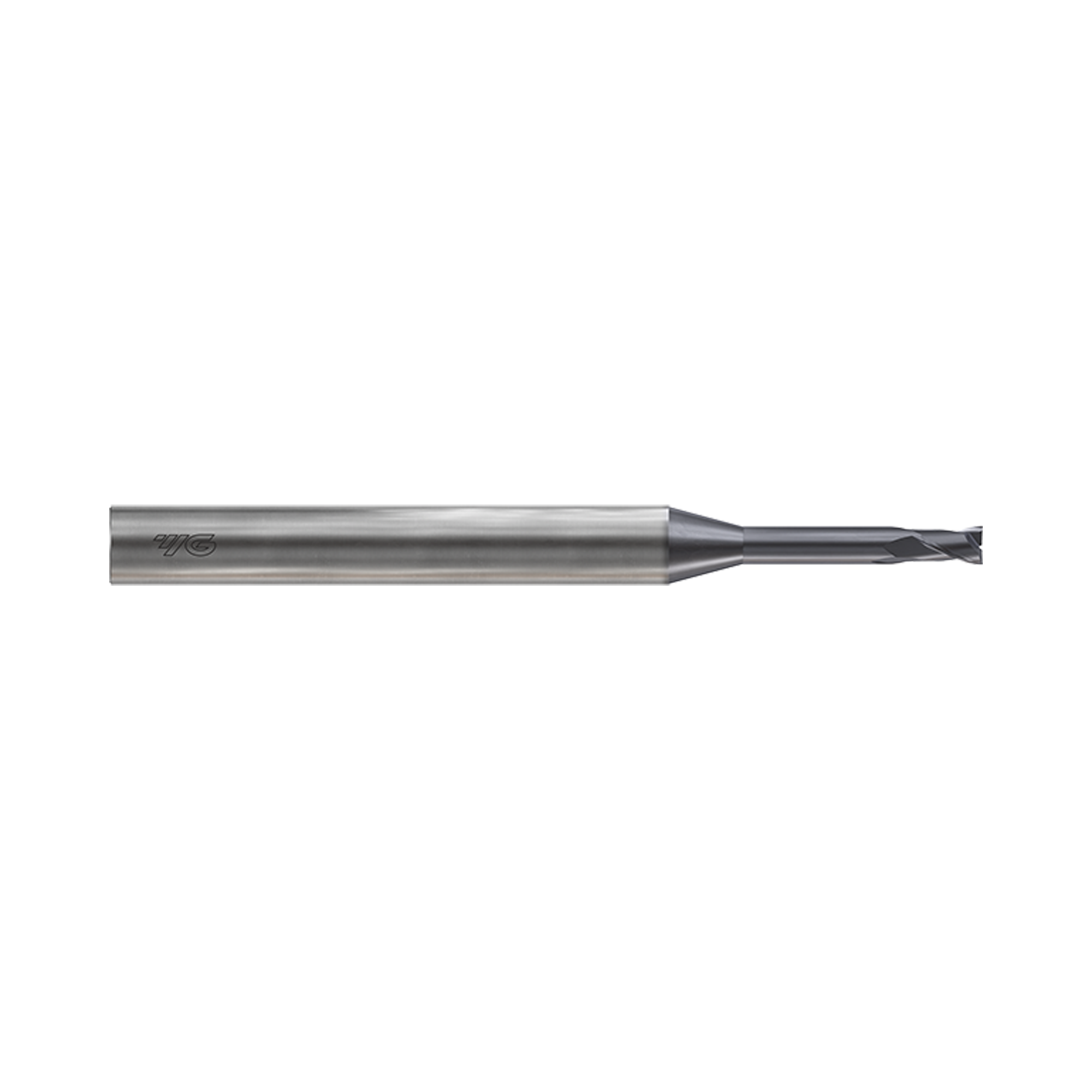

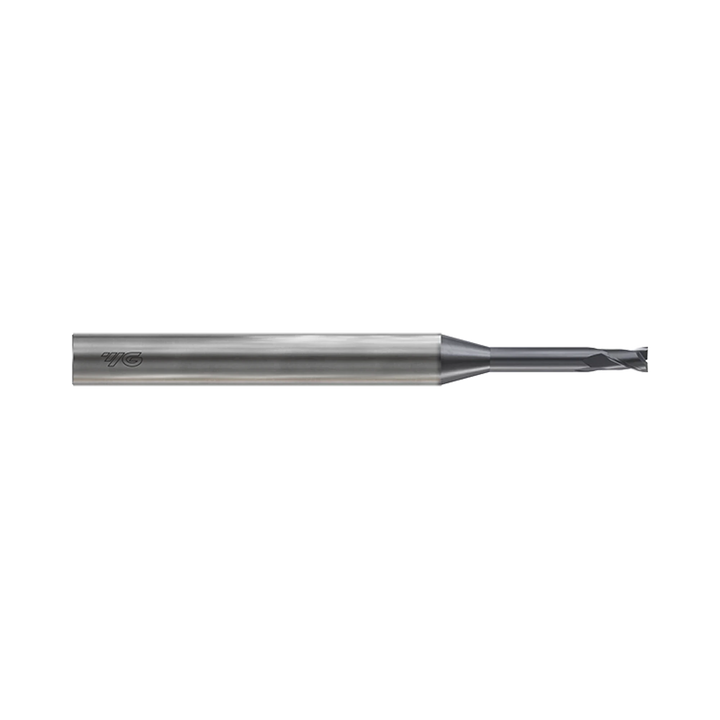

(GM883) X-Power Pro Carbide 2Flute Rib Processing End Mill,
Carbide 2 Flute Rib Processing End MillCode: GM883004
-
Key Features
- Carbide two-flute end mill for rib processing
- 30° helix with square cutting geometry
- Y-Coating for the GM883 X-Power Pro series
Made in South Korea
For narrow rib features
Two-flute rib processing geometry is designed for confined machining features.
Broad size selection
Mill diameters from 0.4 to 6 mm cover fine and larger rib work.
Steel machining focus
The GM883 series is rated for carbon, alloy, prehardened and hardened steels.

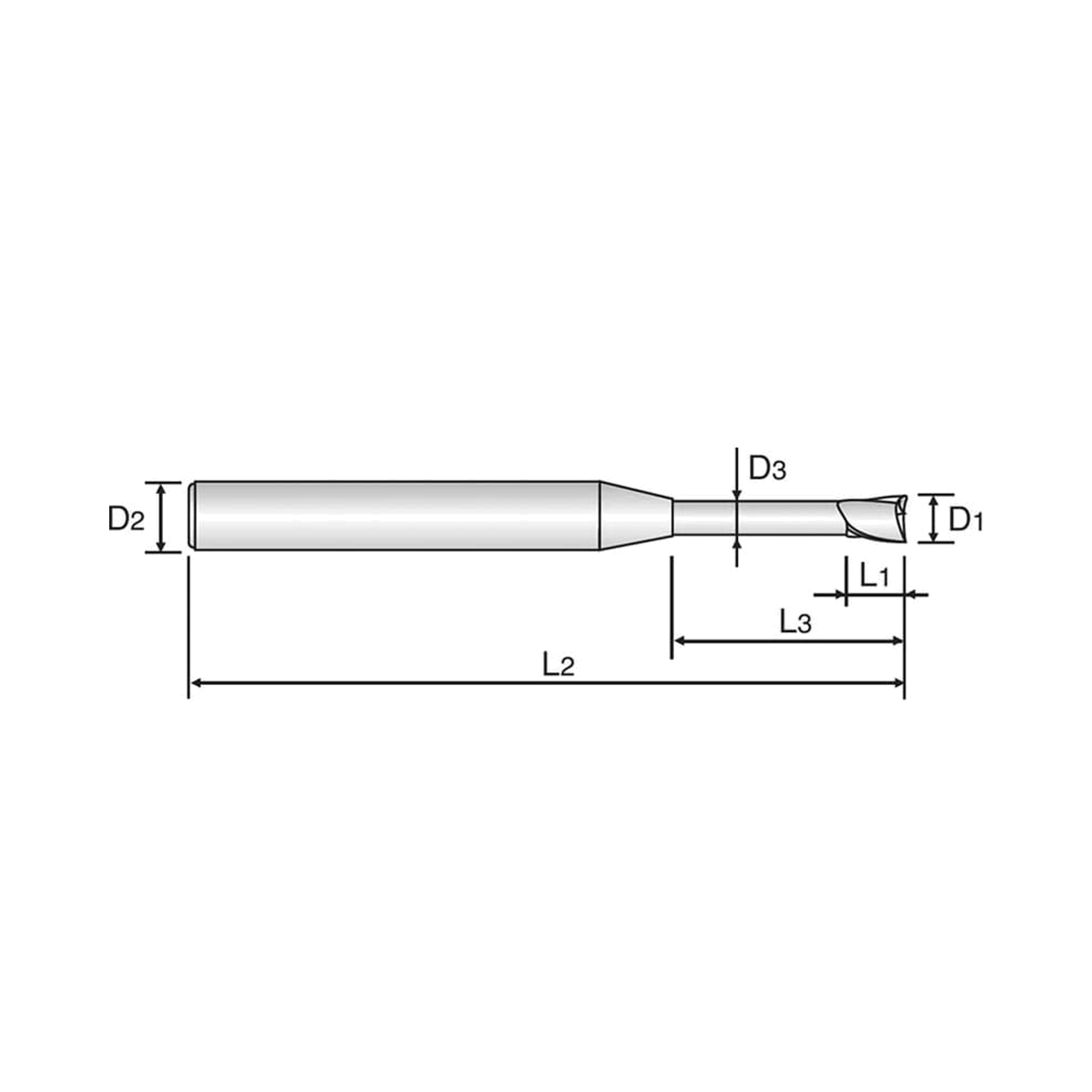

| SKU | Mill Diameter (mm) | Length Below Shank (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GM883004 | 0.4 | 2.0 | 45.0 | 4.0 | 2 | 0.6 | 0.37 | 5 days | $79.80 | ||
| GM883005 | 0.5 | 2.0 | 45.0 | 4.0 | 2 | 0.7 | 0.45 | 5 days | $73.20 | ||
| GM883988 | 0.5 | 4.0 | 45.0 | 4.0 | 2 | 0.7 | 0.45 | In stock | $55.10 | ||
| GM883820 | 0.7 | 3.0 | 45.0 | 4.0 | 2 | 1.0 | 0.65 | 5 days | $66.60 | ||
| GM883008 | 0.8 | 4.0 | 45.0 | 4.0 | 2 | 1.2 | 0.75 | In stock | $50.10 | ||
| GM883908 | 0.8 | 6.0 | 45.0 | 4.0 | 2 | 1.2 | 0.75 | In stock | $50.10 | ||
| GM883996 | 1.0 | 4.0 | 45.0 | 4.0 | 2 | 1.5 | 0.95 | 5 days | $59.70 | ||
| GM883010 | 1.0 | 6.0 | 45.0 | 4.0 | 2 | 1.5 | 0.95 | 5 days | $59.70 | ||
| GM883912 | 1.0 | 8.0 | 45.0 | 4.0 | 2 | 1.5 | 0.95 | 5 days | $59.70 | ||
| GM883913 | 1.0 | 10.0 | 45.0 | 4.0 | 2 | 1.5 | 0.95 | In stock | $44.90 | ||
| GM883914 | 1.0 | 12.0 | 45.0 | 4.0 | 2 | 1.5 | 0.95 | In stock | $47.50 | ||
| GM883997 | 1.0 | 16.0 | 50.0 | 4.0 | 2 | 1.5 | 0.95 | In stock | $50.10 | ||
| GM883998 | 1.0 | 20.0 | 55.0 | 4.0 | 2 | 1.5 | 0.95 | 5 days | $68.60 | ||
| GM883012 | 1.2 | 6.0 | 45.0 | 4.0 | 2 | 1.8 | 1.15 | 5 days | $59.70 | ||
| GM883015 | 1.5 | 6.0 | 45.0 | 4.0 | 2 | 2.3 | 1.45 | 5 days | $59.70 | ||
| GM883923 | 1.5 | 8.0 | 45.0 | 4.0 | 2 | 2.3 | 1.45 | In stock | $44.90 | ||
| GM883924 | 1.5 | 10.0 | 45.0 | 4.0 | 2 | 2.3 | 1.45 | 5 days | $59.70 | ||
| GM883925 | 1.5 | 12.0 | 45.0 | 4.0 | 2 | 2.3 | 1.45 | 5 days | $63.20 | ||
| GM883927 | 1.5 | 16.0 | 50.0 | 4.0 | 2 | 2.3 | 1.45 | 5 days | $66.60 | ||
| GM883810 | 1.5 | 20.0 | 55.0 | 4.0 | 2 | 2.3 | 1.45 | In stock | $50.10 | ||
| GM883946 | 1.8 | 12.0 | 45.0 | 4.0 | 2 | 2.7 | 1.75 | In stock | $47.50 | ||
| GM883958 | 2.0 | 6.0 | 45.0 | 4.0 | 2 | 3.0 | 1.95 | 5 days | $57.00 | ||
| GM883020 | 2.0 | 8.0 | 45.0 | 4.0 | 2 | 3.0 | 1.95 | 5 days | $57.00 | ||
| GM883959 | 2.0 | 10.0 | 45.0 | 4.0 | 2 | 3.0 | 1.95 | 5 days | $57.00 | ||
| GM883960 | 2.0 | 12.0 | 45.0 | 4.0 | 2 | 3.0 | 1.95 | 5 days | $57.00 | ||
| GM883961 | 2.0 | 14.0 | 50.0 | 4.0 | 2 | 3.0 | 1.95 | In stock | $46.30 | ||
| GM883962 | 2.0 | 16.0 | 50.0 | 4.0 | 2 | 3.0 | 1.95 | 5 days | $61.40 | ||
| GM883964 | 2.0 | 20.0 | 55.0 | 4.0 | 2 | 3.0 | 1.95 | In stock | $46.30 | ||
| GM883966 | 2.0 | 25.0 | 60.0 | 4.0 | 2 | 3.0 | 1.95 | 5 days | $65.20 | ||
| GM883814 | 2.0 | 30.0 | 70.0 | 4.0 | 2 | 3.0 | 1.95 | In stock | $49.00 | ||
| GM883970 | 2.5 | 16.0 | 55.0 | 4.0 | 2 | 3.7 | 2.4 | In stock | $46.30 | ||
| GM883975 | 3.0 | 10.0 | 45.0 | 6.0 | 2 | 4.5 | 2.85 | 5 days | $84.90 | ||
| GM883976 | 3.0 | 12.0 | 45.0 | 6.0 | 2 | 4.5 | 2.85 | 5 days | $84.90 | ||
| GM883978 | 3.0 | 16.0 | 55.0 | 6.0 | 2 | 4.5 | 2.85 | Low stock | $65.20 | ||
| GM883979 | 3.0 | 18.0 | 55.0 | 6.0 | 2 | 4.5 | 2.85 | 5 days | $86.80 | ||
| GM883980 | 3.0 | 20.0 | 60.0 | 6.0 | 2 | 4.5 | 2.85 | 5 days | $86.80 | ||
| GM883981 | 3.0 | 25.0 | 65.0 | 6.0 | 2 | 4.5 | 2.85 | In stock | $65.20 | ||
| GM883832 | 3.0 | 30.0 | 70.0 | 6.0 | 2 | 4.5 | 2.85 | 5 days | $78.20 | ||
| GM883983 | 3.0 | 40.0 | 90.0 | 6.0 | 2 | 4.5 | 2.85 | Low stock | $112.80 | ||
| GM883801 | 4.0 | 16.0 | 60.0 | 6.0 | 2 | 6.0 | 3.85 | 5 days | $86.80 | ||
| GM883802 | 4.0 | 20.0 | 60.0 | 6.0 | 2 | 6.0 | 3.85 | 5 days | $86.80 | ||
| GM883803 | 4.0 | 25.0 | 70.0 | 6.0 | 2 | 6.0 | 3.85 | In stock | $65.20 | ||
| GM883834 | 4.0 | 30.0 | 70.0 | 6.0 | 2 | 6.0 | 3.85 | In stock | $78.20 | ||
| GM883836 | 4.0 | 40.0 | 90.0 | 6.0 | 2 | 6.0 | 3.85 | In stock | $84.70 | ||
| GM883838 | 4.0 | 50.0 | 100.0 | 6.0 | 2 | 6.0 | 3.85 | In stock | $111.80 | ||
| GM883807 | 6.0 | 30.0 | 90.0 | 6.0 | 2 | 9.0 | 5.85 | 5 days | $112.80 | ||
| GM883809 | 6.0 | 50.0 | 110.0 | 6.0 | 2 | 9.0 | 5.85 | In stock | $111.80 |
Add (GM883) X-Power Pro Carbide 2Flute Rib Processing End Mill, to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 X-Power Pro GM883 is a carbide two-flute rib processing end mill with Y-Coating. Designed for narrow-rib machining, its square cutting geometry and 30° helix support milling confined features. The GM883 series covers 0.4 to 6 mm mill diameters, with plain shanks and extended neck configurations. Listed neck lengths span 2 to 50 mm, providing options for different feature depths. It is classified excellent for alloy, prehardened and HRC 40–45 hardened steels. It is also rated good for carbon steels, cast iron and HRC 45–55 hardened steels. The square profile supports side milling, slotting, facing, die sinking and small-part machining applications.
- Carbide two-flute end mill for rib processing
- 30° helix with square cutting geometry
- Y-Coating for the GM883 X-Power Pro series
- 0.4 to 6 mm mill diameter range
- Plain shank configuration with neck lengths from 2 to 50 mm
- Suitable for steel and cast iron machining applications
