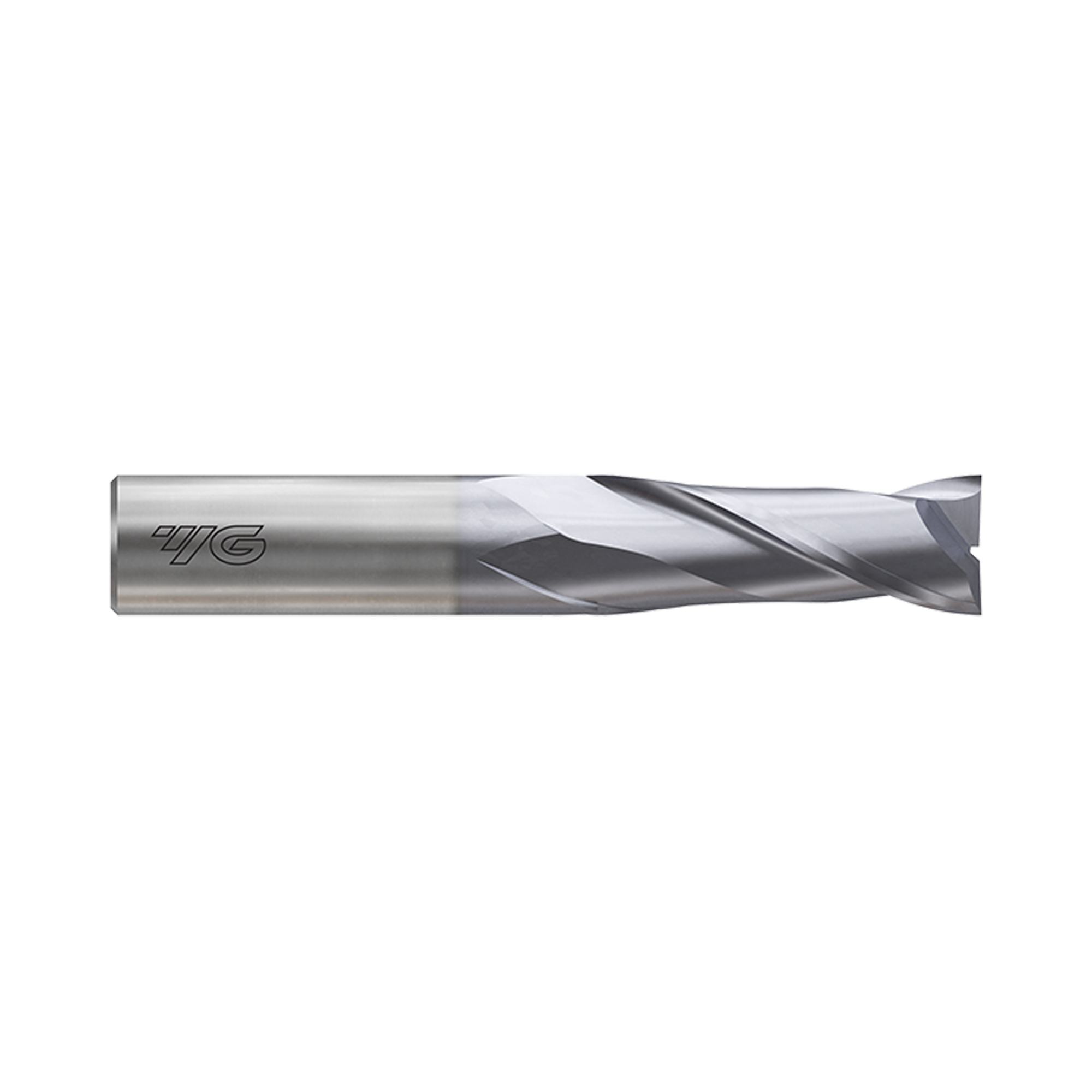

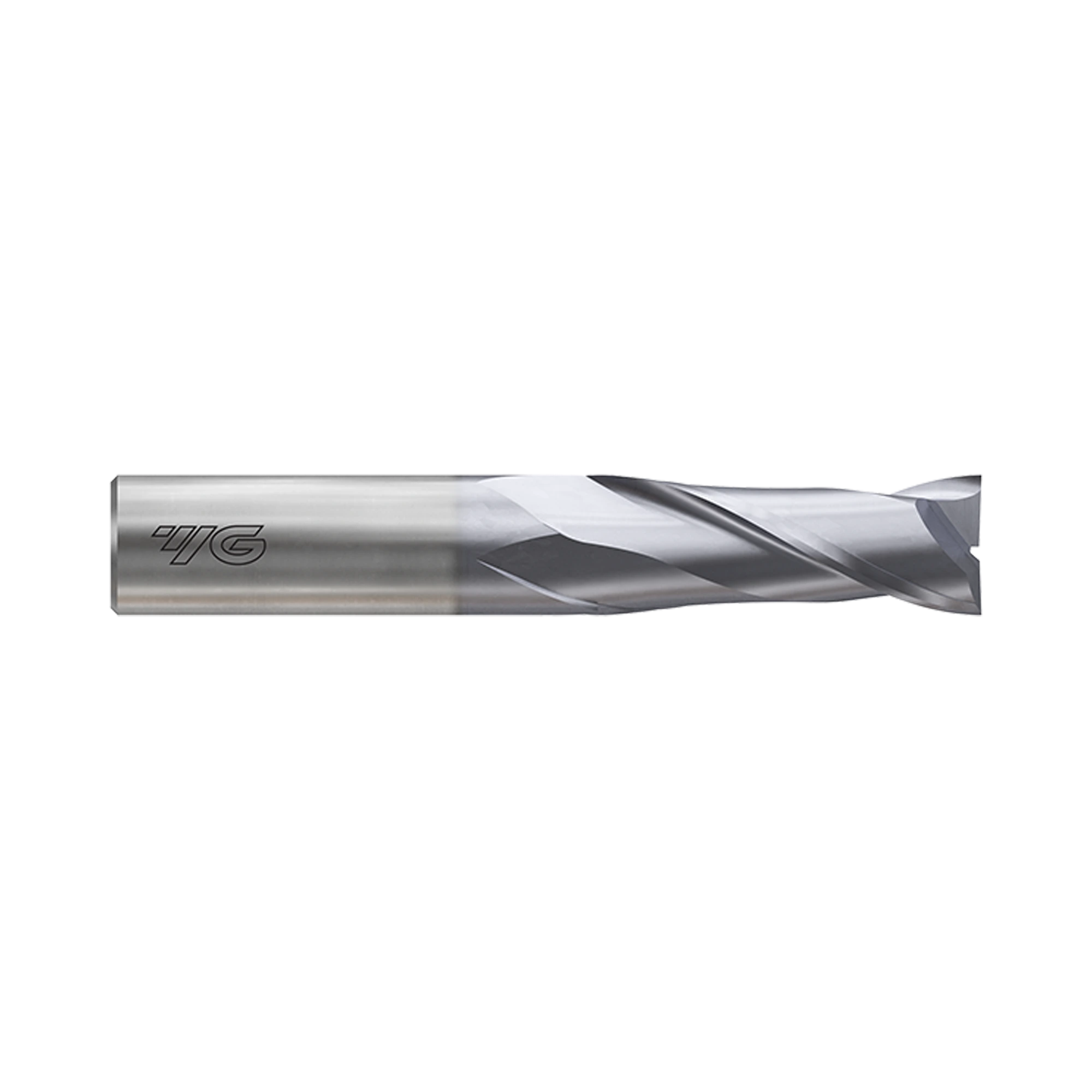

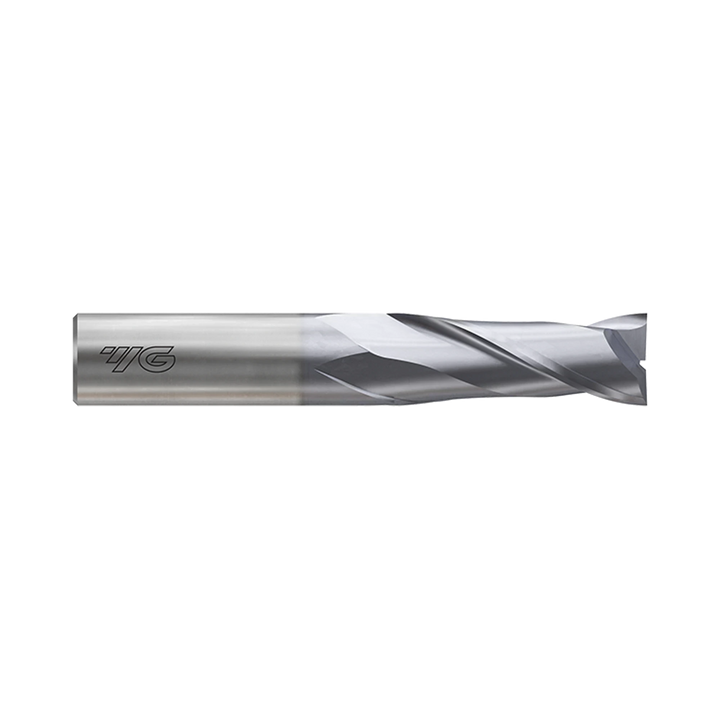

X-POWER PRO 2 Flute 30°Helix Short End Mill (GM810)
Code: GM810005
-
Key Features
- High speed, high precision milling in steels to 55 Rockwell, stainless and cast iron
- Performs wet or dry cutting
- 20–30% longer tool life and 20% higher cutting speeds versus original X-Power
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

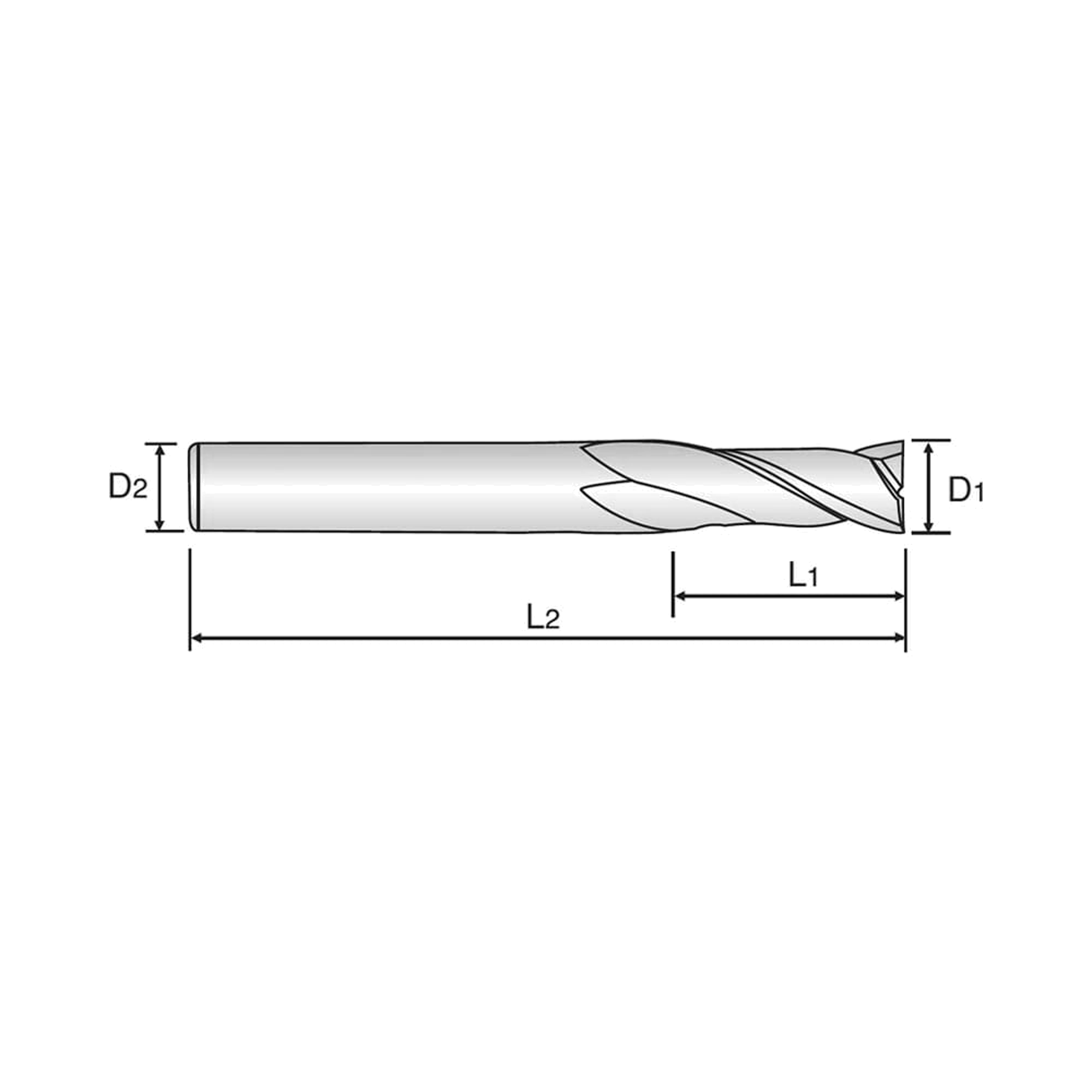

| SKU | Mill Diameter (mm) | Shank Diameter (mm) | Overall length (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| GM810005 | 0.5 | 3.0 | 40.0 | 2 | 1.0 | 5 days | $64.80 | ||
| GM810006 | 0.6 | 3.0 | 40.0 | 2 | 1.2 | 5 days | $60.90 | ||
| GM810008 | 0.8 | 3.0 | 40.0 | 2 | 1.6 | 5 days | $55.10 | ||
| GM810009 | 0.9 | 3.0 | 40.0 | 2 | 2.0 | 5 days | $55.10 | ||
| GM810010 | 1.0 | 4.0 | 40.0 | 2 | 2.5 | 5 days | $52.90 | ||
| GM810901 | 1.0 | 6.0 | 40.0 | 2 | 2.5 | 5 days | $76.40 | ||
| GM810012 | 1.2 | 4.0 | 40.0 | 2 | 4.0 | 5 days | $52.90 | ||
| GM810015 | 1.5 | 4.0 | 40.0 | 2 | 4.0 | 5 days | $52.90 | ||
| GM810902 | 1.5 | 6.0 | 40.0 | 2 | 4.0 | In stock | $57.30 | ||
| GM810020 | 2.0 | 4.0 | 40.0 | 2 | 6.0 | 5 days | $48.00 | ||
| GM810903 | 2.0 | 6.0 | 40.0 | 2 | 6.0 | 5 days | $69.40 | ||
| GM810025 | 2.5 | 4.0 | 40.0 | 2 | 8.0 | 5 days | $48.00 | ||
| GM810030 | 3.0 | 6.0 | 45.0 | 2 | 8.0 | In stock | $52.10 | ||
| GM810035 | 3.5 | 6.0 | 45.0 | 2 | 10.0 | 5 days | $69.40 | ||
| GM810040 | 4.0 | 6.0 | 45.0 | 2 | 11.0 | In stock | $52.10 | ||
| GM810050 | 5.0 | 6.0 | 50.0 | 2 | 13.0 | In stock | $52.10 | ||
| GM810060 | 6.0 | 6.0 | 50.0 | 2 | 13.0 | 5 days | $69.40 | ||
| GM810070 | 7.0 | 8.0 | 60.0 | 2 | 16.0 | 5 days | $88.80 | ||
| GM810080 | 8.0 | 8.0 | 60.0 | 2 | 19.0 | 5 days | $88.80 | ||
| GM810090 | 9.0 | 10.0 | 70.0 | 2 | 19.0 | 5 days | $131.50 | ||
| GM810100 | 10.0 | 10.0 | 70.0 | 2 | 22.0 | 5 days | $131.50 | ||
| GM810110 | 11.0 | 12.0 | 75.0 | 2 | 22.0 | 5 days | $180.30 | ||
| GM810120 | 12.0 | 12.0 | 75.0 | 2 | 26.0 | In stock | $124.60 | ||
| GM810140 | 14.0 | 14.0 | 85.0 | 2 | 26.0 | In stock | $158.00 | ||
| GM810160 | 16.0 | 16.0 | 100.0 | 2 | 32.0 | 5 days | $298.90 | ||
| GM810180 | 18.0 | 18.0 | 100.0 | 2 | 32.0 | 5 days | $397.20 | ||
| GM810200 | 20.0 | 20.0 | 105.0 | 2 | 38.0 | 5 days | $495.60 |
Add X-POWER PRO 2 Flute 30°Helix Short End Mill (GM810) to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Reviews
Product Description
X-POWER PRO GM810 short end mill delivers precise, high speed machining in steels. Two flutes and a 30° helix optimise chip evacuation and stability. Advanced ‘Z Coating’ with ultrafine micrograin carbide delivers exceptional tool life. Proven across hardened steels to 55 Rockwell, stainless steel, and cast iron. Suited to tight tolerance work in mould and die, valves, pumps, automotive, and defence.
- High speed, high precision milling in steels to 55 Rockwell, stainless and cast iron
- Performs wet or dry cutting
- 20–30% longer tool life and 20% higher cutting speeds versus original X-Power
- Ideal for mould and die, valves, pumps, tool making, automotive and defence
- Advanced Z Coating and ultrafine micrograin carbide for long tool life
- Diameter range 0.4–20mm
Product Data
| Workpiece Material | P K H |
| Cutting Shape | Square |
| Hardened Steels(HRc40~45) | Excellent |
| Helix Angle | Square 30 |
| No. Flutes | 2 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Shank Type | Plain |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | Carbide |
| Flutes | 2 |
| Helix Angle | 30° |
| Cutting Edge Shape | SQUARE |
| Size Min | D3.0 |
| Size Max | D20.0 |
| Length |
Long Length |
| Coating | Y-Coating |
Side Milling
Small Part
Slotting
Die Sinking
Facing
Carbon Steels
Great
Good
Great
Excellent
Alloy Steels
Excellent
Good
Great
Excellent
Prehardened Steels
Excellent
Good
Great
Excellent
Cast Iron
Great
Good
Great
Excellent
Hardened Steels (HRc40~45)
Excellent
Good
Great
Excellent
Hardened Steels (HRc45~55)
Great
Good
Great
Excellent
