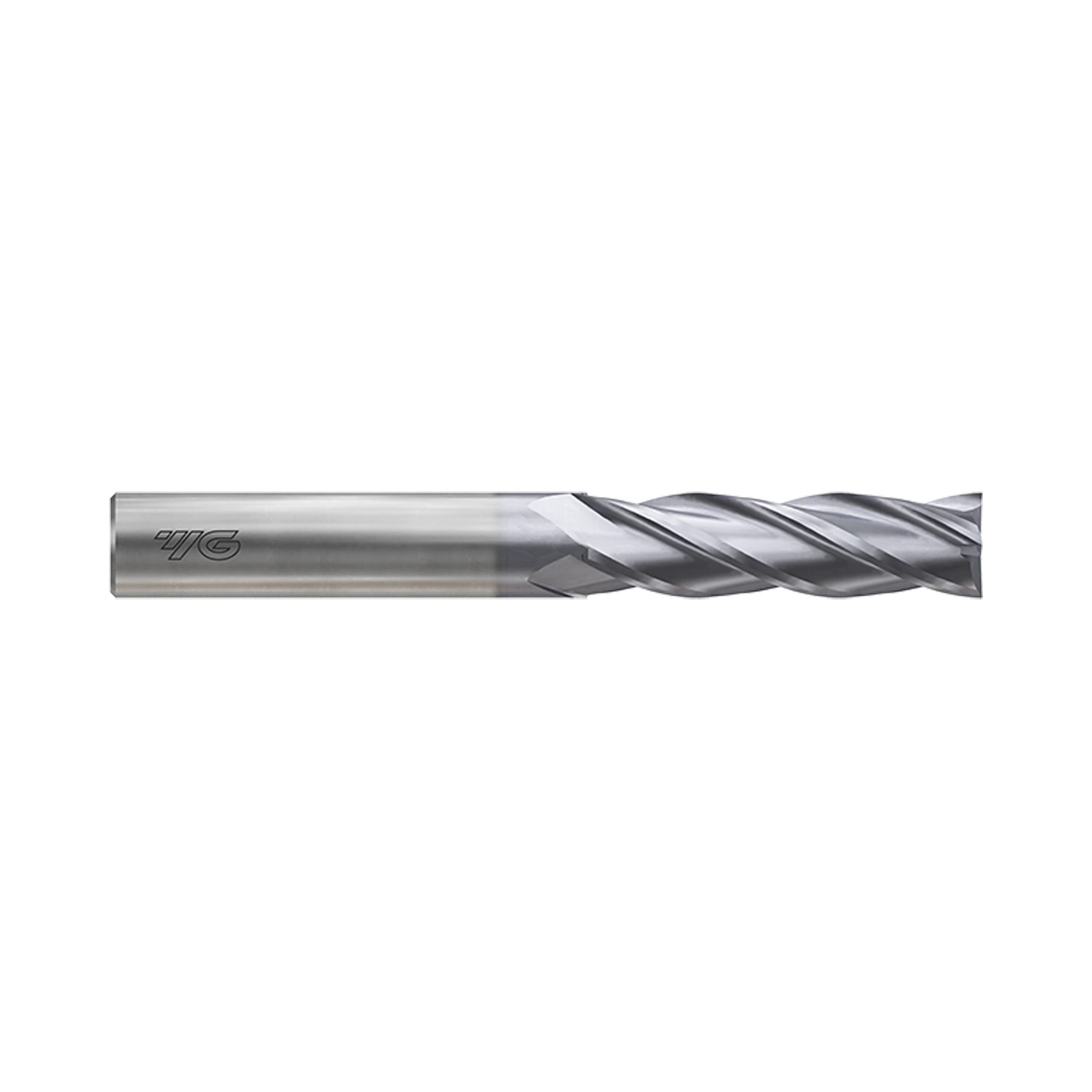

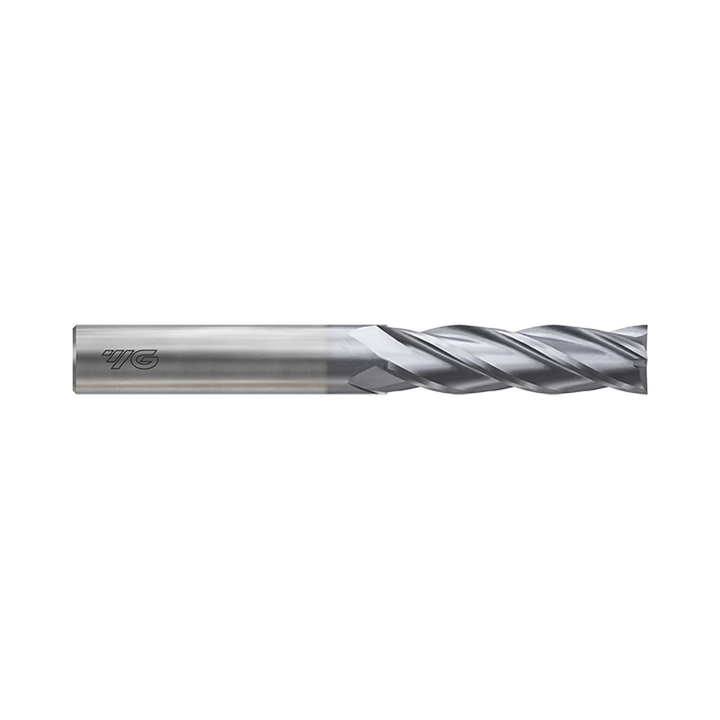

X-POWER PRO 4 Flute 30°Helix Long End Mill (GM817)
Product Code: GM817
No. Flutes: 4
Surface Treatment: YG-1 Y Coating
Tool Material: Carbide
Helix Angle: Square 30°
Shank Type: Plain
The YG-1 GM817 series ranges from 2-20mm diameter and has an advanced ‘Z Coating’ with an ultrafine micrograin carbide substrate for exceptional tool life. X-Power Pro milling cutters are suitable for high precision and high speed milling of steels, hardened steels up to 55 Rockwell, stainless steel and cast iron.
- Exceptional performance in high speed milling of steels, hardened steels up to 55 Rockwell, stainless steel and cast iron
- Wet or dry cutting
- Advanced ‘Z Coating’ developed by YG-1 with ultrafine micrograin carbide for exceptional tool life
- Suitable for high precision machining
- Ideal for mould and die, valves, pumps, tool making, automotive and defence industry
- Compared to the original X-Power range, the X-Power pro offers improved tool life by 20-30%, increased cutting speed by over 20% and improved surface finish.
Specifications
| Flutes | 4 |
| Helix Angle | 30° |
| Cutting Edge Shape | SQUARE |
| Size Min | R2.0 |
| Size Max | R20.0 |
| Length |
Long Length |
| Coating | Y-Coating |
| Workpiece Material | P K H |
| Hardened Steels(HRc40~45) | Excellent |
| Helix Angle | Square 30 |
| No. Flutes | 4 |
| Operation | Die Sinking, Facing, Profiling, Side Milling, Slotting, Small Part |
| Shank Type | Plain |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | Carbide |
Made in South Korea
Add X-POWER PRO 4 Flute 30°Helix Long End Mill (GM817) to comparison
View ComparisonOperation
Work Material
Great
Excellent
Excellent
Great
Excellent
Great
