New
Made in South Korea

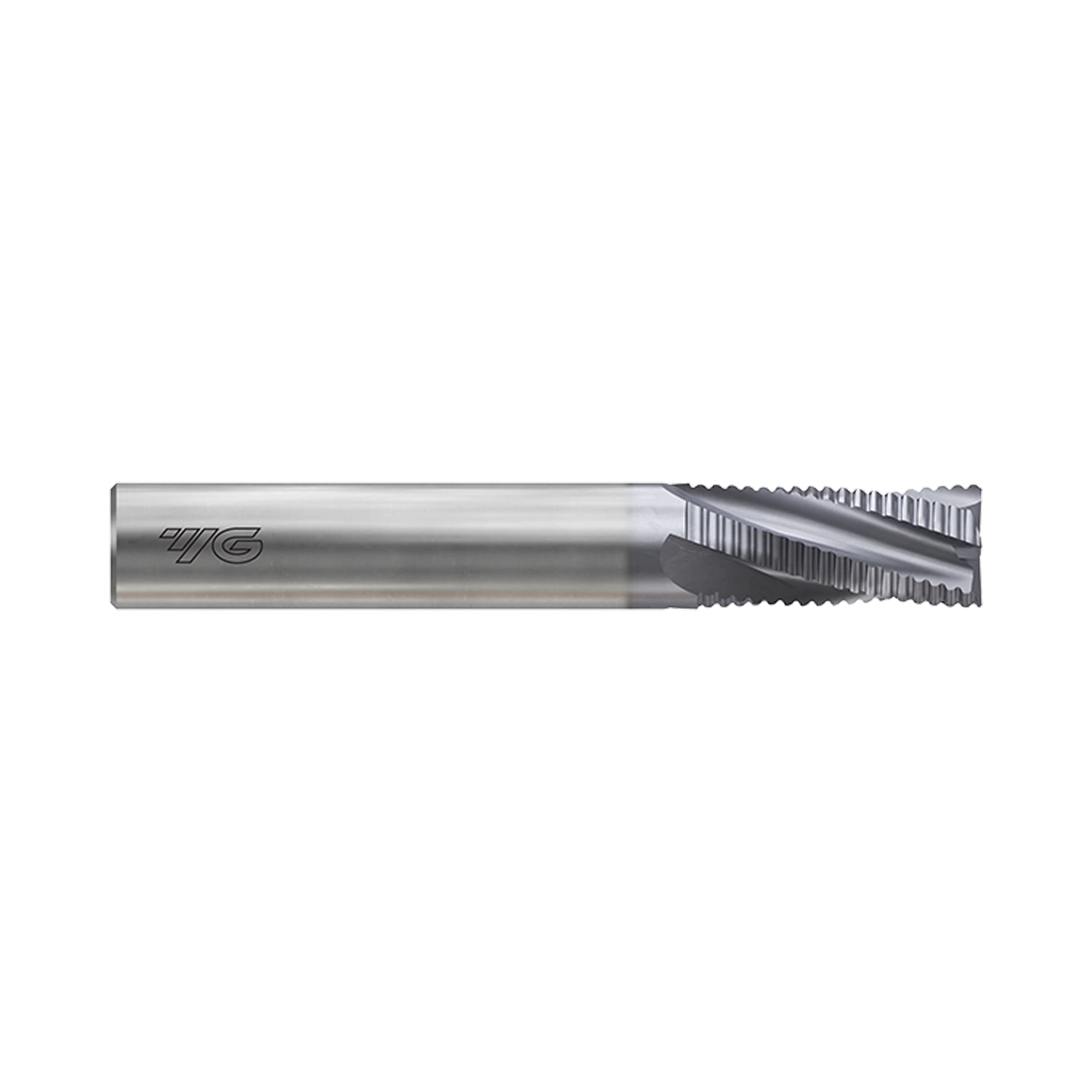

X-POWER PRO Multi Flute 20°Helix Long Roughing End Mill (GM814)
Code: GM814060
-
Key Features
- Multi flute rougher with 20° helix for low chatter and controlled cutting forces
- Advanced ‘Z Coating’ with ultrafine micrograin carbide substrate for exceptional tool life
- Performs in steels, hardened steels to 55 Rockwell, stainless steel and cast iron
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

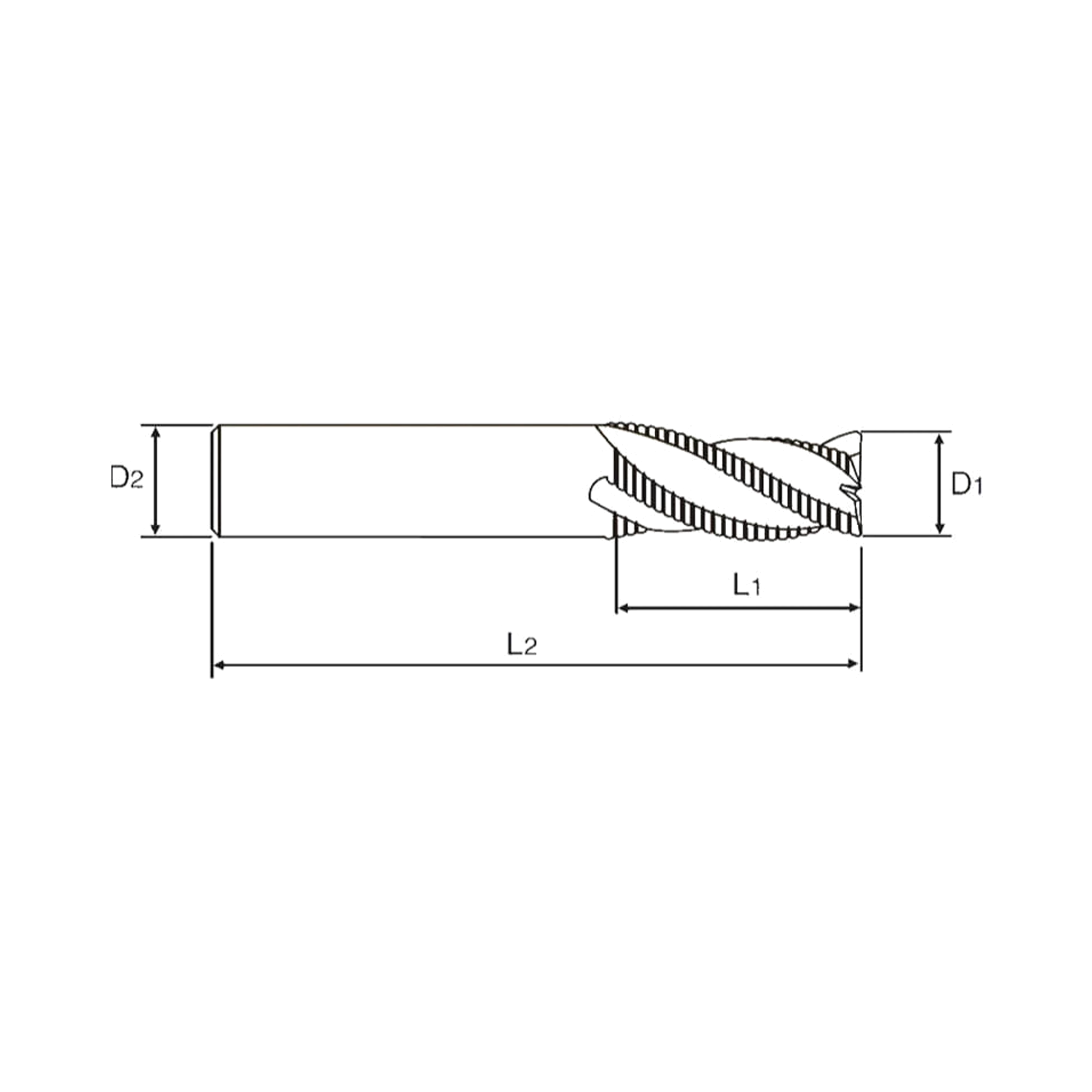

| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank diameter (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| GM814060 | 6.0 | 0.38 | 57.0 | 6.0 | 3 | 16.0 | In stock | $69.30 | ||
| GM814080 | 8.0 | 0.38 | 63.0 | 8.0 | 3 | 16.0 | In stock | $81.10 | ||
| GM814100 | 10.0 | 0.6 | 72.0 | 10.0 | 4 | 22.0 | In stock | $121.10 | ||
| GM814120 | 12.0 | 0.6 | 83.0 | 12.0 | 4 | 26.0 | 5 days | $170.89 | ||
| GM814160 | 16.0 | 0.6 | 92.0 | 16.0 | 4 | 32.0 | Low stock | $253.30 | ||
| GM814200 | 20.0 | 0.6 | 104.0 | 20.0 | 4 | 38.0 | 5 days | - |
Add X-POWER PRO Multi Flute 20°Helix Long Roughing End Mill (GM814) to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Reviews
Product Description
X-POWER PRO Multi Flute 20° Helix Long Roughing End Mill GM814 drives efficient material removal. Advanced ‘Z Coating’ with an ultrafine micrograin carbide substrate supports long life in wet or dry cutting. The multi flute roughing geometry and 20° helix enhance stability at high speeds. It handles steels, hardened steels to 55 Rockwell, stainless steel and cast iron. Expect 20–30% longer life and over 20% faster cutting than the original X-Power.
- Multi flute rougher with 20° helix for low chatter and controlled cutting forces
- Advanced ‘Z Coating’ with ultrafine micrograin carbide substrate for exceptional tool life
- Performs in steels, hardened steels to 55 Rockwell, stainless steel and cast iron
- Reliable in wet or dry cutting for flexible setups
- Long length provides reach with maintained rigidity
- 6–20 mm diameter range with faster cutting and improved finish versus original X-Power
Product Data
| Workpiece Material | P M K H |
| Chamfer Angle | 45 |
| Cutting Shape | Roughing |
| Hardened Steels(HRc40~45) | Excellent |
| Helix Angle | Square 20 |
| No. Flutes | 3-4 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Periphery Type | Roughing - Fine |
| Shank Type | Plain |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | Carbide |
| Flutes | 3&4 |
| Helix Angle | 20° |
| Cutting Edge Shape | ROUGHING |
| Size Min | D6.0 |
| Size Max | D20.0 |
| Length |
Long Length |
| Coating | Y-Coating |
Side Milling
Small Part
Slotting
Die Sinking
Facing
Carbon Steels
Great
Good
Great
Excellent
Alloy Steels
Excellent
Good
Great
Excellent
Prehardened Steels
Excellent
Good
Great
Excellent
Stainless Steels
Great
Good
Great
Excellent
Cast Iron
Great
Good
Great
Excellent
Hardened Steels (HRc40~45)
Excellent
Good
Great
Excellent
Hardened Steels (HRc45~55)
Great
Good
Great
Excellent
