(GM812) X-Power Pro Carbide 6&8Flute End Mill, Long Length (45° Helix)

  • $67.10INC GST $61.00 EX GST
(GM812) X-Power Pro Carbide 6&8Flute End Mill, Long Length (45° Helix)
(GM812) X-Power Pro Carbide 6&8Flute End Mill, Long Length (45° Helix)

(GM812) X-Power Pro Carbide 6&8Flute End Mill, Long Length (45° Helix)

  • $67.10INC GST $61.00 EX GST

Code: GM812060

P K H
    Key Features
  • Long length provides reach while maintaining precision in mould and die or tool making
  • Delivers 20–30% longer life and over 20% faster cutting than the original X-Power
  • Performs in steels, hardened steels to 55 Rockwell, stainless steel and cast iron
Mill Diameter (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

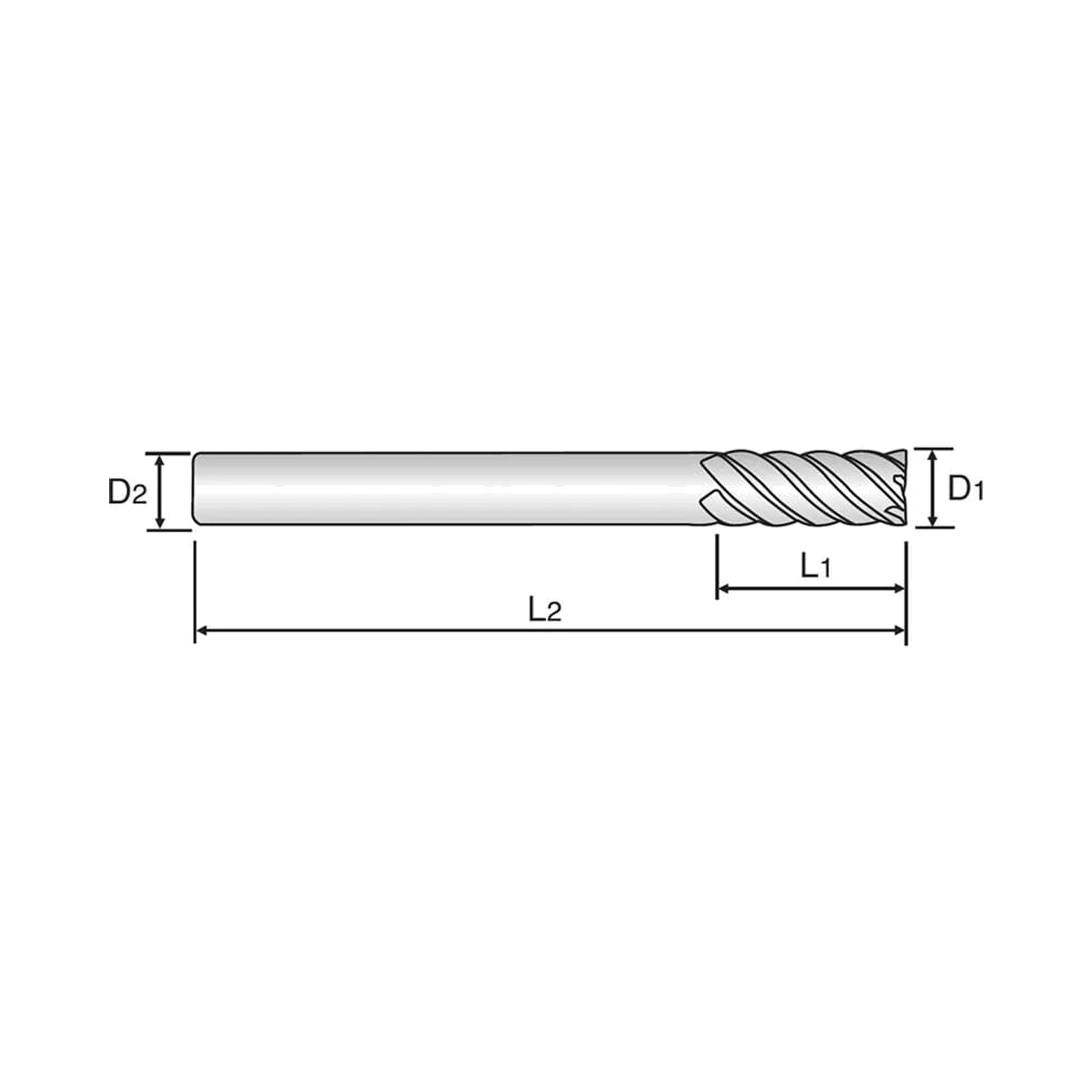

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)FlutesLength of cut (mm)Stock Price Qty Add
GM8120606.057.06.0613.0 In stock $61.00
GM8120808.063.08.0619.0 5 days $102.80
GM81210010.072.010.0622.0 5 days $153.90
GM81212012.083.012.0626.0 5 days $209.20
GM81216016.092.016.0632.0 5 days $351.80
GM81220020.0104.020.0838.0 5 days $516.80

Add (GM812) X-Power Pro Carbide 6&8Flute End Mill, Long Length (45° Helix) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

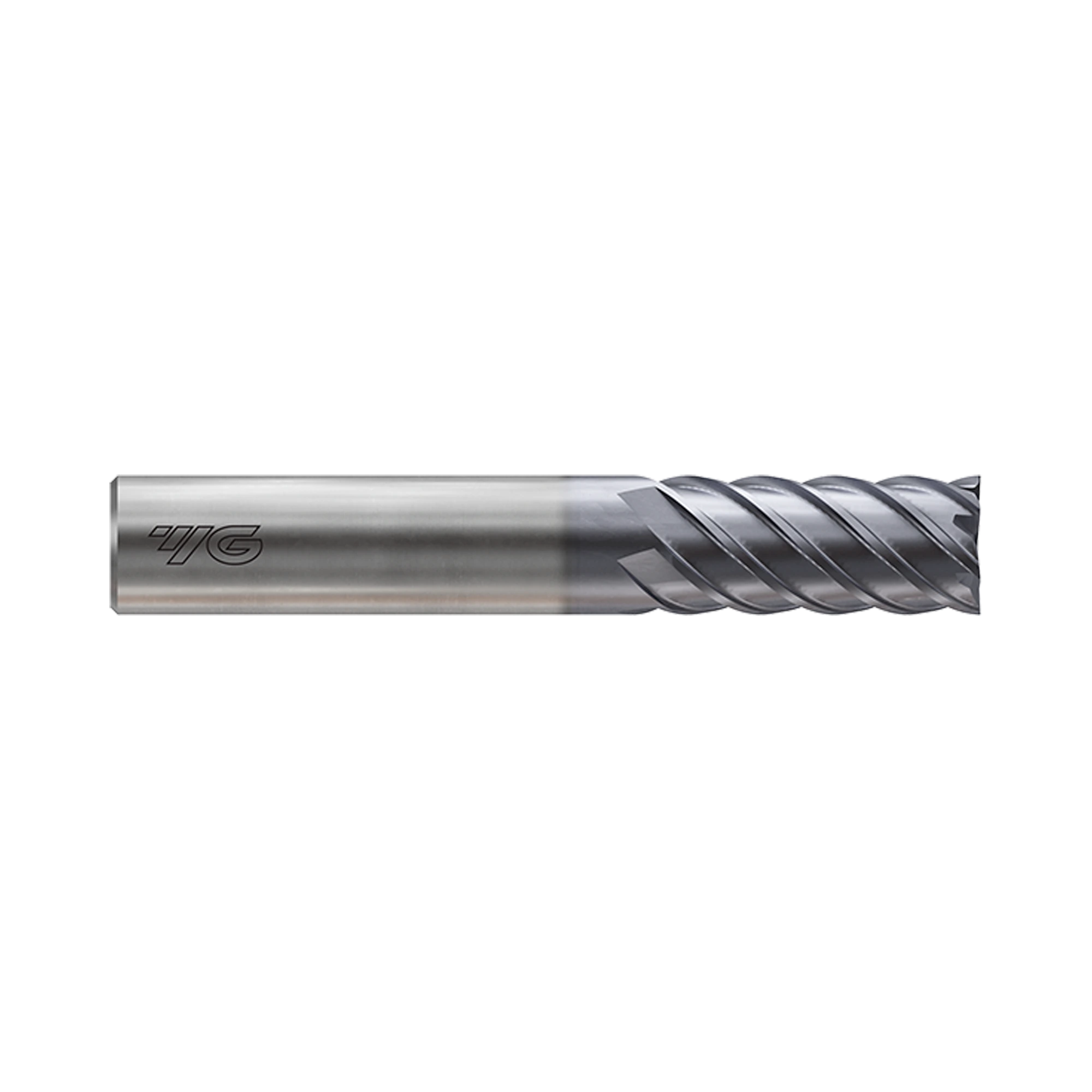

X-POWER PRO Multi Flute 45° Helix Long End Mill GM812 delivers precise high-speed milling in steels and cast iron. Advanced ‘Z Coating’ with an ultrafine micrograin carbide substrate extends tool life in wet or dry cutting. It handles hardened steels to 55 Rockwell and stainless steel with consistent accuracy. Diameters span 6–20 mm, delivering 20–30% longer life and over 20% faster cutting versus X-Power with improved surface finish.

  • Long length provides reach while maintaining precision in mould and die or tool making
  • Delivers 20–30% longer life and over 20% faster cutting than the original X-Power
  • Performs in steels, hardened steels to 55 Rockwell, stainless steel and cast iron
  • Reliable in wet or dry cutting to suit varied process requirements
  • Advanced ‘Z Coating’ with ultrafine micrograin carbide substrate for exceptional tool life
  • Multi flute design with 45° helix for smooth chip flow and stable high speed cutting
Product Data
Workpiece Material P K H
Cutting Shape Square
Hardened Steels(HRc40~45) Excellent
Helix Angle Square 45
Length Long
No. Flutes 6 & 8
Operation Facing, Side Milling, Small Part, Trochoidal
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide
Flutes 6&8
Helix Angle 45°
Cutting Edge Shape SQUARE
Size Min D6.0
Size Max D20.0
Length

Long Length
Coating Y-Coating

Side Milling
Small Part
Facing
Trochoidal
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Excellent

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
P

Non-alloy steel

Excellent Excellent
HRc
13252832
HB
125190250270300
P

Low alloy steel

Excellent Excellent
HRc
10293238
HB
180275300350
P

High alloy & tool steel

Excellent Excellent
HRc
1535
HB
200325
K

Grey cast iron

Good Good
HRc
1026
HB
180260
K

Nodular cast iron

Good Good
HRc
325
HB
160250
K

Malleable cast iron

Good Good
HRc
21
HB
130230
H

Hardened steels & cast irons

Excellent Excellent
HRc
384041
HB
400630
