X5070 6 Flute 45°Helix Corner Radius End Mill (G8A39)

6-Flute Corner-Radius Extended-Neck for HRc45–70

X5070 6 Flute 45°Helix Corner Radius End Mill (G8A39)
$99.55 INC GST $90.50 EX GST
SKU
G8A39916
Work materials
PH
Tool material Carbide
Surface treatment Blue
Mill Diameter (mm)
Corner Radius (mm)
Length of Cut (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

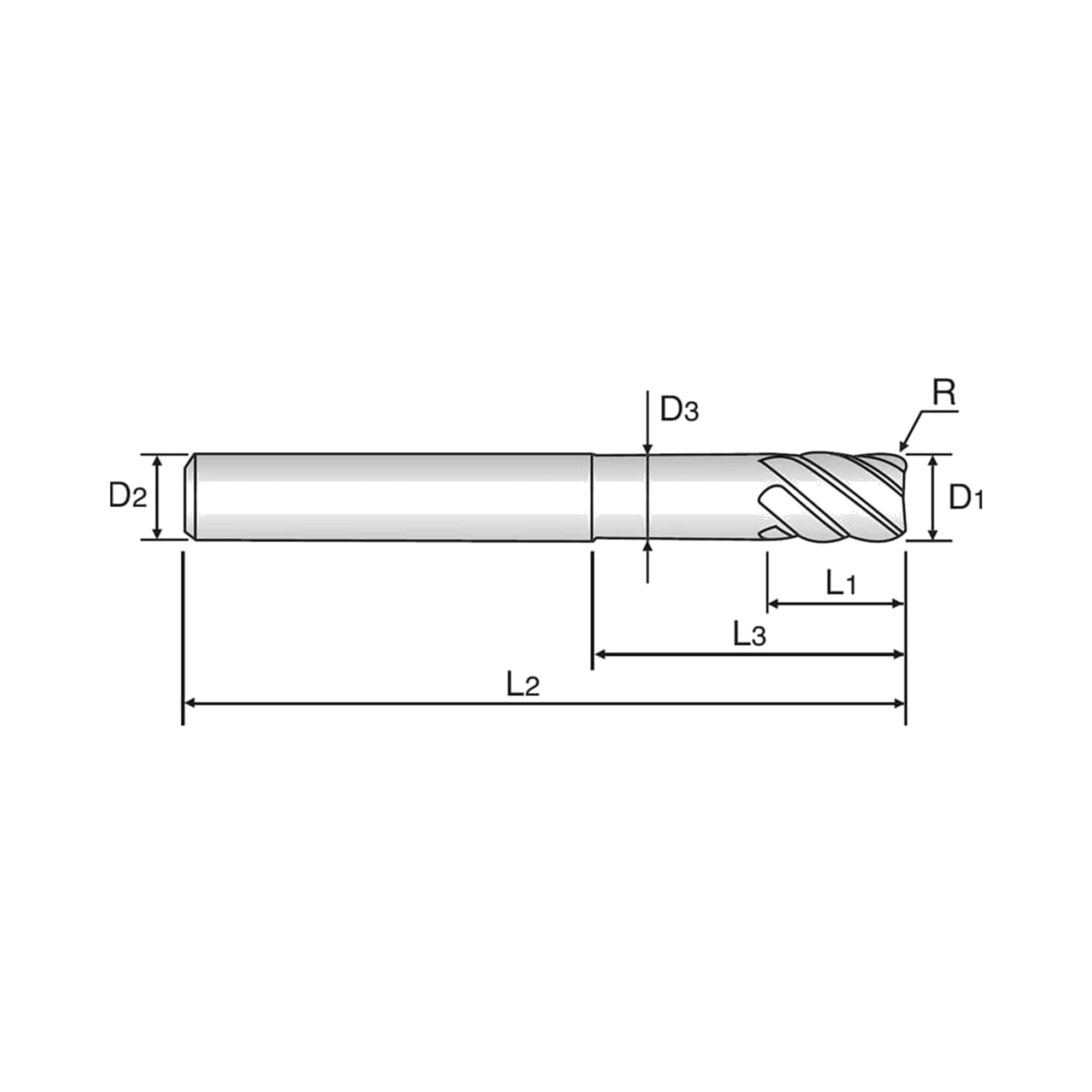

SKUMill Diameter (mm)Corner Radius (mm)Length of Cut (mm)Overall length (mm)Shank dia. (mm)Length below shank (mm)Neck dia. (mm)CAD filesStock Price Qty Add
G8A399166.0R0.256.050.06.014.05.85STEPDXF Low stock $90.50
G8A390606.0R0.56.050.06.014.05.85STEPDXF In stock $106.90
G8A399016.0R0.513.070.06.0--STEPDXF Low stock $102.90
G8A399106.0R0.526.070.06.0--STEPDXF Low stock $123.90
G8A390808.0R0.58.060.08.024.07.7STEPDXF Low stock $108.00
G8A399028.0R0.519.090.08.0--STEPDXF In stock $129.00
G8A399118.0R0.536.090.08.0--STEPDXF Low stock $160.20
G8A3990310.0R0.522.0100.010.0--STEPDXF 1-2 Weeks $194.60
G8A3910010.0R1.010.070.010.030.09.7STEPDXF In stock $168.70
G8A3990410.0R1.022.0100.010.0--STEPDXF Low stock $194.60
G8A3991210.0R1.046.0100.010.0--STEPDXF 1-2 Weeks $236.60
G8A3990512.0R0.526.0110.012.0--STEPDXF 1-2 Weeks $265.50
G8A3912012.0R1.012.075.012.030.011.7STEPDXF Low stock $201.60
G8A3990612.0R1.026.0110.012.0--STEPDXF 1-2 Weeks $265.50
G8A3991312.0R1.056.0110.012.0--STEPDXF 1-2 Weeks $455.60
G8A3916016.0R1.032.0130.016.0--STEPDXF Low stock $448.00
G8A3990716.0R1.532.0130.016.0--STEPDXF 1-2 Weeks $489.30
G8A3991416.0R1.566.0130.016.0--STEPDXF 1-2 Weeks $628.80
G8A3920020.0R1.038.0140.020.0--STEPDXF 1-2 Weeks $655.80
G8A3990820.0R1.538.0140.020.0--STEPDXF 1-2 Weeks $910.00
G8A3990920.0R2.038.0140.020.0--STEPDXF 1-2 Weeks $910.00
G8A3991520.0R2.076.0140.020.0--STEPDXF 1-2 Weeks $1,245.60

Add X5070 6 Flute 45°Helix Corner Radius End Mill (G8A39) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

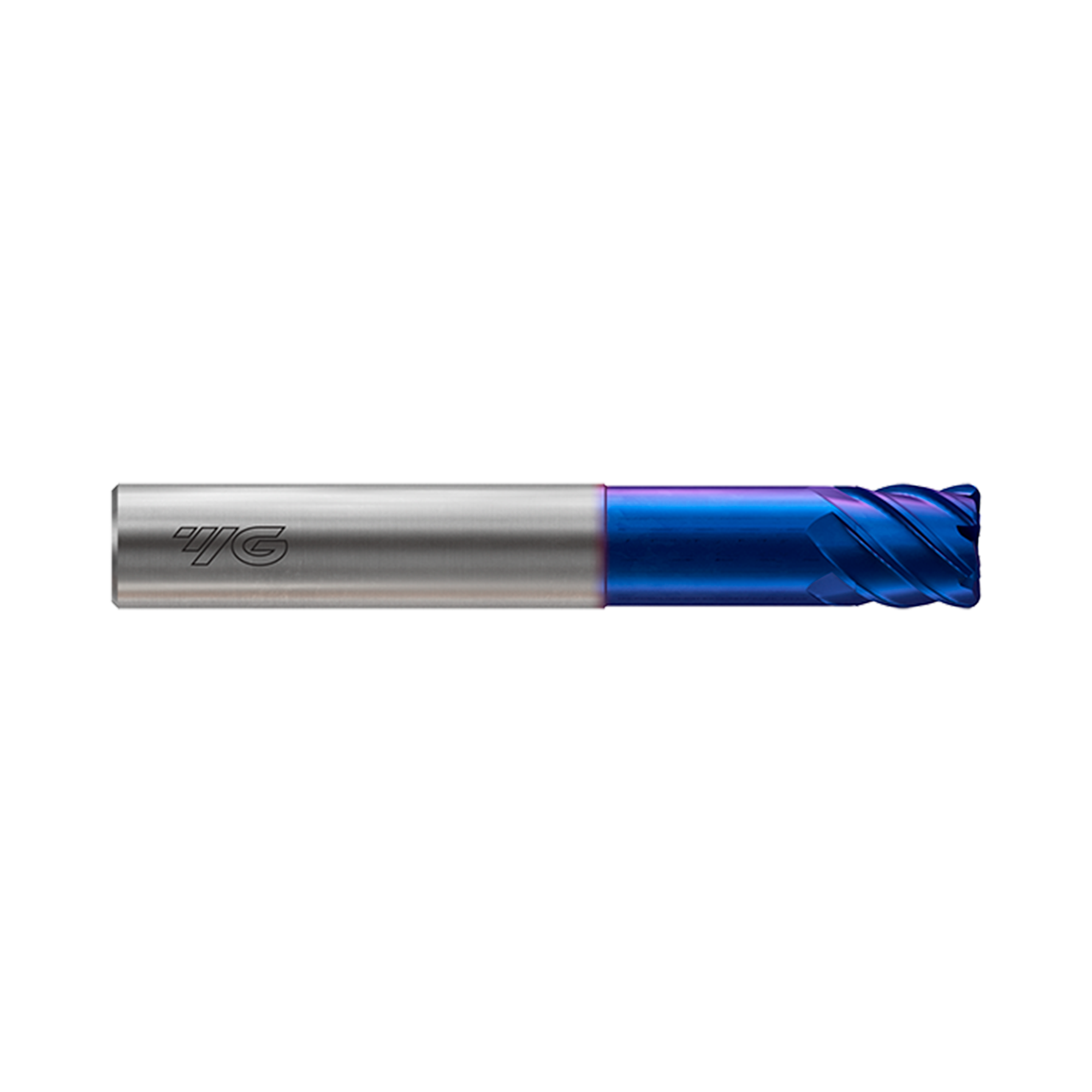

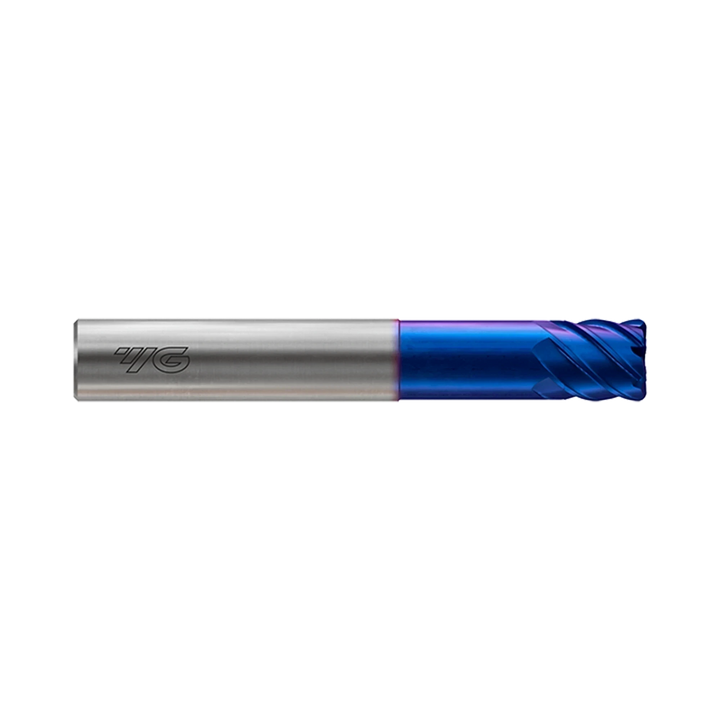

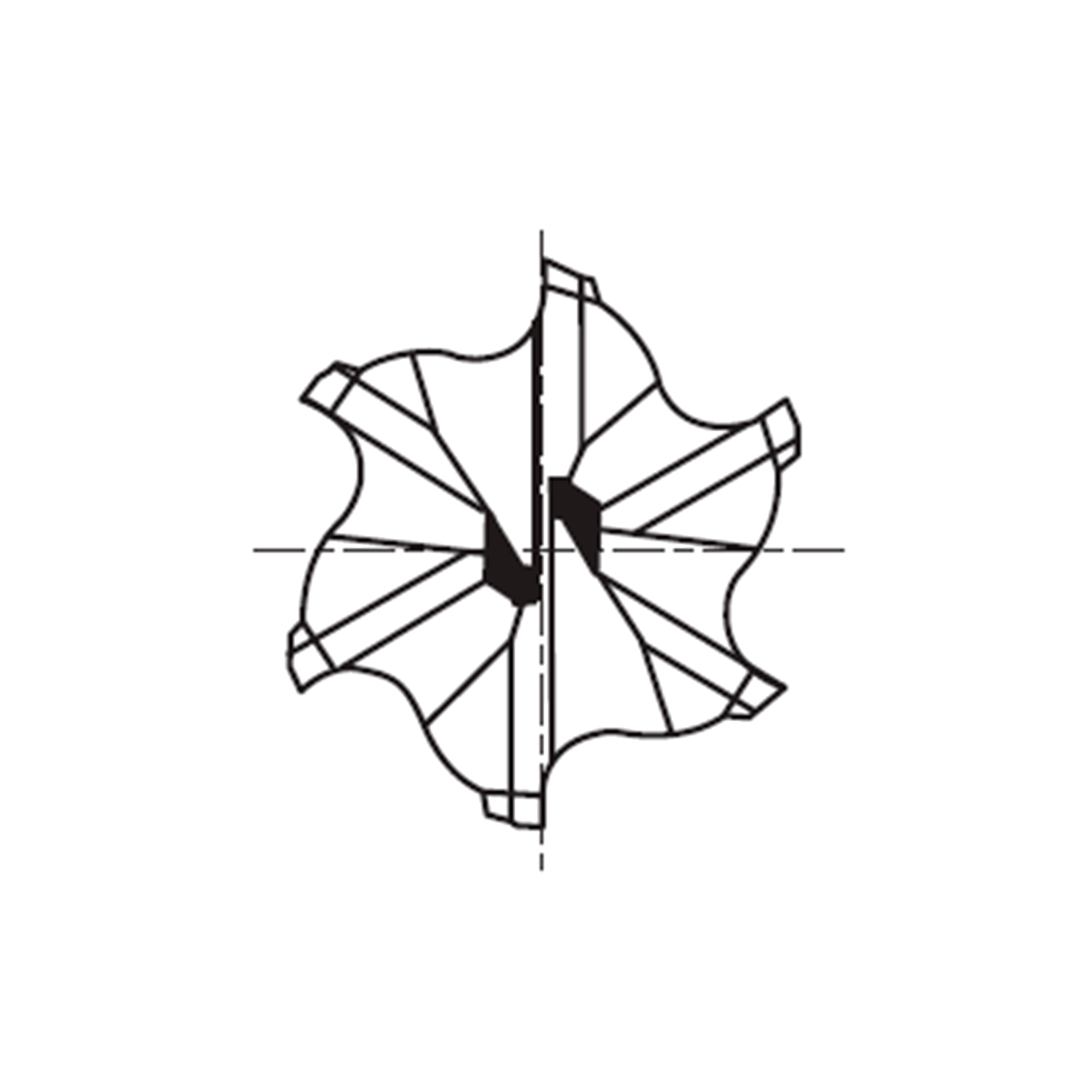

The YG-1 G8A39 series X5070 Blue ultrafine micrograin carbide cutter has a 6 flute 45° helix geometry, extended/relieved neck and corner radius. They offer exceptional performance in finishing and profiling applications. They range in diameter from 6mm-20mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.

  • Nanograin carbide substrate with blue silicone based coating.
  • Dry machining in steels and hardened steeld < HRc70.
  • Suitable for machining at extreme cutting speeds.
  • High abrasion resistance with a mirror surface finish.
  • Strong negative land provides tool strength for high hardness machining.
  • Ultimate tool life.
  • Can cope with extreme heat (up to 1400°).
  • High Speed Roughing & Finishing.
  • Deep slotting is possible by reduced neck.
  • Corner radius for preventing chipping in high speed machining.
  • 45° Helix Angle.
  • To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).
Product Data
Workpiece Material P H
Corner Radius Tolerance 0.01, 0.015
Cutting Shape Corner Radius, Roughing
Hardened Steels(HRc40~45) Great
Helix Angle 45°, Square 45
Length Extended Neck
No. Flutes 6
Operation Corner, Facing, Side Milling, Small Part, Trochoidal
Shank Type Plain
Surface Treatment Blue, YG-1 Blue Coating
Tool Material Carbide
Flutes 6
Helix Angle 45°
Cutting Edge Shape Corner Radius
Size Min D6.0
Size Max D20.0
Length Extended Neck
Coating Blue Coating

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G8A39060 6 6 6 50 0~-0.020 h5 6 G8A39080 8 8 8 60 0~-0.020 h5 6 G8A39100 10 10 10 70 0~-0.020 h5 6 G8A39120 12 12 12 75 0~-0.020 h5 6 G8A39160 16 16 32 130 0~-0.020 h5 6 G8A39200 20 20 38 140 0~-0.020 h5 6 G8A39901 6 6 13 70 0~-0.020 h5 6 G8A39902 8 8 19 90 0~-0.020 h5 6 G8A39903 10 10 22 100 0~-0.020 h5 6 G8A39904 10 10 22 100 0~-0.020 h5 6 G8A39905 12 12 26 110 0~-0.020 h5 6 G8A39906 12 12 26 110 0~-0.020 h5 6 G8A39907 16 16 32 130 0~-0.020 h5 6 G8A39908 20 20 38 140 0~-0.020 h5 6 G8A39909 20 20 38 140 0~-0.020 h5 6 G8A39910 6 6 26 70 0~-0.020 h5 6 G8A39911 8 8 36 90 0~-0.020 h5 6 G8A39912 10 10 46 100 0~-0.020 h5 6 G8A39913 12 12 56 110 0~-0.020 h5 6 G8A39914 16 16 66 130 0~-0.020 h5 6 G8A39915 20 20 76 140 0~-0.020 h5 6 G8A39916 6 6 6 50 0~-0.020 h5 6
Side Milling
Small Part
Facing
Corner
Trochoidal

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

4 grades
Non-alloy steel
GoodVDI 5
Low-alloy steel
GoodVDI 8–9
High-alloy and tool steel
GoodVDI 11

Hardened materials

4 grades
Hardened steel
ExcellentVDI 38–39
Chilled cast iron
GoodVDI 40
Hardened cast iron
ExcellentVDI 41
VDI grade reference8 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
5PNon-alloy steelGood30032
8PLow-alloy steelGood30032
9PLow-alloy steelGood35038
11PHigh-alloy and tool steelGood32535
38HHardened steelExcellent55055
39HHardened steelExcellent63060
40HChilled cast ironGood40042
41HHardened cast ironExcellent55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G8A39060 6 6 6 50 0~-0.020 h5 6 G8A39080 8 8 8 60 0~-0.020 h5 6 G8A39100 10 10 10 70 0~-0.020 h5 6 G8A39120 12 12 12 75 0~-0.020 h5 6 G8A39160 16 16 32 130 0~-0.020 h5 6 G8A39200 20 20 38 140 0~-0.020 h5 6 G8A39901 6 6 13 70 0~-0.020 h5 6 G8A39902 8 8 19 90 0~-0.020 h5 6 G8A39903 10 10 22 100 0~-0.020 h5 6 G8A39904 10 10 22 100 0~-0.020 h5 6 G8A39905 12 12 26 110 0~-0.020 h5 6 G8A39906 12 12 26 110 0~-0.020 h5 6 G8A39907 16 16 32 130 0~-0.020 h5 6 G8A39908 20 20 38 140 0~-0.020 h5 6 G8A39909 20 20 38 140 0~-0.020 h5 6 G8A39910 6 6 26 70 0~-0.020 h5 6 G8A39911 8 8 36 90 0~-0.020 h5 6 G8A39912 10 10 46 100 0~-0.020 h5 6 G8A39913 12 12 56 110 0~-0.020 h5 6 G8A39914 16 16 66 130 0~-0.020 h5 6 G8A39915 20 20 76 140 0~-0.020 h5 6 G8A39916 6 6 6 50 0~-0.020 h5 6

Video

X5070 Endmills

You Might Also Like

Resources

Understanding the Basics of Endmills

Understanding the Basics of Endmills

Endmills are indispensable tools in machining, renowned for their versatility and precision. Whether you’re a seasoned operator or new to machining, understanding...
Connor Urquhart Connor Urquhart

Article
