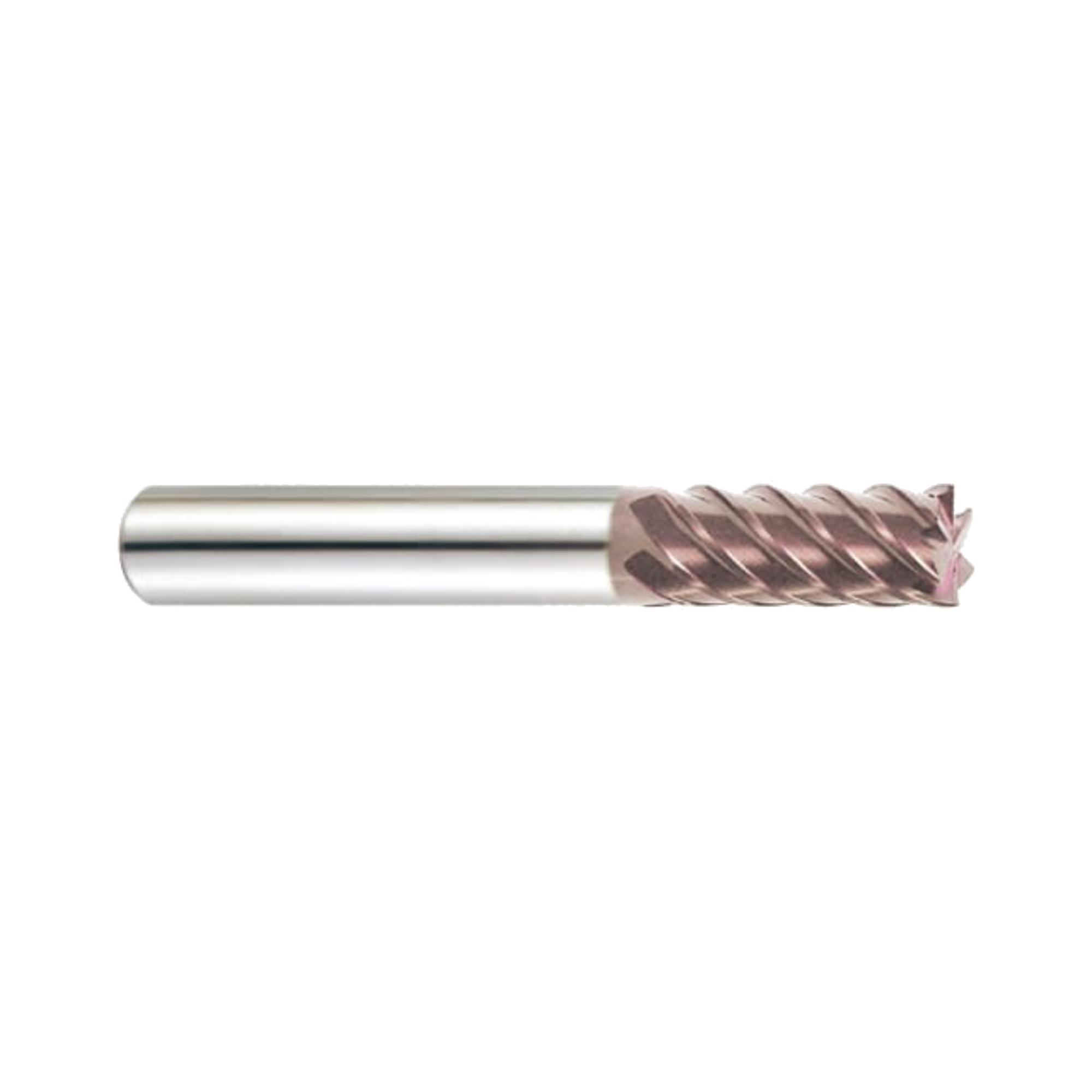

K-2 CARBIDE 6 Flute 45°Helix Long End Mill (G9F46)

Long-Length 6-Flute 45° Helix End Mill
  • $226.27INC GST $205.70 EX GST
New

K-2 CARBIDE 6 Flute 45°Helix Long End Mill (G9F46)

Long-Length 6-Flute 45° Helix End Mill
  • $226.27INC GST $205.70 EX GST

Code: G9F46120

P M K
Mill Diameter (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Overall length (mm)Shank diameter (mm)FlutesLength of cut (mm)Stock Price Qty Add
G9F4612012100.012.0650.0 5 days $205.70
G9F4616016150.016.0665.0 5 days $428.80
G9F4620020150.020.0670.0 5 days $628.50

Add K-2 CARBIDE 6 Flute 45°Helix Long End Mill (G9F46) to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Speeds & Feeds
  • Reviews
Product Description

The G9F46 series K2 coated carbide milling cutters feature 45� helix for improved chip evacuation & surface finish. K2 carbide range from global market leaders YG-1 are the number 1 best selling tool for general purpose milling. Ideal for general milling steel <45HRc and cast iron.

  • 45 degree helix for improved chip evacuation & surface finish
  • Special K2 coating for longer tool life, high heat and wear resistance
  • Dry cutting on steel can increase tool life up to 40%
  • Suitable for general milling of steel and cast iron
  • Consistent and reliable performance in general machining conditions
  • Made from high-quality micrograin carbide
  • Manufactured by global market leader YG-1

Specifications

Flutes 4&6
Helix Angle 45°
Cutting Edge Shape SQUARE
Size Min D3.0
Size Max D20.0
Length

SHORT LENGTH

LONG LENGTH
Coating TiAIN
Product Data
Workpiece Material P M K
Cutting Shape Square
Hardened Steels(HRc40~45) Great
Helix Angle Square 45
No. Flutes 6
Shank Type 6535HA
Surface Treatment Titanium Aluminium Nitride Coating
Tool Material Carbide
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9F46120 12 12 50 100 0~-0.030 h5 6 G9F46160 16 16 65 150 0~-0.030 h5 6 G9F46200 20 20 70 150 0~-0.030 h5 6
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent

Speeds & Feeds

ISO VDI 3323  Material Description Ae Ap Parameter Diameter (Ø)
3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0
P 1-4 Non-Alloy Steel 0.05D 1.5D Vc 82 83 98 98 97 97 99 98 98 97 97
fz 0.024 0.033 0.025 0.03 0.045 0.045 0.053 0.058 0.062 0.065 0.069
RPM 8700 6605 6239 5199 3860 3088 2626 2228 1950 1715 1544
FEED 835 872 936 936 1042 834 835 775 725 669 639
5 0.3D 1.5D Vc 54 55 65 65 65 64 66 66 65 65 64
fz 0.024 0.033 0.027 0.03 0.038 0.045 0.053 0.057 0.062 0.066 0.07
RPM 5730 4377 4138 3448 2586 2037 1751 1501 1293 1149 1019
FEED 550 578 670 621 590 550 557 513 481 455 428
6-7 Low-Alloy Steel 0.5D 1.5D Vc 82 83 98 98 97 97 99 98 98 97 97
fz 0.024 0.033 0.025 0.03 0.045 0.045 0.053 0.058 0.062 0.065 0.069
RPM 8700 6605 6239 5199 3860 3088 2626 2228 1950 1715 1544
FEED 835 872 936 936 1042 834 835 775 725 669 639
8-9 0.3D 1.5D Vc 54 55 65 65 65 64 66 66 65 65 64
fz 0.024 0.033 0.027 0.03 0.038 0.045 0.053 0.057 0.062 0.066 0.07
RPM 5730 4377 4138 3448 2586 2037 1751 1501 1293 1149 1019
FEED 550 578 670 621 590 550 557 513 481 455 428
10 High-Alloyed Steel, and Tool Steel 0.5D 1.5D Vc 82 83 98 98 97 97 99 98 98 97 97
fz 0.024 0.033 0.025 0.03 0.045 0.045 0.053 0.058 0.062 0.065 0.069
RPM 8700 6605 6239 5199 3860 3088 2626 2228 1950 1715 1544
FEED 835 872 936 936 1042 834 835 775 725 669 639
11.1-11.2 0.3D 1.5D Vc 54 55 65 65 65 64 66 66 65 65 64
fz 0.024 0.033 0.027 0.03 0.038 0.045 0.053 0.057 0.062 0.066 0.07
RPM 5730 4377 4138 3448 2586 2037 1751 1501 1293 1149 1019
FEED 550 578 670 621 590 550 557 513 481 455 428
K 15-20 Grey cast iron Nodular cast iron Malleable cast iron 0.5D 1.5D Vc 82 83 98 98 97 97 99 98 98 97 97
fz 0.024 0.033 0.025 0.03 0.045 0.045 0.053 0.058 0.062 0.065 0.069
RPM 8700 6605 6239 5199 3860 3088 2626 2228 1950 1715 1544
FEED 835 872 936 936 1042 834 835 775 725 669 639
K 38.1 Hardened steel 0.03D 1.5D Vc 54 55 65 65 65 64 66 66 65 65 64
fz 0.024 0.033 0.027 0.03 0.038 0.045 0.053 0.057 0.062 0.066 0.07
RPM 5730 4377 4138 3448 2586 2037 1751 1501 1293 1149 1019
FEED 550 578 670 621 590 550 557 513 481 455 428
38.2~39.1 0.3D 1.5D Vc 45 45 50 50 50 50 50 50 50 50 50
fz 0.018 0.025 0.02 0.023 0.029 0.033 0.029 0.041 0.046 0.05 0.052
RPM 4775 3581 3183 2653 1989 1592 1326 1137 995 884 796
FEED 344 358 382 366 346 315 231 280 275 265 248
39.2 0.2D 1D Vc 35 35 40 40 40 40 40 40 40 40 41
fz 0.014 0.02 0.016 0.018 0.023 0.027 0.031 0.034 0.037 0.039 0.042
RPM 3714 2785 2546 2122 1592 1273 1061 909 796 707 653
FEED 208 223 244 229 220 206 197 186 177 166 164
40 Chilled Cast Iron 0.3D 1.5D Vc 54 55 65 65 65 64 66 66 65 65 64
fz 0.024 0.033 0.027 0.03 0.038 0.045 0.053 0.057 0.062 0.066 0.07
RPM 5730 4377 4138 3448 2586 2037 1751 1501 1293 1149 1019
FEED 550 578 670 621 590 550 557 513 481 455 428
41 Hardened Cast Iron 0.3D 1.5D Vc 45 45 50 50 50 50 50 50 50 50 50
fz 0.018 0.025 0.02 0.023 0.029 0.033 0.029 0.041 0.046 0.05 0.052
RPM 4775 3581 3183 2653 1989 1592 1326 1137 995 884 796
FEED 344 358 382 366 346 315 231 280 275 265 248
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9F46120 12 12 50 100 0~-0.030 h5 6 G9F46160 16 16 65 150 0~-0.030 h5 6 G9F46200 20 20 70 150 0~-0.030 h5 6
