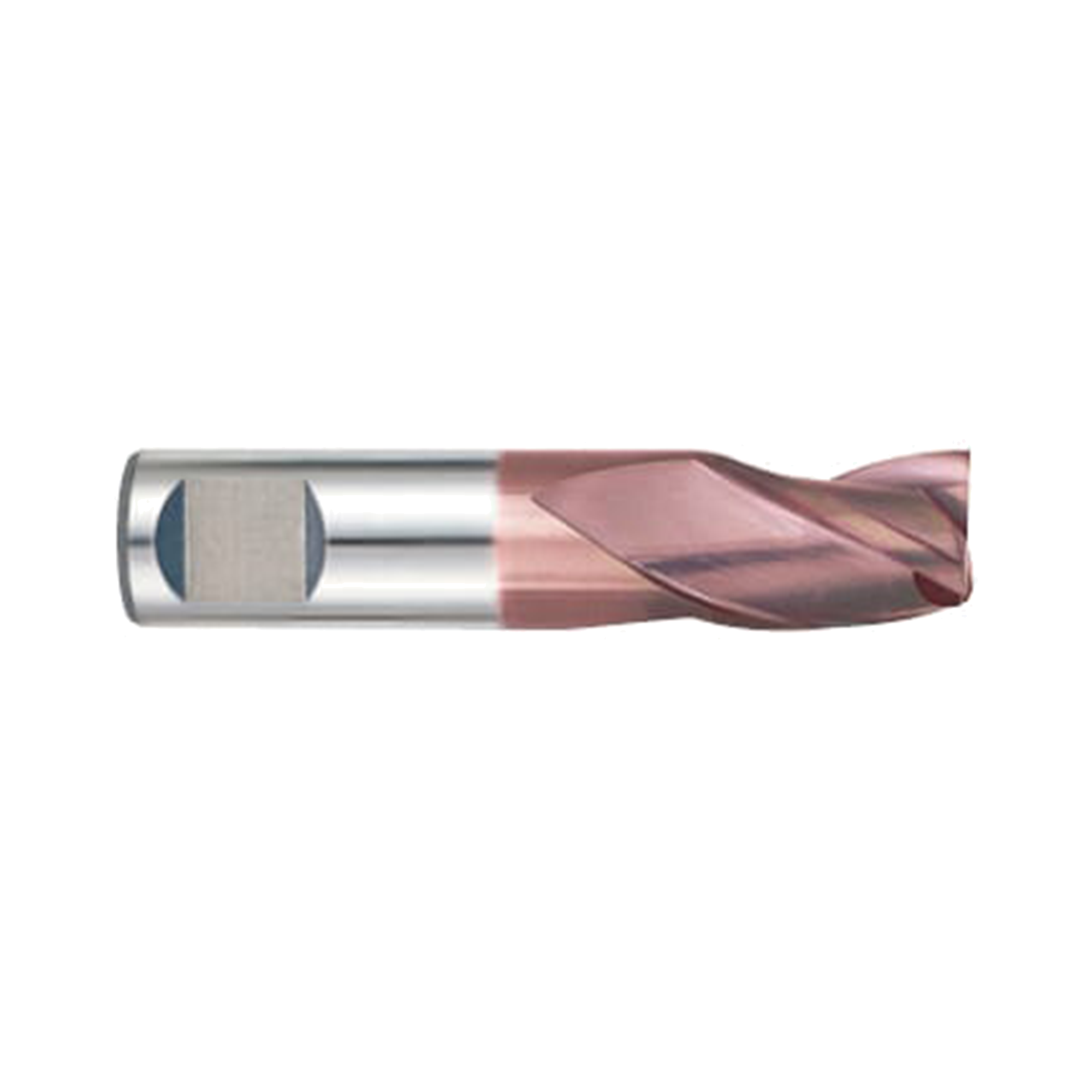

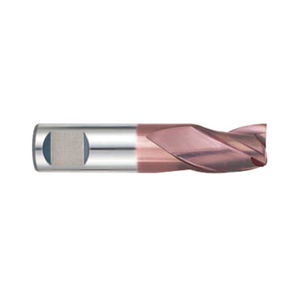

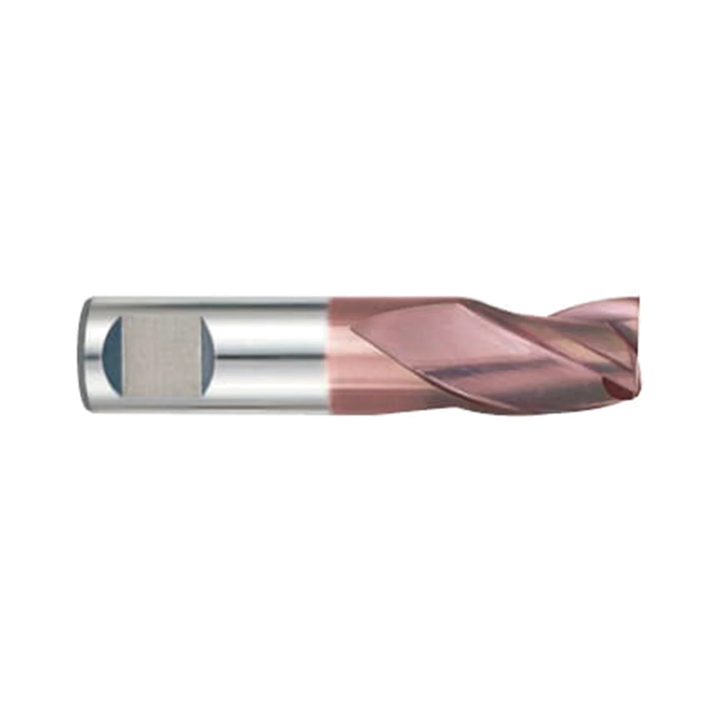

(G9G46) K-2 Carbide, 3Flute End Mill, Throw Away with Chamfer

Name: (G9G46) K-2 Carbide, 3Flute End Mill, Throw Away with Chamfer
Brand: Excision Pty Ltd
SKU: G9G46030
Price: 27.10 AUD
Availability: InStock

TiAlN-coated 3 flute end mill with 45° chamfer

$29.81 INC GST $27.10 EX GST Price available on request

SKU: G9G46030

Key features

TiAlN-coated solid carbide construction
Three flutes with 30° helix
45° chamfered cutting edge

Mill Diameter (mm)

Chamfer (mm)

Loading stock…

Made in South Korea

Free standard delivery on orders over $500.

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Prepared cutting edge

The 45° chamfered edge supports applications requiring a chamfer-prepared milling cutter.

Balanced flute geometry

Three flutes combine characteristics associated with two-flute and four-flute end mill designs.

Dry milling suitability

TiAlN coating and solid carbide construction suit dry milling applications at high temperatures.

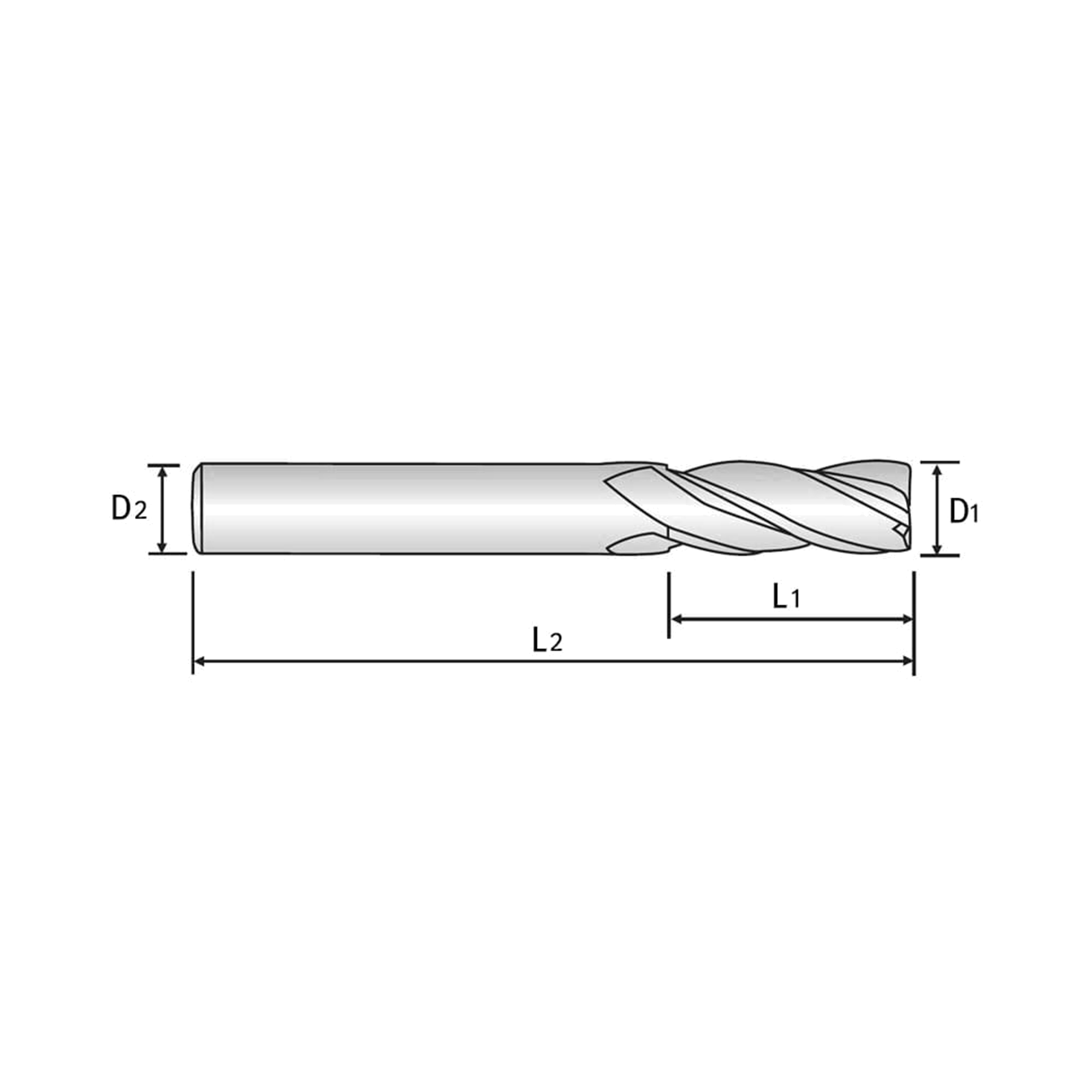

SKU	Mill Diameter (mm)	Chamfer (mm)	Overall length (mm)	Shank dia. (mm)	Length of cut (mm)	Stock	Price
G9G46030	3	0.1	36.0	6.0	5.0	1-2 Weeks	$27.10
G9G46040	4	0.1	38.0	6.0	7.0	1-2 Weeks	$27.10
G9G46060	6	0.1	39.0	6.0	8.0	1-2 Weeks	$27.10
G9G46100	10	0.13	50.0	10.0	13.0	1-2 Weeks	$59.00
G9G46120	12	0.18	55.0	12.0	15.0	1-2 Weeks	$70.10
G9G46140	14	0.18	58.0	14.0	15.0	1-2 Weeks	$104.00
G9G46160	16	0.18	62.0	16.0	18.0	1-2 Weeks	$122.70
G9G46200	20	0.23	75.0	20.0	22.0	1-2 Weeks	$199.30

Add (G9G46) K-2 Carbide, 3Flute End Mill, Throw Away with Chamfer to comparison

View Comparison

Overview
Specifications
Speeds & Feeds
Reviews

Application

Product Description

YG-1 G9G46 K-2 Carbide 3 Flute End Mill is a TiAlN-coated solid carbide cutter with a 45° chamfer. Its three-flute geometry combines characteristics associated with two-flute and four-flute end mills for general milling. The series suits dry milling applications at high temperatures, providing a practical solution for demanding machining. A flat shank supports secure toolholding, while the short throw-away format keeps the tool compact.

Its 30° helix and enforced cutting edge complement the compact, high-performance end mill design. Available diameters span 3 to 20 mm, with chamfer dimensions from 0.10 to 0.23 mm. Select it for operations requiring a chamfer-prepared edge and three-flute carbide milling configuration.

TiAlN-coated solid carbide construction
Three flutes with 30° helix
45° chamfered cutting edge
Short throw-away design with flat shank
3 to 20 mm mill diameter range
Suitable for dry milling at high temperatures

Product Data

No specifications available.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

ISO	VDI 3323	Material Description	Ae	Ap	Parameter	Diameter (Ø)
ISO	VDI 3323	Material Description	Ae	Ap	Parameter	1.0	1.5	2.0	3.0	4.0	5.0	6.0	8.0	10.0	12.0	14.0	16.0	20.0
P	1-4	Non-Alloy Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
	5		0.1D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55	55	60	65
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037	0.037	0.038	0.037
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459	1251	1194	875
					FEED	57	89	115	129	227	229	271	249	200	162	139	136	97
	6-7	Low-Alloy Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
	8-9		0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
	10	High-Alloyed Steel, and Tool Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
	11.1-11.2		0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
M	14.1	Stainless steel	0.1D	1.0D	Vc	25	35	35	35	40	40	45	45	45	45	45	45	45
					fz	0.002	0.004	0.006	0.009	0.018	0.024	0.03	0.042	0.045	0.045	0.044	0.048	0.048
					RPM	7958	7427	5570	3714	3183	2546	2387	1790	1432	1194	1023	895	716
					FEED	48	89	100	100	172	183	215	226	193	161	135	129	103
K	15-20	Grey cast iron Nodular cast iron Malleable cast iron	0.1D	1.5D	Vc	60	55	60	55	60	55	55	55	60	55	55	55	55
					fz	0.008	0.013	0.017	0.026	0.035	0.044	0.064	0.093	0.115	0.154	0.181	0.22	0.285
					RPM	19099	11671	9549	5836	4775	3501	2918	2188	1910	1459	1251	1094	875
					FEED	458	455	487	455	501	462	560	611	659	674	679	722	748
N	21~22	Aluminum-wrought alloy	0.1D	1.5D	Vc	140	130	140	145	140	145	145	145	145	140	145	145	140
					fz	0.006	0.01	0.016	0.021	0.031	0.037	0.048	0.064	0.08	0.098	0.111	0.129	0.167
					RPM	44563	27587	22282	15385	11141	9231	7692	5769	4615	3714	3297	2885	2228
					FEED	802	828	1070	969	1036	1025	1108	1108	1108	1092	1098	1116	1116
	23~25	Aluminum-cast,alloyed	0.1D	1.5D	Vc	140	130	140	145	140	145	145	145	145	140	145	145	140
					fz	0.006	0.01	0.016	0.021	0.031	0.037	0.048	0.064	0.08	0.098	0.111	0.129	0.167
					RPM	44563	27587	22282	15385	11141	9231	7692	5769	4615	3714	3297	2885	2228
					FEED	802	828	1070	969	1036	1025	1108	1108	1108	1092	1098	1116	1116
	26-28	Copper Alloys (Bronze / Brass)	0.1D	1.5D	Vc	80	95	105	105	110	105	105	110	105	105	105	110	105
					fz	0.006	0.011	0.016	0.023	0.029	0.037	0.048	0.063	0.081	0.096	0.115	0.125	0.162
					RPM	25465	20160	16711	11141	8754	6685	5570	4377	3342	2785	2387	2188	1671
					FEED	458	665	802	769	762	742	802	827	812	802	824	821	812
	29.1	Non Metallic Materials	1.0D	1.5D	Vc	80	95	105	105	110	105	105	110	105	105	105	110	105
					fz	0.006	0.011	0.016	0.023	0.029	0.037	0.048	0.063	0.081	0.096	0.115	0.125	0.162
					RPM	25465	20160	16711	11141	8754	6685	5570	4377	3342	2785	2387	2188	1671
					FEED	458	665	802	769	762	742	802	827	812	802	824	821	812
H	40	Chilled Cast Iron	0.1D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55	55	60	65
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037	0.037	0.038	0.037
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459	1251	1194	875
					FEED	57	89	115	129	227	229	271	249	200	162	139	136	97

Recommended parameters

Recommended cutting speeds and feeds
Parameter	Value	Unit
Spindle speed	–	rev/min
Feed rate	–	mm/min
Cutting speed (Vc)	–	m/min
Feed per tooth (Fz)	–	mm/tooth

Choose your options and calculate the recommended parameters.
