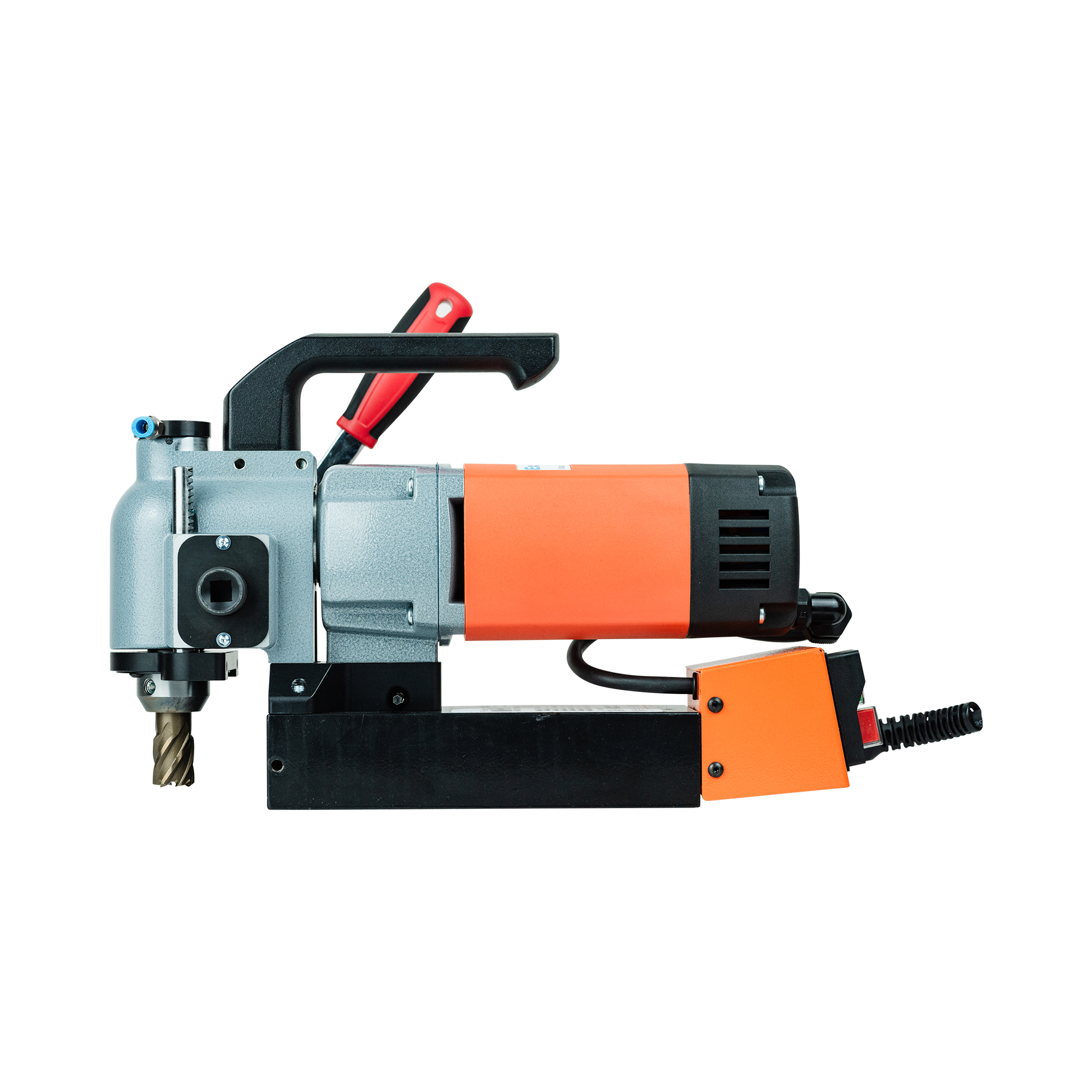

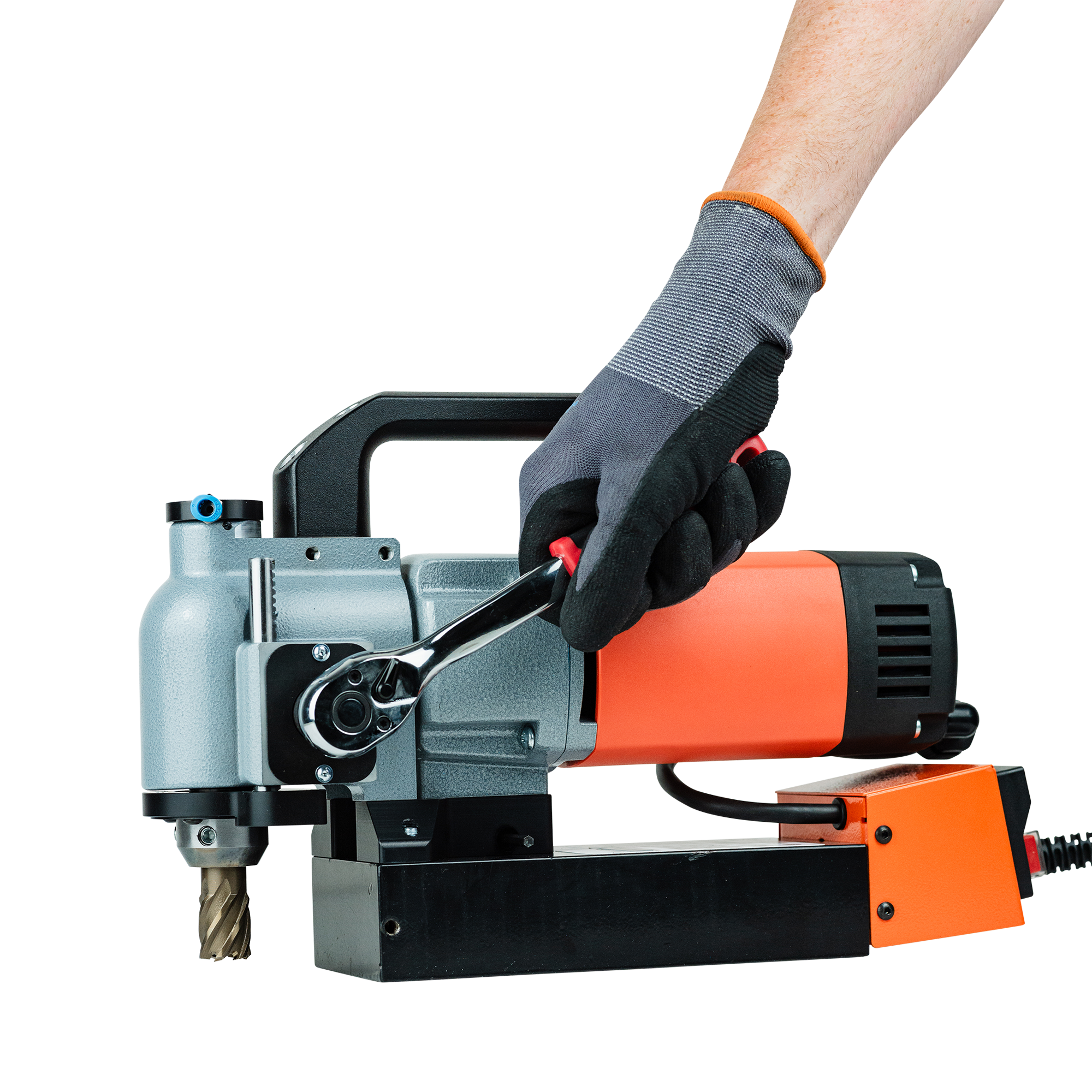

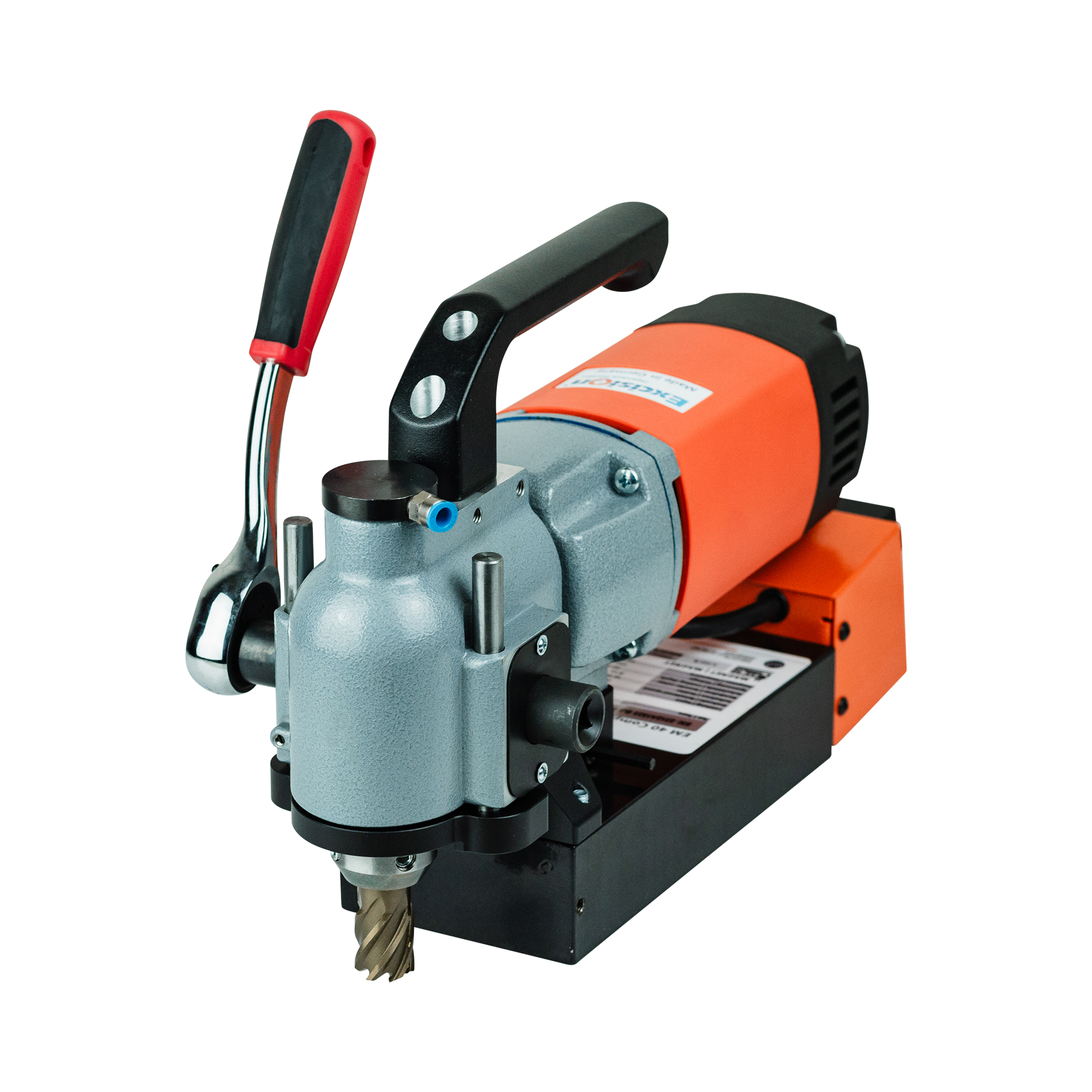

V40 Compact Magnetic Drill
Product Code: 18710
Shank Type: 19mm Weldon
Magnet Type: Electric

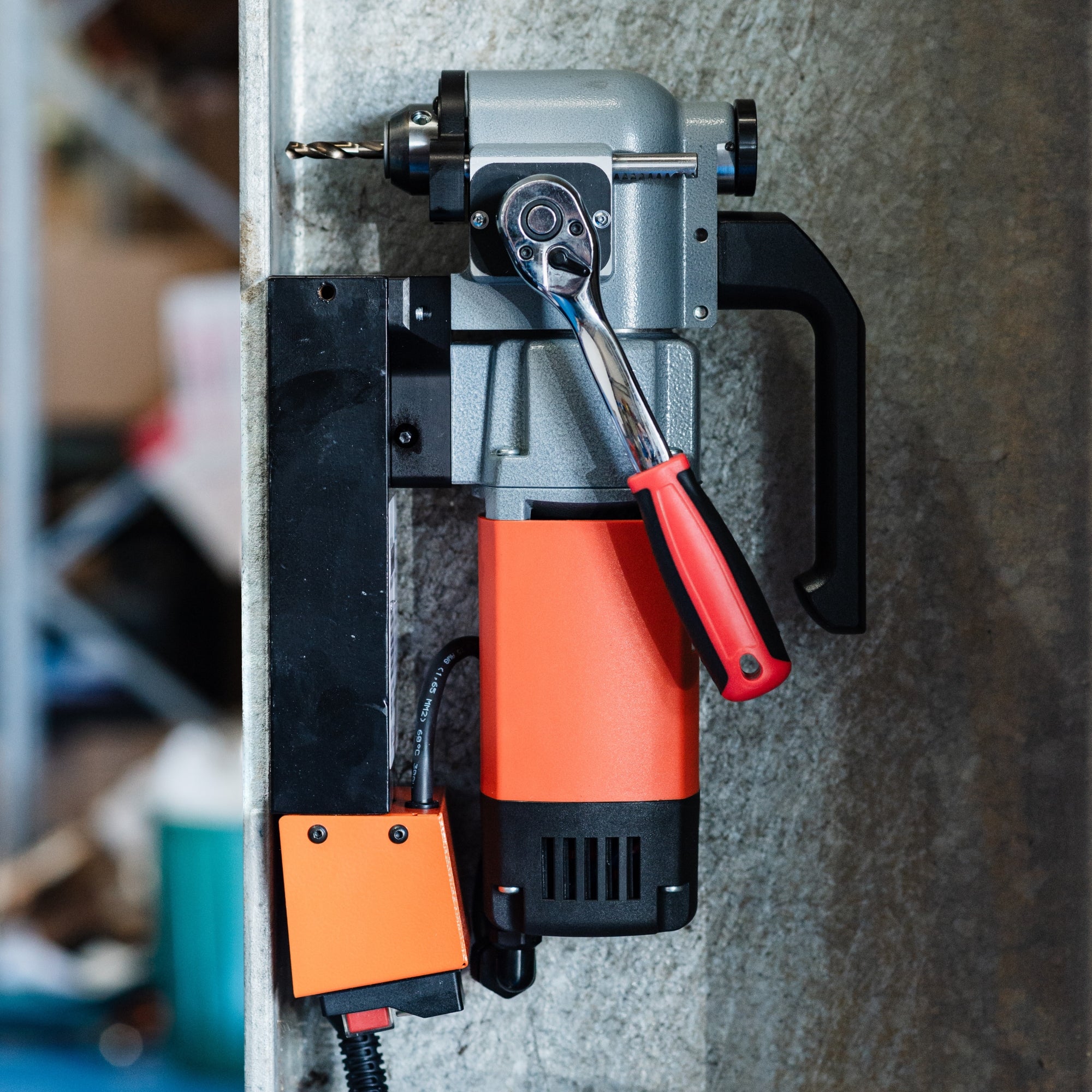

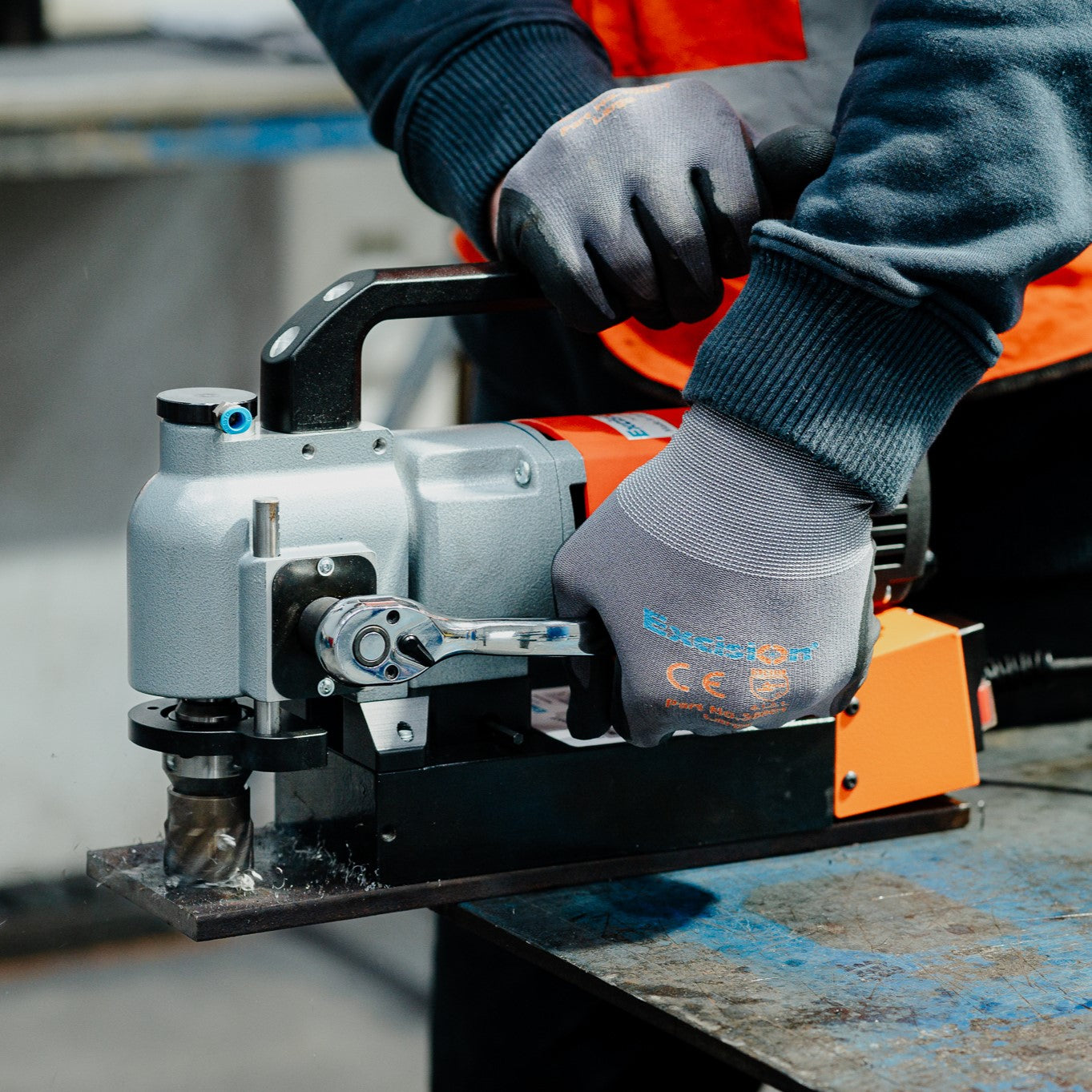

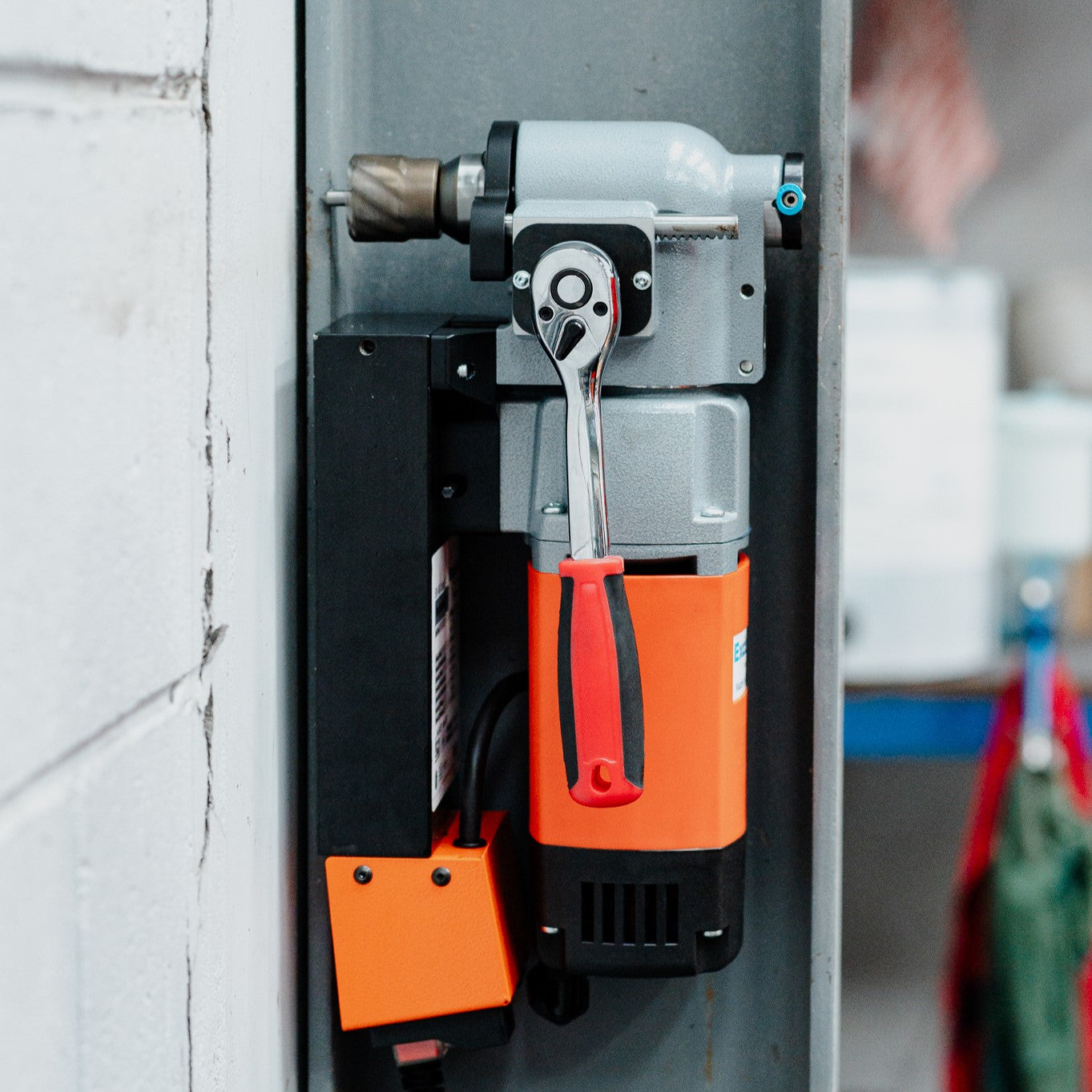

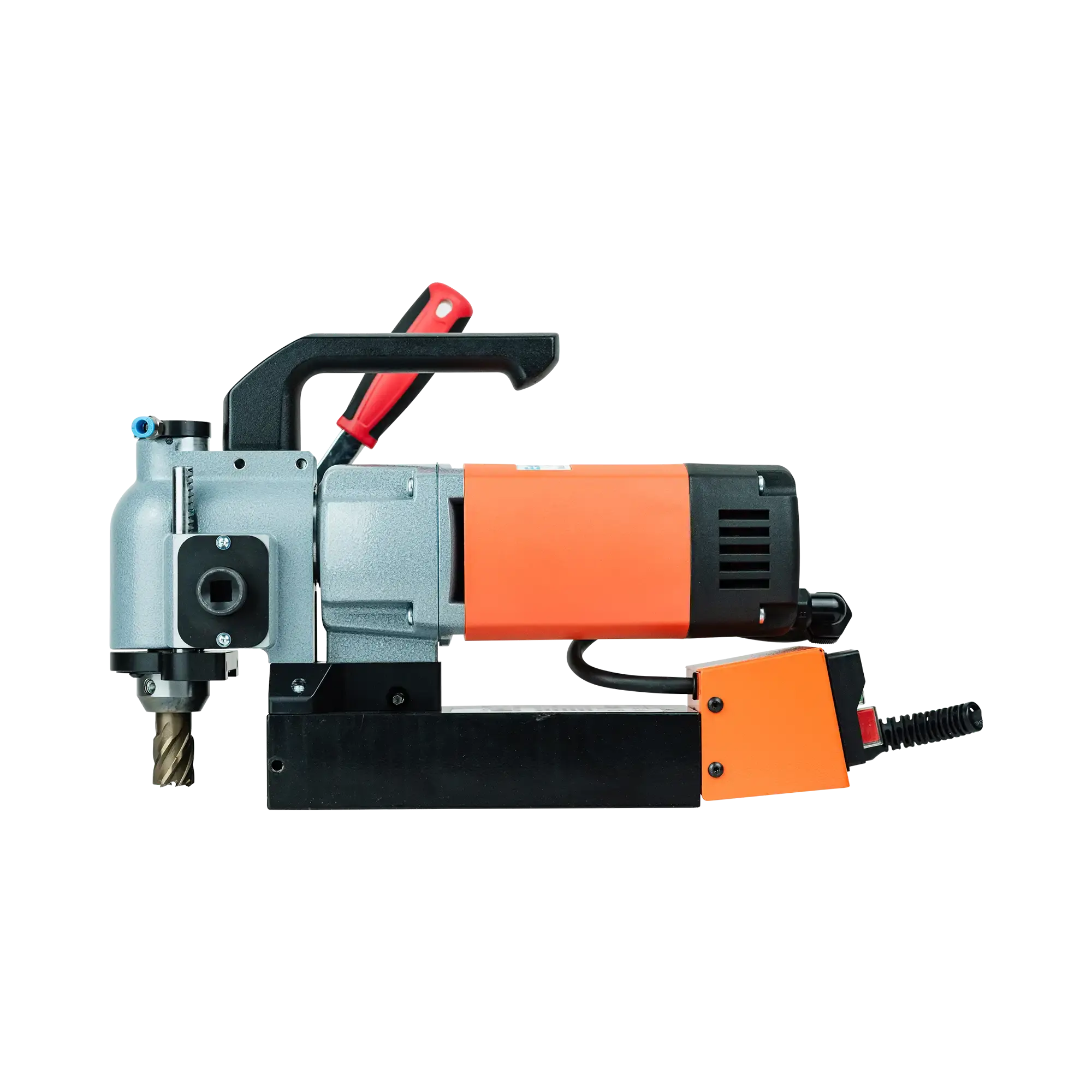

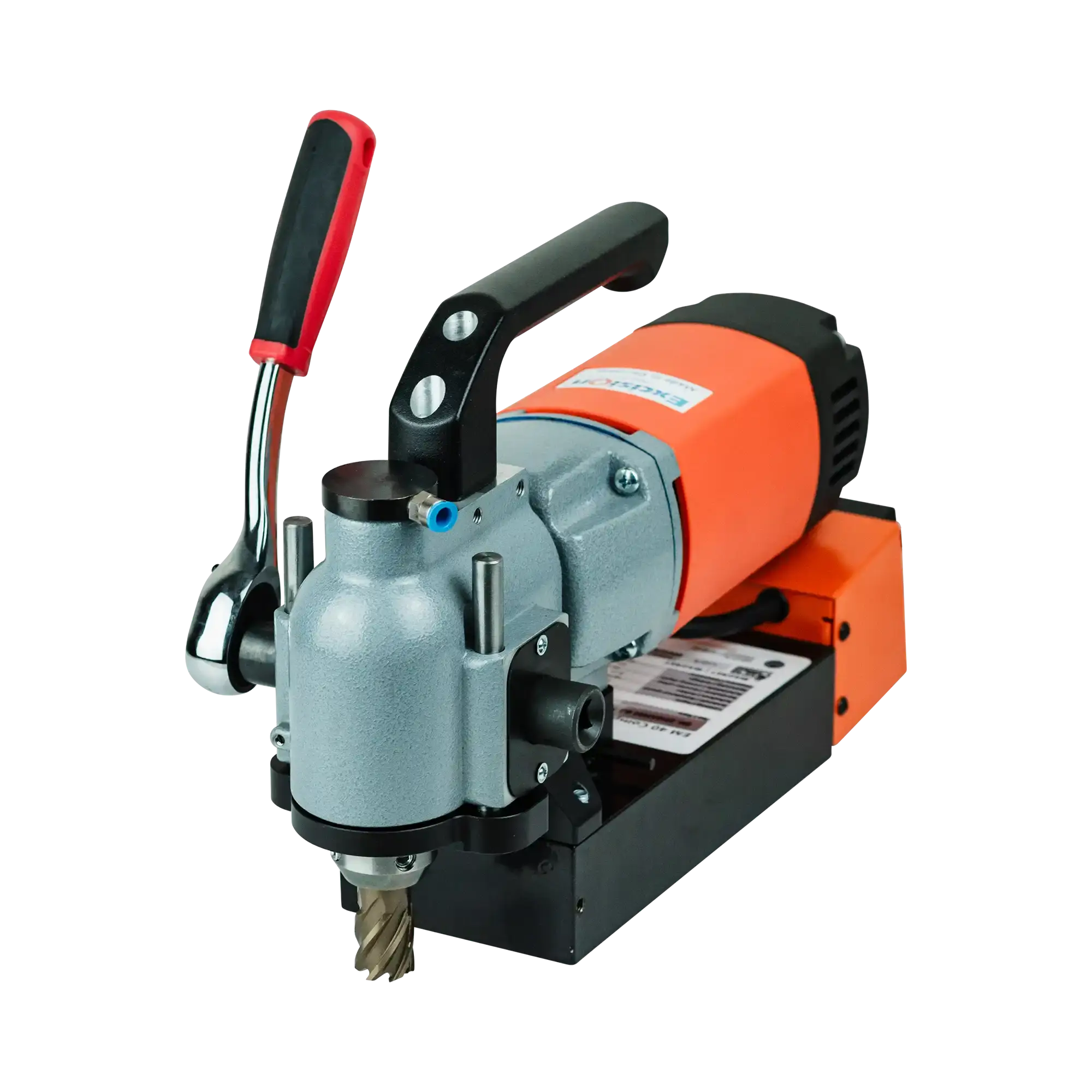

The V40 is an ultra-compact magnetic drill with a minimum height of just 185mm, making it ideal for drilling in tight spaces like inside beams. It uses standard core drills, eliminating the hassle of special bits, and features a versatile handle that can be mounted on either side for easy operation in awkward positions. With a powerful 16,000N magnet and a 19mm Weldon shank, the V40 is both small and mighty, ready to tackle tough jobs with precision.
- Minimum height of 185mm
- 2 coil 16,000N magnetic adhesion
- 19mm Weldon shank - takes standard 30mm depth cutters

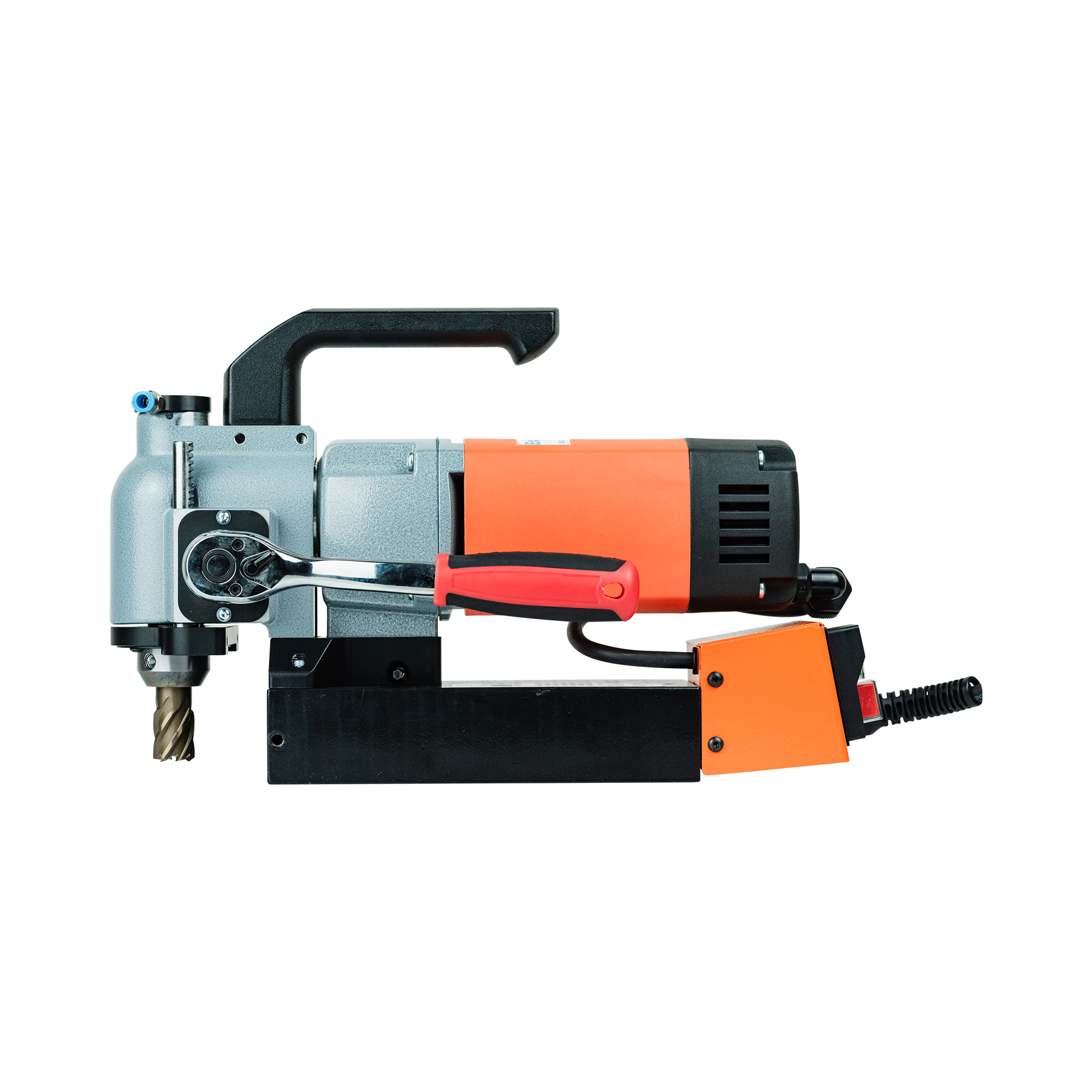

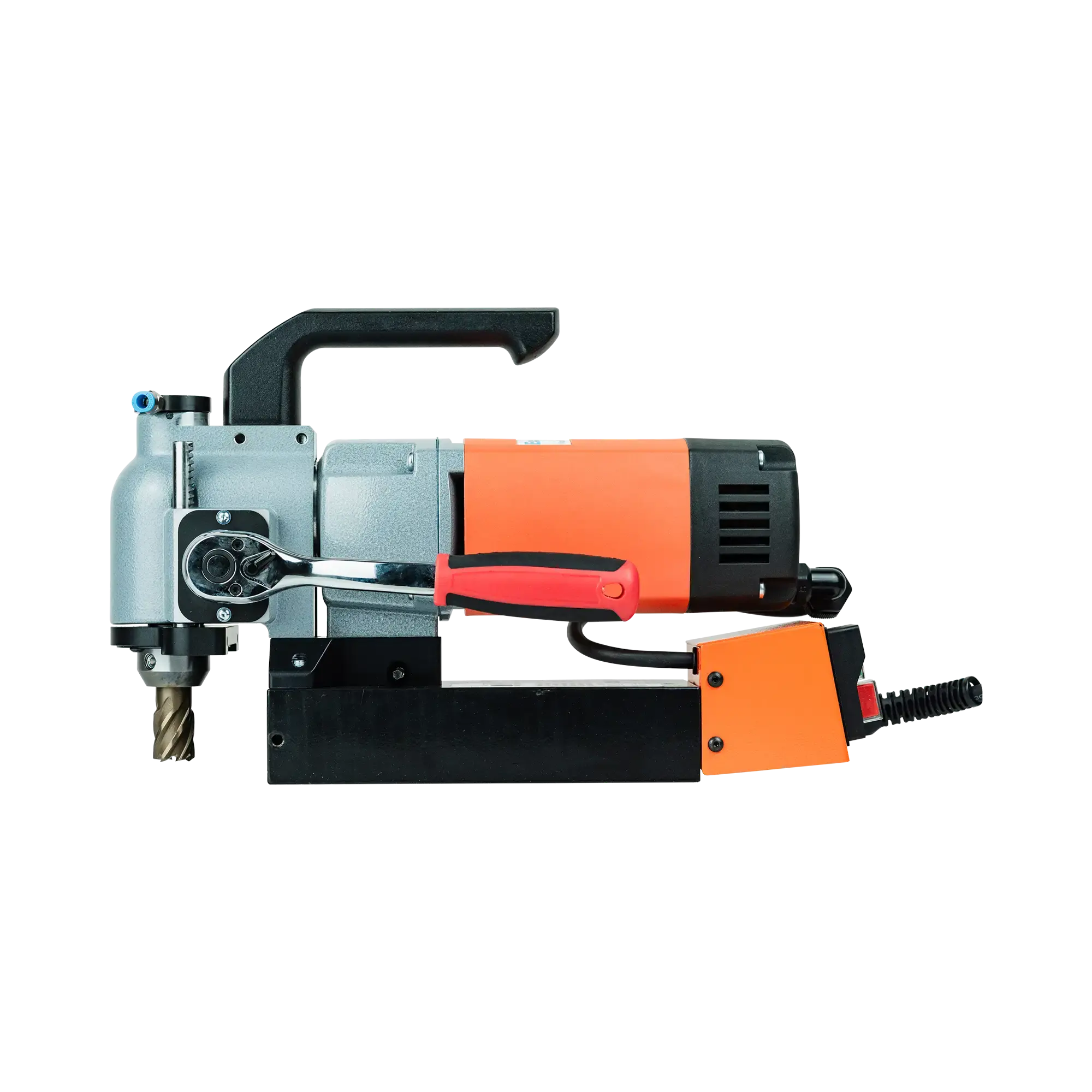

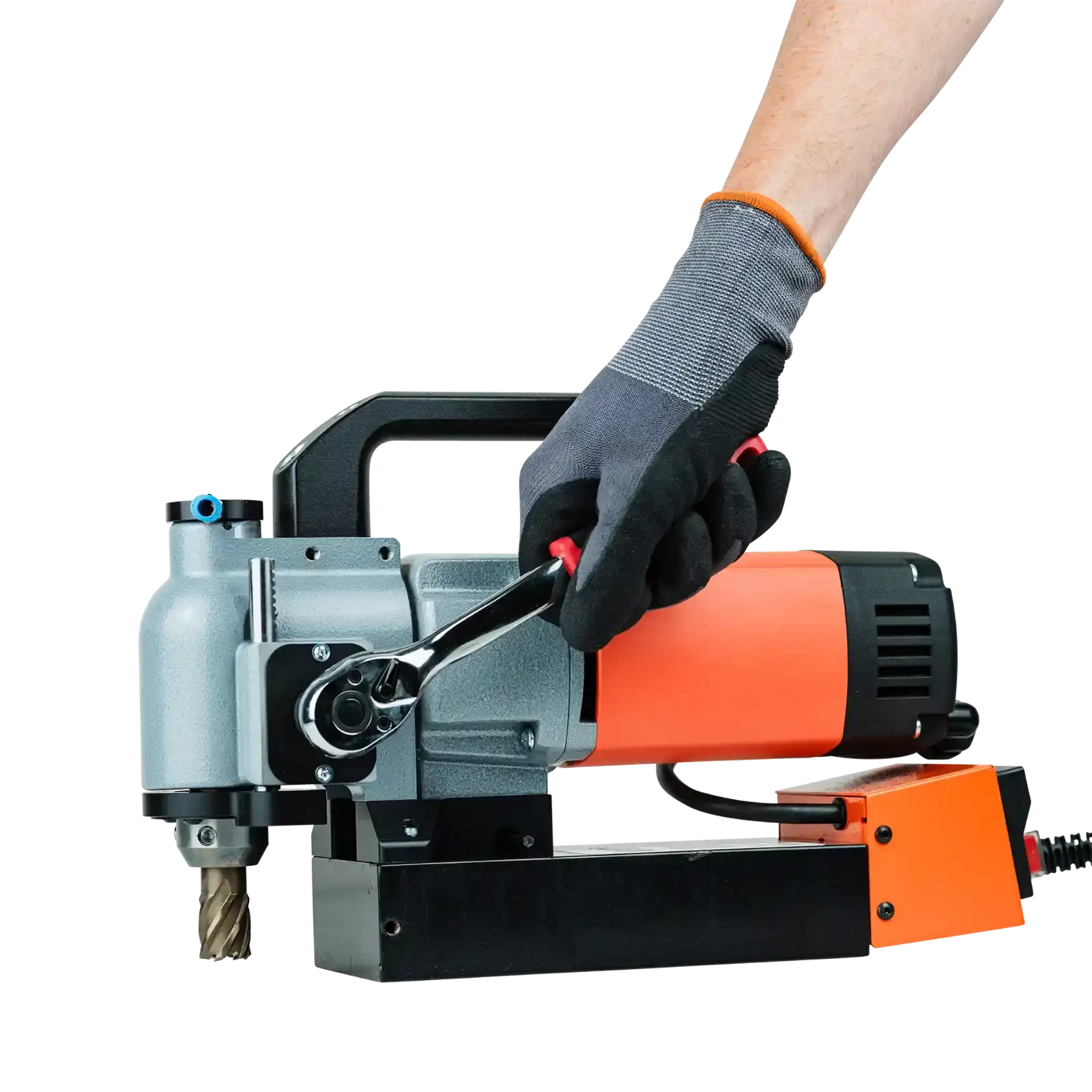

- Dual left & right hand side handle mounting

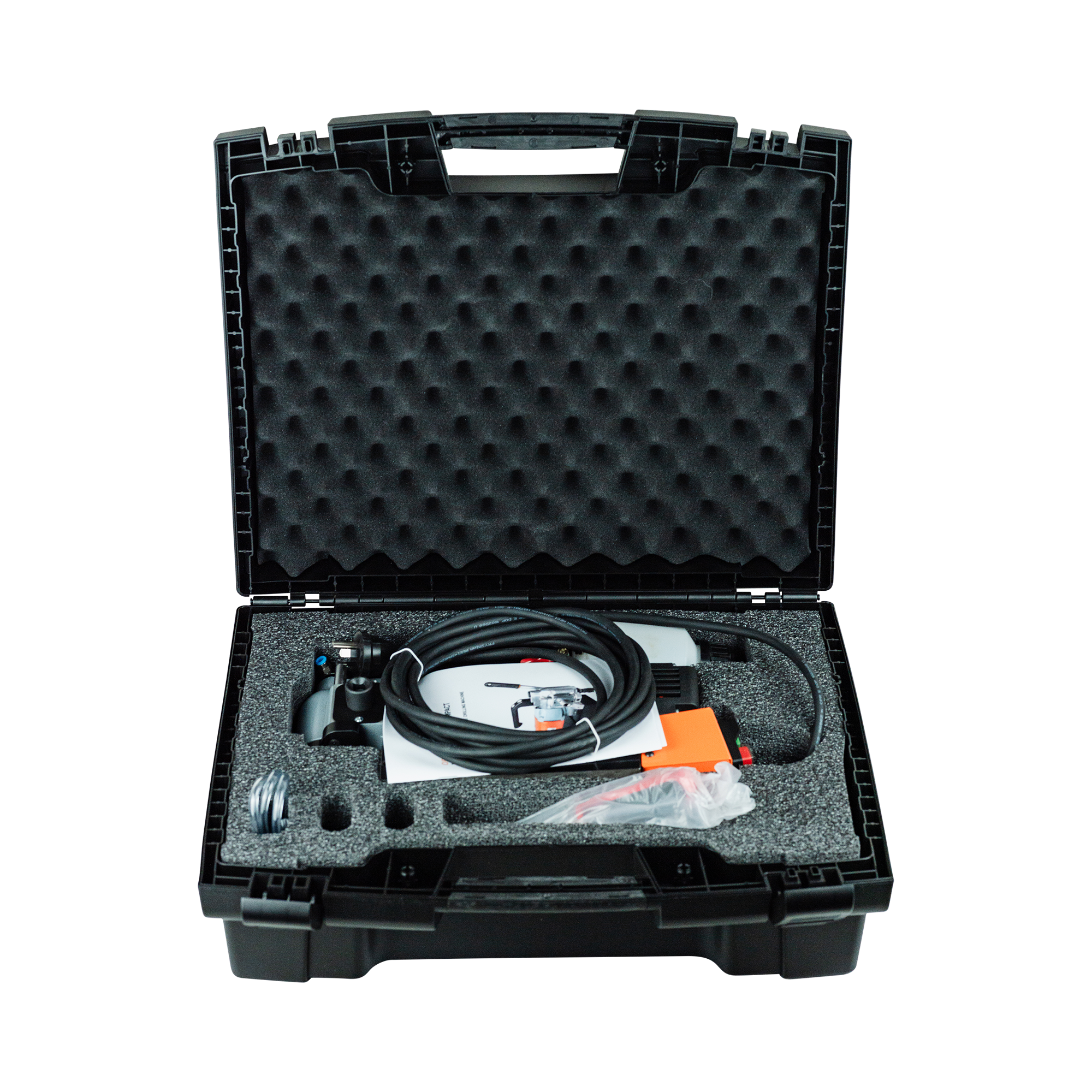

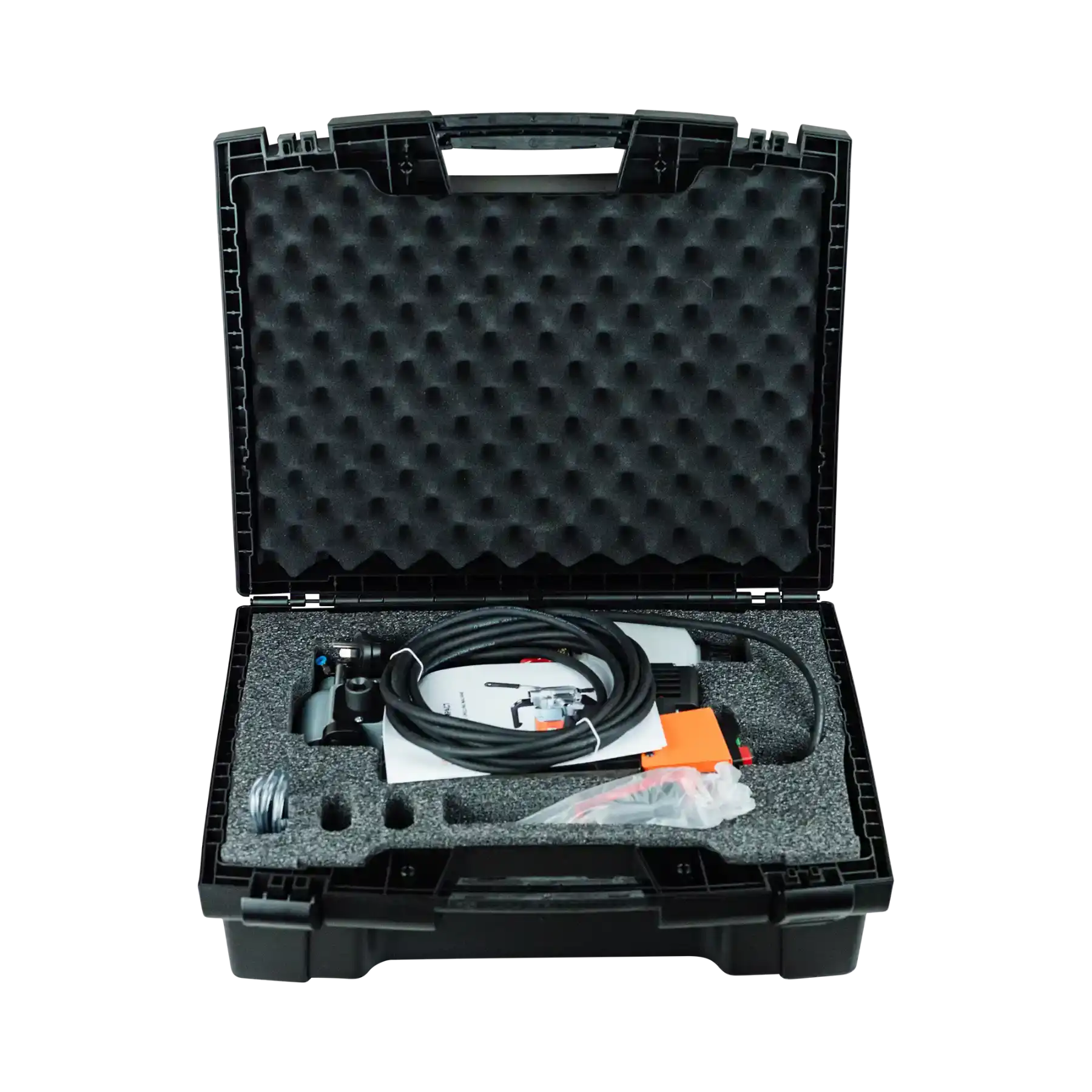

- Complete with 18mm cutter and pin
| Drill Features and Specifications | |
 |
|
| Core Drill Dimensions |
Ø 12.0 - 40.0 MM |
| Cutting Depth |
30 mm |
| Counter-Boring |
10.0-32.0mm |
| Arbors |
19mm Weldon Shank |
| Stroke |
45mm |
| 1-Speed Gearbox |
450rpm |
| Power Consumption |
900W |
| Voltage |
230V 50/60Hz |
| Magnet Holding Force |
22.000N |
| Tool Force (10mm)/Magnetic Adhesion Strength |
2,100N/16,000N |
| Magnetic Base |
95×200mm |
| Weight |
12.5Kg |
Product Data
| Adhesion Force | 16000 N |
| Core Drill Diameter | 40mm |
| Counter Boring Diameter | 32mm |
| Cutting Depth | 30mm |
| Gearbox Speed | 450 RPM |
| Magnet Type | Electric |
| Shank Type | 19mm Weldon |
| Stroke | 45mm |
| Twist Drill Diameter | 13mm |
| Weight | 12.5 kg |
Made in Germany
2 Year Warranty
