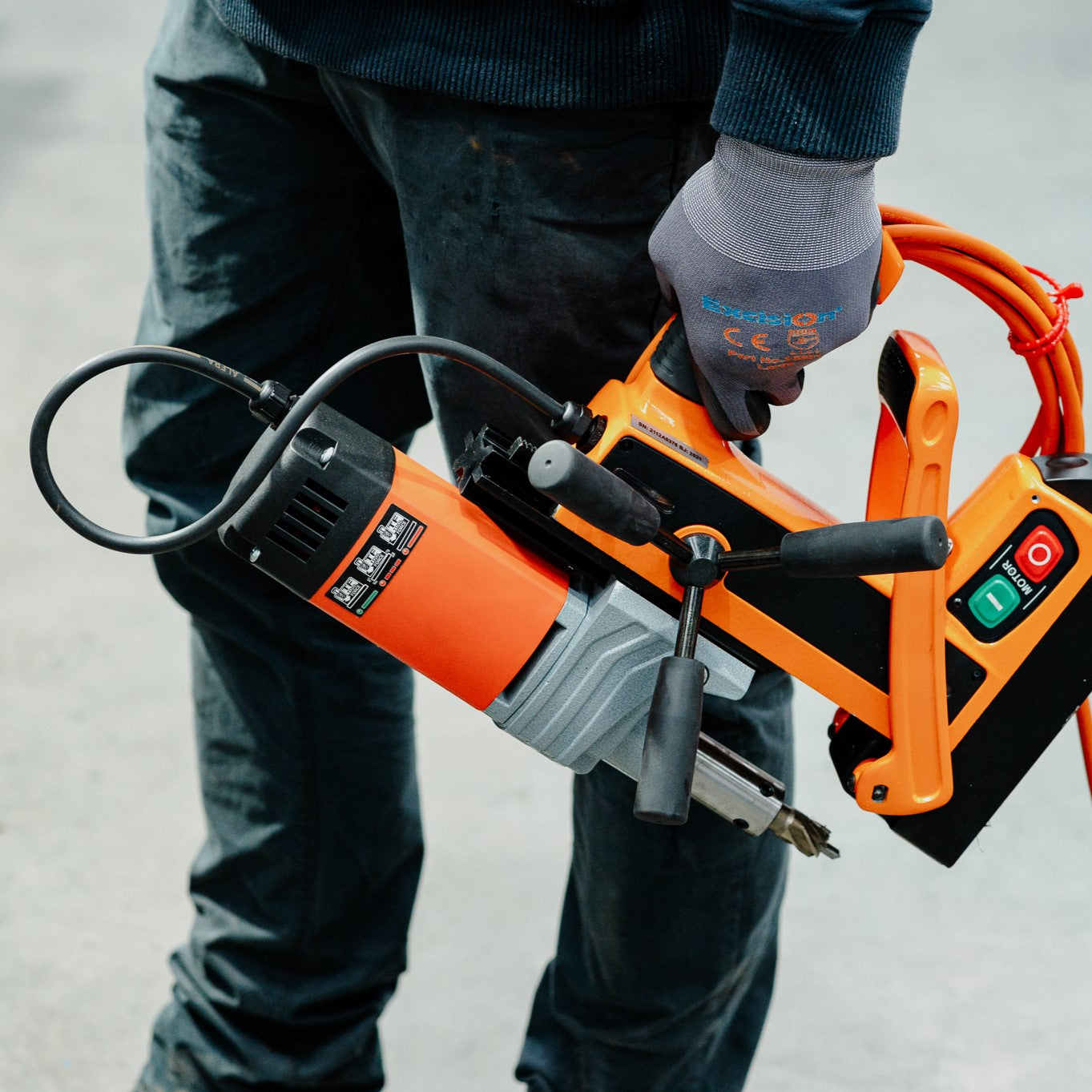

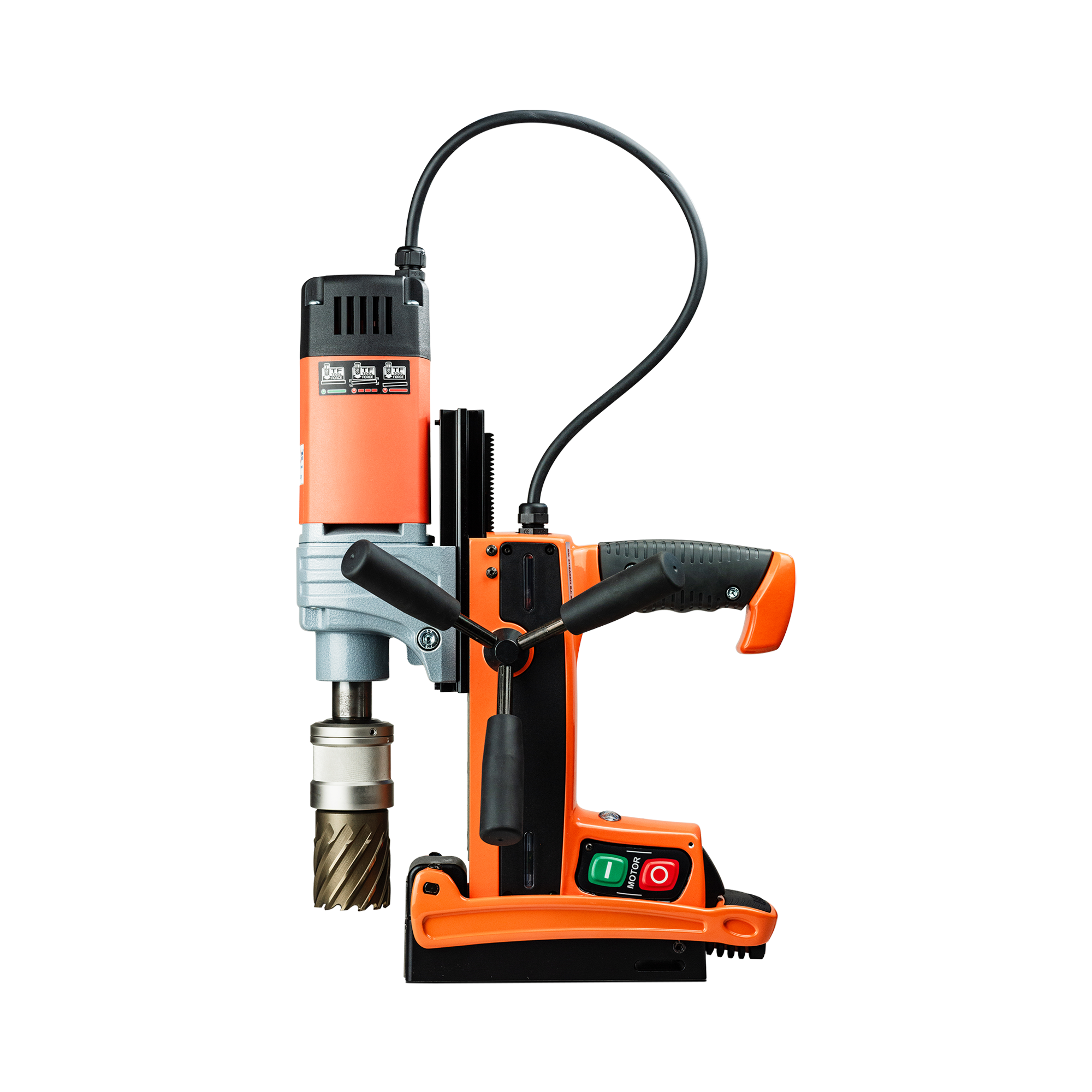

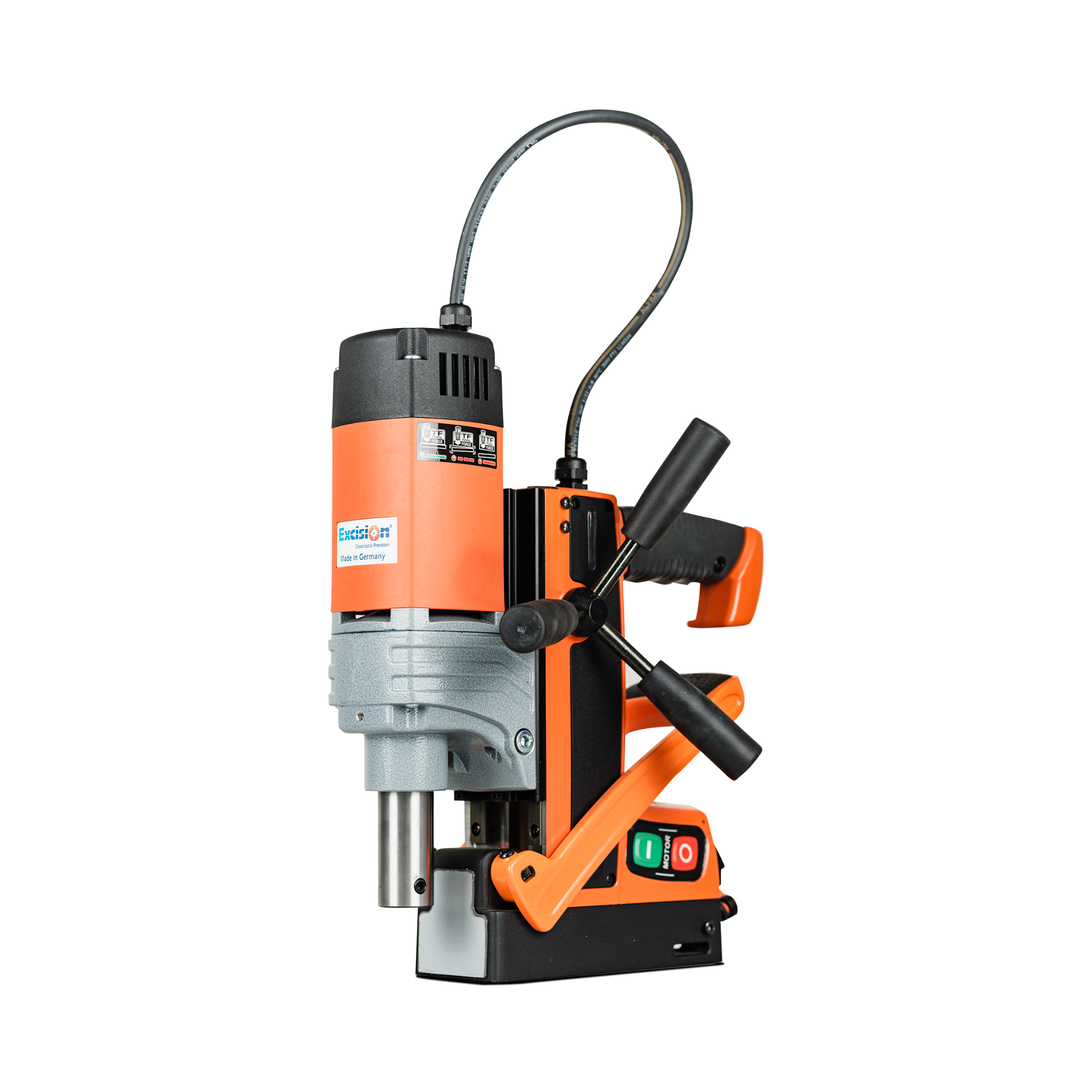

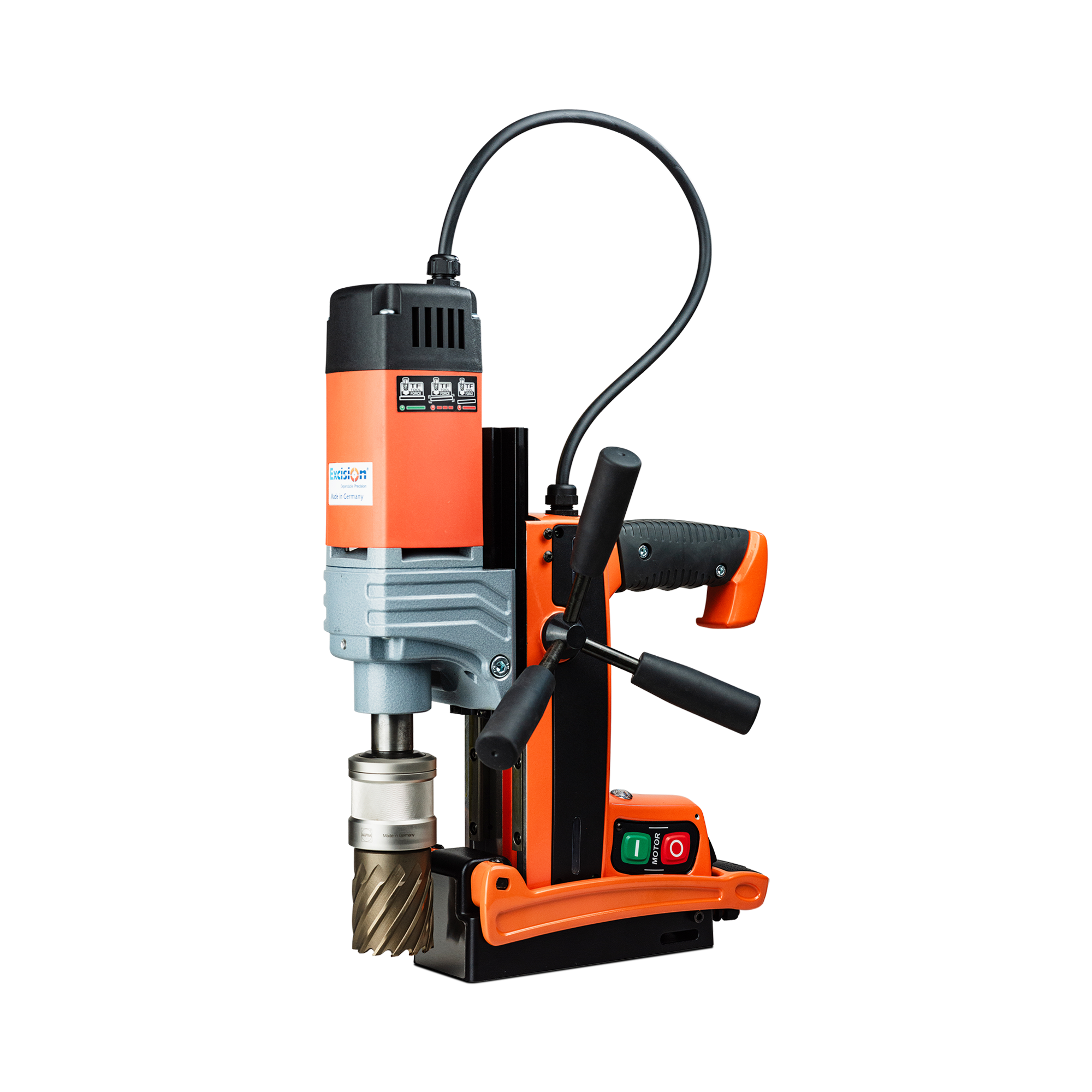

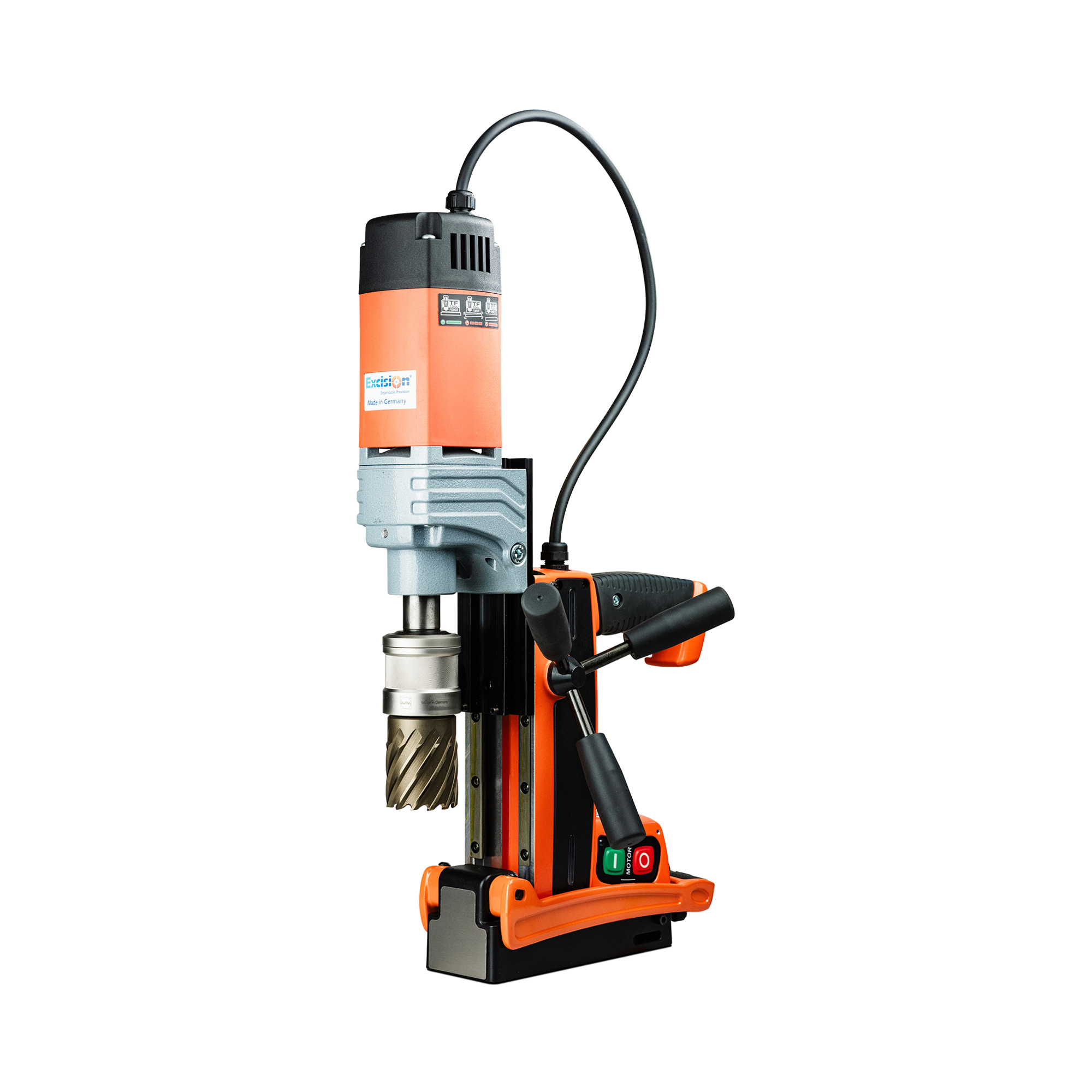

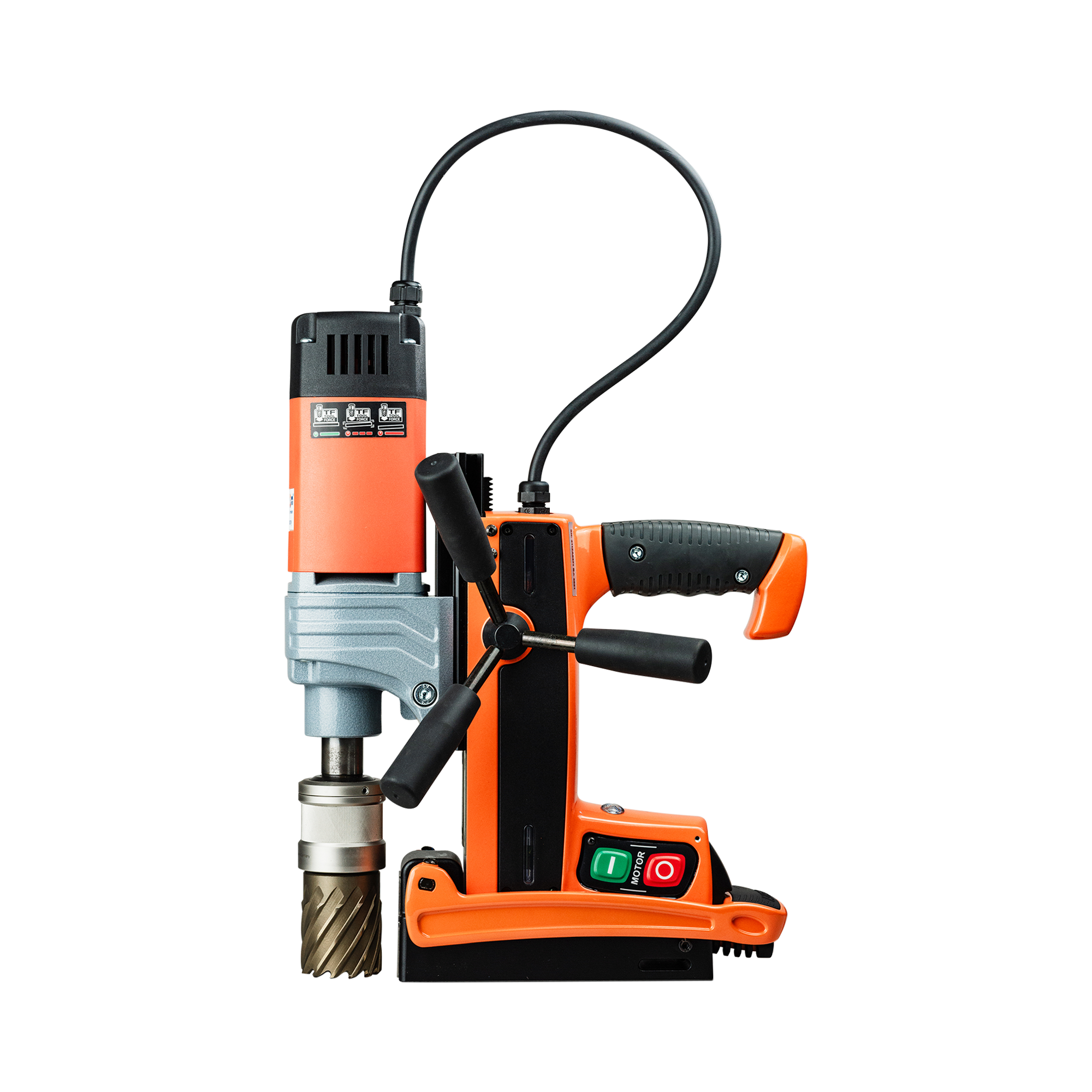

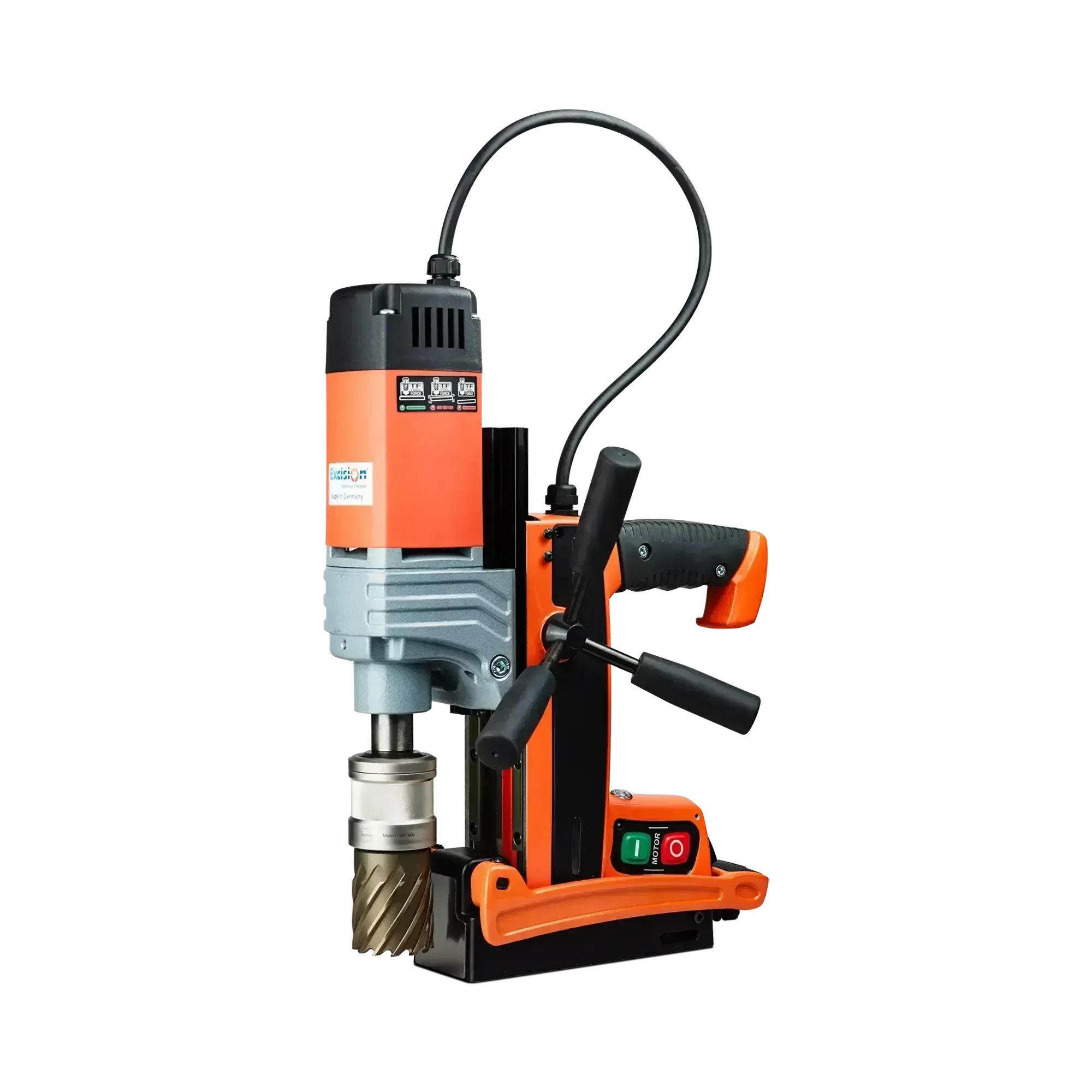

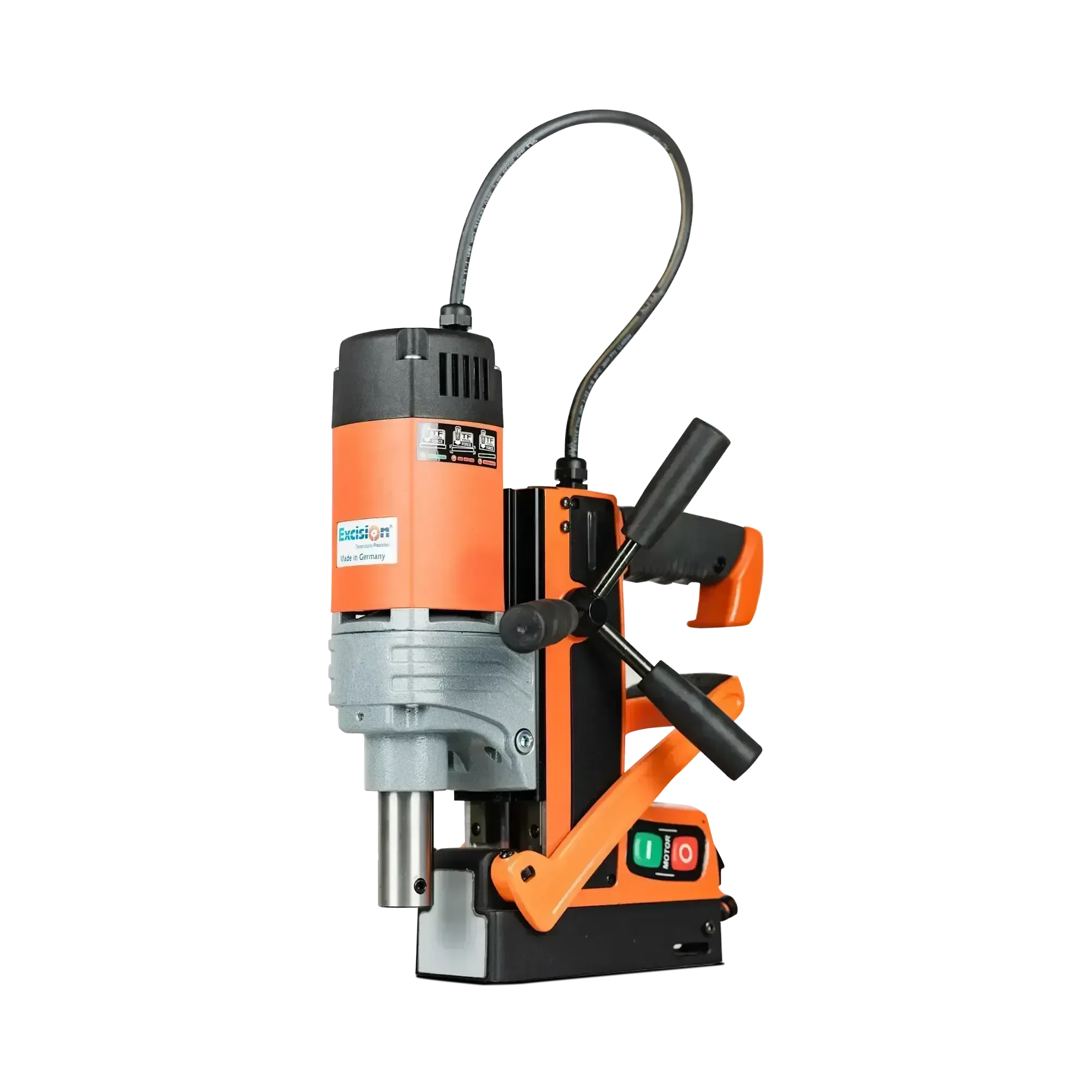

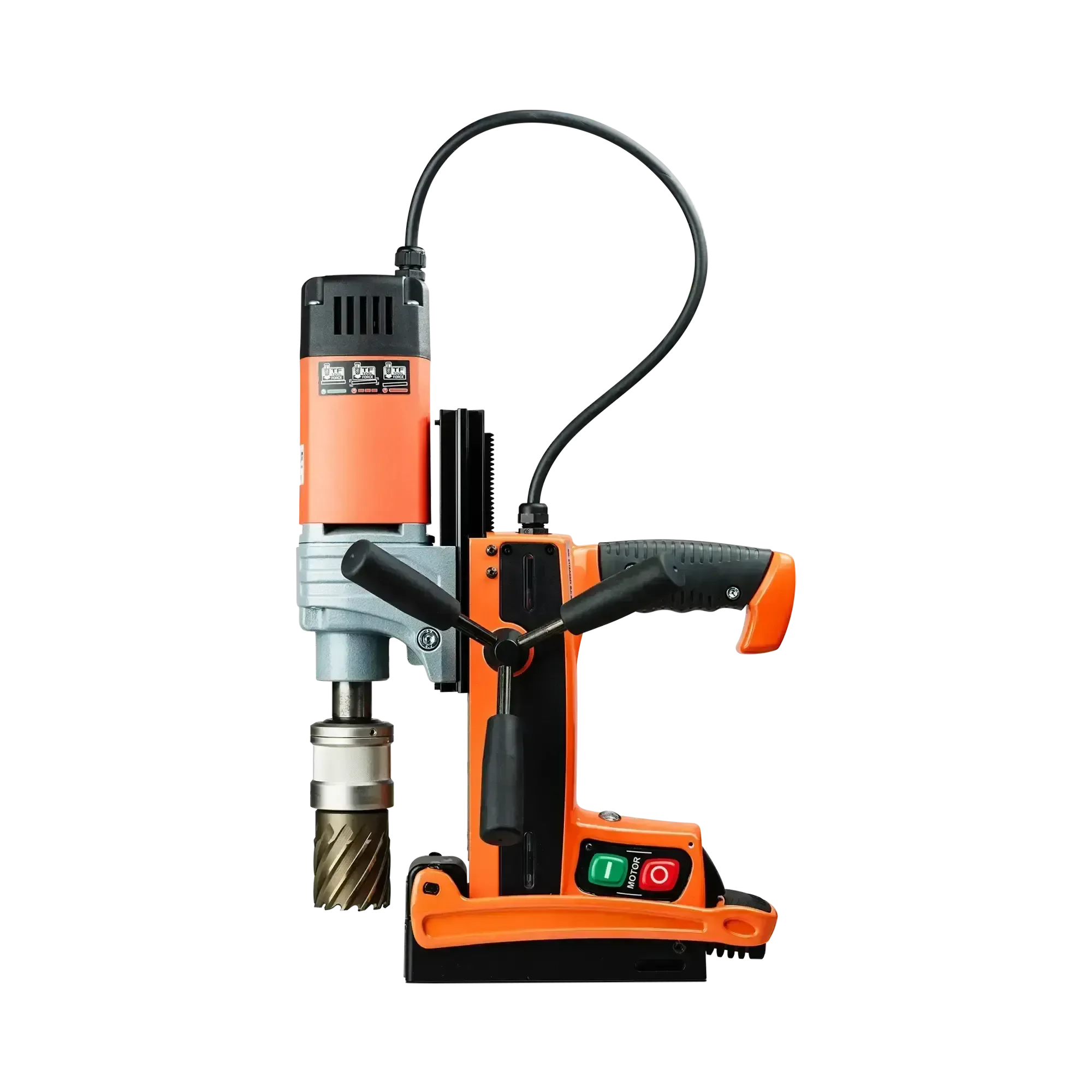

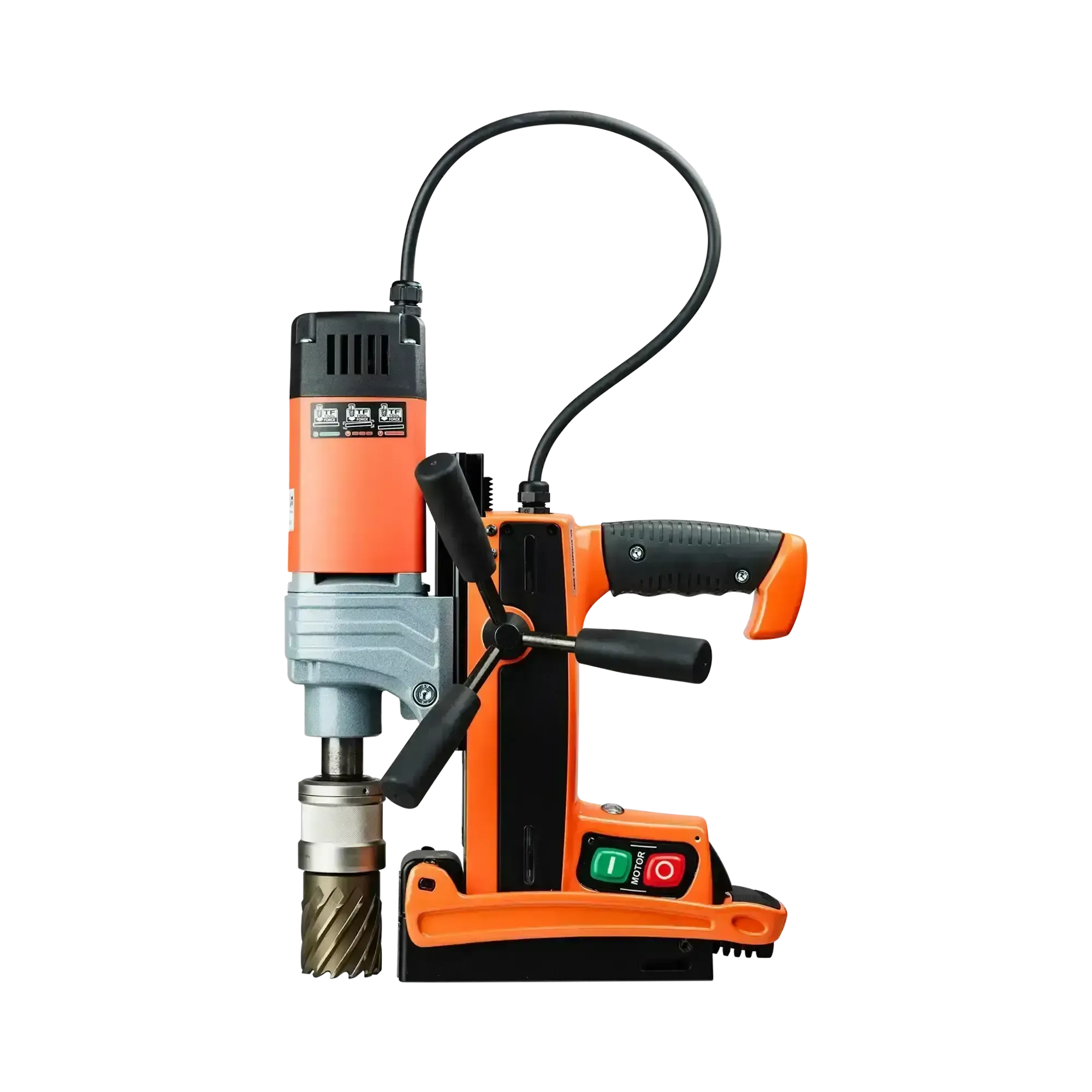

Magnex Drill 40
Product Code: 18801
Shank Type: 19mm Weldon
Magnet Type: Permanent
Magnex Drill 40 features a powerful permanent magnet, ideal for a wide range of steel with a minimum thickness of 1.6mm, that requires no power supply. It's also wonderfully lightweight and compact, fitting 19mm Weldon shanks, and has double dove-tailed height adjustment for drill chucks.
- Powerful permanent magnet - doesn't need a power supply
- Very light and compact at only 9.9kg
- Height adjustable slide enables an increased range of applications including standard twist drills
- Suits 19mm Weldon shanks
- Solid brass guides with spring loading for rigid gliding and no vibration
Specifications
| Drill Features and Specifications | |
 |
|
| Core Drill Dimensions | 12.0-40.0mm |
| Cutting Depth | 50.0mm |
| Twist Drill |
1.0-13.0mm |
| Counter-Boring |
10.0-40.0mm |
| Arbors |
19mm Weldon |
| Stroke |
105mm |
| Height Adjustment |
80mm |
| Gearbox-On-Load Speed |
450rpm |
| Power Consumption |
1,100W |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength |
2,800N/17,000N |
| Tool Force (6mm S235) |
2,300N |
| Magnetic Base |
72×190mm |
| Weight |
9.9Kg |
Product Data
| Adhesion Force | 17000 N |
| Core Drill Diameter | 40mm |
| Counter Boring Diameter | 40mm |
| Cutting Depth | 50mm |
| Ecom | Section |
| Gearbox Speed | 450 RPM |
| Height Adjustment | 80mm |
| Magnet Type | Permanent |
| Shank Type | 19mm Weldon |
| Stroke | 105mm |
| Twist Drill Diameter | 13mm |
| Weight | 9.9 kg |
Made in Germany
2 Year Warranty
Magnex Magnet for Thinner Drilling
Magnex 50 uses a powerful Magnex magnet that doesn't need a power supply to work. It adheres to sheets or beams as thin as 1.6mm.
Lightweight Design
Weighing only 11.5kg, the Magnex 50 is exceptionally light and compact for it's capabilities.
2 Speed Gearbox
Magnex 50 has a powerful 2 speed gearbox so you can drill different diameter holes with ease.
Add Magnex Drill 40 to comparison
View ComparisonCompact. Safe. Magnex.

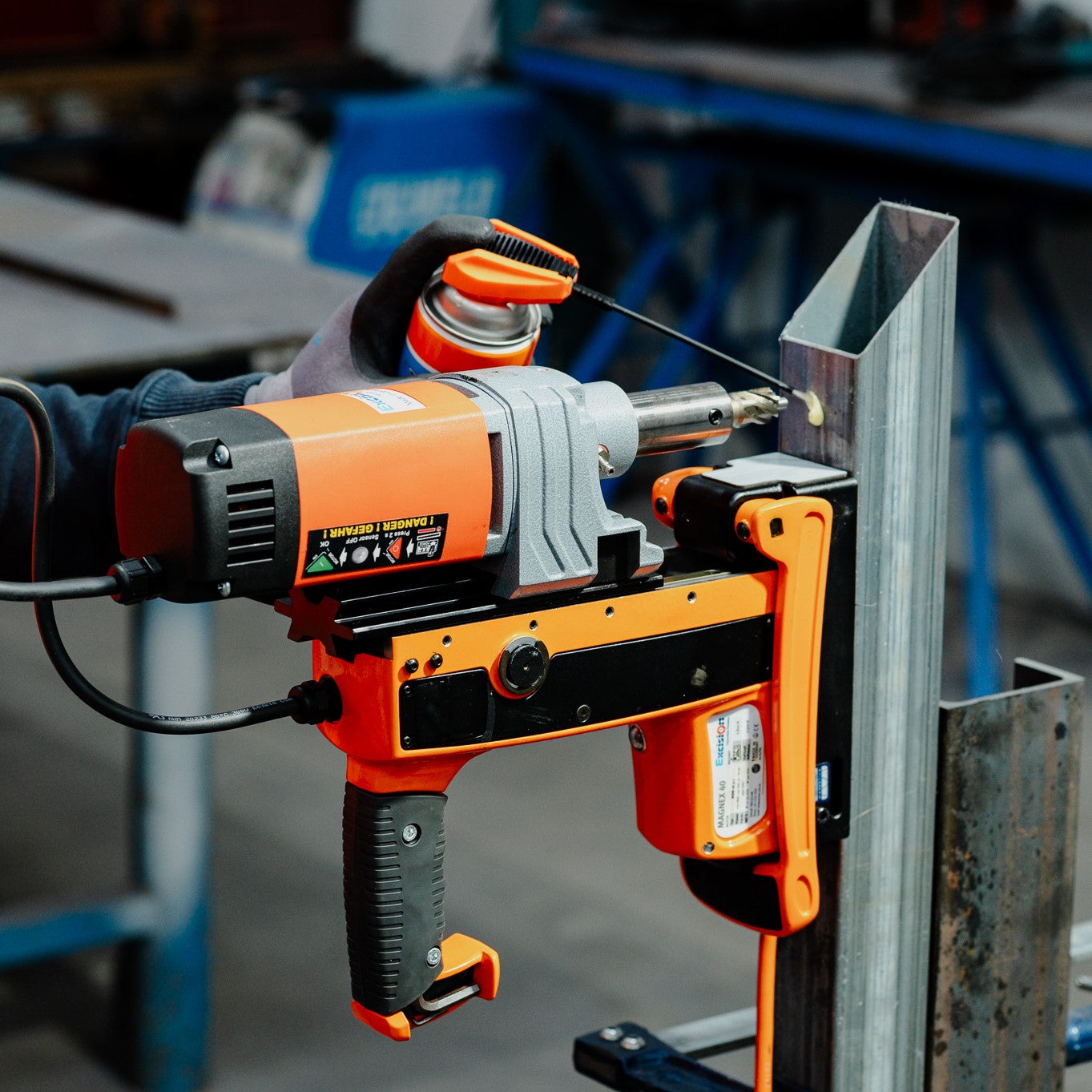

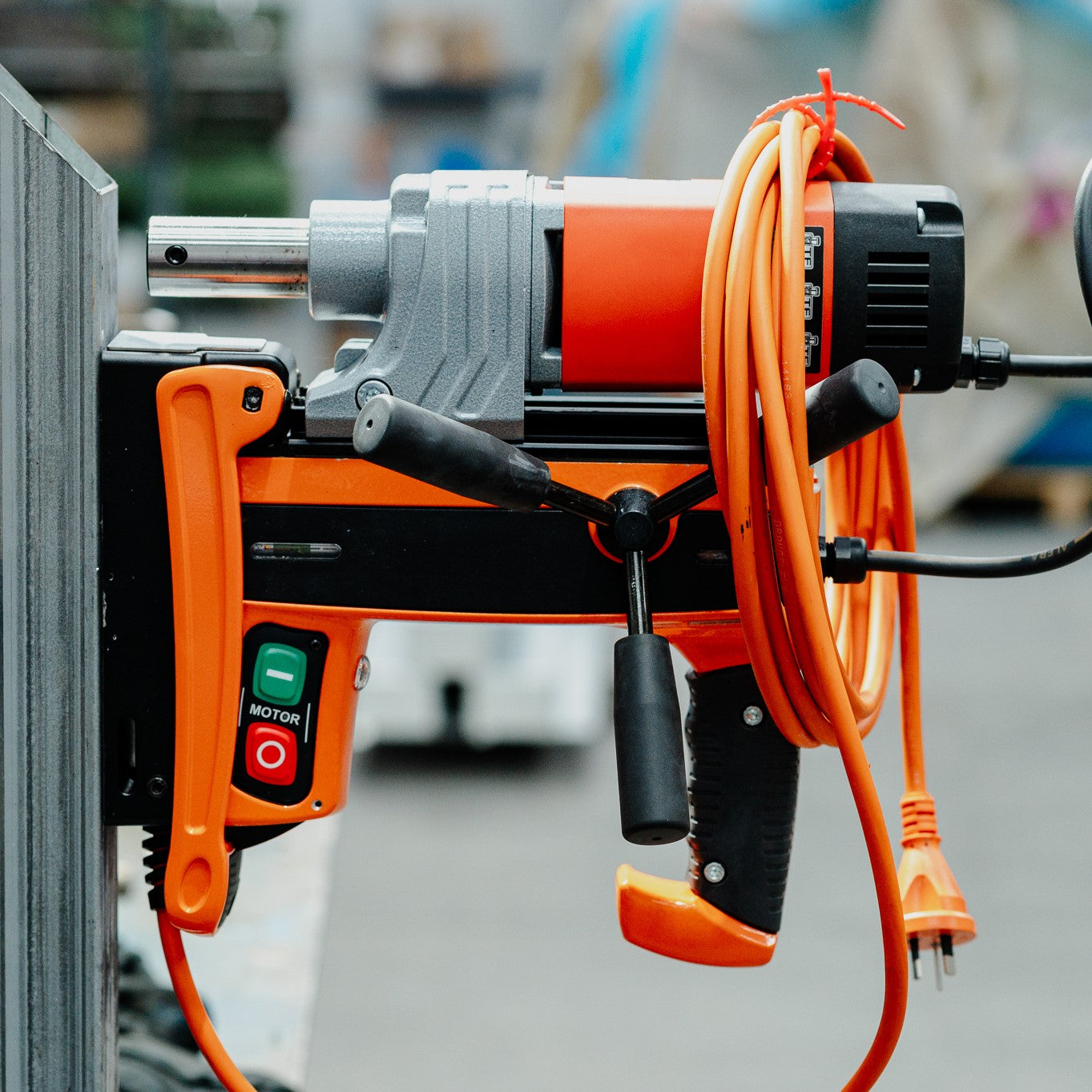

The Magnex 40 Drill is compact and safe with a permanent Magnex magnet for thin materials. Lightweight, ergonomic, and ready for precise drilling in tight spaces.
Magnex Magnet for Thinner Drilling
Magnex 40 uses a powerful Magnex magnet that doesn't need a power supply to work. It adheres to sheets or beams as thin as 1.6mm.

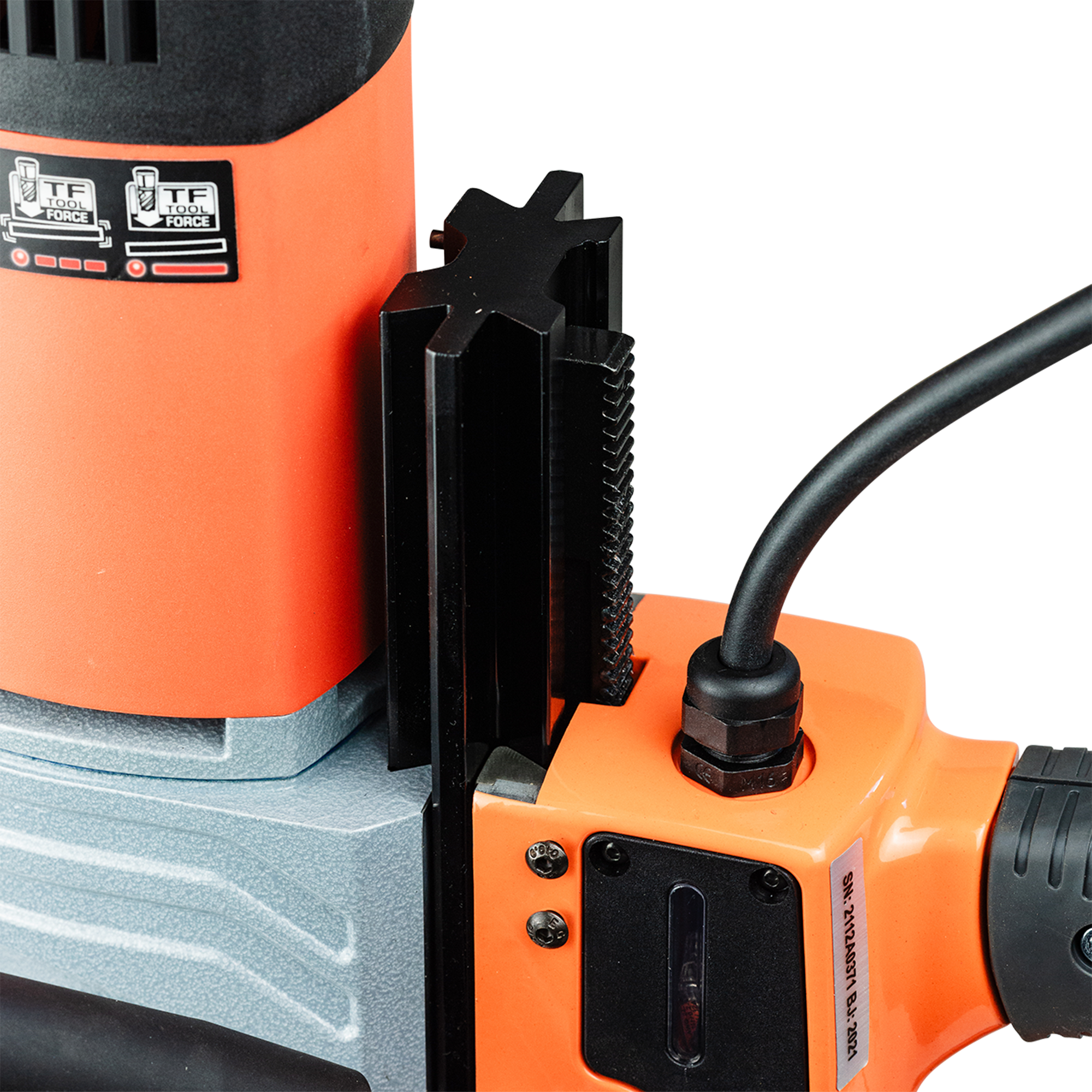

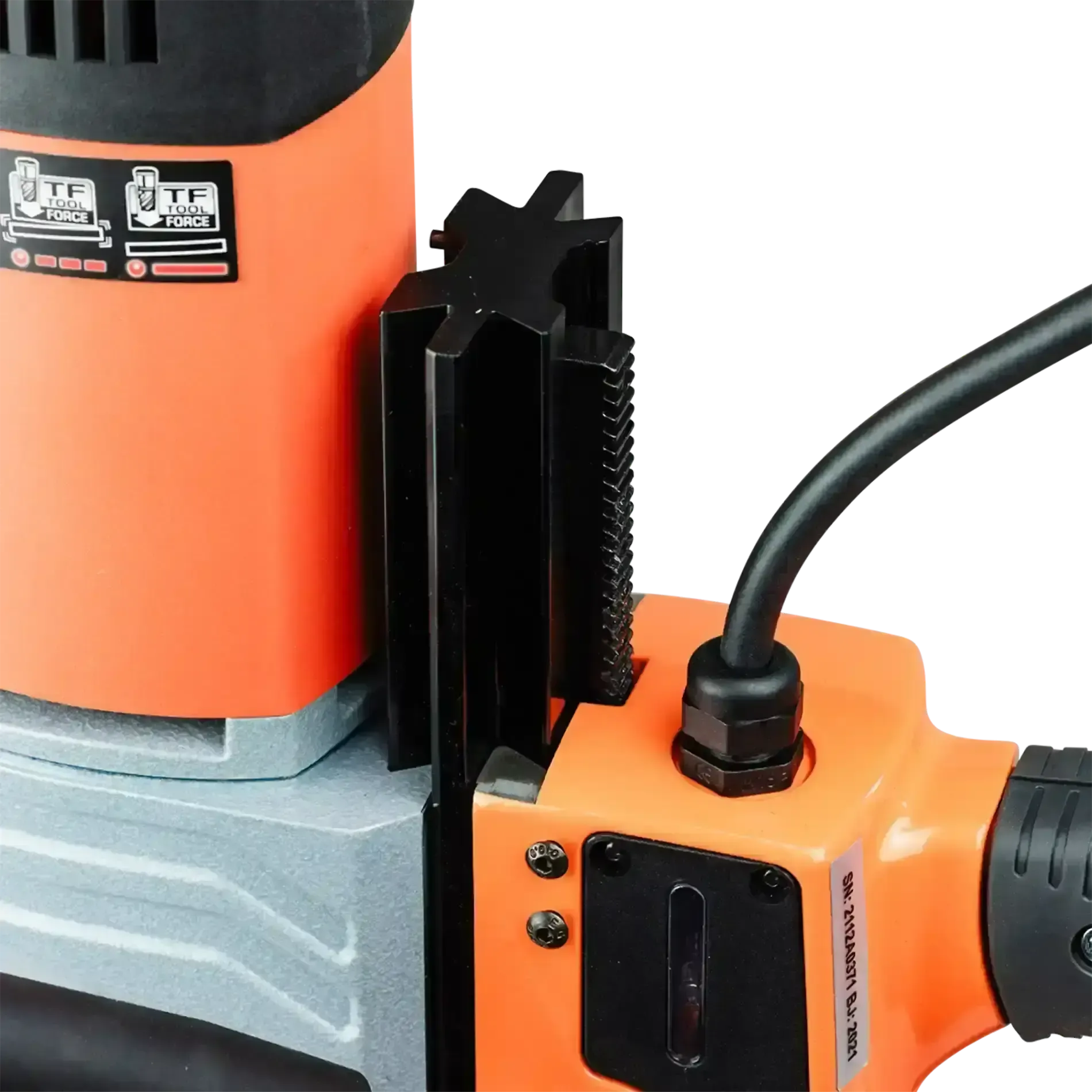

Extra Height for Drill Chucks
Magnex 40 features a double-dove-tailed design for extra height capacity so you can use a keyless drill chuck with ease.
Ergonomic Handle
The Magnex 40 is equipped with soft touch grips for comfortable use.
