Magnex Drill 50
Code: 18850
Made in Germany
2
2 Year Warranty
Add Magnex Drill 50 to comparison
View Comparison- Overview
- Reviews
Product Description

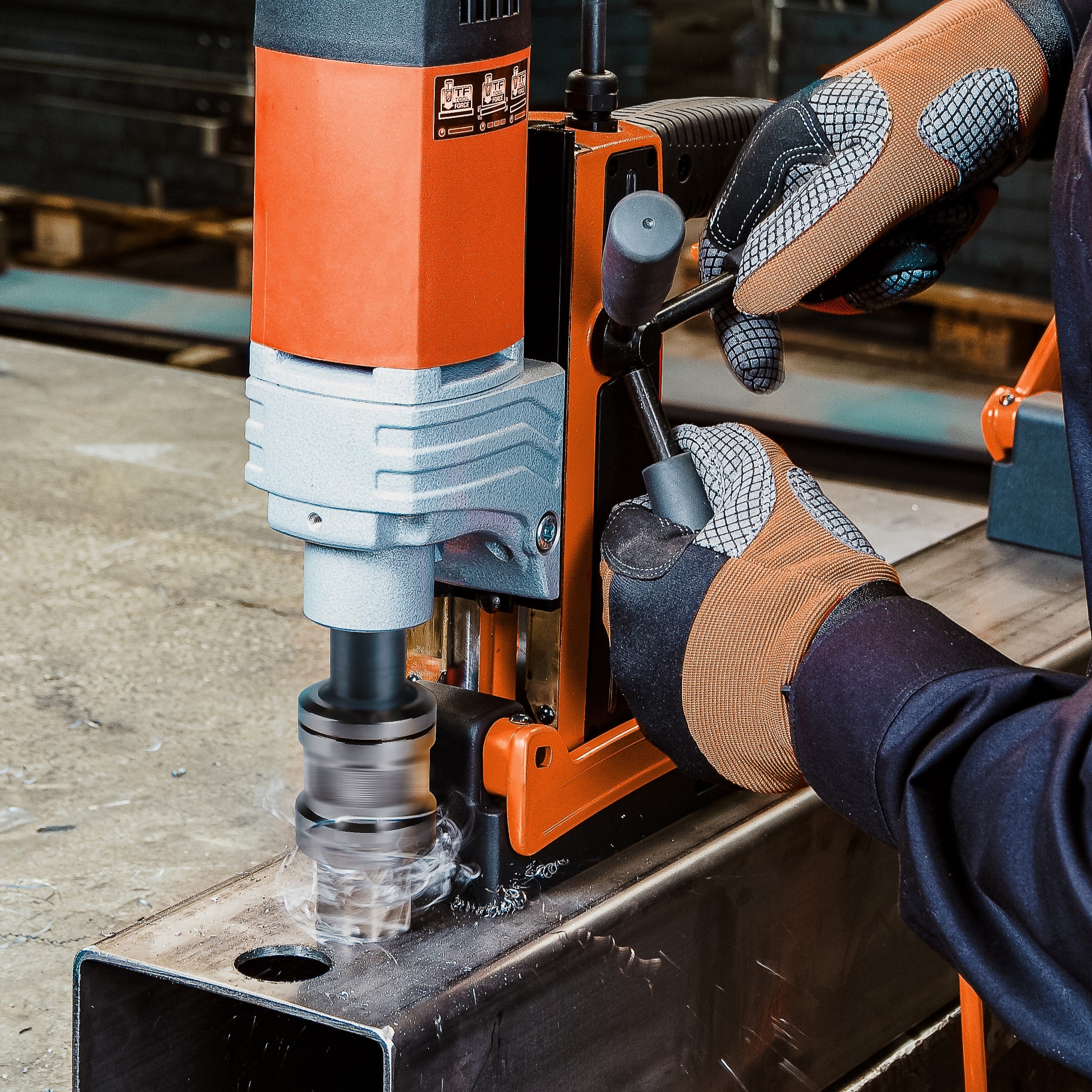

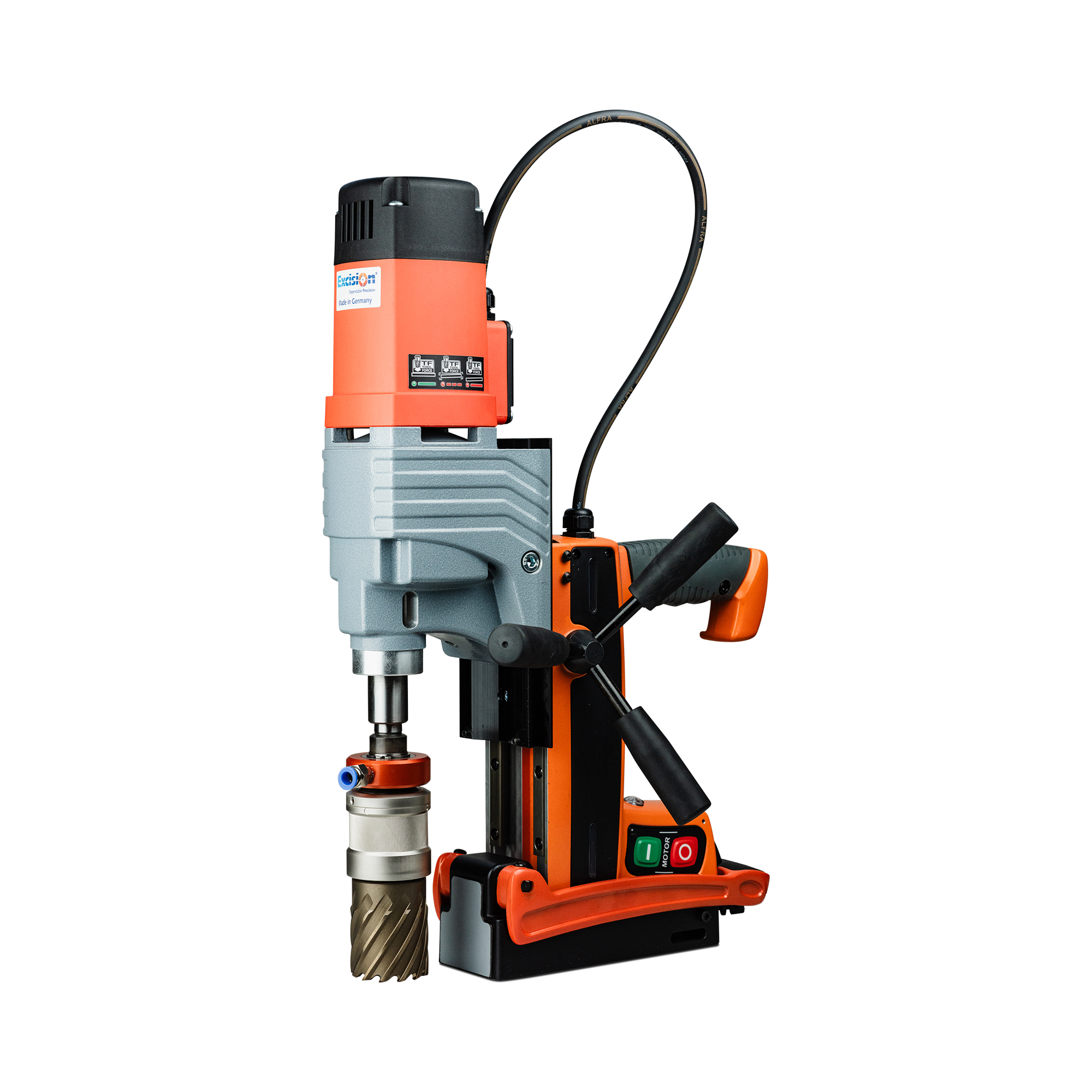

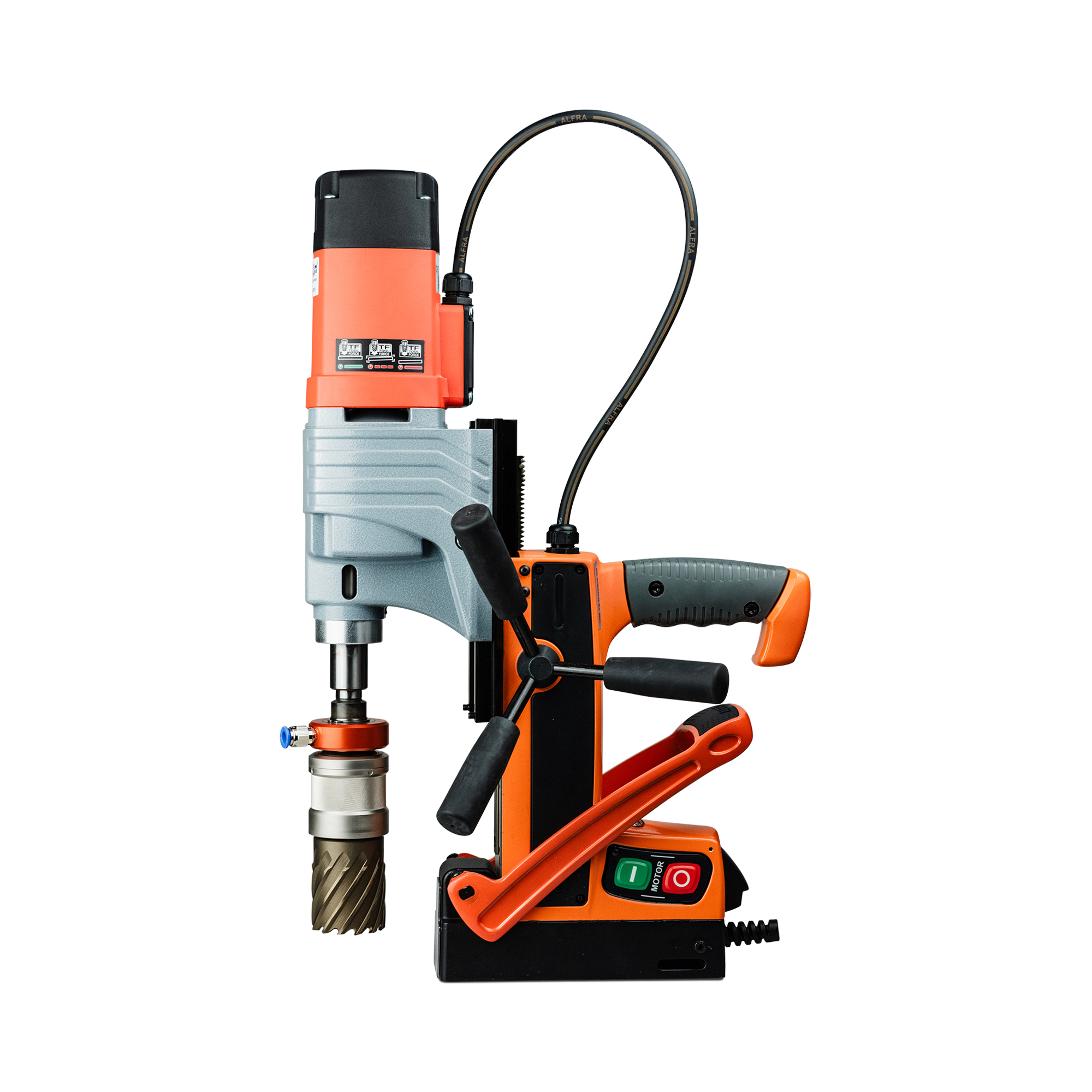

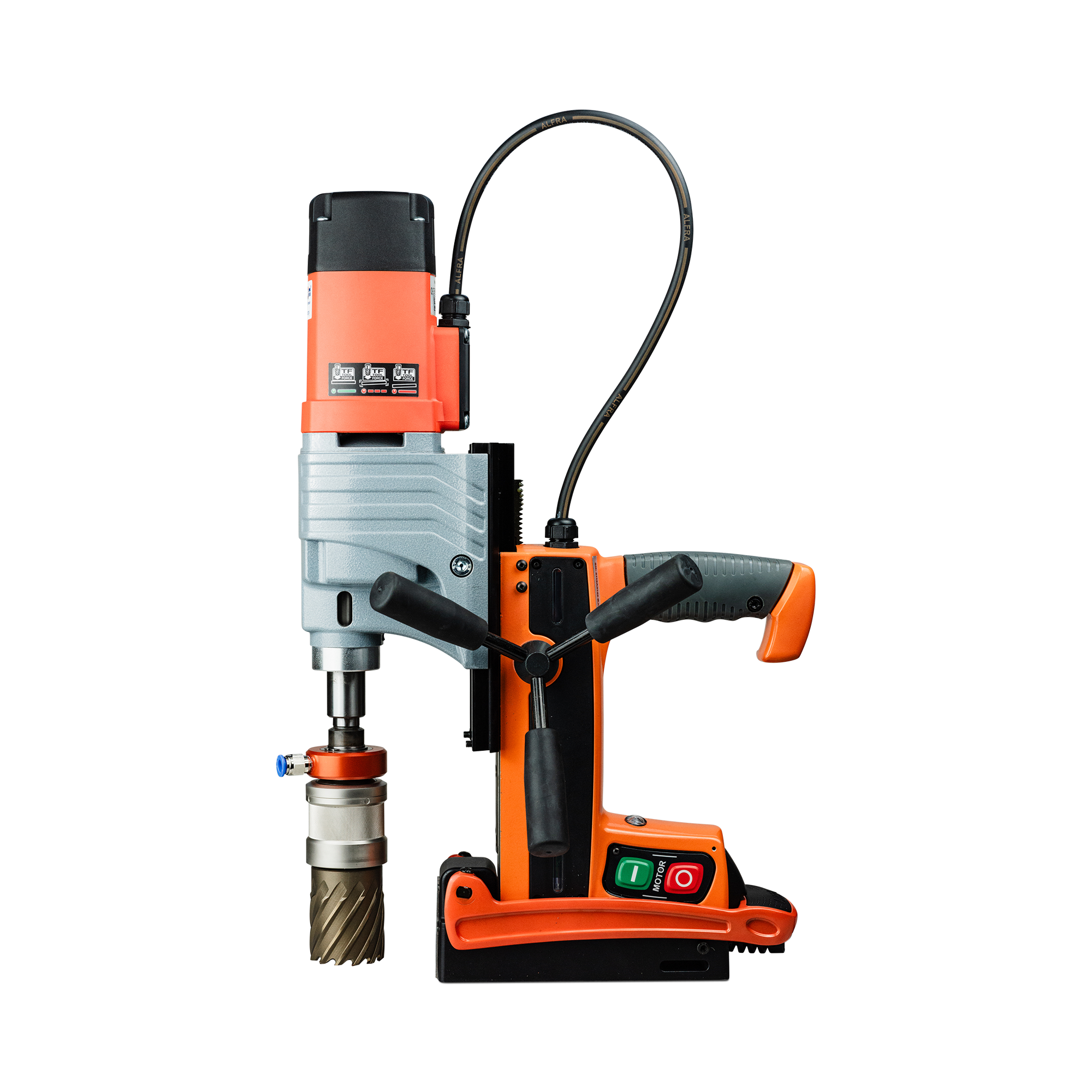

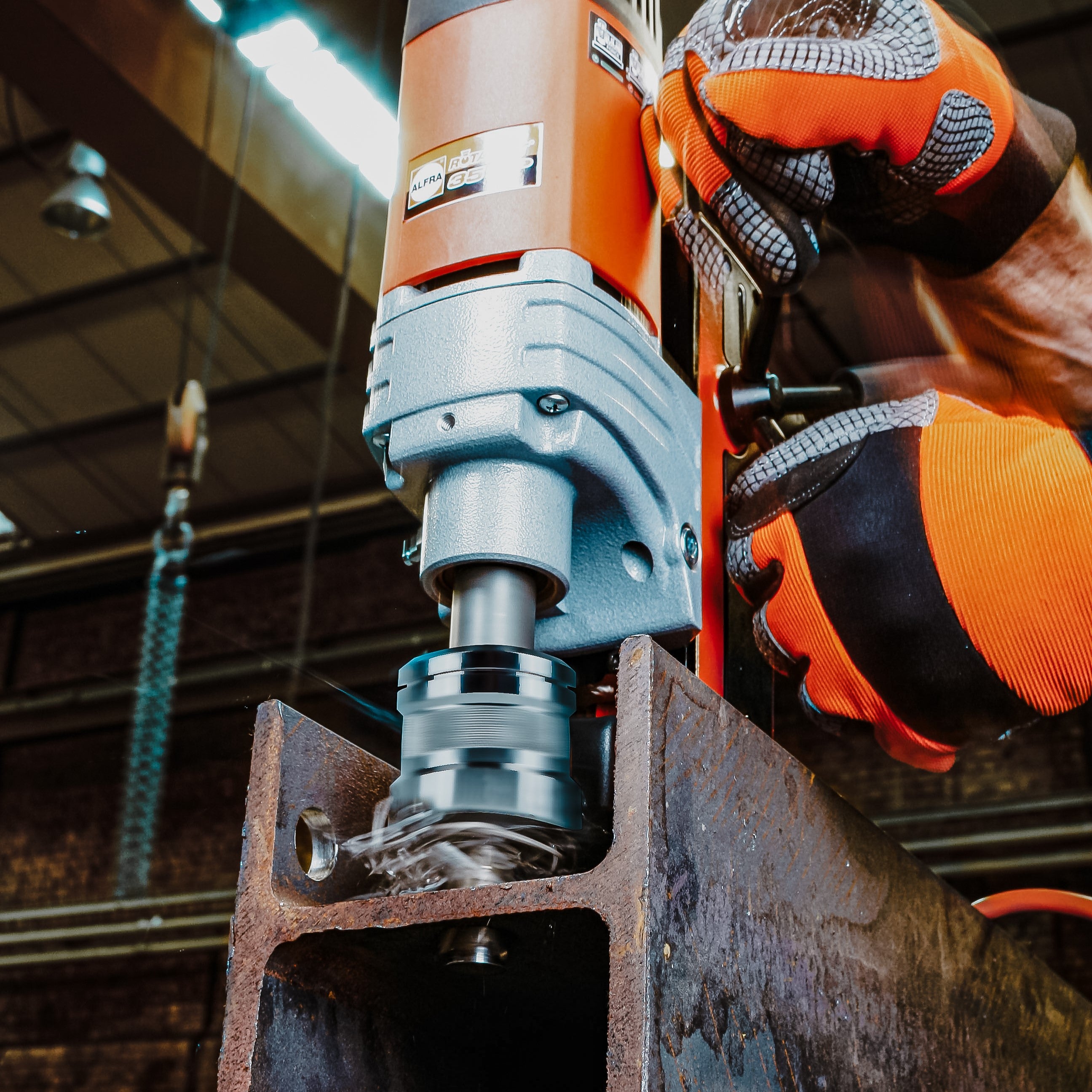

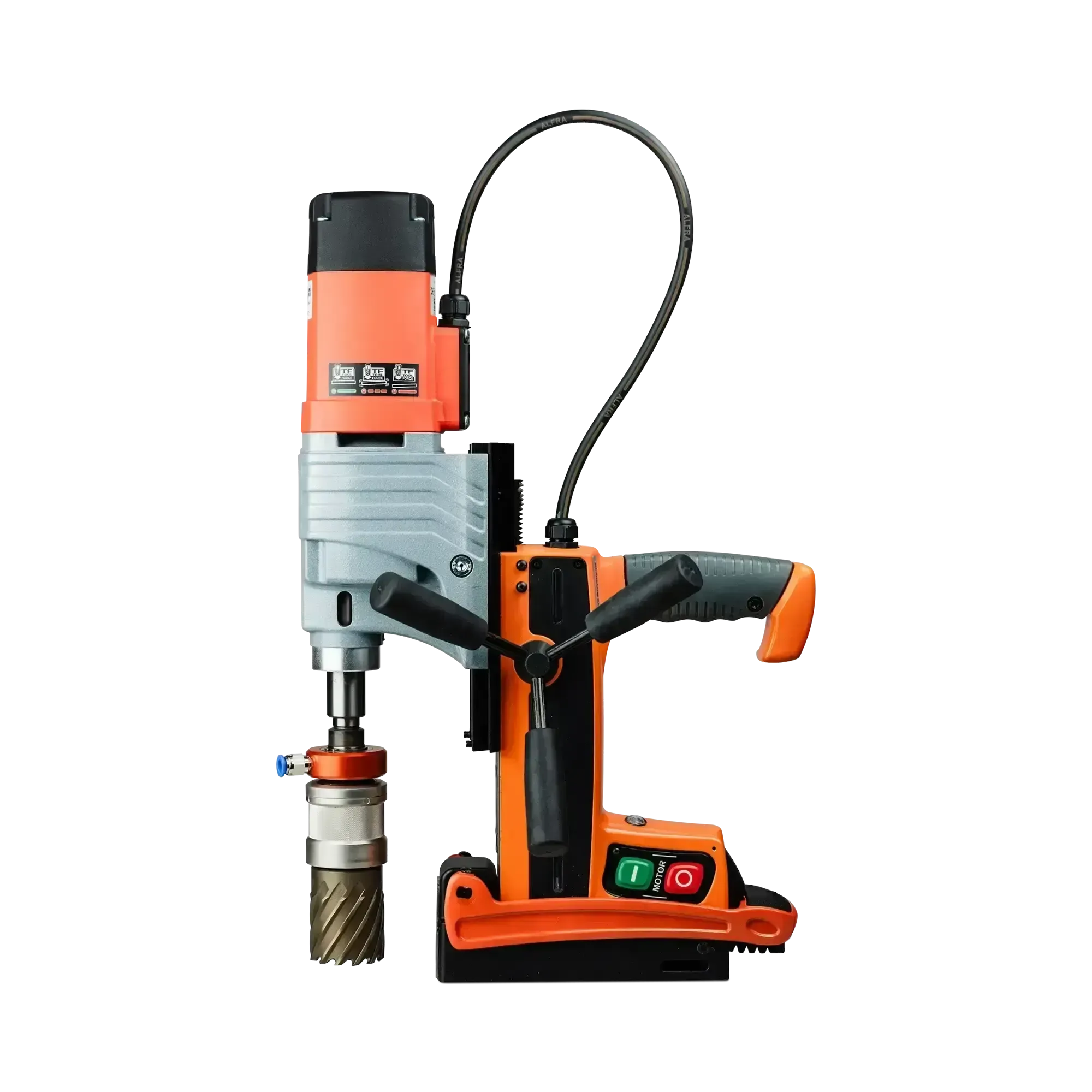

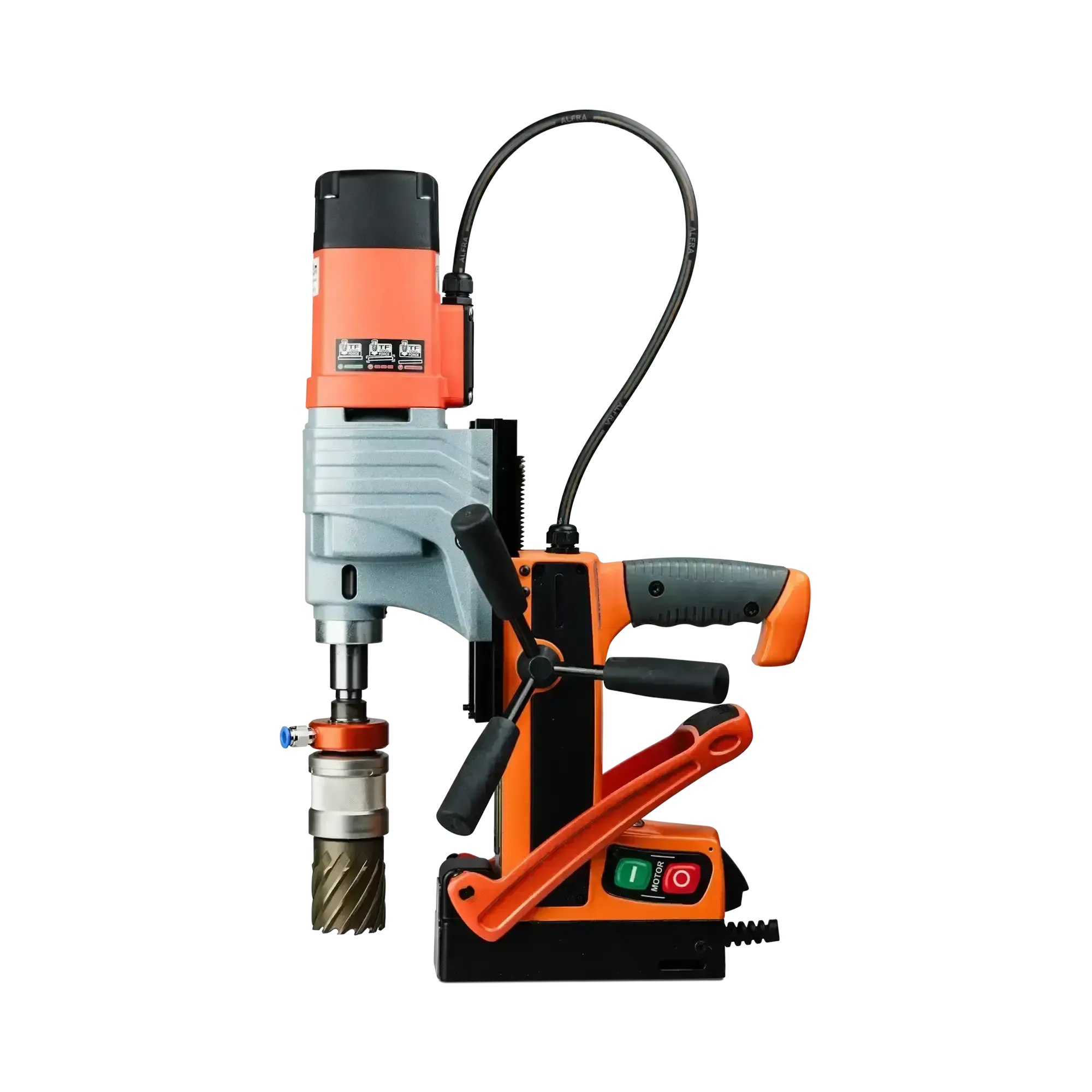

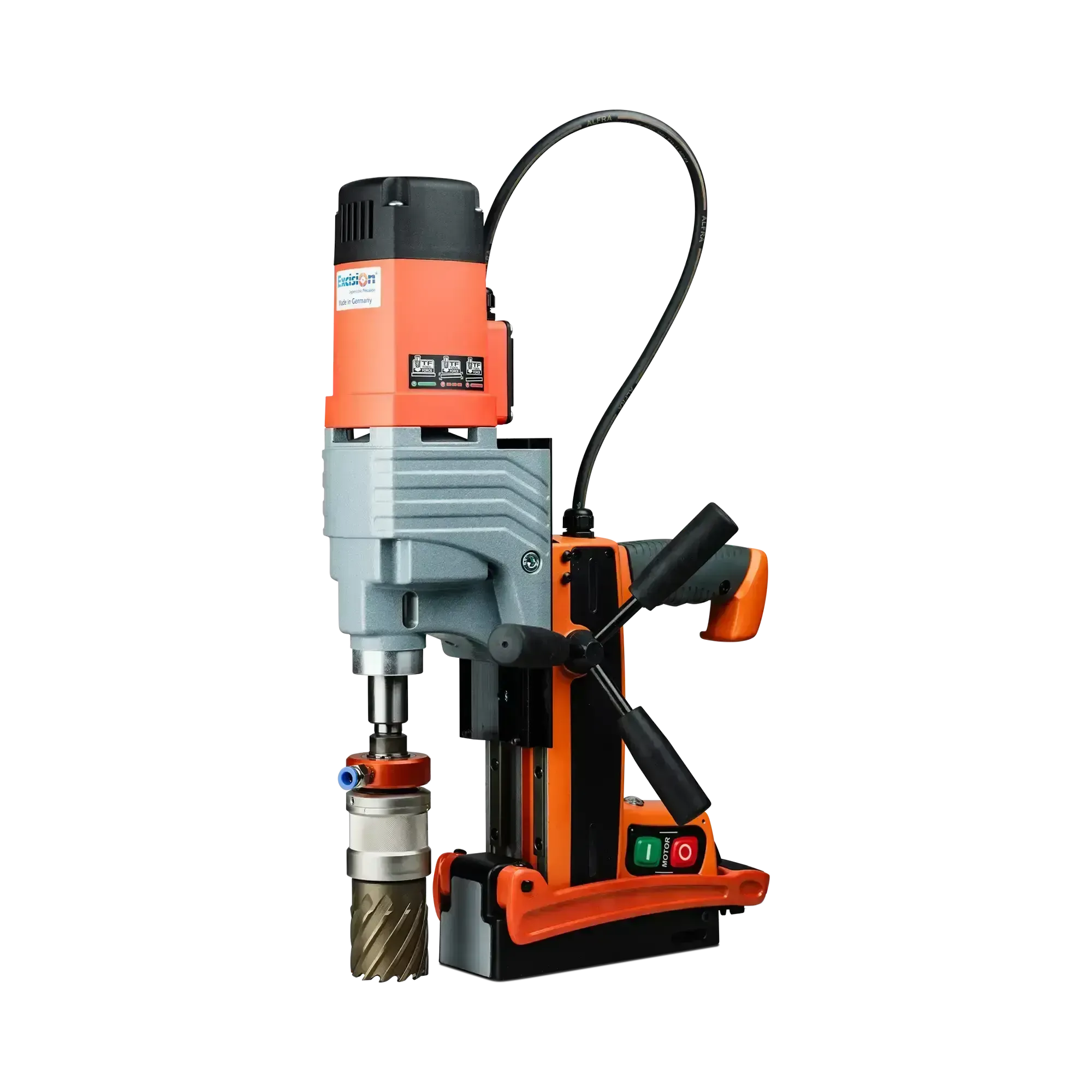

Magnex 50 is the lightweight champion. With its powerful Magnex magnet and 2-speed gearbox, this 11.5kg drill handles a range of tasks without needing a power supply. Built for versatility, it includes a Morse Taper 2 spindle and solid brass guides for smooth operation.

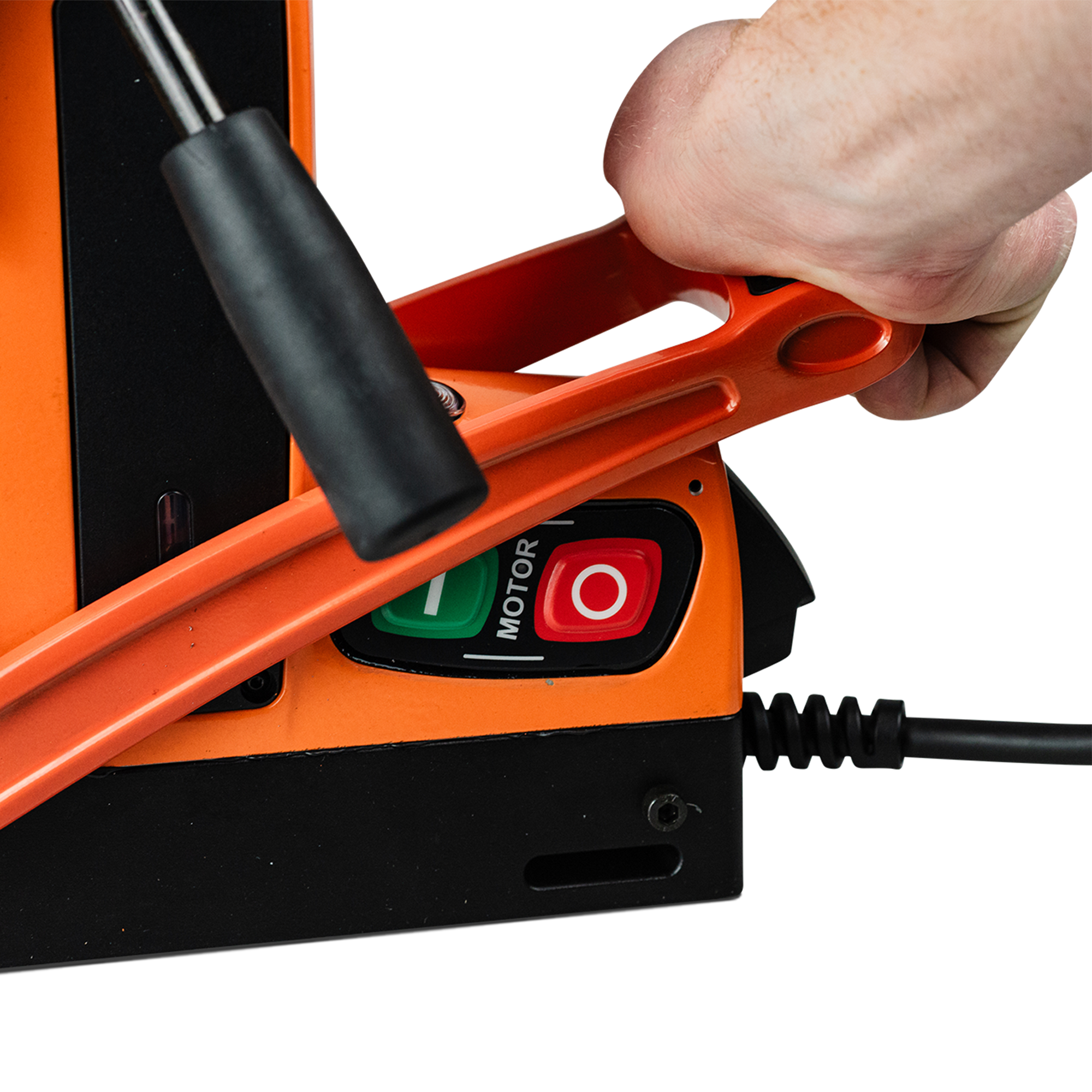

- Powerful permanent magnet - doesn't need a power supply
- Very light and compact at only 11.5kg

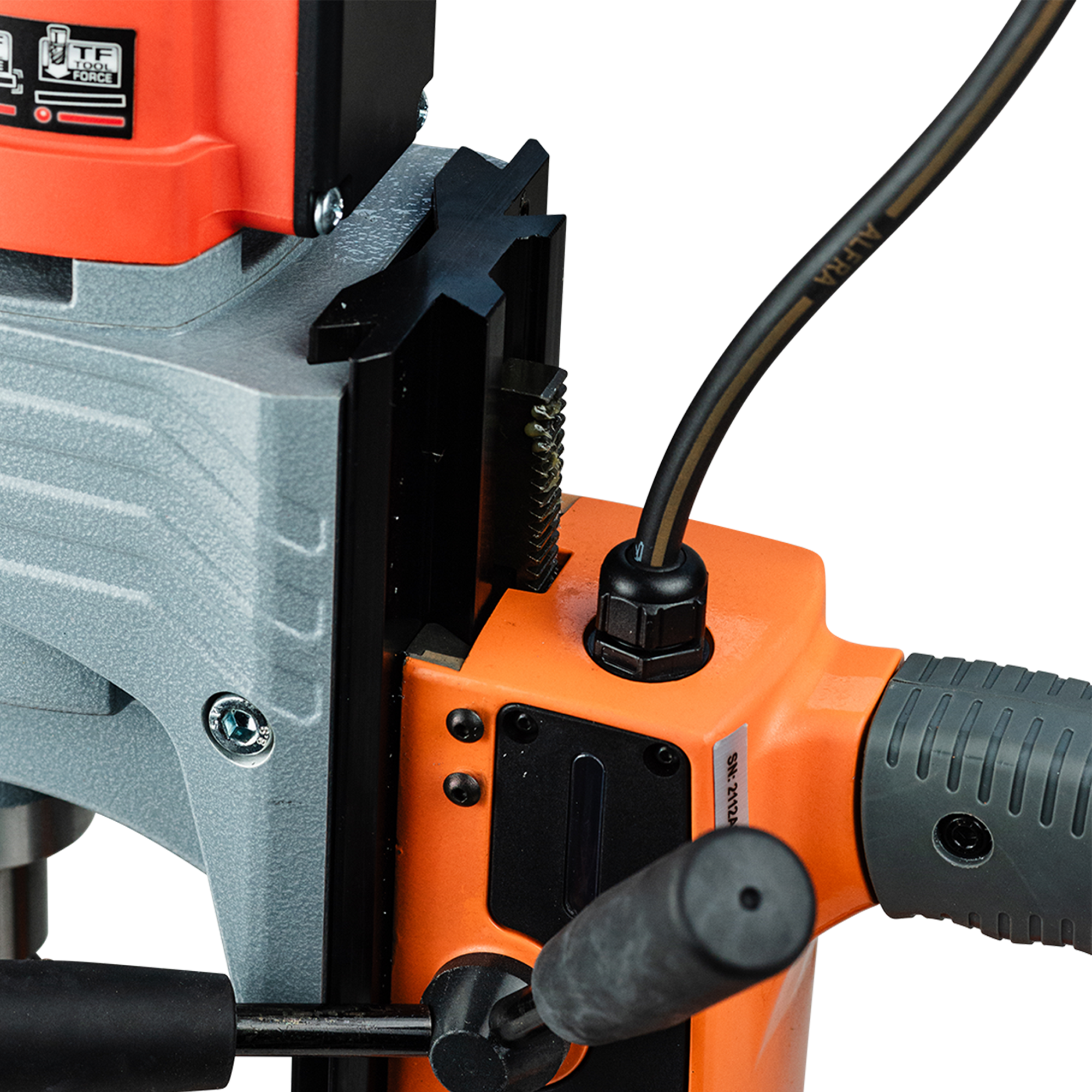

- Height adjustable slide enables an increased range of applications including standard twist drills

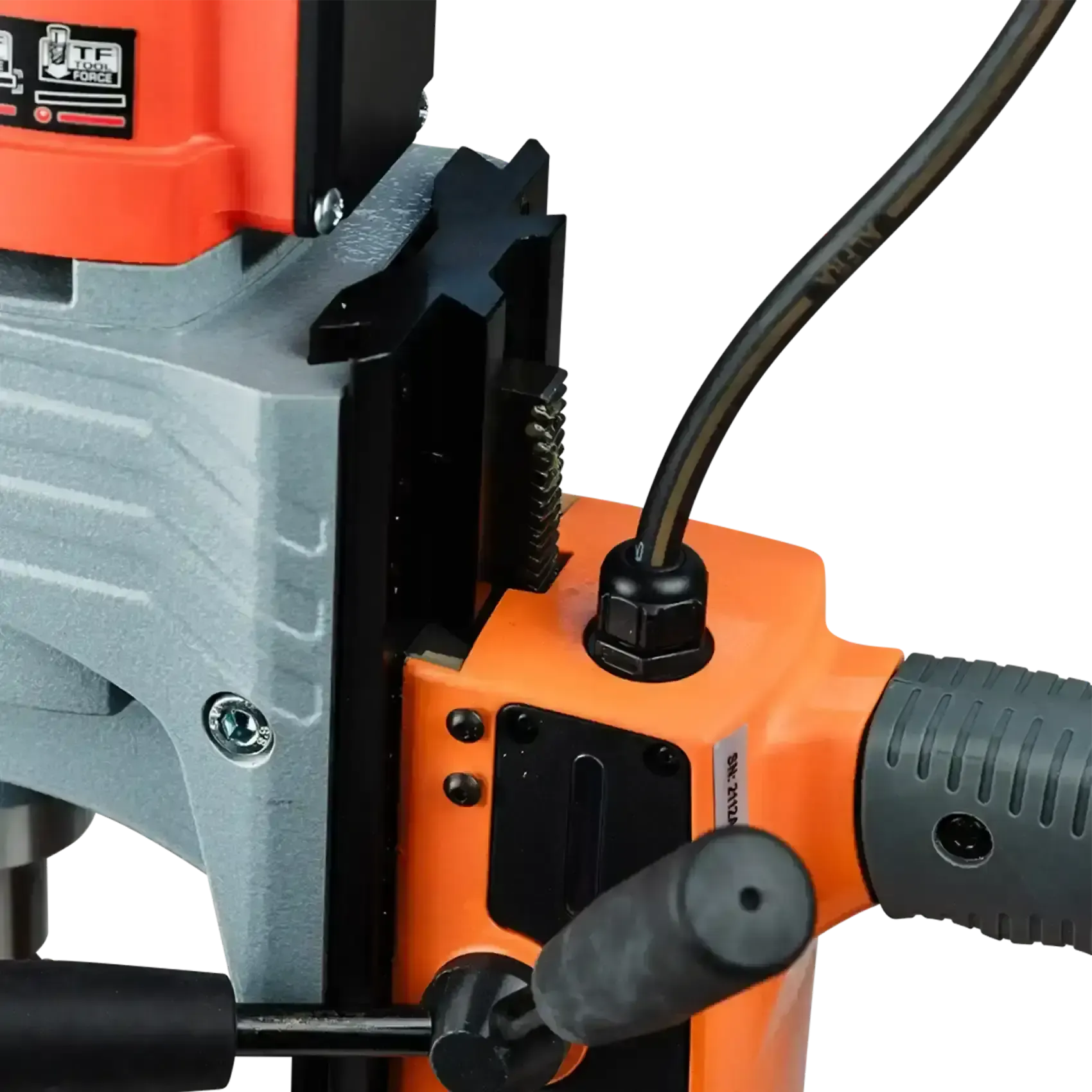

- Solid brass guides with spring loading for rigid gliding and no vibration

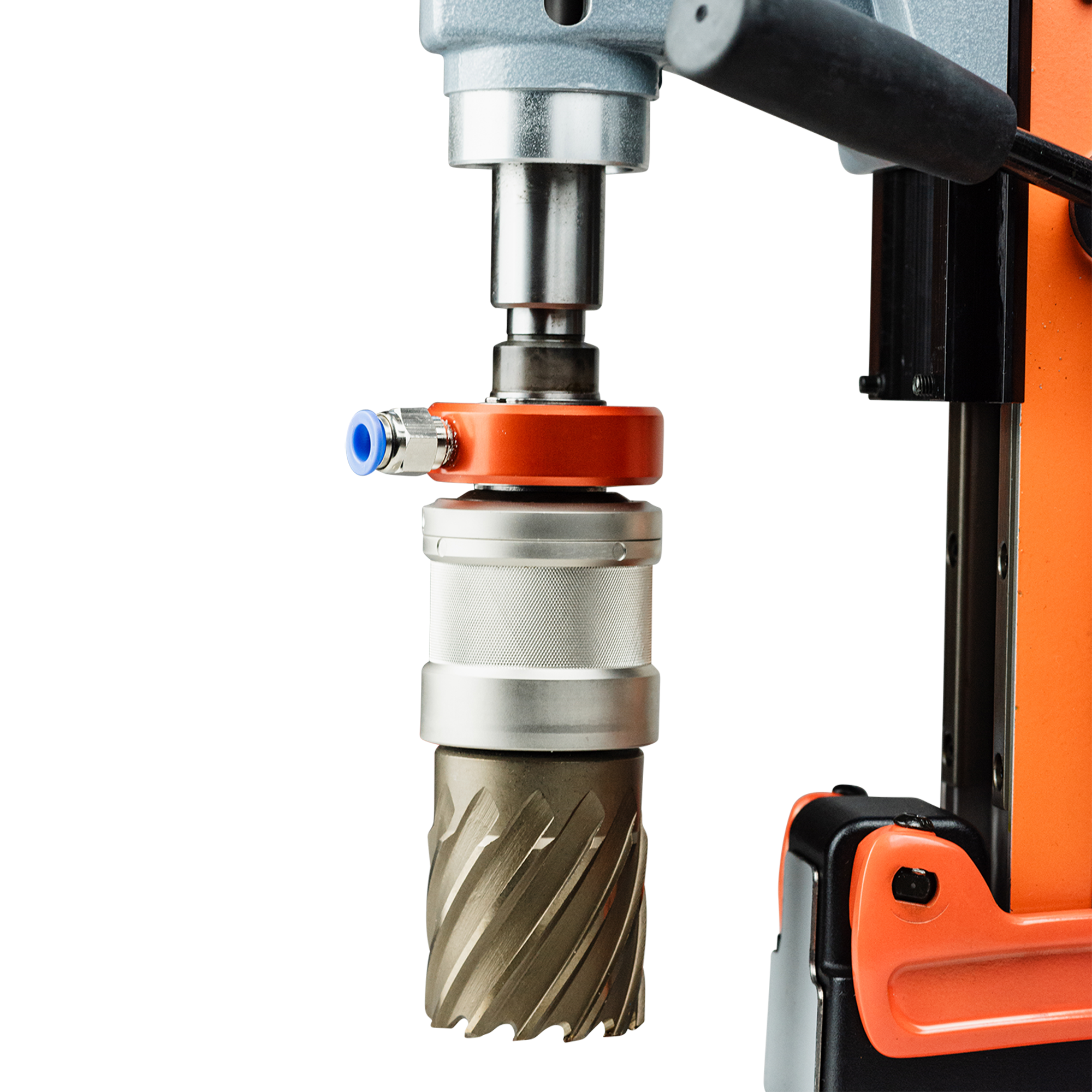

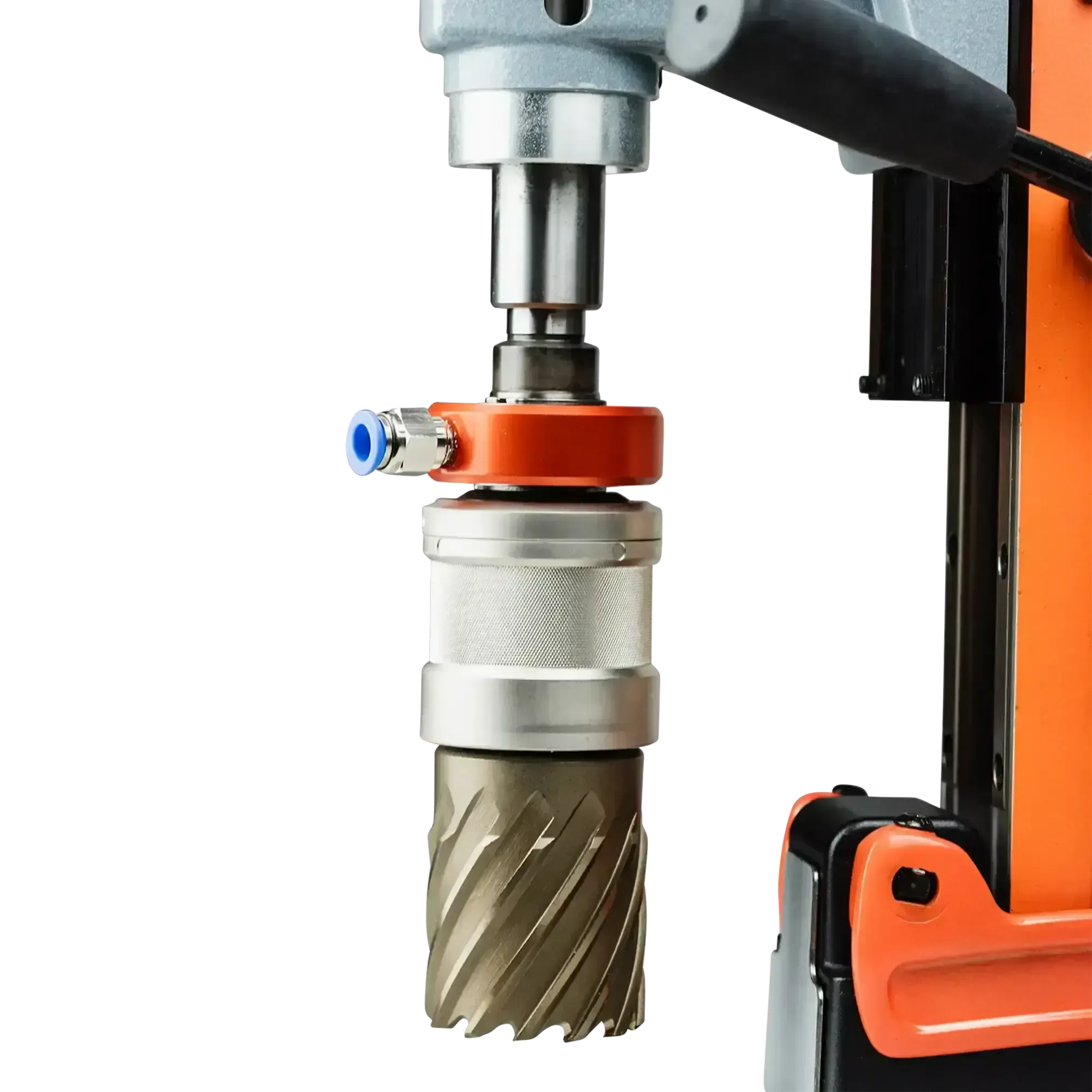

- Morse Taper 2 spindle
Specifications
| Drill Features and Specifications | |
| Core Drill Dimensions | 12.0-50.0mm |
| Cutting Depth | 50.0mm |
| Twist Drill |
1.0-20.0mm |
| Counter-Boring |
10.0-40.0mm |
| Arbors |
MT2 |
| Stroke |
100mm |
| Height Adjustment |
47mm |
| 4-Speed Gearbox-On-Load Speed |
1. Step 250rpm 2. Step 450rpm |
| Power Consumption |
1,200W |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm) |
2,800N |
| Magnetic Base |
72×190mm |
| Weight |
11.5Kg |
Product Data
| Core Drill Diameter | 50mm |
| Counter Boring Diameter | 40mm |
| Cutting Depth | 50mm |
| Gearbox Speed | 250 & 450 RPM |
| Height Adjustment | 47mm |
| Magnet Type | Permanent |
| Shank Type | Morse Taper 2 |
| Stroke | 100mm |
| Twist Drill Diameter | 20mm |
| Weight | 11.5 kg |
