(T1132) HSS-E (M35) Metric/Metric Fine Spiral Flute Tap for General Purpose (JIS Standard)

General-Purpose Metric/Metric Fine Spiral Tap

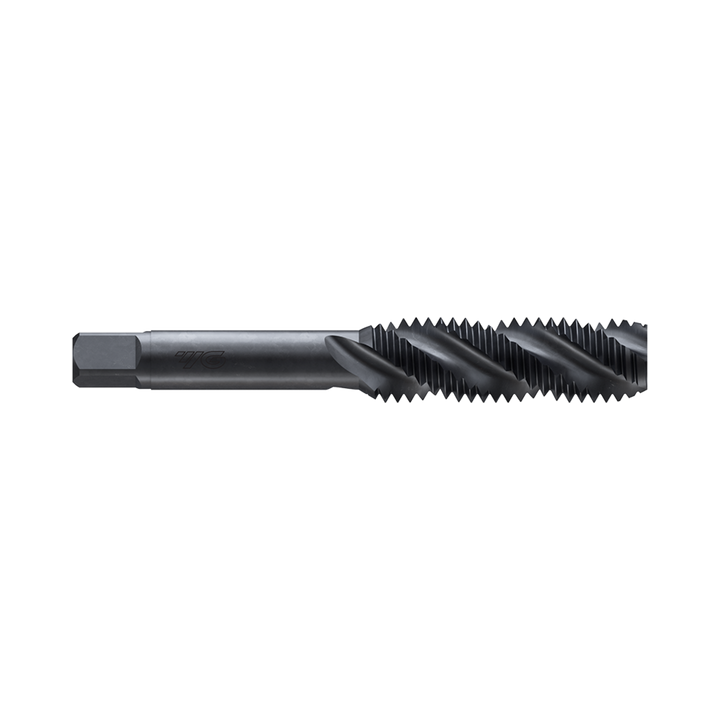

YG-1 T1132 series illustration · transparent
$23.87 INC GST $21.70 EX GST
SKU
T1132131
Work materials
PMKN
Tool material HSS-E
Surface treatment Steam Homo
Size
Pitch (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)FlutesTapping drill dia. (mm)CAD filesStock Price Qty Add
T1132131M20.415.040.040.03.02.521.6– 1-2 Weeks $21.70
T1132151M2.20.4515.042.042.03.02.521.75DXF 1-2 Weeks $23.90
T1132191M2.30.415.042.042.03.02.521.9– 1-2 Weeks $23.90
T1132171M2.50.4516.044.044.03.02.522.1– 1-2 Weeks $21.00
T1132491M2.60.4516.044.044.03.02.522.2– 1-2 Weeks $17.60
T1132211M30.3510.046.046.04.03.232.7– 1-2 Weeks $14.20
T1132202M30.518.046.046.04.03.232.5– In stock $13.80
T1132231M3.50.3510.048.048.04.03.233.2– 1-2 Weeks $14.20
T1132222M3.50.618.048.048.04.03.232.9– 1-2 Weeks $14.20
T1132251M40.515.052.052.05.04.033.5– 1-2 Weeks $13.60
T1132242M40.720.052.052.05.04.033.3– In stock $13.10
T1132271M4.50.515.055.055.05.04.034.0– 1-2 Weeks $13.60
T1132262M4.50.7520.055.055.05.04.033.8– 1-2 Weeks $13.60
T1132291M50.5-60.0-----– 1-2 Weeks $13.60
T1132282M50.822.060.060.05.54.534.2– In stock $13.30
T1132301M5.50.5-52.0-----– 1-2 Weeks $15.00
T1132331M60.515.055.055.06.04.535.5– 1-2 Weeks $15.00
T1132322M60.7520.062.062.06.04.535.3– 1-2 Weeks $15.00
T1132312M61.024.062.062.06.04.535.0– In stock $14.40
T1132352M70.75-65.0-----– 1-2 Weeks $16.20
T1132342M71.026.065.065.06.25.036.0– 1-2 Weeks $18.00
T1132382M80.7526.065.065.06.25.037.3– 1-2 Weeks $19.90
T1132372M81.030.070.070.06.25.037.0– 1-2 Weeks $19.90
T1132362M81.2530.070.070.06.25.036.8– In stock $15.90
T1132412M90.7526.065.065.07.05.538.3– 1-2 Weeks $21.40
T1132402M91.030.070.070.07.05.538.0– 1-2 Weeks $21.40
T1132392M91.2530.072.072.07.05.537.8– 1-2 Weeks $21.40
T1132452M100.7526.065.065.07.05.539.3– 1-2 Weeks $26.10
T1132442M101.030.070.070.07.05.539.0– 1-2 Weeks $26.10
T1132432M101.2532.075.075.07.05.538.8– 1-2 Weeks $26.10
T1132422M101.532.075.075.07.05.538.5– In stock $18.90
T1132482M110.7526.065.065.08.06.0310.3– 1-2 Weeks $32.30
T1132472M111.030.070.070.08.06.0310.0– 1-2 Weeks $32.30
T1132462M111.538.080.080.08.06.039.5– 1-2 Weeks $32.30
T1132532M121.030.070.070.08.56.5311.0– 1-2 Weeks $34.00
T1132522M121.2538.080.080.08.56.5310.8– 1-2 Weeks $34.00
T1132512M121.538.082.082.08.56.5310.5– 1-2 Weeks $34.00
T1132502M121.7538.082.082.08.56.5310.3– Low stock $24.50
T1132572M141.030.070.070.010.58.0313.0– 1-2 Weeks $41.60
T1132562M141.2538.080.080.010.58.0312.8– 1-2 Weeks $41.60
T1132552M141.542.088.088.010.58.0312.5– 1-2 Weeks $41.60
T1132542M142.042.088.088.010.58.0312.0– Low stock $36.30
T1132592M151.030.070.070.010.58.0314.0– 1-2 Weeks $54.30
T1132582M151.542.090.090.010.58.0313.5– 1-2 Weeks $54.30
T1132622M161.030.075.075.012.510.0315.0– 1-2 Weeks $49.90
T1132612M161.545.095.095.012.510.0314.5– 1-2 Weeks $49.50
T1132602M162.045.095.095.012.510.0314.0– In stock $49.90
T1132682M181.030.080.080.014.011.0417.0– 1-2 Weeks $58.10
T1132672M181.545.095.095.014.011.0416.5– 1-2 Weeks $58.10
T1132663M182.045.095.095.014.011.0416.0– 1-2 Weeks $58.10
T1132653M182.548.0100.0100.014.011.0415.5– 1-2 Weeks $58.10
T1132732M201.030.080.080.015.012.0419.0– 1-2 Weeks $65.30
T1132723M201.545.095.095.015.012.0418.5– 1-2 Weeks $65.30
T1132713M202.045.095.095.015.012.0418.0– 1-2 Weeks $65.30
T1132703M202.550.0105.0105.015.012.0417.5– Restocking $71.70
T1132772M221.030.085.085.017.013.0421.0– 1-2 Weeks $97.50
T1132763M221.545.095.095.017.013.0420.5– 1-2 Weeks $97.50
T1132753M222.045.095.095.017.013.0420.0– 1-2 Weeks $97.50
T1132743M222.555.0115.0115.017.013.0419.5– 1-2 Weeks $97.50
T1132812M241.030.090.090.019.015.0423.0– 1-2 Weeks $130.20
T1132803M241.545.095.095.019.015.0422.5– 1-2 Weeks $130.20
T1132793M242.045.095.095.019.015.0422.0– 1-2 Weeks $116.30
T1132783M243.058.0120.0120.019.015.0421.0– 1-2 Weeks $130.20
T1132833M251.545.095.095.019.015.0423.5– 1-2 Weeks $144.10
T1132823M252.045.095.095.019.015.0423.0– 1-2 Weeks $143.30
T1132N52M261.030.095.095.020.015.0425.0– 1-2 Weeks $148.70
T1132853M261.545.095.095.020.015.0424.5– 1-2 Weeks $148.70
T1132N43M262.045.095.095.020.015.0424.0– 1-2 Weeks $148.70
T1132883M271.545.095.095.020.015.0425.5– 1-2 Weeks $170.30
T1132873M272.045.095.095.020.015.0425.0– 1-2 Weeks $170.30
T1132863M273.062.0130.0130.020.015.0424.0– 1-2 Weeks $170.30
T1132913M281.545.0105.0105.021.017.0426.5– 1-2 Weeks $196.00
T1132903M282.045.0105.0105.021.017.0426.0– 1-2 Weeks $196.00
T1132982M301.030.0105.0105.023.017.0429.0– 1-2 Weeks $225.00
T1132973M301.545.0105.0105.023.017.0428.5– 1-2 Weeks $225.00
T1132963M302.045.0105.0105.023.017.0428.0– 1-2 Weeks $225.00
T1132953M303.065.0135.0135.023.017.0427.0– Low stock $209.20
T1132944M303.565.0135.0135.023.017.0426.5– 1-2 Weeks $225.00
T1132A73M331.545.0110.0110.025.019.0431.5– 1-2 Weeks $282.30
T1132A63M332.045.0110.0110.025.019.0431.0– 1-2 Weeks $272.30
T1132A53M333.0-110.0-----– 1-2 Weeks $282.30
T1132A44M333.570.0145.0145.025.019.0429.5– 1-2 Weeks $282.30
T1132B63M361.545.0110.0110.028.021.0434.5– 1-2 Weeks $311.50
T1132B53M362.045.0110.0110.028.021.0434.0– 1-2 Weeks $311.50
T1132B43M363.075.0155.0155.028.021.0433.0– 1-2 Weeks $311.50
T1132B34M364.075.0155.0155.028.021.0432.0– 1-2 Weeks $311.50

Add (T1132) HSS-E (M35) Metric/Metric Fine Spiral Flute Tap for General Purpose (JIS Standard) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
Product Data
Workpiece Material P M K N
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Steam Homo, Steam Oxide Coating
Thread Angle 60
Thread Class YH
Thread Form 2.5P
Thread Shape M, M / MF, MF
Tool Material HSS-E
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size No. of Flute T1132A44 M33 3.5 70 145 145 25 19 4 T1132A53 M33 3 70 145 145 25 19 4 T1132A63 M33 2 45 110 110 25 19 4 T1132A73 M33 1.5 45 110 110 25 19 4 T1132B34 M36 4 75 155 155 28 21 4 T1132B43 M36 3 75 155 155 28 21 4 T1132B53 M36 2 45 110 110 28 21 4 T1132B63 M36 1.5 45 110 110 28 21 4 T1132N43 M26 2 45 95 95 20 15 4 T1132N52 M26 1 30 95 95 20 15 4 T1132131 M2 0.4 15 40 40 3 2.5 2 T1132151 M2.2 0.45 15 42 42 3 2.5 2 T1132171 M2.5 0.45 16 44 44 3 2.5 2 T1132191 M2.3 0.4 15 42 42 3 2.5 2 T1132202 M3 0.5 18 46 46 4 3.2 3 T1132211 M3 0.35 10 46 46 4 3.2 3 T1132222 M3.5 0.6 18 48 48 4 3.2 3 T1132231 M3.5 0.35 10 48 48 4 3.2 3 T1132242 M4 0.7 20 52 52 5 4 3 T1132251 M4 0.5 15 52 52 5 4 3 T1132262 M4.5 0.75 20 55 55 5 4 3 T1132271 M4.5 0.5 15 55 55 5 4 3 T1132282 M5 0.8 22 60 60 5.5 4.5 3 T1132291 M5 0.5 15 52 52 5.5 4.5 3 T1132301 M5.5 0.5 15 60 52 5.5 4.5 3 T1132312 M6 1 24 62 62 6 4.5 3 T1132322 M6 0.75 20 62 62 6 4.5 3 T1132331 M6 0.5 15 55 55 6 4.5 3 T1132342 M7 1 26 65 65 6.2 5 3 T1132352 M7 0.75 20 62 62 6.2 5 3 T1132362 M8 1.25 30 70 70 6.2 5 3 T1132372 M8 1 30 70 70 6.2 5 3 T1132382 M8 0.75 26 65 65 6.2 5 3 T1132392 M9 1.25 30 72 72 7 5.5 3 T1132402 M9 1 30 70 70 7 5.5 3 T1132412 M9 0.75 26 65 65 7 5.5 3 T1132422 M10 1.5 32 75 75 7 5.5 3 T1132432 M10 1.25 32 75 75 7 5.5 3 T1132442 M10 1 30 70 70 7 5.5 3 T1132452 M10 0.75 26 65 65 7 5.5 3 T1132462 M11 1.5 38 80 80 8 6 3 T1132472 M11 1 30 70 70 8 6 3 T1132482 M11 0.75 26 65 65 8 6 3 T1132491 M2.6 0.45 16 44 44 3 2.5 2 T1132502 M12 1.75 38 82 82 8.5 6.5 3 T1132512 M12 1.5 38 82 82 8.5 6.5 3 T1132522 M12 1.25 38 80 80 8.5 6.5 3 T1132532 M12 1 30 70 70 8.5 6.5 3 T1132542 M14 2 42 88 88 10.5 8 3 T1132552 M14 1.5 42 88 88 10.5 8 3 T1132562 M14 1.25 38 80 80 10.5 8 3 T1132572 M14 1 30 70 70 10.5 8 3 T1132582 M15 1.5 42 90 90 10.5 8 3 T1132592 M15 1 30 70 70 10.5 8 3 T1132602 M16 2 45 95 95 12.5 10 3 T1132612 M16 1.5 45 95 95 12.5 10 3 T1132622 M16 1 30 75 75 12.5 10 3 T1132653 M18 2.5 48 100 100 14 11 4 T1132663 M18 2 45 95 95 14 11 4 T1132672 M18 1.5 45 95 95 14 11 4 T1132682 M18 1 30 80 80 14 11 4 T1132703 M20 2.5 50 105 105 15 12 4 T1132713 M20 2 45 95 95 15 12 4 T1132723 M20 1.5 45 95 95 15 12 4 T1132732 M20 1 30 80 80 15 12 4 T1132743 M22 2.5 55 115 115 17 13 4 T1132753 M22 2 45 95 95 17 13 4 T1132763 M22 1.5 45 95 95 17 13 4 T1132772 M22 1 30 85 85 17 13 4 T1132783 M24 3 58 120 120 19 15 4 T1132793 M24 2 45 95 95 19 15 4 T1132803 M24 1.5 45 95 95 19 15 4 T1132812 M24 1 30 90 90 19 15 4 T1132823 M25 2 45 95 95 19 15 4 T1132833 M25 1.5 45 95 95 19 15 4 T1132853 M26 1.5 45 95 95 20 15 4 T1132863 M27 3 62 130 130 20 15 4 T1132873 M27 2 45 95 95 20 15 4 T1132883 M27 1.5 45 95 95 20 15 4 T1132903 M28 2 45 105 105 21 17 4 T1132913 M28 1.5 45 105 105 21 17 4 T1132944 M30 3.5 65 135 135 23 17 4 T1132953 M30 3 65 135 135 23 17 4 T1132963 M30 2 45 105 105 23 17 4 T1132973 M30 1.5 45 105 105 23 17 4 T1132982 M30 1 30 105 105 23 17 4
Blind Drilling

Work materials

Material recommendations for this tool.

ExcellentGood

Steel

Carbon Steels
Good
Alloy Steels
Good
Structural Steels
Excellent
Mild & Free Machining
Excellent
Tool Steels
Good
High Alloyed
Good

Cast iron

Cast Iron
Good

Stainless steel

Stainless Steels
Good

Non-ferrous materials

Aluminium
Good
Copper
Good

These are broad material recommendations; specific VDI grades are not stated.
