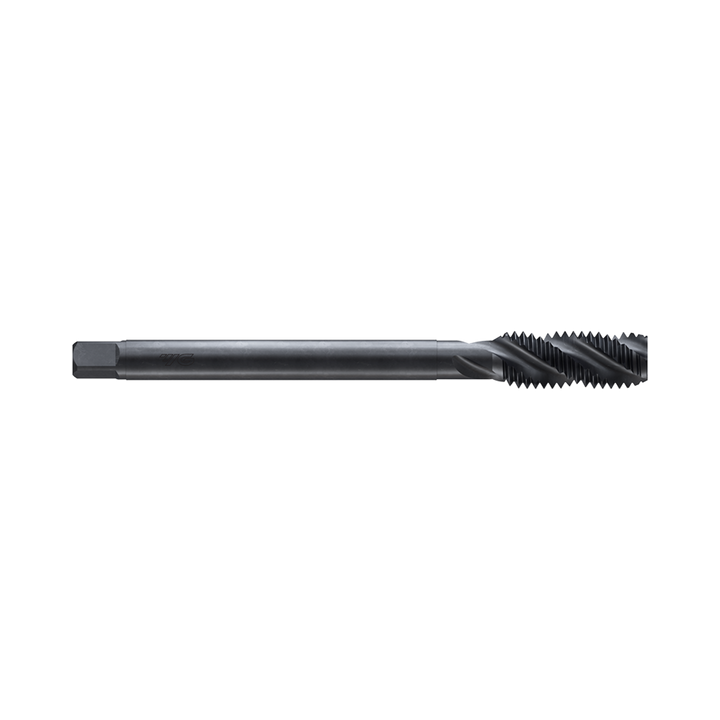

(T1103) HSS-E (M35) Metric/Metric Fine Long Shank Spiral Flute Tap for General Purpose (JIS Standar
Blind-Hole Metric/Metric Fine Long-Shank Spiral Tap
Loading 3D model…
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Flutes | Tapping drill dia. (mm) | CAD files | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T1103201 | M3 | 0.5 | 11.0 | 100.0 | 100.0 | 4.0 | 3.2 | 3 | 2.5 | STEP | In stock | $21.10 | ||
| T1103242 | M4 | 0.7 | 13.0 | 100.0 | 100.0 | 5.0 | 4.0 | 3 | 3.3 | – | Low stock | $21.10 | ||
| T1103282 | M5 | 0.8 | 16.0 | 100.0 | 100.0 | 5.5 | 4.5 | 3 | 4.2 | – | 1-2 Weeks | $23.70 | ||
| T1103312 | M6 | 1.0 | 19.0 | 100.0 | 100.0 | 6.0 | 4.5 | 3 | 5.0 | – | Low stock | $21.10 | ||
| T1103362 | M8 | 1.25 | 22.0 | 100.0 | 100.0 | 6.2 | 5.0 | 3 | 6.8 | – | 1-2 Weeks | $25.60 | ||
| T1103422 | M10 | 1.25 | 24.0 | 100.0 | 100.0 | 7.0 | 5.5 | 3 | 8.5 | – | 1-2 Weeks | $30.80 | ||
| T1103432 | M10 | 1.5 | 24.0 | 100.0 | 100.0 | 7.0 | 5.5 | 3 | 8.8 | – | 1-2 Weeks | $31.30 | ||
| T1103522 | M12 | 1.25 | 29.0 | 100.0 | 100.0 | 8.5 | 6.5 | 3 | 10.8 | – | 1-2 Weeks | $35.50 | ||
| T1103512 | M12 | 1.5 | 29.0 | 100.0 | 100.0 | 8.5 | 6.5 | 3 | 10.5 | – | 1-2 Weeks | $35.50 | ||
| T1103502 | M12 | 1.75 | 29.0 | 100.0 | 100.0 | 8.5 | 6.5 | 3 | 10.3 | – | 1-2 Weeks | $35.50 | ||
| T1103552 | M14 | 1.5 | 30.0 | 100.0 | 100.0 | 10.5 | 8.0 | 3 | 12.5 | – | 1-2 Weeks | $50.10 | ||
| T1103542 | M14 | 2.0 | 30.0 | 100.0 | 100.0 | 10.5 | 8.0 | 3 | 12.0 | – | 1-2 Weeks | $50.10 |
Add (T1103) HSS-E (M35) Metric/Metric Fine Long Shank Spiral Flute Tap for General Purpose (JIS Standar to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Reviews
- Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
| Workpiece Material | P M K N |
| Helix Angle | Square 40 |
| Operation | Blind Drilling |
| Surface Treatment | Steam Oxide Coating |
| Thread Angle | 60 |
| Thread Class | YH |
| Thread Form | 2.5P |
| Thread Shape | M, MF |
| Tool Material | HSS-E |
Work materials
Material recommendations for this tool.
Steel
Cast iron
Stainless steel
Non-ferrous materials
These are broad material recommendations; specific VDI grades are not stated.
