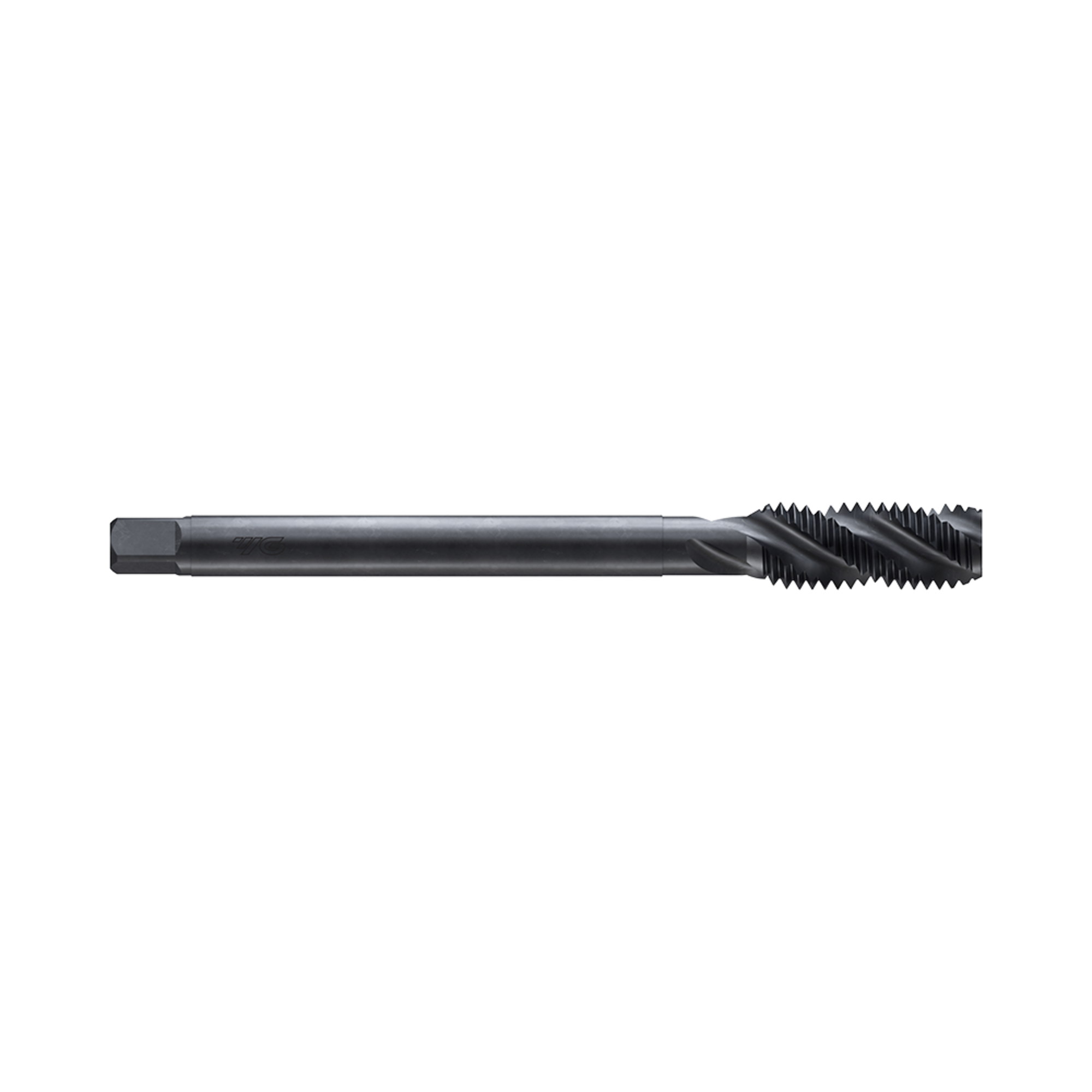

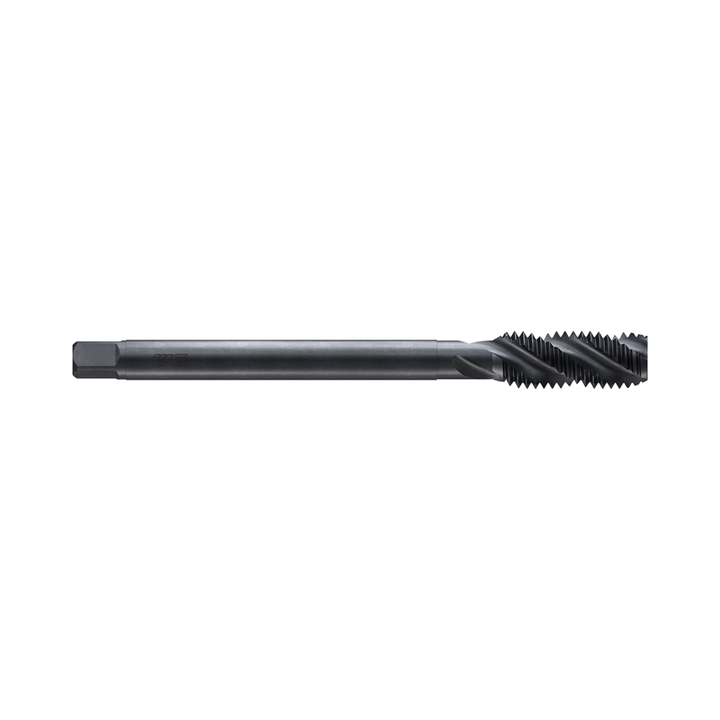

(T1106) HSS-E (M35) Metric/Metric Fine Long Shank Spiral Flute Tap for General Purpose (JIS Standar
General-Purpose Metric/Metric Fine Long-Shank Spiral Tap
Loading 3D model…
| SKU | Size | Pitch (mm) | Overall length (mm) | CAD files | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| T1106362 | M8 | 1.25 | 200.0 | STEP | Quantity unavailable | $56.90 | ||
| T1106432 | M10 | 1.25 | 200.0 | – | No stock | $67.50 | ||
| T1106422 | M10 | 1.5 | 200.0 | – | No stock | $67.50 | ||
| T1106522 | M12 | 1.25 | 200.0 | – | 1-2 Weeks | $86.60 | ||
| T1106512 | M12 | 1.5 | 200.0 | – | 1-2 Weeks | $86.60 | ||
| T1106502 | M12 | 1.75 | 200.0 | – | In stock | $75.20 | ||
| T1106542 | M14 | 2.0 | 200.0 | – | 1-2 Weeks | $97.90 | ||
| T1106612 | M16 | 1.5 | 200.0 | – | 1-2 Weeks | $124.30 | ||
| T1106602 | M16 | 2.0 | 200.0 | – | 1-2 Weeks | $92.80 | ||
| T1106672 | M18 | 1.5 | 200.0 | – | 1-2 Weeks | $148.50 | ||
| T1106653 | M18 | 2.5 | 200.0 | – | 1-2 Weeks | $148.50 | ||
| T1106723 | M20 | 1.5 | 200.0 | – | 1-2 Weeks | $228.10 | ||
| T1106703 | M20 | 2.5 | 200.0 | – | 1-2 Weeks | $228.10 | ||
| T1106763 | M22 | 1.5 | 200.0 | – | 1-2 Weeks | $228.20 | ||
| T1106743 | M22 | 2.5 | 200.0 | – | 1-2 Weeks | $228.20 | ||
| T1106803 | M24 | 1.5 | 200.0 | – | 1-2 Weeks | $283.61 | ||
| T1106783 | M24 | 3.0 | 200.0 | – | Low stock | $283.70 |
Add (T1106) HSS-E (M35) Metric/Metric Fine Long Shank Spiral Flute Tap for General Purpose (JIS Standar to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Reviews
- Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
| Workpiece Material | P M K N |
| Helix Angle | Square 40 |
| Operation | Blind Drilling |
| Surface Treatment | Steam Homo, Steam Oxide Coating |
| Thread Angle | 60 |
| Thread Class | YH |
| Thread Form | 2.5P |
| Thread Shape | M, M / MF, MF |
| Tool Material | HSS-E |
Work materials
Material recommendations for this tool.
Steel
Cast iron
Stainless steel
Non-ferrous materials
These are broad material recommendations; specific VDI grades are not stated.
