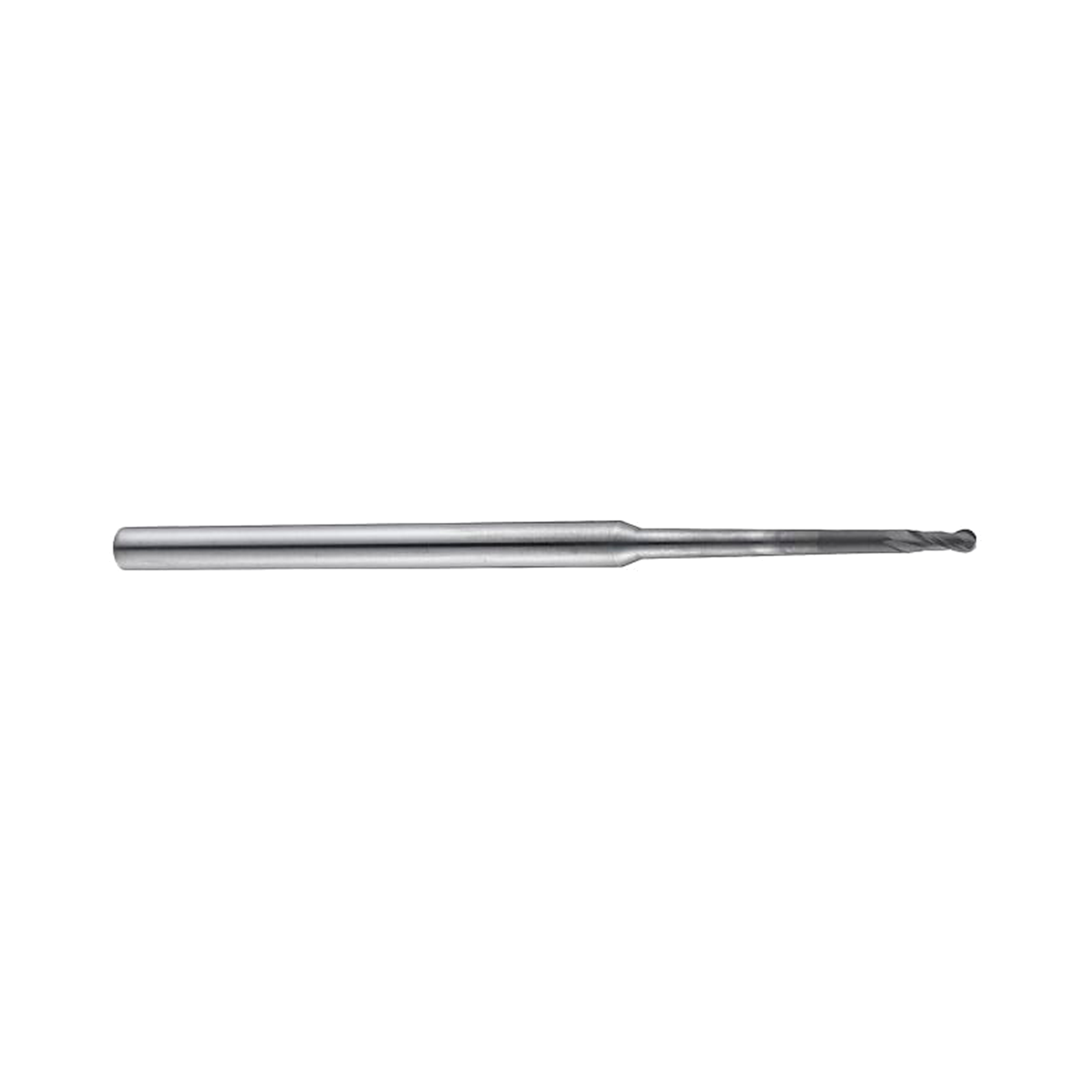

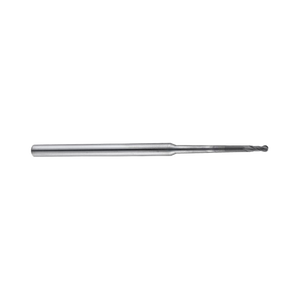

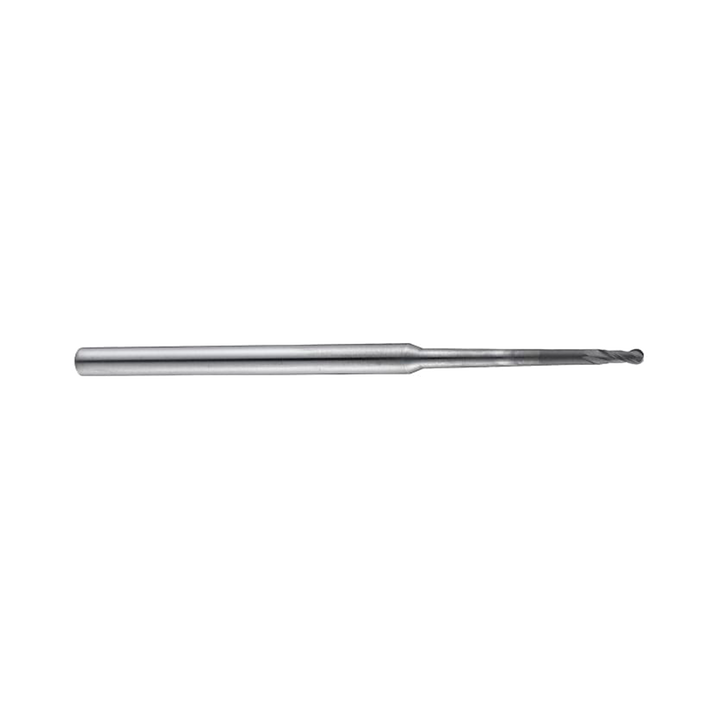

4G MILL 2 Flute 30°Helix Taper Neck Ball End Mill (SEME56)

4G MILL 2 Flute 30°Helix Taper Neck Ball End Mill (SEME56)
4G MILL 2 Flute 30°Helix Taper Neck Ball End Mill (SEME56)
New

4G MILL 2 Flute 30°Helix Taper Neck Ball End Mill (SEME56)

Product Code:

Corner Radius Tolerance: 0.01 Corner Radius Tolerance: 0.005 No. Flutes: 2 YG-1 LEGEND Y COATING Surface Treatment: YG-1 Y Coating YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND HELIX SQUARE 30 Helix Angle: Square 30° YG-1 LEGEND SHANK PLAIN Shank Type: Plain
Buy Local
  • Due to new coating and geometry, outstanding cutting ability and wear-resistance.
  • Excellent performance when cutting pre-hardened steels up to HRc55 which are used for molds & dies.
  • Tools can cut deep grooves without breaking due to high strength of taper neck.

SEME560010501 SEME560011001 SEME560011501 SEME560012001 SEME560013001 SEME560020501 SEME560020502 SEME560020503 SEME560021001 SEME560021002 SEME560021003 SEME560021501 SEME560021502 SEME560021503 SEME560022001 SEME560022002 SEME560022003 SEME560023001 SEME560023002 SEME560023003 SEME560025002 SEME560025003 SEME560030502 SEME560030503 SEME560030504 SEME560030505 SEME560031002 SEME560031003 SEME560031004 SEME560031005 SEME560031502 SEME560031503 SEME560031504 SEME560031505 SEME560032002 SEME560032003 SEME560032004 SEME560032005 SEME560033002 SEME560033003 SEME560033004 SEME560033005 SEME560035005 SEME560040502 SEME560040503 SEME560040504 SEME560040505 SEME560040506 SEME560041002 SEME560041003 SEME560041004 SEME560041005 SEME560041006 SEME560041502 SEME560041503 SEME560041504 SEME560041505 SEME560041506 SEME560042002 SEME560042003 SEME560042004 SEME560042005 SEME560042006 SEME560043002 SEME560043003 SEME560043004 SEME560043005 SEME560043006 SEME560045004 SEME560045006 SEME560050504 SEME560050506 SEME560050508 SEME560050510 SEME560051004 SEME560051006 SEME560051008 SEME560051010 SEME560051504 SEME560051506 SEME560051508 SEME560051510 SEME560052004 SEME560052006 SEME560052008 SEME560052010 SEME560053004 SEME560053006 SEME560053008 SEME560053010 SEME560060504 SEME560060506 SEME560060508 SEME560060510 SEME560060512 SEME560061004 SEME560061006 SEME560061008 SEME560061010 SEME560061012 SEME560061504 SEME560061506 SEME560061508 SEME560061510 SEME560061512 SEME560062004 SEME560062006 SEME560062008 SEME560062010 SEME560062012 SEME560063004 SEME560063006 SEME560063008 SEME560063010 SEME560063012 SEME560080504 SEME560080506 SEME560080508 SEME560080510 SEME560080512 SEME560080516 SEME560081004 SEME560081006 SEME560081008 SEME560081010 SEME560081012 SEME560081016 SEME560081504 SEME560081506 SEME560081508 SEME560081510 SEME560081512 SEME560081516 SEME560082004 SEME560082006 SEME560082008 SEME560082010 SEME560082012 SEME560082016 SEME560083004 SEME560083006 SEME560083008 SEME560083010 SEME560083012 SEME560083016 SEME560100506 SEME560100508 SEME560100510 SEME560100512 SEME560100516 SEME560100520 SEME560100525 SEME560100530 SEME560100540 SEME560100550 SEME560101006 SEME560101008 SEME560101010 SEME560101012 SEME560101016 SEME560101020 SEME560101025 SEME560101030 SEME560101040 SEME560101050 SEME560101506 SEME560101508 SEME560101510 SEME560101512 SEME560101516 SEME560101520 SEME560101525 SEME560101530 SEME560101540 SEME560101550 SEME560102006 SEME560102008 SEME560102010 SEME560102012 SEME560102016 SEME560102020 SEME560102025 SEME560102030 SEME560102040 SEME560102050 SEME560103006 SEME560103008 SEME560103010 SEME560103012 SEME560103016 SEME560103020 SEME560103025 SEME560103030 SEME560103040 SEME560103050 SEME560105030 SEME560120508 SEME560120512 SEME560120516 SEME560120520 SEME560120525 SEME560120530 SEME560121008 SEME560121012 SEME560121016 SEME560121020 SEME560121025 SEME560121030 SEME560121508 SEME560121512 SEME560121516 SEME560121520 SEME560121525 SEME560121530 SEME560122008 SEME560122012 SEME560122016 SEME560122020 SEME560122025 SEME560122030 SEME560123008 SEME560123012 SEME560123016 SEME560123020 SEME560123025 SEME560123030 SEME560150508 SEME560150510 SEME560150512 SEME560150516 SEME560150520 SEME560150525 SEME560150530 SEME560150540 SEME560150550 SEME560151008 SEME560151010 SEME560151012 SEME560151016 SEME560151020 SEME560151025 SEME560151030 SEME560151040 SEME560151050 SEME560151508 SEME560151510 SEME560151512 SEME560151516 SEME560151520 SEME560151525 SEME560151530 SEME560151540 SEME560151550 SEME560152008 SEME560152010 SEME560152012 SEME560152016 SEME560152020 SEME560152025 SEME560152030 SEME560152040 SEME560152050 SEME560153020 SEME560153030 SEME560153040 SEME560153050 SEME560155030 SEME560200510 SEME560200512 SEME560200516 SEME560200520 SEME560200525 SEME560200530 SEME560200540 SEME560200550 SEME560200560 SEME560200580 SEME560201010 SEME560201012 SEME560201016 SEME560201020 SEME560201025 SEME560201030 SEME560201040 SEME560201050 SEME560201060 SEME560201080 SEME560201510 SEME560201512 SEME560201516 SEME560201520 SEME560201525 SEME560201530 SEME560201540 SEME560201550 SEME560201560 SEME560201580 SEME560202010 SEME560202012 SEME560202016 SEME560202020 SEME560202025 SEME560202030 SEME560202040 SEME560202050 SEME560202060 SEME560202080 SEME560203030 SEME560203040 SEME560203050 SEME560203060 SEME560203080 SEME560205030 SEME560205040 SEME560300516 SEME560300520 SEME560300530 SEME560300540 SEME560300550 SEME560300560 SEME560301016 SEME560301020 SEME560301030 SEME560301040 SEME560301050 SEME560301060 SEME560301070 SEME560301516 SEME560301520 SEME560301530 SEME560301540 SEME560301550 SEME560301560 SEME560302016 SEME560302020 SEME560302030 SEME560302040 SEME560302050 SEME560303030 SEME560303040 SEME560305030 SEME560305040 SEME560400540 SEME560400550 SEME560400560 SEME560400570 SEME560401040 SEME560401050 SEME560401060 SEME560401070 SEME560401540 SEME560401550 SEME560401560 SEME560401570 SEME560403050 SEME560405050 SEME560501060 SEME560501560 SEME560503040 SEME560601060 SEME560601090 SEME560601560 SEME560601590 SEME560602060 SEME560602090 SEME560603060 SEME560603090 SEME560801070 SEME560801570 SEME560802070 SEME560803070 SEME561001070 SEME561001080 SEME561001570 SEME561001580 SEME561002070 SEME561002080 SEME561003070 SEME561003080 SEME561201060 SEME561201080 SEME561201090 SEME561201560 SEME561201580 SEME561201590 SEME561202060 SEME561202080 SEME561202090 SEME561203060 SEME561203080 SEME561203090 SEME5600105005 SEME5600110005 SEME5600115005 SEME5600120005 SEME5600130005 SEME5608010100 SEME5608015100 SEME5608020100 SEME5608030100 SEME5610010100 SEME5610015100 SEME5610020100 SEME5610030100 SEME5612010100 SEME5612015100 SEME5612020100 SEME5612030100

Specifications

Flutes 2
Helix Angle 30°
Cutting Edge Shape BALL NOSE
Size Min R0.05
Size Max R6.0
Length Extended Neck
Coating Y-Coating



Product Data
Workpiece Material P K H
Corner Radius Tolerance 0.005, 0.01
Hardened Steels(HRc40~45) Excellent
Helix Angle Square 30
No. Flutes 2
Operation Profiling, Side Milling, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add 4G MILL 2 Flute 30°Helix Taper Neck Ball End Mill (SEME56) to comparison

View Comparison
EDP No. Mill Diameter (D1) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME560010501 0.1 0~-0.012 h5 2 SEME560011001 0.1 0~-0.012 h5 2 SEME560011501 0.1 0~-0.012 h5 2 SEME560012001 0.1 0~-0.012 h5 2 SEME560013001 0.1 0~-0.012 h5 2 SEME560020501 0.2 0~-0.012 h5 2 SEME560020502 0.2 0~-0.012 h5 2 SEME560020503 0.2 0~-0.012 h5 2 SEME560021001 0.2 0~-0.012 h5 2 SEME560021002 0.2 0~-0.012 h5 2 SEME560021003 0.2 0~-0.012 h5 2 SEME560021501 0.2 0~-0.012 h5 2 SEME560021502 0.2 0~-0.012 h5 2 SEME560021503 0.2 0~-0.012 h5 2 SEME560022001 0.2 0~-0.012 h5 2 SEME560022002 0.2 0~-0.012 h5 2 SEME560022003 0.2 0~-0.012 h5 2 SEME560023001 0.2 0~-0.012 h5 2 SEME560023002 0.2 0~-0.012 h5 2 SEME560023003 0.2 0~-0.012 h5 2 SEME560025002 0.2 0~-0.012 h5 2 SEME560025003 0.2 0~-0.012 h5 2 SEME560030502 0.3 0~-0.012 h5 2 SEME560030503 0.3 0~-0.012 h5 2 SEME560030504 0.3 0~-0.012 h5 2 SEME560030505 0.3 0~-0.012 h5 2 SEME560031002 0.3 0~-0.012 h5 2 SEME560031003 0.3 0~-0.012 h5 2 SEME560031004 0.3 0~-0.012 h5 2 SEME560031005 0.3 0~-0.012 h5 2 SEME560031502 0.3 0~-0.012 h5 2 SEME560031503 0.3 0~-0.012 h5 2 SEME560031504 0.3 0~-0.012 h5 2 SEME560031505 0.3 0~-0.012 h5 2 SEME560032002 0.3 0~-0.012 h5 2 SEME560032003 0.3 0~-0.012 h5 2 SEME560032004 0.3 0~-0.012 h5 2 SEME560032005 0.3 0~-0.012 h5 2 SEME560033002 0.3 0~-0.012 h5 2 SEME560033003 0.3 0~-0.012 h5 2 SEME560033004 0.3 0~-0.012 h5 2 SEME560033005 0.3 0~-0.012 h5 2 SEME560035005 0.3 0~-0.012 h5 2 SEME560040502 0.4 0~-0.012 h5 2 SEME560040503 0.4 0~-0.012 h5 2 SEME560040504 0.4 0~-0.012 h5 2 SEME560040505 0.4 0~-0.012 h5 2 SEME560040506 0.4 0~-0.012 h5 2 SEME560041002 0.4 0~-0.012 h5 2 SEME560041003 0.4 0~-0.012 h5 2 SEME560041004 0.4 0~-0.012 h5 2 SEME560041005 0.4 0~-0.012 h5 2 SEME560041006 0.4 0~-0.012 h5 2 SEME560041502 0.4 0~-0.012 h5 2 SEME560041503 0.4 0~-0.012 h5 2 SEME560041504 0.4 0~-0.012 h5 2 SEME560041505 0.4 0~-0.012 h5 2 SEME560041506 0.4 0~-0.012 h5 2 SEME560042002 0.4 0~-0.012 h5 2 SEME560042003 0.4 0~-0.012 h5 2 SEME560042004 0.4 0~-0.012 h5 2 SEME560042005 0.4 0~-0.012 h5 2 SEME560042006 0.4 0~-0.012 h5 2 SEME560043002 0.4 0~-0.012 h5 2 SEME560043003 0.4 0~-0.012 h5 2 SEME560043004 0.4 0~-0.012 h5 2 SEME560043005 0.4 0~-0.012 h5 2 SEME560043006 0.4 0~-0.012 h5 2 SEME560045004 0.4 0~-0.012 h5 2 SEME560045006 0.4 0~-0.012 h5 2 SEME560050504 0.5 0~-0.012 h5 2 SEME560050506 0.5 0~-0.012 h5 2 SEME560050508 0.5 0~-0.012 h5 2 SEME560050510 0.5 0~-0.012 h5 2 SEME560051004 0.5 0~-0.012 h5 2 SEME560051006 0.5 0~-0.012 h5 2 SEME560051008 0.5 0~-0.012 h5 2 SEME560051010 0.5 0~-0.012 h5 2 SEME560051504 0.5 0~-0.012 h5 2 SEME560051506 0.5 0~-0.012 h5 2 SEME560051508 0.5 0~-0.012 h5 2 SEME560051510 0.5 0~-0.012 h5 2 SEME560052004 0.5 0~-0.012 h5 2 SEME560052006 0.5 0~-0.012 h5 2 SEME560052008 0.5 0~-0.012 h5 2 SEME560052010 0.5 0~-0.012 h5 2 SEME560053004 0.5 0~-0.012 h5 2 SEME560053006 0.5 0~-0.012 h5 2 SEME560053008 0.5 0~-0.012 h5 2 SEME560053010 0.5 0~-0.012 h5 2 SEME560060504 0.6 0~-0.012 h5 2 SEME560060506 0.6 0~-0.012 h5 2 SEME560060508 0.6 0~-0.012 h5 2 SEME560060510 0.6 0~-0.012 h5 2 SEME560060512 0.6 0~-0.012 h5 2 SEME560061004 0.6 0~-0.012 h5 2 SEME560061006 0.6 0~-0.012 h5 2 SEME560061008 0.6 0~-0.012 h5 2 SEME560061010 0.6 0~-0.012 h5 2 SEME560061012 0.6 0~-0.012 h5 2 SEME560061504 0.6 0~-0.012 h5 2 SEME560061506 0.6 0~-0.012 h5 2 SEME560061508 0.6 0~-0.012 h5 2 SEME560061510 0.6 0~-0.012 h5 2 SEME560061512 0.6 0~-0.012 h5 2 SEME560062004 0.6 0~-0.012 h5 2 SEME560062006 0.6 0~-0.012 h5 2 SEME560062008 0.6 0~-0.012 h5 2 SEME560062010 0.6 0~-0.012 h5 2 SEME560062012 0.6 0~-0.012 h5 2 SEME560063004 0.6 0~-0.012 h5 2 SEME560063006 0.6 0~-0.012 h5 2 SEME560063008 0.6 0~-0.012 h5 2 SEME560063010 0.6 0~-0.012 h5 2 SEME560063012 0.6 0~-0.012 h5 2 SEME560080504 0.8 0~-0.012 h5 2 SEME560080506 0.8 0~-0.012 h5 2 SEME560080508 0.8 0~-0.012 h5 2 SEME560080510 0.8 0~-0.012 h5 2 SEME560080512 0.8 0~-0.012 h5 2 SEME560080516 0.8 0~-0.012 h5 2 SEME560081004 0.8 0~-0.012 h5 2 SEME560081006 0.8 0~-0.012 h5 2 SEME560081008 0.8 0~-0.012 h5 2 SEME560081010 0.8 0~-0.012 h5 2 SEME560081012 0.8 0~-0.012 h5 2 SEME560081016 0.8 0~-0.012 h5 2 SEME560081504 0.8 0~-0.012 h5 2 SEME560081506 0.8 0~-0.012 h5 2 SEME560081508 0.8 0~-0.012 h5 2 SEME560081510 0.8 0~-0.012 h5 2 SEME560081512 0.8 0~-0.012 h5 2 SEME560081516 0.8 0~-0.012 h5 2 SEME560082004 0.8 0~-0.012 h5 2 SEME560082006 0.8 0~-0.012 h5 2 SEME560082008 0.8 0~-0.012 h5 2 SEME560082010 0.8 0~-0.012 h5 2 SEME560082012 0.8 0~-0.012 h5 2 SEME560082016 0.8 0~-0.012 h5 2 SEME560083004 0.8 0~-0.012 h5 2 SEME560083006 0.8 0~-0.012 h5 2 SEME560083008 0.8 0~-0.012 h5 2 SEME560083010 0.8 0~-0.012 h5 2 SEME560083012 0.8 0~-0.012 h5 2 SEME560083016 0.8 0~-0.012 h5 2 SEME560100506 1 0~-0.012 h5 2 SEME560100508 1 0~-0.012 h5 2 SEME560100510 1 0~-0.012 h5 2 SEME560100512 1 0~-0.012 h5 2 SEME560100516 1 0~-0.012 h5 2 SEME560100520 1 0~-0.012 h5 2 SEME560100525 1 0~-0.012 h5 2 SEME560100530 1 0~-0.012 h5 2 SEME560100540 1 0~-0.012 h5 2 SEME560100550 1 0~-0.012 h5 2 SEME560101006 1 0~-0.012 h5 2 SEME560101008 1 0~-0.012 h5 2 SEME560101010 1 0~-0.012 h5 2 SEME560101012 1 0~-0.012 h5 2 SEME560101016 1 0~-0.012 h5 2 SEME560101020 1 0~-0.012 h5 2 SEME560101025 1 0~-0.012 h5 2 SEME560101030 1 0~-0.012 h5 2 SEME560101040 1 0~-0.012 h5 2 SEME560101050 1 0~-0.012 h5 2 SEME560101506 1 0~-0.012 h5 2 SEME560101508 1 0~-0.012 h5 2 SEME560101510 1 0~-0.012 h5 2 SEME560101512 1 0~-0.012 h5 2 SEME560101516 1 0~-0.012 h5 2 SEME560101520 1 0~-0.012 h5 2 SEME560101525 1 0~-0.012 h5 2 SEME560101530 1 0~-0.012 h5 2 SEME560101540 1 0~-0.012 h5 2 SEME560101550 1 0~-0.012 h5 2 SEME560102006 1 0~-0.012 h5 2 SEME560102008 1 0~-0.012 h5 2 SEME560102010 1 0~-0.012 h5 2 SEME560102012 1 0~-0.012 h5 2 SEME560102016 1 0~-0.012 h5 2 SEME560102020 1 0~-0.012 h5 2 SEME560102025 1 0~-0.012 h5 2 SEME560102030 1 0~-0.012 h5 2 SEME560102040 1 0~-0.012 h5 2 SEME560102050 1 0~-0.012 h5 2 SEME560103006 1 0~-0.012 h5 2 SEME560103008 1 0~-0.012 h5 2 SEME560103010 1 0~-0.012 h5 2 SEME560103012 1 0~-0.012 h5 2 SEME560103016 1 0~-0.012 h5 2 SEME560103020 1 0~-0.012 h5 2 SEME560103025 1 0~-0.012 h5 2 SEME560103030 1 0~-0.012 h5 2 SEME560103040 1 0~-0.012 h5 2 SEME560103050 1 0~-0.012 h5 2 SEME560105030 1 0~-0.012 h5 2 SEME560120508 1.2 0~-0.012 h5 2 SEME560120512 1.2 0~-0.012 h5 2 SEME560120516 1.2 0~-0.012 h5 2 SEME560120520 1.2 0~-0.012 h5 2 SEME560120525 1.2 0~-0.012 h5 2 SEME560120530 1.2 0~-0.012 h5 2 SEME560121008 1.2 0~-0.012 h5 2 SEME560121012 1.2 0~-0.012 h5 2 SEME560121016 1.2 0~-0.012 h5 2 SEME560121020 1.2 0~-0.012 h5 2 SEME560121025 1.2 0~-0.012 h5 2 SEME560121030 1.2 0~-0.012 h5 2 SEME560121508 1.2 0~-0.012 h5 2 SEME560121512 1.2 0~-0.012 h5 2 SEME560121516 1.2 0~-0.012 h5 2 SEME560121520 1.2 0~-0.012 h5 2 SEME560121525 1.2 0~-0.012 h5 2 SEME560121530 1.2 0~-0.012 h5 2 SEME560122008 1.2 0~-0.012 h5 2 SEME560122012 1.2 0~-0.012 h5 2 SEME560122016 1.2 0~-0.012 h5 2 SEME560122020 1.2 0~-0.012 h5 2 SEME560122025 1.2 0~-0.012 h5 2 SEME560122030 1.2 0~-0.012 h5 2 SEME560123008 1.2 0~-0.012 h5 2 SEME560123012 1.2 0~-0.012 h5 2 SEME560123016 1.2 0~-0.012 h5 2 SEME560123020 1.2 0~-0.012 h5 2 SEME560123025 1.2 0~-0.012 h5 2 SEME560123030 1.2 0~-0.012 h5 2 SEME560150508 1.5 0~-0.012 h5 2 SEME560150510 1.5 0~-0.012 h5 2 SEME560150512 1.5 0~-0.012 h5 2 SEME560150516 1.5 0~-0.012 h5 2 SEME560150520 1.5 0~-0.012 h5 2 SEME560150525 1.5 0~-0.012 h5 2 SEME560150530 1.5 0~-0.012 h5 2 SEME560150540 1.5 0~-0.012 h5 2 SEME560150550 1.5 0~-0.012 h5 2 SEME560151008 1.5 0~-0.012 h5 2 SEME560151010 1.5 0~-0.012 h5 2 SEME560151012 1.5 0~-0.012 h5 2 SEME560151016 1.5 0~-0.012 h5 2 SEME560151020 1.5 0~-0.012 h5 2 SEME560151025 1.5 0~-0.012 h5 2 SEME560151030 1.5 0~-0.012 h5 2 SEME560151040 1.5 0~-0.012 h5 2 SEME560151050 1.5 0~-0.012 h5 2 SEME560151508 1.5 0~-0.012 h5 2 SEME560151510 1.5 0~-0.012 h5 2 SEME560151512 1.5 0~-0.012 h5 2 SEME560151516 1.5 0~-0.012 h5 2 SEME560151520 1.5 0~-0.012 h5 2 SEME560151525 1.5 0~-0.012 h5 2 SEME560151530 1.5 0~-0.012 h5 2 SEME560151540 1.5 0~-0.012 h5 2 SEME560151550 1.5 0~-0.012 h5 2 SEME560152008 1.5 0~-0.012 h5 2 SEME560152010 1.5 0~-0.012 h5 2 SEME560152012 1.5 0~-0.012 h5 2 SEME560152016 1.5 0~-0.012 h5 2 SEME560152020 1.5 0~-0.012 h5 2 SEME560152025 1.5 0~-0.012 h5 2 SEME560152030 1.5 0~-0.012 h5 2 SEME560152040 1.5 0~-0.012 h5 2 SEME560152050 1.5 0~-0.012 h5 2 SEME560153020 1.5 0~-0.012 h5 2 SEME560153030 1.5 0~-0.012 h5 2 SEME560153040 1.5 0~-0.012 h5 2 SEME560153050 1.5 0~-0.012 h5 2 SEME560155030 1.5 0~-0.012 h5 2 SEME560200510 2 0~-0.012 h5 2 SEME560200512 2 0~-0.012 h5 2 SEME560200516 2 0~-0.012 h5 2 SEME560200520 2 0~-0.012 h5 2 SEME560200525 2 0~-0.012 h5 2 SEME560200530 2 0~-0.012 h5 2 SEME560200540 2 0~-0.012 h5 2 SEME560200550 2 0~-0.012 h5 2 SEME560200560 2 0~-0.012 h5 2 SEME560200580 2 0~-0.012 h5 2 SEME560201010 2 0~-0.012 h5 2 SEME560201012 2 0~-0.012 h5 2 SEME560201016 2 0~-0.012 h5 2 SEME560201020 2 0~-0.012 h5 2 SEME560201025 2 0~-0.012 h5 2 SEME560201030 2 0~-0.012 h5 2 SEME560201040 2 0~-0.012 h5 2 SEME560201050 2 0~-0.012 h5 2 SEME560201060 2 0~-0.012 h5 2 SEME560201080 2 0~-0.012 h5 2 SEME560201510 2 0~-0.012 h5 2 SEME560201512 2 0~-0.012 h5 2 SEME560201516 2 0~-0.012 h5 2 SEME560201520 2 0~-0.012 h5 2 SEME560201525 2 0~-0.012 h5 2 SEME560201530 2 0~-0.012 h5 2 SEME560201540 2 0~-0.012 h5 2 SEME560201550 2 0~-0.012 h5 2 SEME560201560 2 0~-0.012 h5 2 SEME560201580 2 0~-0.012 h5 2 SEME560202010 2 0~-0.012 h5 2 SEME560202012 2 0~-0.012 h5 2 SEME560202016 2 0~-0.012 h5 2 SEME560202020 2 0~-0.012 h5 2 SEME560202025 2 0~-0.012 h5 2 SEME560202030 2 0~-0.012 h5 2 SEME560202040 2 0~-0.012 h5 2 SEME560202050 2 0~-0.012 h5 2 SEME560202060 2 0~-0.012 h5 2 SEME560202080 2 0~-0.012 h5 2 SEME560203030 2 0~-0.012 h5 2 SEME560203040 2 0~-0.012 h5 2 SEME560203050 2 0~-0.012 h5 2 SEME560203060 2 0~-0.012 h5 2 SEME560203080 2 0~-0.012 h5 2 SEME560205030 2 0~-0.012 h5 2 SEME560205040 2 0~-0.012 h5 2 SEME560300516 3 0~-0.012 h5 2 SEME560300520 3 0~-0.012 h5 2 SEME560300530 3 0~-0.012 h5 2 SEME560300540 3 0~-0.012 h5 2 SEME560300550 3 0~-0.012 h5 2 SEME560300560 3 0~-0.012 h5 2 SEME560301016 3 0~-0.012 h5 2 SEME560301020 3 0~-0.012 h5 2 SEME560301030 3 0~-0.012 h5 2 SEME560301040 3 0~-0.012 h5 2 SEME560301050 3 0~-0.012 h5 2 SEME560301060 3 0~-0.012 h5 2 SEME560301070 3 0~-0.012 h5 2 SEME560301516 3 0~-0.012 h5 2 SEME560301520 3 0~-0.012 h5 2 SEME560301530 3 0~-0.012 h5 2 SEME560301540 3 0~-0.012 h5 2 SEME560301550 3 0~-0.012 h5 2 SEME560301560 3 0~-0.012 h5 2 SEME560302016 3 0~-0.012 h5 2 SEME560302020 3 0~-0.012 h5 2 SEME560302030 3 0~-0.012 h5 2 SEME560302040 3 0~-0.012 h5 2 SEME560302050 3 0~-0.012 h5 2 SEME560303030 3 0~-0.012 h5 2 SEME560303040 3 0~-0.012 h5 2 SEME560305030 3 0~-0.012 h5 2 SEME560305040 3 0~-0.012 h5 2 SEME560400540 4 0~-0.012 h5 2 SEME560400550 4 0~-0.012 h5 2 SEME560400560 4 0~-0.012 h5 2 SEME560400570 4 0~-0.012 h5 2 SEME560401040 4 0~-0.012 h5 2 SEME560401050 4 0~-0.012 h5 2 SEME560401060 4 0~-0.012 h5 2 SEME560401070 4 0~-0.012 h5 2 SEME560401540 4 0~-0.012 h5 2 SEME560401550 4 0~-0.012 h5 2 SEME560401560 4 0~-0.012 h5 2 SEME560401570 4 0~-0.012 h5 2 SEME560403050 4 0~-0.012 h5 2 SEME560405050 4 0~-0.012 h5 2 SEME560501060 5 0~-0.012 h5 2 SEME560501560 5 0~-0.012 h5 2 SEME560503040 5 0~-0.012 h5 2 SEME560601060 6 0~-0.012 h5 2 SEME560601090 6 0~-0.012 h5 2 SEME560601560 6 0~-0.012 h5 2 SEME560601590 6 0~-0.012 h5 2 SEME560602060 6 0~-0.012 h5 2 SEME560602090 6 0~-0.012 h5 2 SEME560603060 6 0~-0.012 h5 2 SEME560603090 6 0~-0.012 h5 2 SEME560801070 8 0~-0.015 h5 2 SEME560801570 8 0~-0.015 h5 2 SEME560802070 8 0~-0.015 h5 2 SEME560803070 8 0~-0.015 h5 2 SEME561001070 10 0~-0.015 h5 2 SEME561001080 10 0~-0.015 h5 2 SEME561001570 10 0~-0.015 h5 2 SEME561001580 10 0~-0.015 h5 2 SEME561002070 10 0~-0.015 h5 2 SEME561002080 10 0~-0.015 h5 2 SEME561003070 10 0~-0.015 h5 2 SEME561003080 10 0~-0.015 h5 2 SEME561201060 12 0~-0.015 h5 2 SEME561201080 12 0~-0.015 h5 2 SEME561201090 12 0~-0.015 h5 2 SEME561201560 12 0~-0.015 h5 2 SEME561201580 12 0~-0.015 h5 2 SEME561201590 12 0~-0.015 h5 2 SEME561202060 12 0~-0.015 h5 2 SEME561202080 12 0~-0.015 h5 2 SEME561202090 12 0~-0.015 h5 2 SEME561203060 12 0~-0.015 h5 2 SEME561203080 12 0~-0.015 h5 2 SEME561203090 12 0~-0.015 h5 2 SEME5600105005 0.1 0~-0.012 h5 2 SEME5600110005 0.1 0~-0.012 h5 2 SEME5600115005 0.1 0~-0.012 h5 2 SEME5600120005 0.1 0~-0.012 h5 2 SEME5600130005 0.1 0~-0.012 h5 2 SEME5608010100 8 0~-0.015 h5 2 SEME5608015100 8 0~-0.015 h5 2 SEME5608020100 8 0~-0.015 h5 2 SEME5608030100 8 0~-0.015 h5 2 SEME5610010100 10 0~-0.015 h5 2 SEME5610015100 10 0~-0.015 h5 2 SEME5610020100 10 0~-0.015 h5 2 SEME5610030100 10 0~-0.015 h5 2 SEME5612010100 12 0~-0.015 h5 2 SEME5612015100 12 0~-0.015 h5 2 SEME5612020100 12 0~-0.015 h5 2 SEME5612030100 12 0~-0.015 h5 2

Video

Operation

Profiling
Side Milling
Small Part

Work Material

P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Excellent

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
