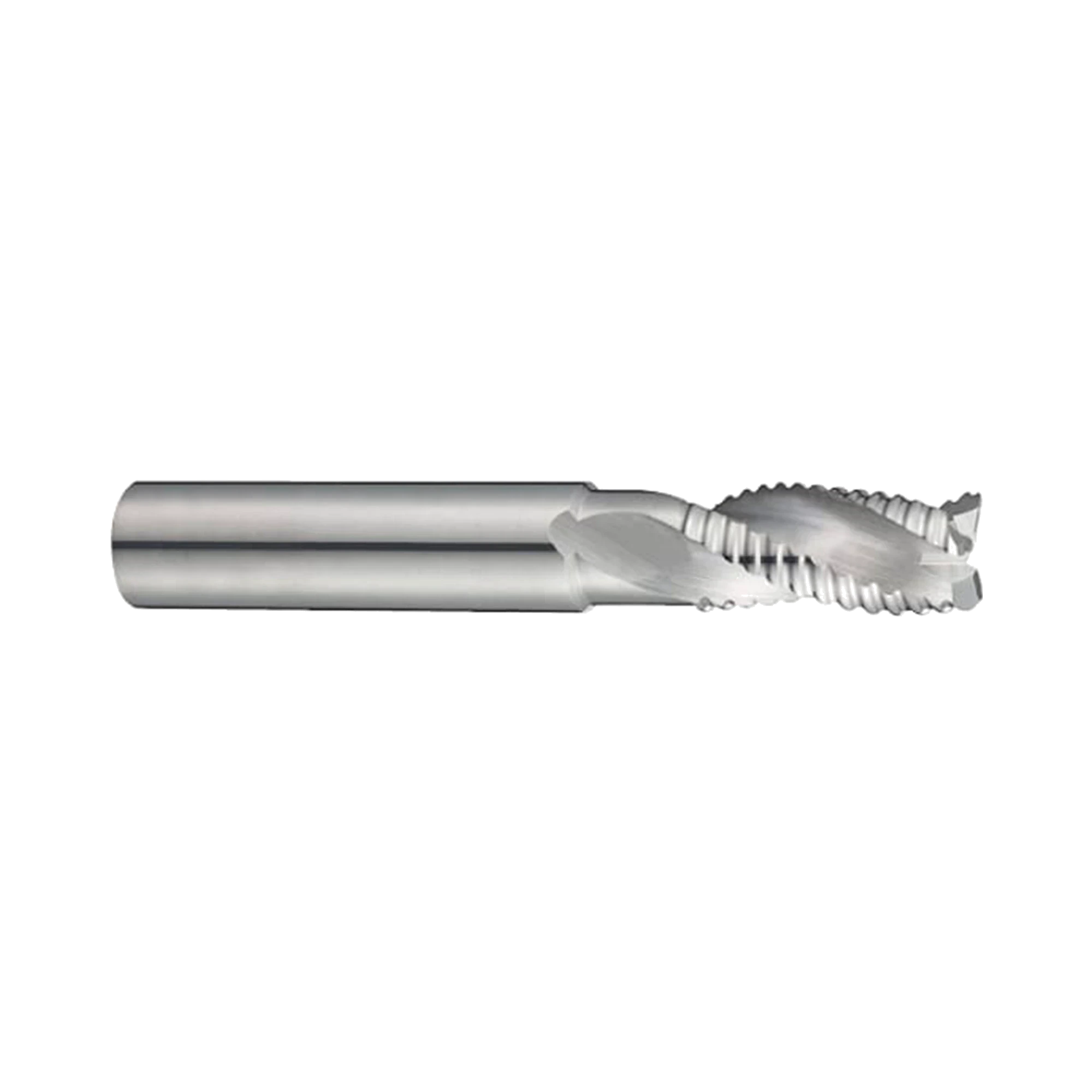

ALU-POWER 3 Flute 30°Helix Roughing End Mill With Neck (E5E39)
Code: E5E39060
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

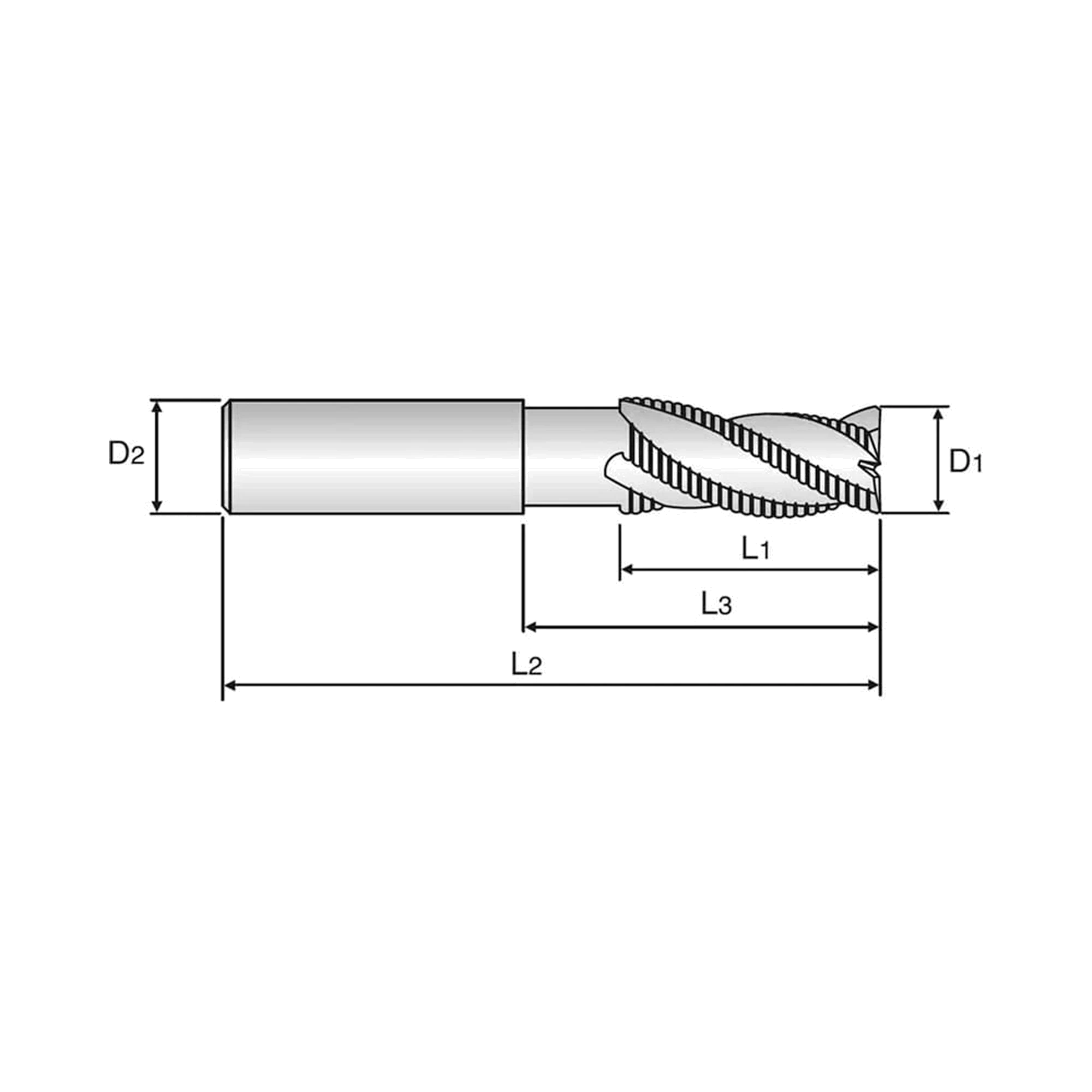

| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank diameter (mm) | Length of cut (mm) | Length below shank (mm) | Neck diameter (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E5E39060 | 6.0 | 0.6 | 57.0 | 6.0 | 16.0 | 20.0 | 5.0 | Quantity unavailable | $79.60 | ||
| E5E39080 | 8.0 | 0.6 | 63.0 | 8.0 | 16.0 | 25.0 | 7.0 | No stock | $84.10 | ||
| E5E39100 | 10.0 | 0.6 | 72.0 | 10.0 | 22.0 | 30.0 | 9.0 | No stock | $102.10 | ||
| E5E39120 | 12.0 | 0.6 | 83.0 | 12.0 | 26.0 | 36.0 | 10.5 | In stock | $130.40 | ||
| E5E39160 | 16.0 | 0.91 | 92.0 | 16.0 | 32.0 | 42.0 | 14.5 | Low stock | $218.10 | ||
| E5E39200 | 20.0 | 0.91 | 104.0 | 20.0 | 38.0 | 52.0 | 18.5 | Low stock | $345.50 |
Add ALU-POWER 3 Flute 30°Helix Roughing End Mill With Neck (E5E39) to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Speeds & Feeds
- Reviews
Product Description
The E5E39 series carbide Alu-Power rippers from YG-1 range from 6-20mm in diameter. These plain shank 3 flute rougher cutters have a reduced neck and an aluminium pitch to prevent built up edge. These are ideal for heavy metal removal on Aluminium and Non-Ferrous materials.
- Suitable for high speed machining of aluminium and other non-ferrous materials.
- Special geometries & lapped flutes ensures the best chip control and surface finish on aluminium.
- Reduced neck diameter for deep pocket machining.
- Deep flute pockets prevent swarf clogging up the tool.
- Aluminium pitch prevents built up edge.
- Micrograin Carbide Substrate.
- Sharp cutting edges with mirror finish machining.
- Ultra-high metal removal rates possible with WAVE-CUT.
Product Data
| Workpiece Material | P K N |
| Chamfer Angle | 45 |
| Cutting Shape | Roughing |
| Helix Angle | Square 30 |
| No. Flutes | 3 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Periphery Type | Roughing - Aluminium |
| Shank Type | 6535HA |
| Surface Treatment | Uncoated |
| Tool Material | Carbide |
| Tool Standard | YG-1 Standard |
| Flutes | 3 |
| Helix Angle | 30° |
| Cutting Edge Shape | Roughing |
| Size Min | D3.0 |
| Size Max | D20.0 |
| Length | Neck |
| Coated | Uncoated |
Side Milling
Small Part
Slotting
Die Sinking
Facing
Carbon Steels
Great
Good
Great
Excellent
Alloy Steels
Great
Good
Great
Excellent
Cast Iron
Great
Good
Great
Excellent
Aluminium
Excellent
Good
Great
Excellent
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 6.0 | 254 | 0.168 | 13500 | 6800 |
| 8.0 | 264 | 0.168 | 10500 | 5300 |
| 10.0 | 267 | 0.169 | 8500 | 4300 |
| 12.0 | 320 | 0.165 | 8500 | 4200 |
| 16.0 | 322 | 0.167 | 6400 | 3200 |
| 20.0 | 320 | 0.163 | 5100 | 2500 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 6.0 | 198 | 0.168 | 10500 | 5300 |
| 8.0 | 201 | 0.167 | 8000 | 4000 |
| 10.0 | 204 | 0.179 | 6500 | 3500 |
| 12.0 | 241 | 0.167 | 6400 | 3200 |
| 16.0 | 241 | 0.167 | 4800 | 2400 |
| 20.0 | 242 | 0.165 | 3850 | 1900 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
