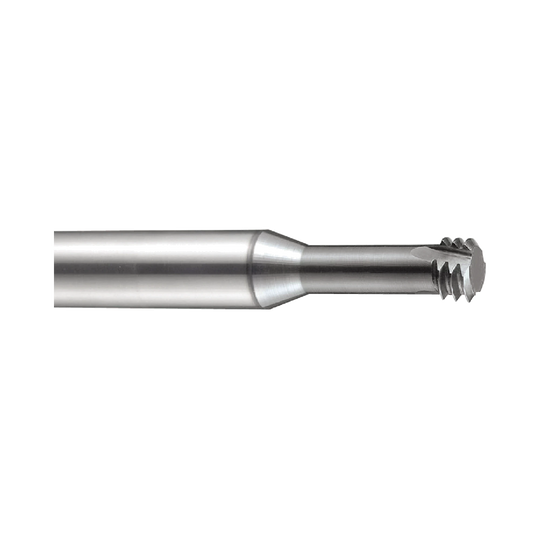

(L19E1) Carbide Miniature Metric Thread Mill for Hard Materials
AlTiN-Coated Short-Flute Metric Cutting
Loading 3D model…
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Flutes | CAD files | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L19E1130 | M2 | 0.4 | 0.8 | 57.0 | 4.2 | 6.0 | 4 | STEPDXF | 1-2 Weeks | $185.60 | ||
| L19E1150 | M2.2 | 0.45 | 0.9 | 57.0 | 4.6 | 6.0 | 4 | STEPDXF | 1-2 Weeks | $263.70 | ||
| L19E1170 | M2.5 | 0.45 | 0.9 | 57.0 | 5.3 | 6.0 | 4 | STEPDXF | 1-2 Weeks | $263.70 | ||
| L19E1200 | M3 | 0.5 | 1.0 | 57.0 | 6.3 | 6.0 | 4 | STEPDXF | 1-2 Weeks | $263.70 | ||
| L19E1240 | M4 | 0.7 | 1.4 | 57.0 | 8.4 | 6.0 | 4 | STEPDXF | 1-2 Weeks | $263.70 | ||
| L19E1280 | M5 | 0.8 | 1.6 | 57.0 | 10.5 | 6.0 | 4 | STEPDXF | 1-2 Weeks | $185.60 | ||
| L19E1310 | M6 | 1.0 | 2.0 | 57.0 | 12.6 | 6.0 | 5 | STEPDXF | Low stock | $185.60 | ||
| L19E1360 | M8 | 1.25 | 2.5 | 63.0 | 16.8 | 8.0 | 5 | STEPDXF | Low stock | $250.70 | ||
| L19E1420 | M10 | 1.5 | 3.0 | 73.0 | 21.0 | 10.0 | 6 | STEPDXF | Low stock | $318.10 | ||
| L19E1500 | M12 | 1.75 | 3.5 | 73.0 | 25.2 | 10.0 | 6 | STEPDXF | 1-2 Weeks | $453.30 |
Add (L19E1) Carbide Miniature Metric Thread Mill for Hard Materials to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Reviews
- Left hand Cut (CNC code : M04)
- Short thread length
- Straight Flute
- The work direction is from top to bottom (Climb Milling)
- For Internal Thread
- Thread Depth : 2.0 x D Max.
| Workpiece Material | P M K S H |
| Operation | Blind Drilling, Through Drilling |
| Shank Type | 6535HA |
| Surface Treatment | Aluminium Titanium Nitride Coating |
| Thread Angle | 60 |
| Thread Shape | M |
| Tool Material | Carbide |
Work materials
VDI 3323 recommendations for this tool.
Steel
6 gradesCast iron
6 gradesHardened materials
4 gradesStainless steel
3 gradesSuperalloys & titanium
7 gradesVDI grade reference26 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 6 | PLow-alloy steel | Good | 180 | 10 |
| 7 | PLow-alloy steel | Good | 275 | 29 |
| 8 | PLow-alloy steel | Good | 300 | 32 |
| 9 | PLow-alloy steel | Good | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Good | 200 | 15 |
| 11 | PHigh-alloy and tool steel | Good | 325 | 35 |
| 12 | MStainless steel | Good | 200 | 15 |
| 13 | MStainless steel | Good | 240 | 23 |
| 14 | MStainless steel | Good | 180 | 10 |
| 15 | KGrey cast iron | Excellent | 180 | 10 |
| 16 | KGrey cast iron | Excellent | 260 | 26 |
| 17 | KNodular cast iron | Excellent | 160 | 3 |
| 18 | KNodular cast iron | Excellent | 250 | 25 |
| 19 | KMalleable cast iron | Excellent | 130 | - |
| 20 | KMalleable cast iron | Excellent | 230 | 21 |
| 31 | SHeat-resistant superalloys | Excellent | 200 | 15 |
| 32 | SHeat-resistant superalloys | Excellent | 280 | 30 |
| 33 | SHeat-resistant superalloys | Excellent | 250 | 25 |
| 34 | SHeat-resistant superalloys | Excellent | 350 | 38 |
| 35 | SHeat-resistant superalloys | Excellent | 320 | 34 |
| 36 | STitanium alloys | Good | - | - |
| 37 | STitanium alloys | Good | - | - |
| 38 | HHardened steel | Excellent | 550 | 55 |
| 39 | HHardened steel | Excellent | 630 | 60 |
| 40 | HChilled cast iron | Excellent | 400 | 42 |
| 41 | HHardened cast iron | Excellent | 550 | 55 |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
